> fused and relayed front electricals
90quattrocoupe
post Dec 15 2019, 11:54 AM
Post #1


Member
**

Group: Members
Posts: 208
Joined: 4-November 16
From: Long Beach, CA.
Member No.: 20,561
Region Association: Southern California
So my car is up at PMB performance for a little work. I am not much of an electrical type person, when it comes to cars. So I asked them to install fuses and relays for the headlights, fogs and horns. You know, switches getting a little old and don't want to put undo stress on them.
This is a picture of where they installed them. I think they did a nice job.
The fuse box is a BLUE SEA SYSTEMS–ST Blade Compact 4-Circuit Fuse Block
The relay box is a HELLA H84988001 4-Way Mini Relay Box Kit

Greg W.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i.imgur.com-20561-1576432754.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Dec 15 2019, 03:29 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,370
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States

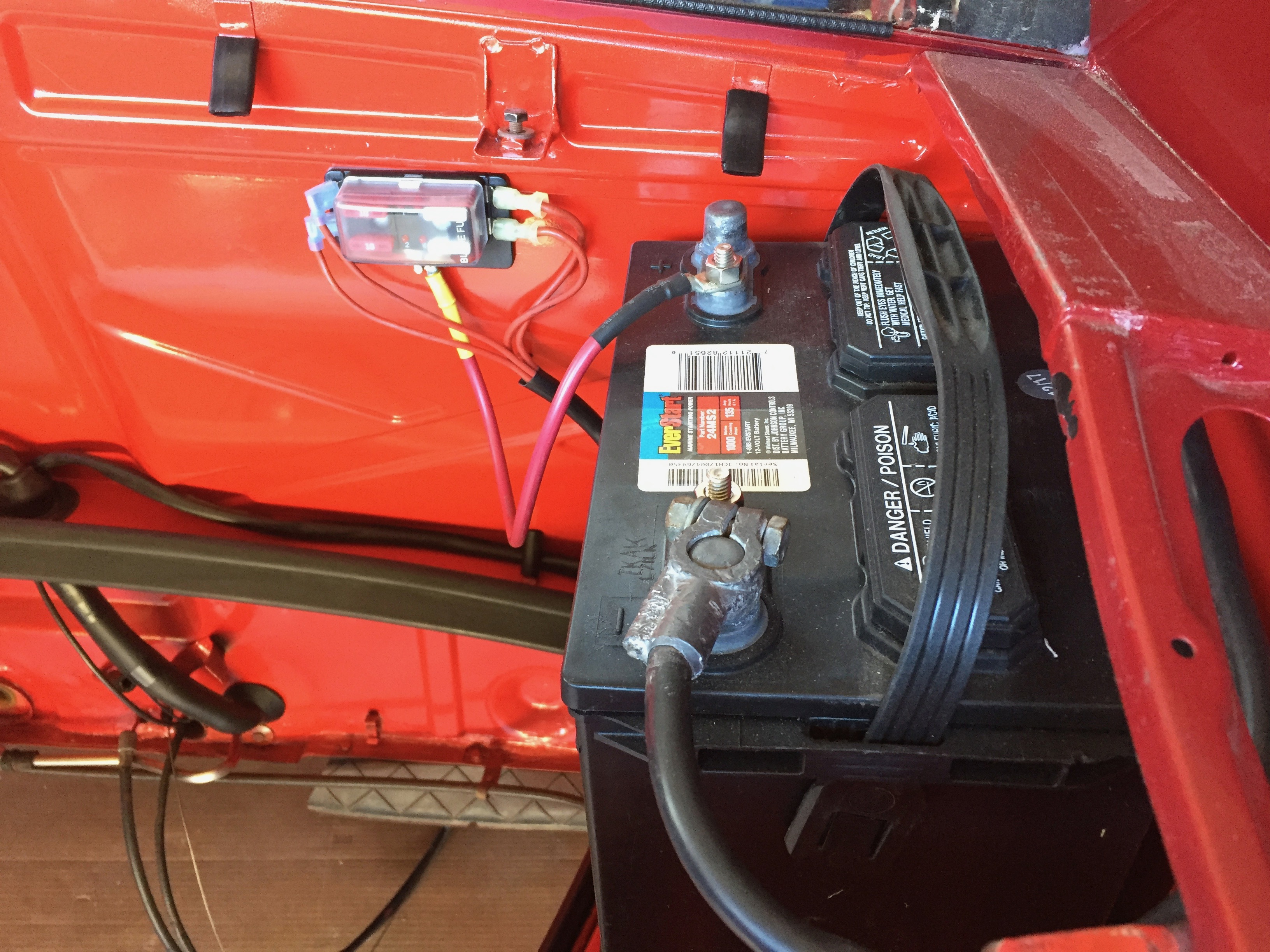

I did a similar thing with the 4 un-fuzed positive wires at the battery.
I'd installed a new to me wiring harness and wanted to make sure everything was hooked up properly. i'd hate to have some burned up wires after all that work.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Dec 15 2019, 05:26 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,054
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
IMHO & if you have a choice, fuses are best placed before all the wiring that provides the power. The basic fuse panel under the dash or close to the battery is actually the safest way to go. Fuses at the battery are the best.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Dec 15 2019, 08:17 PM
Post #4


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,240
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
That firewall setup is slick.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
90quattrocoupe
post Dec 16 2019, 01:24 PM
Post #5


Member
**

Group: Members
Posts: 208
Joined: 4-November 16
From: Long Beach, CA.
Member No.: 20,561
Region Association: Southern California
QUOTE(windforfun @ Dec 15 2019, 03:26 PM) *

IMHO & if you have a choice, fuses are best placed before all the wiring that provides the power. The basic fuse panel under the dash or close to the battery is actually the safest way to go. Fuses at the battery are the best.


Unless I am mistaken, the fuses do come in before providing power. The hot lead is at the bottom of the fuse box, through fuses with, leads providing power to the relays. The switches at the dash are just switching the relays on and off.

Greg W.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lierofox
post Dec 16 2019, 06:32 PM
Post #6


Member
**

Group: Members
Posts: 256
Joined: 23-June 15
From: Paso Robles, CA
Member No.: 18,880
Region Association: Southern California
QUOTE(90quattrocoupe @ Dec 16 2019, 11:24 AM) *

Unless I am mistaken, the fuses do come in before providing power. The hot lead is at the bottom of the fuse box, through fuses with, leads providing power to the relays. The switches at the dash are just switching the relays on and off.

Greg W.


There's a set of wires that are un-fused for a considerable distance, one set goes to the engine bay relay board, one going to the under-dash fuse panel to fuses 10, 11 and 12, and one going to the ignition switch. So if any of those wires chafe and short to ground, there's no protection of any kind.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
90quattrocoupe
post Dec 17 2019, 06:49 PM
Post #7


Member
**

Group: Members
Posts: 208
Joined: 4-November 16
From: Long Beach, CA.
Member No.: 20,561
Region Association: Southern California
QUOTE(lierofox @ Dec 16 2019, 04:32 PM) *

QUOTE(90quattrocoupe @ Dec 16 2019, 11:24 AM) *

Unless I am mistaken, the fuses do come in before providing power. The hot lead is at the bottom of the fuse box, through fuses with, leads providing power to the relays. The switches at the dash are just switching the relays on and off.

Greg W.


There's a set of wires that are un-fused for a considerable distance, one set goes to the engine bay relay board, one going to the under-dash fuse panel to fuses 10, 11 and 12, and one going to the ignition switch. So if any of those wires chafe and short to ground, there's no protection of any kind.



Understood, I thought you were talking about the picture in the original post.

Greg W.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnorm
post Jan 20 2020, 08:01 PM
Post #8


Newbie
*

Group: Members
Posts: 28
Joined: 28-October 18
From: Canada
Member No.: 22,610
Region Association: Canada
QUOTE(barefoot @ Dec 15 2019, 02:29 PM) *

I did a similar thing with the 4 un-fuzed positive wires at the battery.
I'd installed a new to me wiring harness and wanted to make sure everything was hooked up properly. i'd hate to have some burned up wires after all that work.

Attached Image


What size wire did you use from the Battery to the Fuse box, what size of fuse and I assume the four wires from the fuse box are 10/12 gauge wire?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Jan 21 2020, 08:40 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,370
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
QUOTE(johnorm @ Jan 20 2020, 09:01 PM) *

QUOTE(barefoot @ Dec 15 2019, 02:29 PM) *

I did a similar thing with the 4 un-fuzed positive wires at the battery.
I'd installed a new to me wiring harness and wanted to make sure everything was hooked up properly. i'd hate to have some burned up wires after all that work.



What size wire did you use from the Battery to the Fuse box, what size of fuse and I assume the four wires from the fuse box are 10/12 gauge wire?


Not sure of the wire gage, but it measures .285" over the insulation.
It's some leftover I had from a marine project.
