| ClayPerrine |
 Jan 10 2020, 08:50 AM
Post
#41
|
|
Life's been good to me so far.....  Group: Admin Posts: 15,410 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
 |
QUOTE(Larmo63 @ Jan 9 2020, 09:01 PM)  Shudder..... The only thing missing from that mess is scotchlocks.... |
   |

|
| Tdskip |
Jan 10 2020, 09:20 AM
Post
#42
|
|
Advanced Member Group: Members Posts: 3,684 Joined: 1-December 17 From: soCal Member No.: 21,666 Region Association: None
|
QUOTE(ClayPerrine @ Jan 10 2020, 09:50 AM) QUOTE(Larmo63 @ Jan 9 2020, 09:01 PM) Shudder..... The only thing missing from that mess is scotchlocks.... That looks like my aka turbo car. |
|
|
|
| mlindner |
Jan 10 2020, 02:09 PM
Post
#43
|
|
Senior Member Group: Members Posts: 1,511 Joined: 11-November 11 From: Merrimac, WI Member No.: 13,770 Region Association: Upper MidWest
|

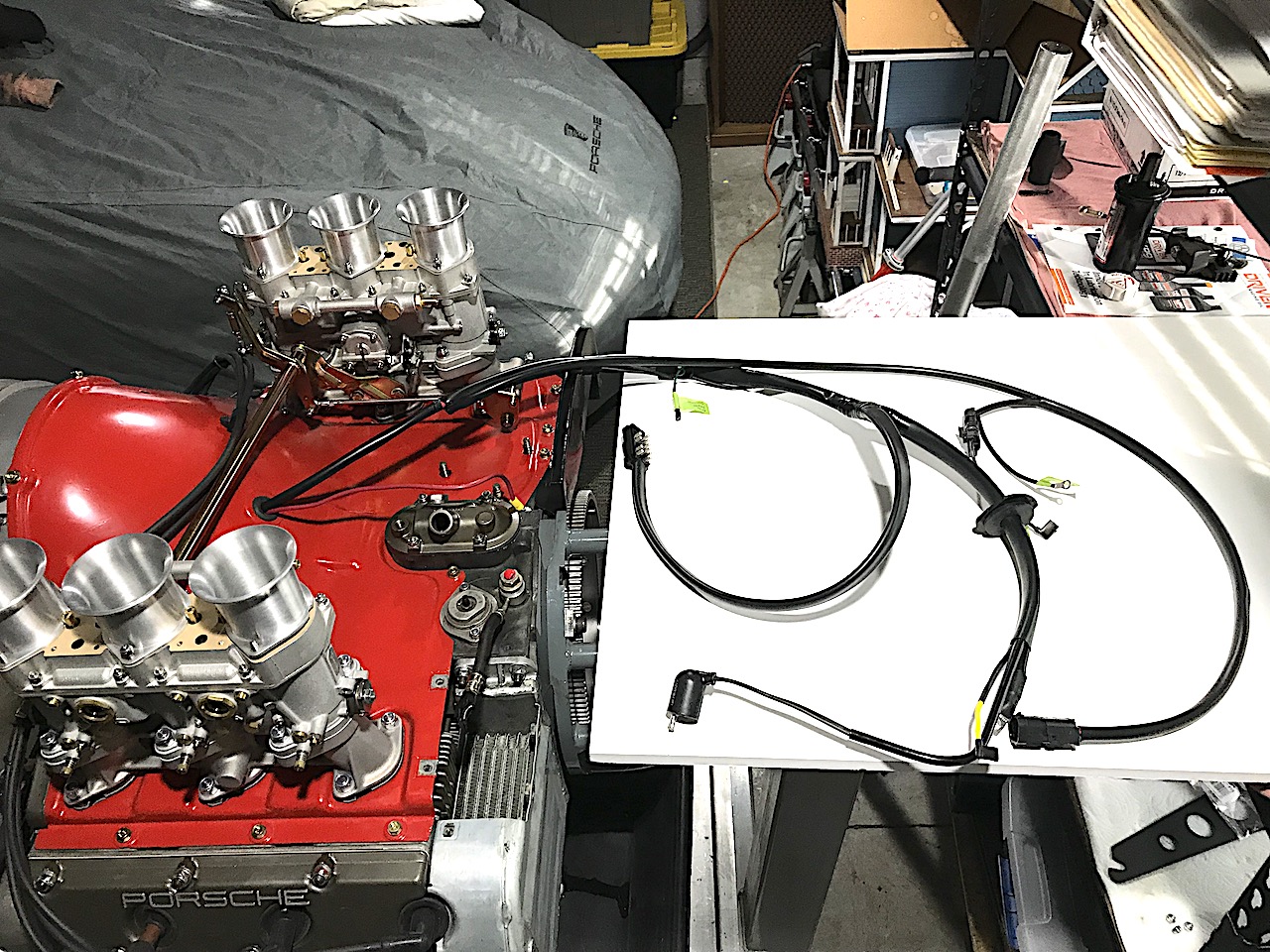

Professional.....Perry Kiehl. Engine harness is a thing of beauty.
 |
|
|
|
| TravisNeff |
Jan 10 2020, 02:56 PM
Post
#44
|
|
914 Guru Group: Members Posts: 5,082 Joined: 20-March 03 From: Mesa, AZ Member No.: 447 Region Association: Southwest Region
|
Now that you have some good racheting tools and dies, the next think you need to be thoughtful of is the connector itself. The stuff you get at the auto parts store all seem to fail. I go as far as pulling of the plastic sheath, crimp the terminal so I can visually see a good connection and slide back on the sheath.
There are also types of connectors that not only crimp the exposed wire, but they have an extra tang to crimp onto the sheathing - which is more like an OEM type of connection from what I have seen. McMark posted a long time ago where he gets his terminals and they look to be excellent. |
|
|
|
| Superhawk996 |
Jan 11 2020, 08:07 AM
Post
#45
|
|
914 Guru Group: Members Posts: 5,746 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch
|
QUOTE(TravisNeff @ Jan 10 2020, 03:56 PM) There are also types of connectors that not only crimp the exposed wire, but they have an extra tang to crimp onto the sheathing - which is more like an OEM type of connection from what I have seen. McMark posted a long time ago where he gets his terminals and they look to be excellent. For the previous postings that referenced the need for strain relief, the OEM connectors have built in strain relief as mentioned above. Esentially the lightly rolled end tabs capture the insulation and use that as a means to keep strain off the actual electrical connection. These are the types of crimp connectors that should be used as noted by previous post.  |
 |
|
| bbrock |
Jan 11 2020, 10:24 AM
Post
#46
|
|
914 Guru Group: Members Posts: 5,269 Joined: 17-February 17 From: Montana Member No.: 20,845 Region Association: Rocky Mountains
|
I will also point out that the crimpers the OP posted a picture of are the same ones I use and they are designed to crimp the bare wire and sheath crimps of the OEM style terminals simultaneously using a stepped crimping die.
|
|
|
|
| Tdskip |
Jan 11 2020, 12:19 PM
Post
#47
|
|
Advanced Member Group: Members Posts: 3,684 Joined: 1-December 17 From: soCal Member No.: 21,666 Region Association: None
|
QUOTE(bbrock @ Jan 11 2020, 11:24 AM) I will also point out that the crimpers the OP posted a picture of are the same ones I use and they are designed to crimp the bare wire and sheath crimps of the OEM style terminals simultaneously using a stepped crimping die. I followed your lead @bbrock , very nice to use and way-way-WAY better than how I had been doing it. I am likely going to go back and re-do quite a few connections now. |
|
|
|
|
