> How to wire up an early 911 turn signal switch into a 914-4 harness, For MB911 - Your 12 step program.
ClayPerrine
post May 8 2020, 03:00 PM
Post #1


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Step 1. Buy these:

1980 Porsche 911SC Female Housing, 14 Pin

1983 Porsche 911SC Pin, Female 14 Pin Connector (you need 14 of these)

1969 Porsche 911 Lid, 14 Pin Plug

1969 Porsche 911 14 Pin Plug Male Kit

Why Porsche chose to provide a kit for the Male plug, but make you purchase all of the pieces for the female connector separately we will never know.

2. Remove the connectors from the ends of the wires on the turn signal switch. Don't remove the one on the switch end Brown/White wire. That connects to the back of the horn wiper ring.

3. Strip the insulation off the wires, and solder on the pins for the MALE connector. You don't want to use the female end, because some of those wires can be hot with 12v if you use the male connector on the chassis harness side.

4. Put the pins into the bottom of the male connector. Make notes of the wire color associated with each pin number.

5. Install the top on the connector.

6. Remove the beam relay and disconnect the wires. There is a large yellow wire and a small yellow wire. Strip and solder on female pins to the large yellow, white and red/white wires. The small yellow wire is not going to be used.

7. Remove the plug that connects to the turn signal/wiper switches. The wires that connected to the wiper switch are not going to be used any more.
Note: I like to take the time to completely remove the wires from the harness, but it is OK to leave them there. Just tape them off so they don't short anything.

8. Strip and solder the remaining female pins onto the brown/white, black/white, black/white/green, black/green, grey/red, grey/brown, grey, and red.white wires.

9. Install the female pins into the female connector base. Make sure you match the connections with the wires in the male connector. I like to put the female base on the male connector and install the pins to match.

10. Install the cover on the female connector.

11. Test the wiring. Make sure the turn signals work, the low and high beams work and make sure the park light lights on one side with the key off and the turn signal engaged.

12. Last and most important step. Have a beer and celebrate!

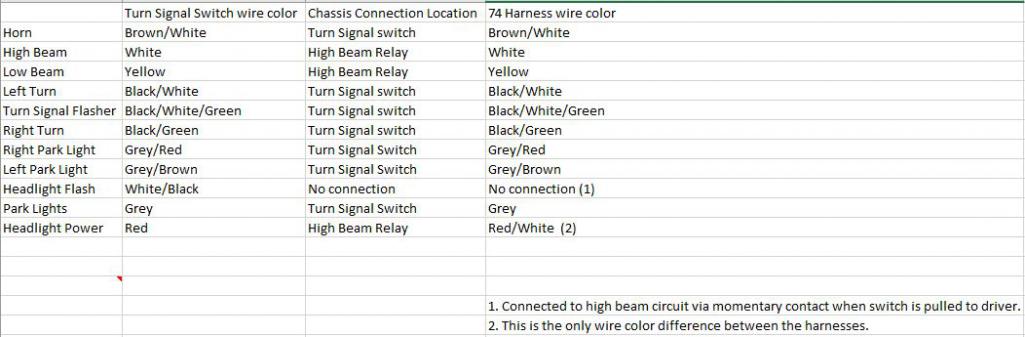

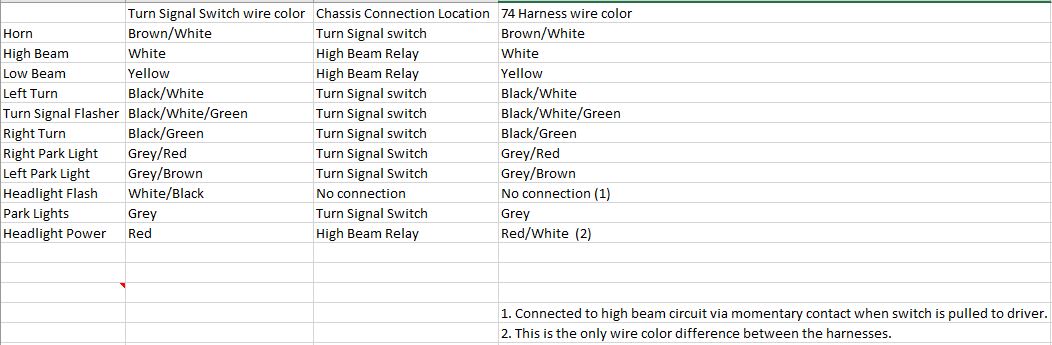

Here is a chart of the wire connections for your reference.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 8 2020, 03:48 PM
Post #2


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Thanks so much.. Its on order.. Still have to figure out wiper switch but that is likely more direct
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 8 2020, 05:22 PM
Post #3


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(mb911 @ May 8 2020, 04:48 PM) *

Thanks so much.. Its on order.. Still have to figure out wiper switch but that is likely more direct


Early 911/914-6. No connections inside the car. the end of the wiring terminates in what looks like a relay socket mounted in the front wall. The wiper motor has a plug to match. Only two wires to connect, power and ground.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 8 2020, 05:23 PM
Post #4


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
And if you run into any problems with the wiring, let me know.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 8 2020, 05:35 PM
Post #5


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Sounds good.. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post May 9 2020, 10:52 AM
Post #6


Advanced Member
****

Group: Members
Posts: 2,297
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
What's the advantage of the 911 one?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 9 2020, 10:55 AM
Post #7


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(GregAmy @ May 9 2020, 08:52 AM) *

What's the advantage of the 911 one?



Left hand ignition setup.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 10 2020, 01:37 PM
Post #8


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
@ClayPerrine my beam relay has a yellow with Red tracer (small) would that be the same as the small yellow? I am assuming so..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 10 2020, 07:00 PM
Post #9


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(mb911 @ May 10 2020, 02:37 PM) *

@ClayPerrine my beam relay has a yellow with Red tracer (small) would that be the same as the small yellow? I am assuming so..



Yes. That is unused with the 911 switch. It goes from the /4 turn signal switch to the relay to make the relay change from low to high beams.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 13 2020, 07:20 PM
Post #10


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

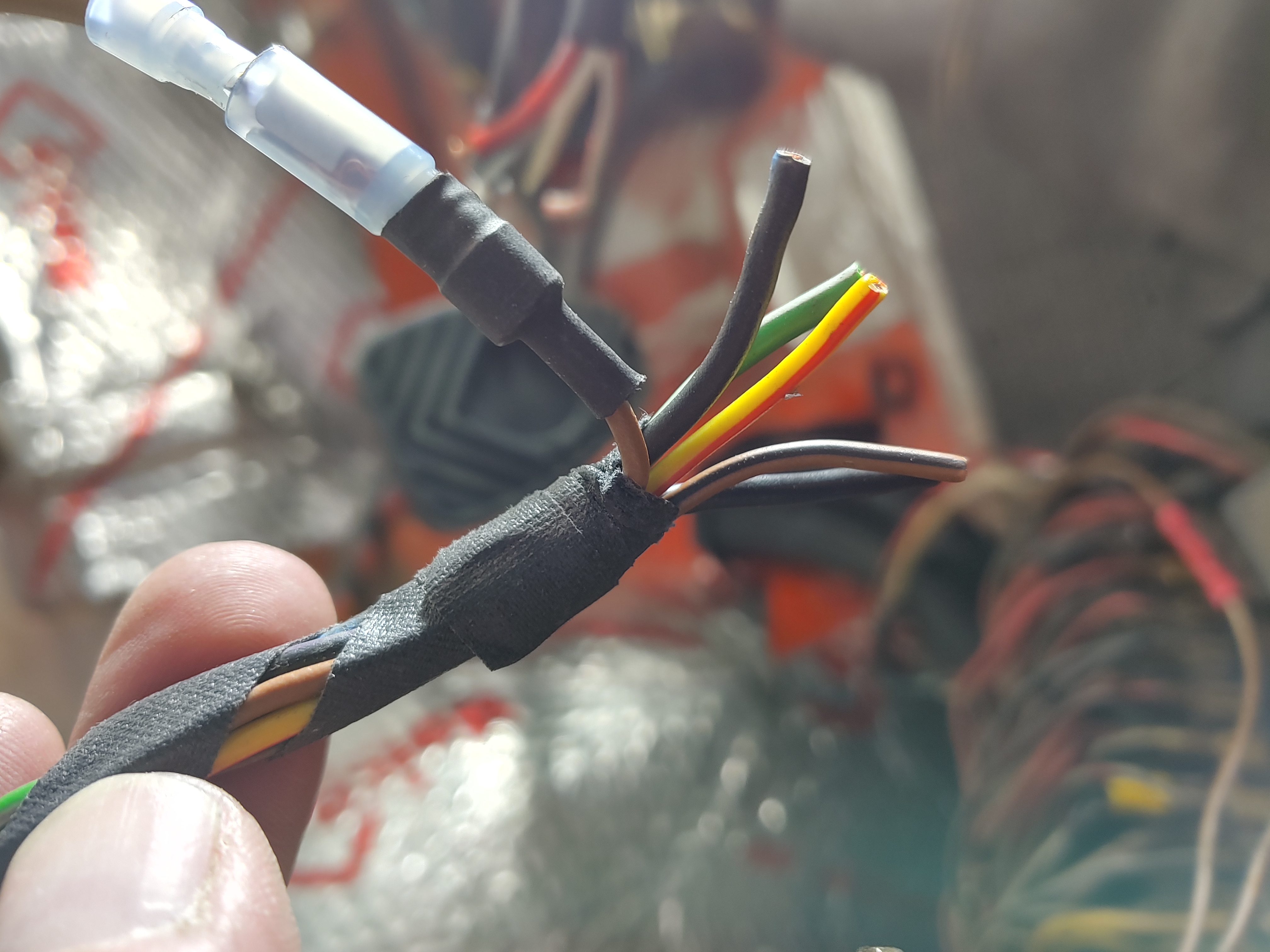

So this bundle of wires won't get used? Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 14 2020, 07:40 AM
Post #11


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(mb911 @ May 13 2020, 08:20 PM) *

So this bundle of wires won't get used? Attached Image



Nope.. Those are all for the wiper switch. The 914-6 wiper switch has a completely different connection.

The wiper switch has a connection that matches this:

Attached Image

It fits into the round hole behind the insturment cluster, and is connected to the spade connectors on the wiper switch. One lead will go to 12v+ and one will go to ground.

You can scavenge the connector off of an old harness or buy one new. I would get a new one.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 14 2020, 01:32 PM
Post #12


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
This is harness side and must have plugged into the wiper switch prior?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 15 2020, 12:14 PM
Post #13


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(mb911 @ May 14 2020, 02:32 PM) *

This is harness side and must have plugged into the wiper switch prior?



Yes. The 911 or 914/6 wiper switches will already have the connector that fits this on the wires.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 15 2020, 01:57 PM
Post #14


914-6 GT in waiting
***************

Group: Members
Posts: 19,270
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Thank you Clay (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 16 2020, 06:08 PM
Post #15


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Ok done and done meaning soldered ends, had a beer.. Now I have no headlights except when I pull the lever as if to pass someone.. There are no turn signals either.. I did determine I have no power to the large yellow wire on the harness.. If I jumper 12v to that I get headlights then go on..

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 16 2020, 08:35 PM
Post #16


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Well plot thickens.. Found out the yellow wire was not hot because it is only getting 12v when the ignition switch is turned to start. Will work on that tomorrow
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post May 17 2020, 01:45 PM
Post #17


914 Guru
*****

Group: Members
Posts: 6,850
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Problem semi solved.. Was not getting 12v to the yellow wire for the headlights because of the 911 ignition switch.. I have that solved.. I do not have blinkers or high beams but I have flashers which is odd.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 18 2020, 04:38 AM
Post #18


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Ben,
I haven't forgotten about you. I spent the weekend in the garage fixing a BMW motor for our 540i.

I will get back to you later today on next troubleshooting steps.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post May 20 2020, 06:54 PM
Post #19


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,459
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Ben,

Do you have low beams?

Do you have park lights?

PM me for my phone number and we can work with it on Saturday.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 20 2020, 09:25 PM
Post #20


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Thanks Clay bookmarked this thread.

I think I have the harnesses for the turn and wiper switches, but I'm missing the big round connector for the ignition switch I have.
