> Another External Oil Cooler Question, What are your thoughts on this setup?
Craigers17
post May 11 2020, 04:03 AM
Post #1


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States



Recently, I've been trying to get my '74 2.0 sorted out, and it's running relatively well. One of the previous PO's modified the car to include an external oil cooler mounted right behind the front grommet holes. It's a fairly large cooler and everything is plumbed and working. As a matter of fact, if my center console oil temp gauge is correct, and it APPEARS to be working properly, it is keeping the temps right around mid gauge(no where near red) after some fairly spirited driving for around 25 minutes. I actually LIKE the cooler location here, and would prefer to keep it...based mainly, so far, on cooling ability.

The current problem is, whoever installed the front cooler made no provision for venting the hot air. I posted a similar post a few months back, but now that I have the car running/driving, I have spent more time looking at various oil cooler setups... mainly thru this thread:

http://www.914world.com/bbs2/index.php?showtopic=56102

All that said, I kind of like the simplicity of this one in particular. And the poster seems to have great results, even autocossing. I was thinking maybe only 2 - 2.5" Hole Saw openings, and then fashioning a fiberglass "Shroud" kind of like a poor man's Patrick Motorsports GT Shroud. I realize I could go with a louvered floor pan setup, but then I would have to modify the floor pan.

So I wonder what your thoughts are on this setup? (Specifically, the space to which this is venting, which looks like where the steering rack assembly is. As well as any other feedback)

The only difference between this one and mine would be that my cooler is at the front and his is at the back. Air Flow wise, I would think it would have the same results.

I have copied the text below from the user's original post:

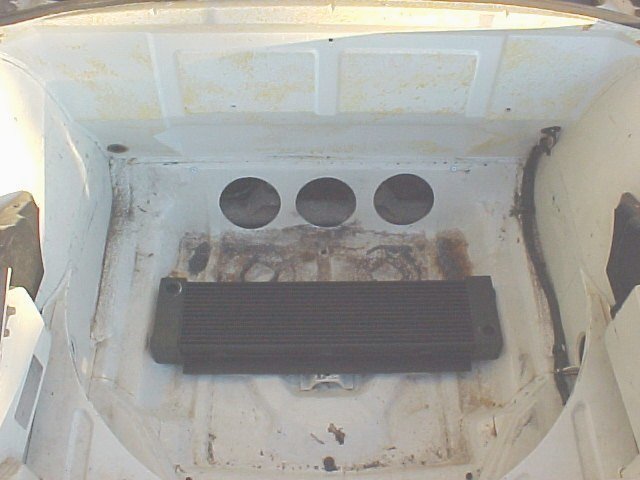

"My HUGE cooler sits in front of three large exit holes.
I use the front grommet holes as my inlets.

So, I have fresh air in and hot air out.

On a track car, this has to be done. ( unless you like short sessions ) biggrin.gif


KT"

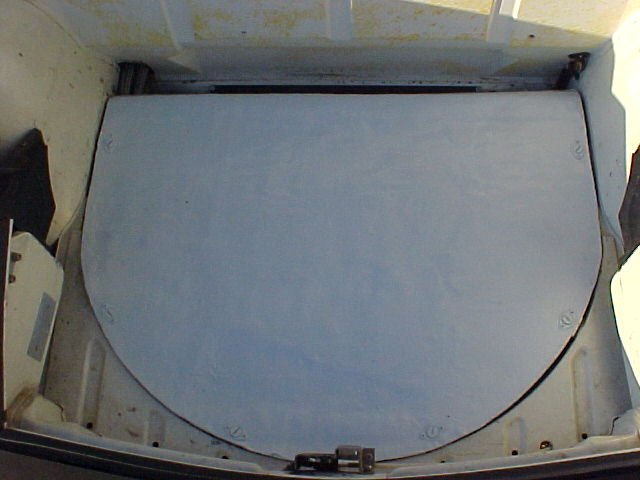

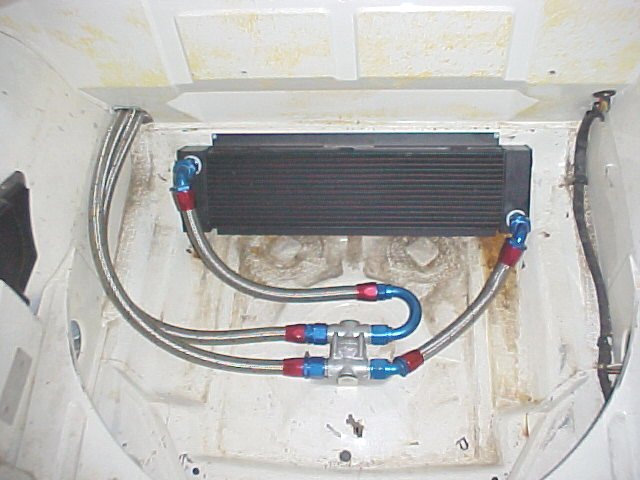

Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post May 11 2020, 03:20 PM
Post #2


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



Lack of detailed pictures.

Here are my guesses.

Those are your exit holes that appear behind your cooler.

Inlet holes are most likely under the front reenforcement, Series of small holes there in a stock 914, Most likely the rubber plugs have been removed, and or, cut open.

Air then flows under the body, my guess is they left the gravel guard off the steering and brake recess.

All guesses, but it looks like from the pictures provided they took care of a few details to make it work. They at least controlled the air from going into the trunk.

Would I loved to see better cooler mount, no free air from the front to the rear, yes. But it is hard to argue with the fact that it works.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 11 2020, 04:31 PM
Post #3


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



IMO the thermostat should be mounted closer to the engine. That way at least when cold the oil has a shorter path from/to the engine. Like most oil t-stats they never fully by-pass, it's about a 90%.

How are going to pump this?
If planing to change to a bigger oil pump I'd invest in a Gene Berg pressure relief oil pump cover, it prevents the system from going over 90lbs (IIRC) so you won't blow out your cooler one cold morning.
With the GB cover I'd use a shadeck 30mm T1 pump with mod for T4.

You could also go full flow, straight off the GB pump cover, to a remote mounted filter/adapter, T-stat, cooler, and back through a fitting you tap into the main oil galley. You have to tap and plug the oil pump for this system.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thelogo
post May 11 2020, 04:57 PM
Post #4


Senior Member
***

Group: Retired Members
Posts: 1,510
Joined: 6-April 10
Member No.: 11,572
Region Association: None



But where's your spare tire ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post May 11 2020, 05:48 PM
Post #5


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States



Mark and Stephen, thanks for the information. I don't think I was totally clear on my first post...those pics are taken from the attached link on a member's car belonging to Trekkor.....seems like a well respected, long standing member. I was taking his setup and wondering mainly what the thoughts were on his exit location. I am considering doing this, but am still also considering a rear mounted cooler. I SHOULD have included pics of MY current setup, which I haved added here.

My main point is that my current system has no exit for the hot air. The whole thing is already plumbed and functional(maybe not correctly). I have no idea if the pump has been changed, as this was all done by a PO. I can tell you that the oil is getting to the cooler, and it appears to be cooling properly with no exit.

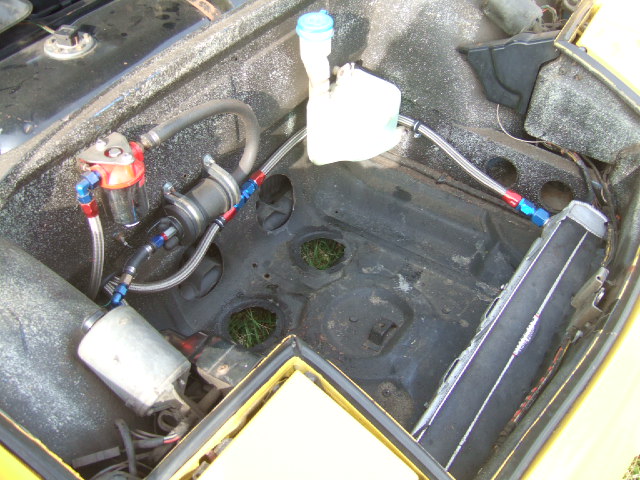

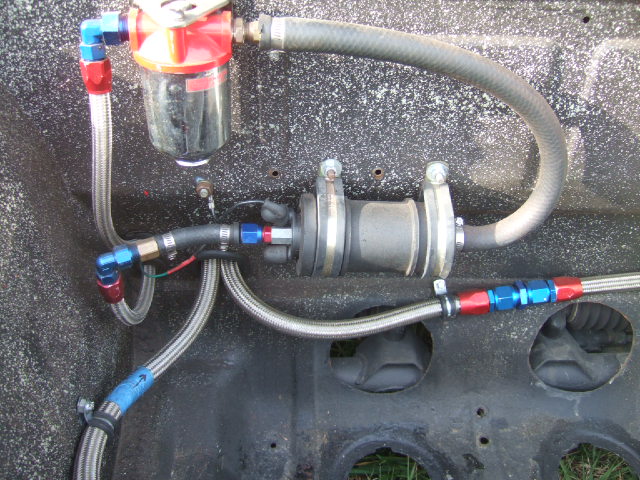

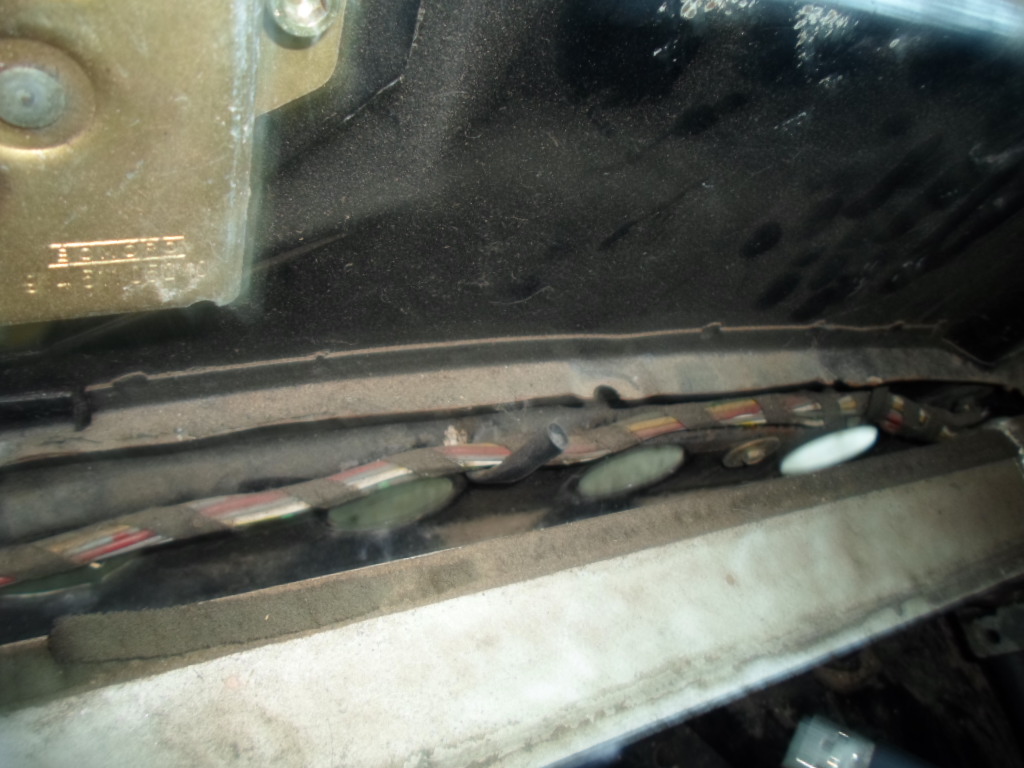

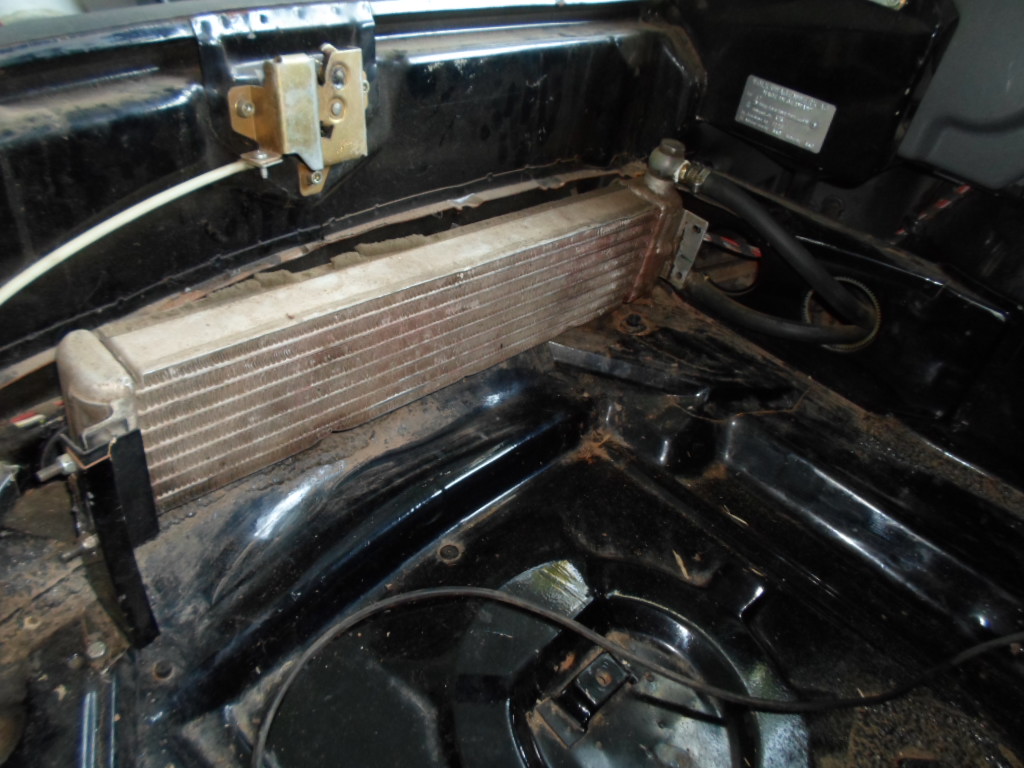

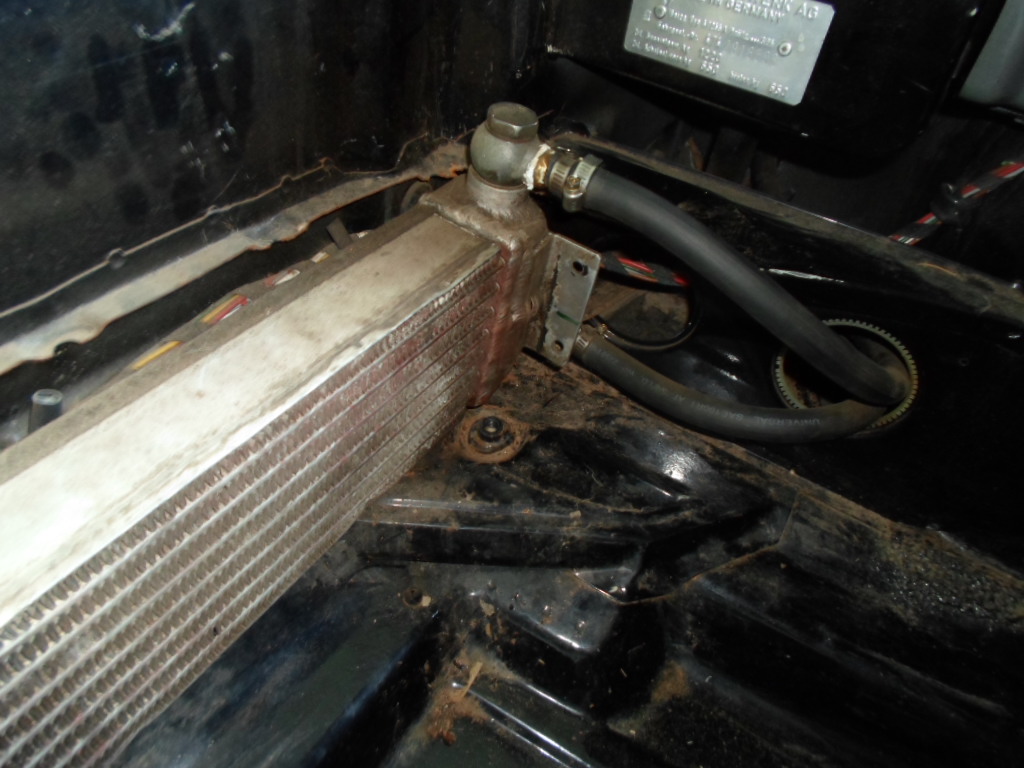

Here are the pics of the current system on my car:

Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post May 11 2020, 06:11 PM
Post #6


Winner of the Utah Twisted Joint Award
****

Group: Members
Posts: 3,466
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest



I can see why you want to pull things in line with current theory, but really; why change anything at all. Perhaps others should be copying what you have. On the other hand, why do you need to go beyond what the factory did for a 2.0? Myself, I wanted extra cooling for a 2.0, but only had to run a rear cooler.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post May 11 2020, 06:33 PM
Post #7


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States



QUOTE(worn @ May 11 2020, 06:11 PM) *

I can see why you want to pull things in line with current theory, but really; why change anything at all. Perhaps others should be copying what you have. On the other hand, why do you need to go beyond what the factory did for a 2.0? Myself, I wanted extra cooling for a 2.0, but only had to run a rear cooler.


I've been reading other oil cooler threads today, and I am leaning toward a rear cooler or(as you suggest) returning to stock. I don't know why the PO moved it, and cut the front sheet metal, but right now I'm just trying to arrive at the best cooling solution, as the engine seems to run strong. It would be nice to actually drive it for a couple of years before doing any major engine work....I figure a good oiling system will help facilitate that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 11 2020, 06:34 PM
Post #8


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



It's an early RX7 cooler, about the exact same size as a factory 914GT cooler, so close many 914 guys have used this cooler.
Surprise there's thermostat in there, so you system is using the RX7 coolers thermostat.
The /6 guys usually cut off the connection end and weld a plate on for bigger AN fittings for the /6. They would also eliminate the cooler thermostat.

I would make better mounts but keep it where it is. If you don't want to cut holes in the trunk floor you could dig out the factory spot welding access plugs, you could then do a shallow GT inspired cover. I bet you could fit a 4.5" bug rim with a 125/15 temporary spare in the leftover hollow if you did the ducting right.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post May 12 2020, 03:12 AM
Post #9


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States



QUOTE(Mark Henry @ May 11 2020, 06:34 PM) *

It's an early RX7 cooler, about the exact same size as a factory 914GT cooler, so close many 914 guys have used this cooler.
Surprise there's thermostat in there, so you system is using the RX7 coolers thermostat.
The /6 guys usually cut off the connection end and weld a plate on for bigger AN fittings for the /6. They would also eliminate the cooler thermostat.

I would make better mounts but keep it where it is. If you don't want to cut holes in the trunk floor you could dig out the factory spot welding access plugs, you could then do a shallow GT inspired cover. I bet you could fit a 4.5" bug rim with a 125/15 temporary spare in the leftover hollow if you did the ducting right.


Mark,

I appreciate your info and suggestions. I really like the idea of taking out the access plugs so I don't have to drill/cut any more holes. I'll give this a shot, and start mocking up the cover. I'll post some pics when I make some progress. Thanks again!
-Craig
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 12 2020, 07:16 AM
Post #10


914-6 GT in waiting
***************

Group: Members
Posts: 19,843
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



QUOTE(Craigers17 @ May 12 2020, 05:12 AM) *

QUOTE(Mark Henry @ May 11 2020, 06:34 PM) *

It's an early RX7 cooler, about the exact same size as a factory 914GT cooler, so close many 914 guys have used this cooler.
Surprise there's thermostat in there, so you system is using the RX7 coolers thermostat.
The /6 guys usually cut off the connection end and weld a plate on for bigger AN fittings for the /6. They would also eliminate the cooler thermostat.

I would make better mounts but keep it where it is. If you don't want to cut holes in the trunk floor you could dig out the factory spot welding access plugs, you could then do a shallow GT inspired cover. I bet you could fit a 4.5" bug rim with a 125/15 temporary spare in the leftover hollow if you did the ducting right.


Mark,

I appreciate your info and suggestions. I really like the idea of taking out the access plugs so I don't have to drill/cut any more holes. I'll give this a shot, and start mocking up the cover. I'll post some pics when I make some progress. Thanks again!
-Craig

I took out the acces plugs on mine. I plan to cover with some metal mesh. It seems like a good way to exit the air without cutting the car. The plugs can always be seam sealed back in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 12 2020, 08:21 AM
Post #11


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



QUOTE(mepstein @ May 12 2020, 09:16 AM) *

QUOTE(Craigers17 @ May 12 2020, 05:12 AM) *

QUOTE(Mark Henry @ May 11 2020, 06:34 PM) *

It's an early RX7 cooler, about the exact same size as a factory 914GT cooler, so close many 914 guys have used this cooler.
Surprise there's thermostat in there, so you system is using the RX7 coolers thermostat.
The /6 guys usually cut off the connection end and weld a plate on for bigger AN fittings for the /6. They would also eliminate the cooler thermostat.

I would make better mounts but keep it where it is. If you don't want to cut holes in the trunk floor you could dig out the factory spot welding access plugs, you could then do a shallow GT inspired cover. I bet you could fit a 4.5" bug rim with a 125/15 temporary spare in the leftover hollow if you did the ducting right.


Mark,

I appreciate your info and suggestions. I really like the idea of taking out the access plugs so I don't have to drill/cut any more holes. I'll give this a shot, and start mocking up the cover. I'll post some pics when I make some progress. Thanks again!
-Craig

I took out the acces plugs on mine. I plan to cover with some metal mesh. It seems like a good way to exit the air without cutting the car. The plugs can always be seam sealed back in.

The access plugs was your idea that I stole. (IMG:style_emoticons/default/bootyshake.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsrfr
post May 12 2020, 09:27 AM
Post #12


Senior Member
***

Group: Members
Posts: 1,448
Joined: 30-April 09
From: Rescue, Virginia
Member No.: 10,318
Region Association: MidAtlantic Region

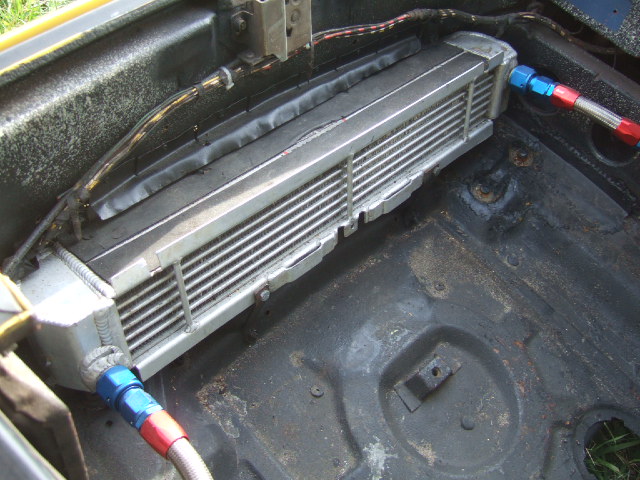

Here's mine....took out the plugs in the floor and also sawcut two large round holes to vent through the support wall to exit around the steering rack....works fine.Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 12 2020, 09:38 AM
Post #13


Resident German
*************************

Group: Admin
Posts: 42,191
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



For a 2.0L /4 (unless it's a dedicated track car) a full shrouded front oil cooler is overkill.

Having it mounted under/behind the front bumper, without cutting the car, should be more than sufficient.


Here's a car with that kind of setup:

(IMG:http://www.914world.com/bbs2/uploads/post-100-1340313419_thumb.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Craigers17
post May 12 2020, 02:19 PM
Post #14


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States



@mepstein , @MarkHenry , and @wndsrfr , thanks again for the information, and for the photos....that's exactly what I needed. @SirAndy , you're right, for my car, this is probably overkill. But since the cooler has already been moved, I feel like it's probably in a safer location inside the trunk, and this allows me to put a front air dam on the car in the future.

Besides, I've never tried doing any fiberglass work, so making an inexpensive GT-type shroud might be a fun small project that hopefully will look decent, and add functionality. Thanks again to all! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave97
post May 12 2020, 08:58 PM
Post #15


Newbie
*

Group: Members
Posts: 49
Joined: 25-July 17
From: Calif
Member No.: 21,285
Region Association: None



What size of hose do you use for a 4cyl front gt oil cooler? 8, 10, 12? What difference does it make on strain on the pump, system? How about when cold, hot? Most people talk about 6cyl with the dry sump. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
