 Heater Duct Joint Seal, Is it metal-to-metal or is there a soft seal there? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| Highland |
 Aug 19 2020, 03:09 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 513 Joined: 8-August 11 From: San Diego, CA Member No.: 13,418 Region Association: Southern California  |
When reassembling the heater ducts under the engine is there a high temp sealing material that goes between the joins or is it just metal on metal?

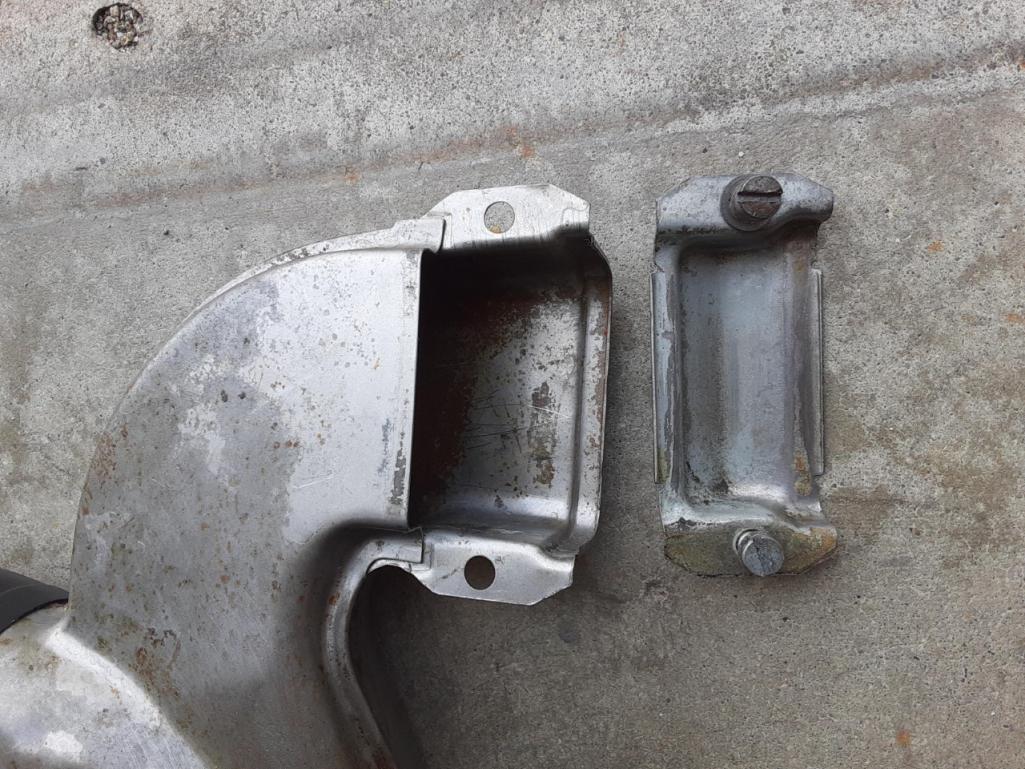

Picture is just an example of the joints, but I'm asking about all of them.  |
   |

|
  |
Replies(1 - 9)
| ndfrigi |
Aug 19 2020, 03:54 PM
Post
#2
|
|
Advanced Member Group: Members Posts: 2,933 Joined: 21-August 11 From: Orange County Member No.: 13,474 Region Association: Southern California
|
914rubber has them
 |
|
|
|
| IronHillRestorations |
Aug 19 2020, 06:12 PM
Post
#3
|
|
I. I. R. C. Group: Members Posts: 6,724 Joined: 18-March 03 From: West TN Member No.: 439 Region Association: None
|
The 914 Rubber piece is the best way to go, but before these were available my friend and 914 guru Brad Mayeur told me to use the red high temp silicone sealant. Squeeze an even bead in the groove on the bottom and then all around the top. Let it sit for about 10 mins or until it just skins over and then install. Wipe off excess.
|
|
|
|
| nathanxnathan |
Aug 19 2020, 06:23 PM
Post
#4
|
|
Member Group: Members Posts: 285 Joined: 16-February 18 From: Laguna Beach, CA Member No.: 21,899 Region Association: Southern California |
Besides the seal under the "cap" I've seen some that have what I think is a cork-like strip in the channel below. -it seemed original and I think it was glued in.
|
|
|
|
| Mikey914 |
Aug 20 2020, 10:39 AM
Post
#5
|
|
The rubber man Group: Members Posts: 12,677 Joined: 27-December 04 From: Hillsboro, OR Member No.: 3,348 Region Association: None
|
Yes the original was more of a cork material. We made the seal from a high temp silicone so you could reuse it if you want. We also include stainless screw with allen heads so that you can remove easier without stripping as this area of the car tends to get quite dirty, and these can corrode easily (stock).
|
|
|
|
| BillC |
Aug 20 2020, 02:56 PM
Post
#6
|
|
Senior Member Group: Members Posts: 546 Joined: 24-April 15 From: Silver Spring, MD Member No.: 18,667 Region Association: MidAtlantic Region
|
In addition to the rectangular gasket shown in the picture in post #2, there's also a U-shaped gasket that goes in the branch piece shown in the first pic. It fits in the channel at the front of the branch piece (under where the clamp part gets attached).
Unfortunately, I haven't seen that gasket available anywhere, and each side is a slightly different size. I was going to cut up an extra set of the rectangular gaskets to fit, unless Mark comes out with the correct gaskets before I get around to installing my heater parts. |
|
|
|
| bdstone914 |
Aug 20 2020, 03:32 PM
Post
#7
|
|
bdstone914 Group: Members Posts: 4,533 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
QUOTE(BillC @ Aug 20 2020, 01:56 PM)  In addition to the rectangular gasket shown in the picture in post #2, there's also a U-shaped gasket that goes in the branch piece shown in the first pic. It fits in the channel at the front of the branch piece (under where the clamp part gets attached). Unfortunately, I haven't seen that gasket available anywhere, and each side is a slightly different size. I was going to cut up an extra set of the rectangular gaskets to fit, unless Mark comes out with the correct gaskets before I get around to installing my heater parts. I have never seen a gasket in that location and there is not much gap for one. I got the 1" x 1/16 rubber cork gasket material. It was $10 for a 100 ft roll. I am going to try a piece there. Attached thumbnail(s)
|
|
|
|
| BillC |
Aug 20 2020, 08:07 PM
Post
#8
|
|
Senior Member Group: Members Posts: 546 Joined: 24-April 15 From: Silver Spring, MD Member No.: 18,667 Region Association: MidAtlantic Region
|
dup
|
|
|
|
| BillC |
Aug 20 2020, 08:10 PM
Post
#9
|
|
Senior Member Group: Members Posts: 546 Joined: 24-April 15 From: Silver Spring, MD Member No.: 18,667 Region Association: MidAtlantic Region
|
IIRC, the gasket was silvery and didn't look like cork, like the rectangular gasket. It seemed like a metal or metal-mix, like lead and/or asbestos, and maybe 1mm thick. Or, maybe it was cork that picked up so much metal from the fan shroud that it looked like metal. Either way, it was very fragile and would break if removed.
That adhesive cork strip looks like it might work pretty well. |
|
|
|
| nathanxnathan |
Aug 21 2020, 12:42 AM
Post
#10
|
|
Member Group: Members Posts: 285 Joined: 16-February 18 From: Laguna Beach, CA Member No.: 21,899 Region Association: Southern California |
The seal here was cork - probably should have removed it before i painted it
 |
|
|
|
|
