 Transmission Shift Fork Jig DImensions, Help required - Porsche 901 shift fork alignment jig (P260) dimensions |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| guy.huxley |
  Nov 7 2020, 08:39 AM
Post
#1
|
|
Newbie  Group: Members Posts: 1 Joined: 7-September 19 From: Wrexham, UK Member No.: 23,441 Region Association: England  |
I was wondering if someone would be able to help me out.

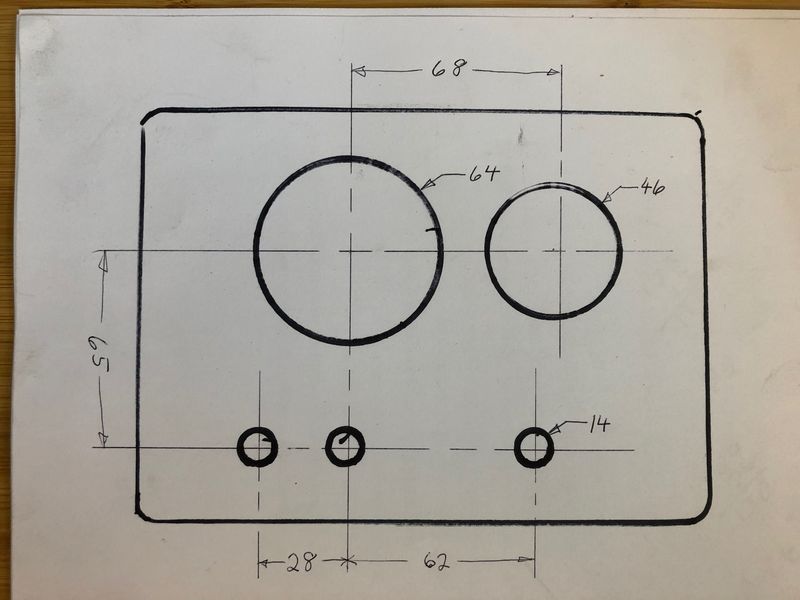

I am making my own jig for aligning the shift forks on the 914 transmission. If anyone has an orginial jig (P260) and would be kind enough to measure it for me, I would be very grateful. I have one source of information, (see attached image - sizes in mm) however I would like to check the accuracy/ improve the precision before I get something machined to the wrong size! The one thing I would also like to find out is the thickness of the original jig, if anyone has this information they could share too. Many thanks, Guy  |
   |

|
Posts in this topic
guy.huxley Transmission Shift Fork Jig DImensions Nov 7 2020, 08:39 AM
Tbrown4x4 Pelican Parts has them. Why re-invent the wheel? I... Nov 7 2020, 08:43 AM Mark Henry Thickness doesn't matter.
If you're worki... Nov 7 2020, 08:55 AM
ClayPerrine
Thickness doesn't matter.
If you're work... May 23 2022, 06:55 PM mlindner Guy, those numbers look good. The only small diffe... Nov 7 2020, 09:04 AM Red76 If you are lucky enough to have a core transmissio... May 20 2022, 01:37 PM Superhawk996 :idea: Very cool.
Thanks for yet another proj... May 24 2022, 06:36 AM Dominic This is the most accurate way to align the shift f... May 25 2022, 09:09 PM  |
