GregAmy
post Oct 17 2021, 07:05 AM
Post #101


Advanced Member
****

Group: Members
Posts: 2,254
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States



$12 to add voltage input for CHT to my Microsquirt for monitoring and logging head temps.

https://www.adafruit.com/product/1778

This thread has gone off the rails, from driving a 50-yr-old car (with a 75-yr-old engine design) in The Real World to thinking this can be micro-controlled to a modern level of efficiency. (IMG:style_emoticons/default/wink.gif)

Just build something already!

And if you do follow through on this science project, it would be very cool if you did it in such a way that it could be re-tuned to basic wasted spark and batch injection, and you spent the dyno time to prove this was worth all those extra brain cycles and all that extra financial outlay. I know which spot on the table my twenty-spot would be palced on. (IMG:style_emoticons/default/wink.gif)

Have fun!

GA
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jd74914
post Oct 17 2021, 07:44 AM
Post #102


Its alive
****

Group: Members
Posts: 4,770
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



That’s not an uncommon feature in higher end ECUs. I wonder if you could bake it into a corrections table. The thing I’m not sure about it usually those cascade control loops have a large time constant between them (ie coolant temp correction runs 100x slower than O2 feedback). Of course, if the change is really small that likely doesn’t matter much.

Reading the TC in would be easy with an amplifier. You can get cheap ones on Sparkfun.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Frank S
post Oct 17 2021, 07:57 AM
Post #103


Member
**

Group: Members
Posts: 135
Joined: 15-April 15
From: Wiesbaden, Germany
Member No.: 18,632
Region Association: Germany



QUOTE(JamesM @ Oct 17 2021, 06:56 AM) *

QUOTE(bbrock @ Oct 15 2021, 04:21 PM) *

Still not sure how much precision is being sacrificed using a gear driven distributor to send tach signal vs. a crank sensor.


This is entirely observational but "some"

I went from picking up my tach signal from a pertronix on a locked dizzy to Marios 36 tooth crank wheel and the difference under a timing light was visibly noticeable. couldn't tell you in a number what the difference was and im sure its very minor, like less than 1 deg, but with the dizzy trigger there was a bit of jitter under the timing light, the timing mark had a slight haze to it. After moving to the 36 tooth crank wheel the mark under a timing light was rock solid, like i was looking at a laser pointer.


I think thats the jitter I'm seeing as well. But does that really mater?
So many here report back here that Microsquirt is working well for them and Microsquirt as well as MS2 have random injection timing (different from engine start to engine start and not paired to a specific event) if you run them batch injected. This is the main reason why I changed from MS2 to MS3 as the code for Injection timing is totaly different and also supports Timed Batch injection as the D-Jet does.
With this in place, the engine is behaving the same from egine start to engine start (clearly noticable if you compare the datalogs).
Also for ignition timing you are typically some degrees away from where spark knock really happens. So the 1° Jitter should be also fine therefore.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Frank S
post Oct 17 2021, 08:05 AM
Post #104


Member
**

Group: Members
Posts: 135
Joined: 15-April 15
From: Wiesbaden, Germany
Member No.: 18,632
Region Association: Germany



QUOTE(GregAmy @ Oct 17 2021, 03:05 PM) *

$12 to add voltage input for CHT to my Microsquirt for monitoring and logging head temps.

https://www.adafruit.com/product/1778

This thread has gone off the rails, from driving a 50-yr-old car (with a 75-yr-old engine design) in The Real World to thinking this can be micro-controlled to a modern level of efficiency. (IMG:style_emoticons/default/wink.gif)

Just build something already!

And if you do follow through on this science project, it would be very cool if you did it in such a way that it could be re-tuned to basic wasted spark and batch injection, and you spent the dyno time to prove this was worth all those extra brain cycles and all that extra financial outlay. I know which spot on the table my twenty-spot would be palced on. (IMG:style_emoticons/default/wink.gif)

Have fun!

GA


Sequential injection does not generate more HP than batch injection. But you can lean it out much better in partload which is leading to better fuel economy. Thats all.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Oct 17 2021, 09:12 AM
Post #105


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



QUOTE(Frank S @ Oct 17 2021, 07:57 AM) *

QUOTE(JamesM @ Oct 17 2021, 06:56 AM) *

QUOTE(bbrock @ Oct 15 2021, 04:21 PM) *

Still not sure how much precision is being sacrificed using a gear driven distributor to send tach signal vs. a crank sensor.


This is entirely observational but "some"

I went from picking up my tach signal from a pertronix on a locked dizzy to Marios 36 tooth crank wheel and the difference under a timing light was visibly noticeable. couldn't tell you in a number what the difference was and im sure its very minor, like less than 1 deg, but with the dizzy trigger there was a bit of jitter under the timing light, the timing mark had a slight haze to it. After moving to the 36 tooth crank wheel the mark under a timing light was rock solid, like i was looking at a laser pointer.


I think thats the jitter I'm seeing as well. But does that really mater?
So many here report back here that Microsquirt is working well for them and Microsquirt as well as MS2 have random injection timing (different from engine start to engine start and not paired to a specific event) if you run them batch injected. This is the main reason why I changed from MS2 to MS3 as the code for Injection timing is totaly different and also supports Timed Batch injection as the D-Jet does.
With this in place, the engine is behaving the same from egine start to engine start (clearly noticable if you compare the datalogs).
Also for ignition timing you are typically some degrees away from where spark knock really happens. So the 1° Jitter should be also fine therefore.


One degree seems in line with my very unscientific method of wiggling the dizzy rotor to see how much play it has.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Oct 17 2021, 09:44 AM
Post #106


Senior Member
***

Group: Members
Posts: 1,512
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California

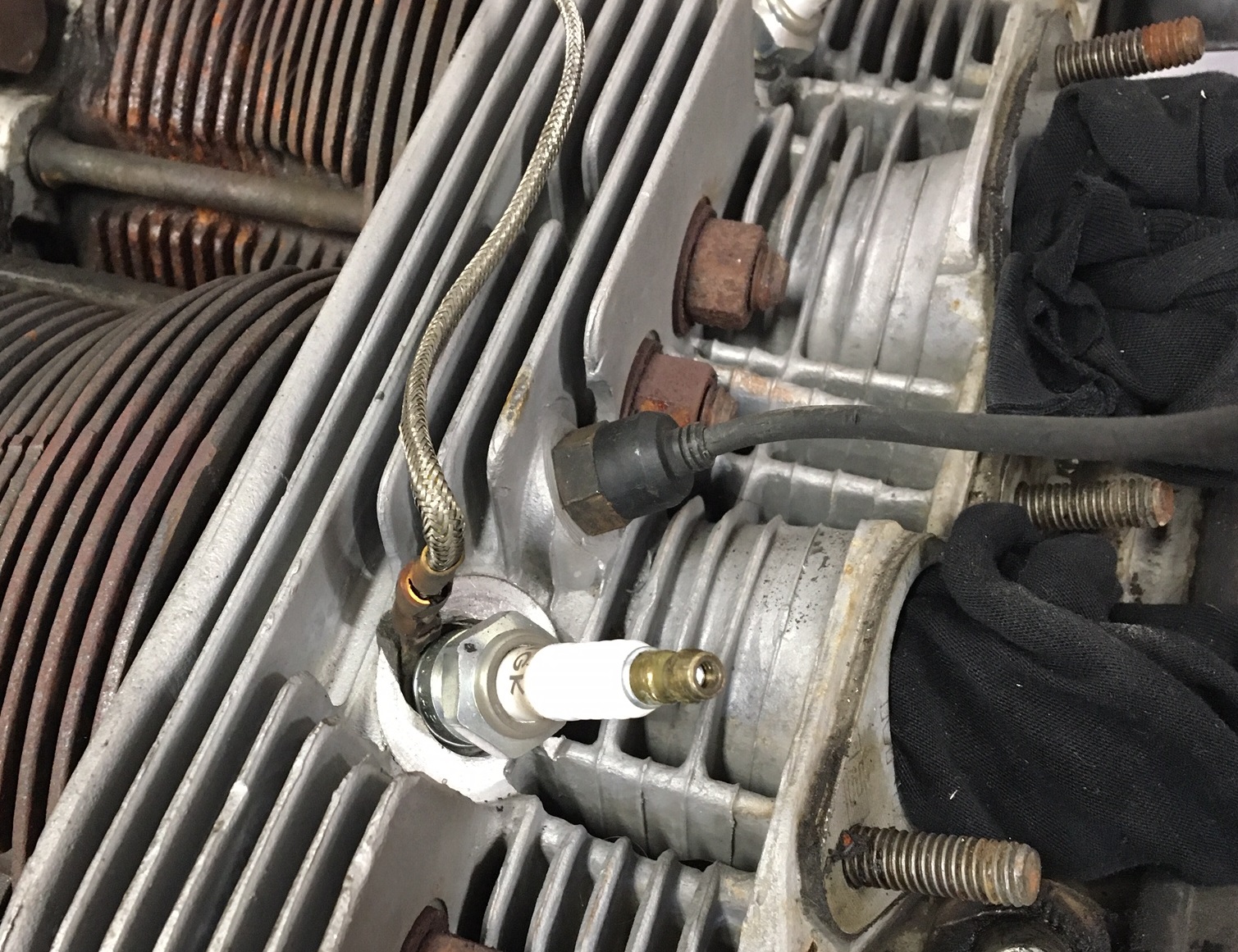

For the CHT sensor, I will be using a BMW motorcycle sensor 12627673407. It has the same thread as the stock D-Jet CHT. You can see it here with the #3 ring sensor that will be used as a readout. I might also use Greg Amy's gizmo to datalog.

Attached Image

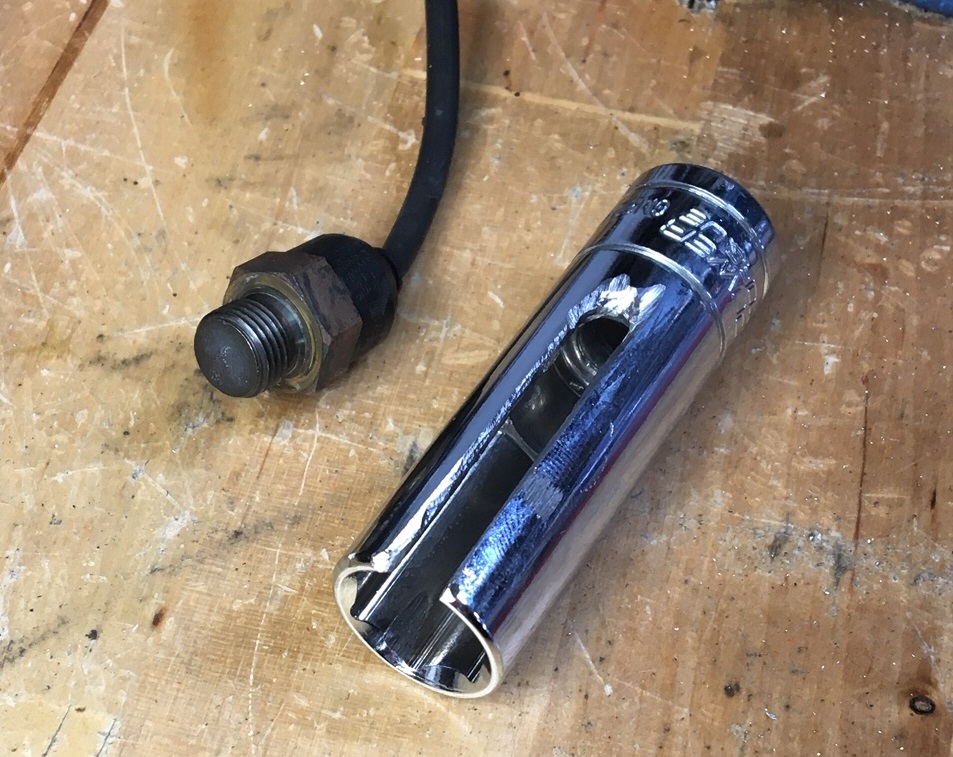

The CHT installation tool I did using a modified FLAP long reach socket.

Attached Image

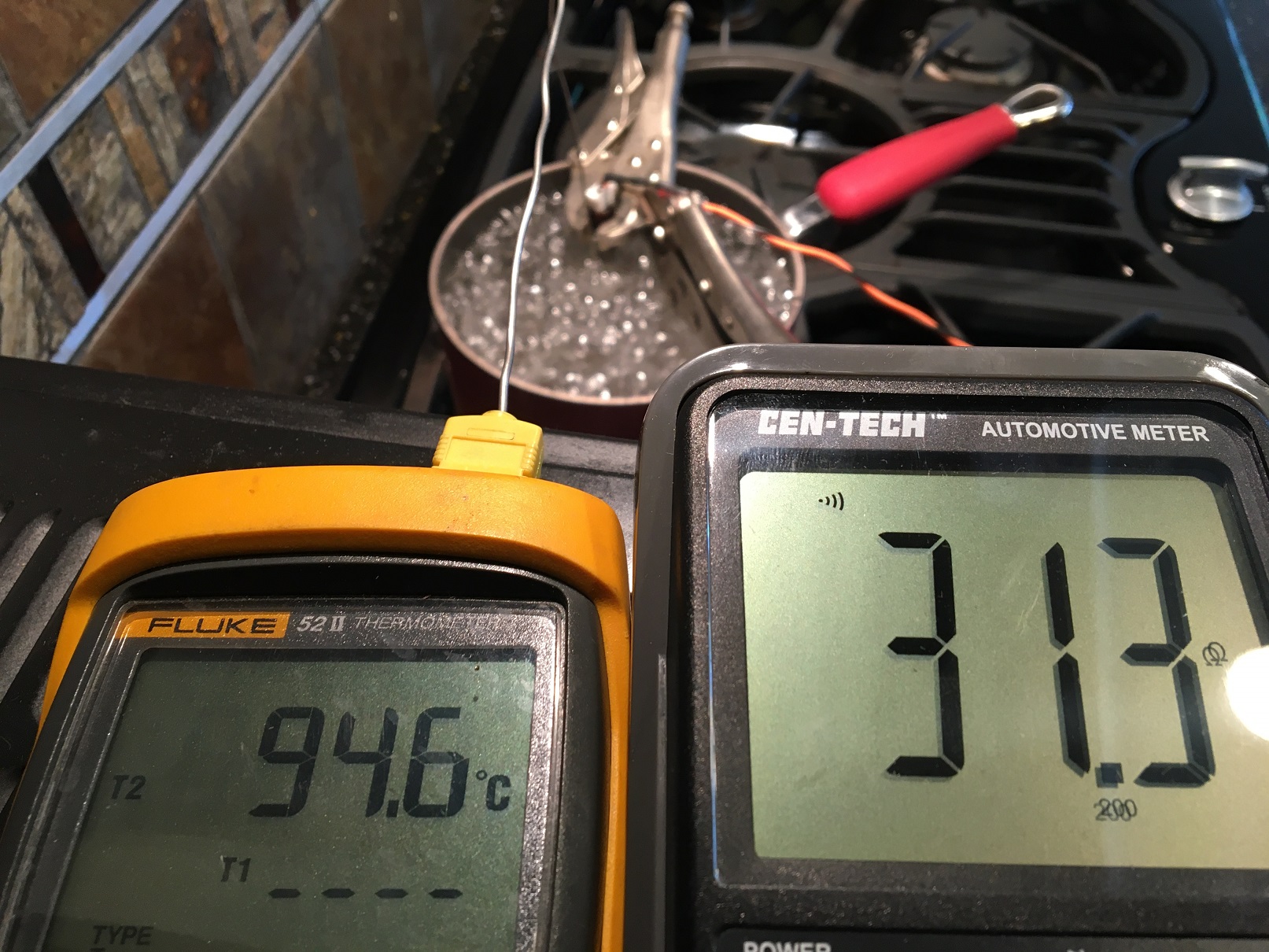

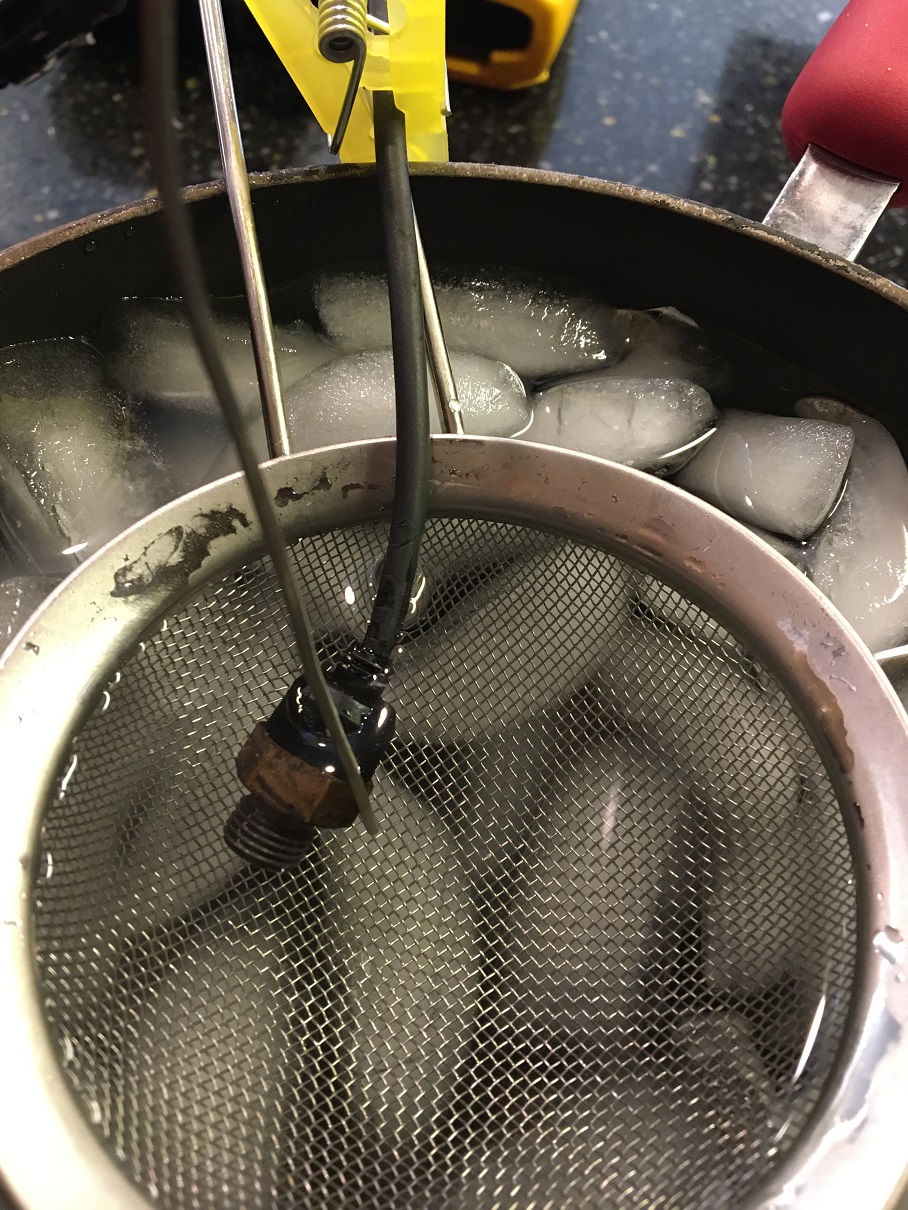

Last pictures is my fancy (IMG:style_emoticons/default/rolleyes.gif) calibration process.

Attached Image

Attached Image



My microsquirt conversion will resume (IMG:style_emoticons/default/headbang.gif) once I send out my shell to the paint shop... Hopefully in the next few months (IMG:style_emoticons/default/rolleyes.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Oct 17 2021, 09:51 AM
Post #107


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



QUOTE(GregAmy @ Oct 17 2021, 07:05 AM) *

This thread has gone off the rails, from driving a 50-yr-old car (with a 75-yr-old engine design) in The Real World to thinking this can be micro-controlled to a modern level of efficiency. (IMG:style_emoticons/default/wink.gif)


Oh good. I'm in my comfort zone then (IMG:style_emoticons/default/biggrin.gif)

Thanks for the link to the amplifier. I remembered you had done that and was going to look up the thread where you described it to bookmark (IMG:style_emoticons/default/thumb3d.gif)

I'll reveal my ignorance, but can a dyno tell us about differences in fuel economy? As Frank said, that's the only place I expect to see any difference. It seems advances in fuel and spark management are major factors in efficiency improvement of modern engines. Granted it is old school intake and combustion, and cooling technology so there will be limits.

As for performance - I've always found the stock 2.0L almost perfectly suited for my needs.

So continuing the theme of off the rails slippery slope, looks like I'll need some sort of gps integration for vehicle speed to be able to log mpg.

I'm going to order the MS3 kit soon but this project realistically won't begin in earnest until at least mid-December. It doesn't matter anyway since I want to buy a fair amount of kit from Mario and can't do that until he opens for shopping again.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Oct 17 2021, 09:59 AM
Post #108


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



QUOTE(Montreal914 @ Oct 17 2021, 09:44 AM) *

For the CHT sensor, I will be using a BMW motorcycle sensor 12627673407. It has the same thread as the stock D-Jet CHT. You can see it here with the #3 ring sensor that will be used as a readout. I might also use Greg Amy's gizmo to datalog.


That looks like a great solution! I was going to use the modded GM sensor from the Dub Shop that bolts to the stock CHT location with an M10 bolt. I already have the bolt in there just to prevent any gunk from getting in the hole. Will still need to source a ring sensor #3 plug.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Oct 17 2021, 10:08 AM
Post #109


Senior Member
***

Group: Members
Posts: 1,512
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



QUOTE(bbrock @ Oct 17 2021, 08:59 AM) *

Will still need to source a ring sensor #3 plug.


This is an option: K-type TC Rings, readers w/outputs, etc...

http://thesensorconnection.com/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Oct 17 2021, 11:55 AM
Post #110


914 Guru
*****

Group: Members
Posts: 5,621
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(bbrock @ Oct 17 2021, 11:51 AM) *

can a dyno tell us about differences in fuel economy?


Not really. At least with old school water brake dyno's and eddy current dyno's. They don't handle transients very well nor can they simulate engine coastdowns when you are off throttle.

EPA fuel economy cycle is driven on a elaborate chassis dyno so as to include all parasitic loads. There is a ton of vehicle level coast down work required to establish the proper load parameters to feed to the EPA chassis dyno so that it can mimic proper aerodynamic and road loads. Real world fuel economy isn't going to be easily captured on an engine dyno.

An engine dyno can tell you about fuel consumption at a given load. That's about it.
https://en.wikipedia.org/wiki/Brake-specifi...uel_consumption

This is of course a bit oversimplied -- there are newer AC dynos that can run transients but that isn't what you're going to find with Joe's Hot Rod shop of wherever you might rent dyno time. If you want more info Google AVL dynos, Horiba dynos, or FEV consulting to get an idea what's out there with the big boys of the dyno world that support industry OEM's.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Oct 18 2021, 01:37 PM
Post #111


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,303
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



The CHT sensor for a 911 Carrera 3.2 is the same as the 914 one, but it is a two wire sensor so it doesn't depend on the engine case for ground.

Same curve as a 914 sensor, so it is easy to make work with Megasquirt and fits the cylinder head perfectly.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Oct 19 2021, 06:46 PM
Post #112


can't remember
****

Group: Members
Posts: 3,119
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest



QUOTE(JamesM @ Oct 16 2021, 08:56 PM) *
. After moving to the 36 tooth crank wheel the mark under a timing light was rock solid, like i was looking at a laser pointer.


When I was in graduate school I had to give a seminar talk each year. After my first presentation before a live audience a friend pointed out that a laser pointer exaggerates how nervous you are. A bit of fear mixed with caffeine will send that laser point all over creation. Let’s just say I was not ever rock solid.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
