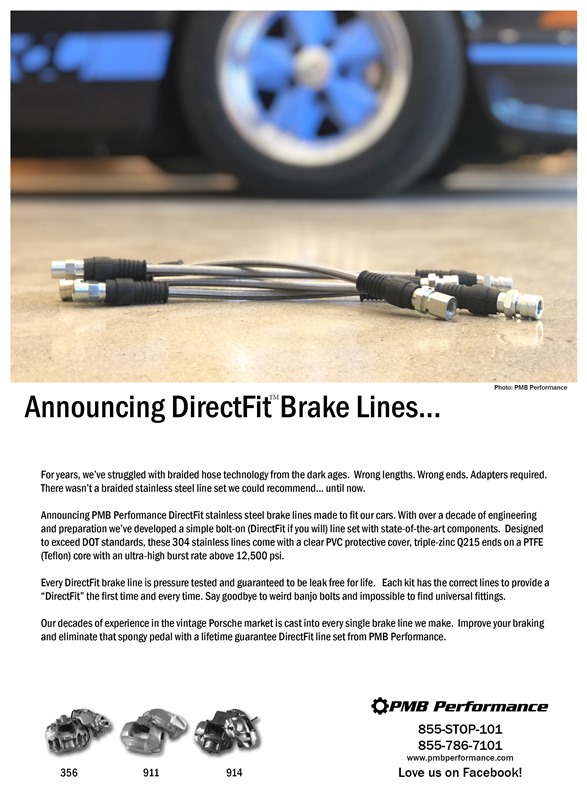

> Group Buy: Announcing PMB DirectFit Brake Lines, ***Pricing Good Through January 15th***
Eric_Shea
post Dec 27 2021, 04:59 PM
Post #1


PMB Performance
***************

Group: Admin
Posts: 19,272
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



Attached Image

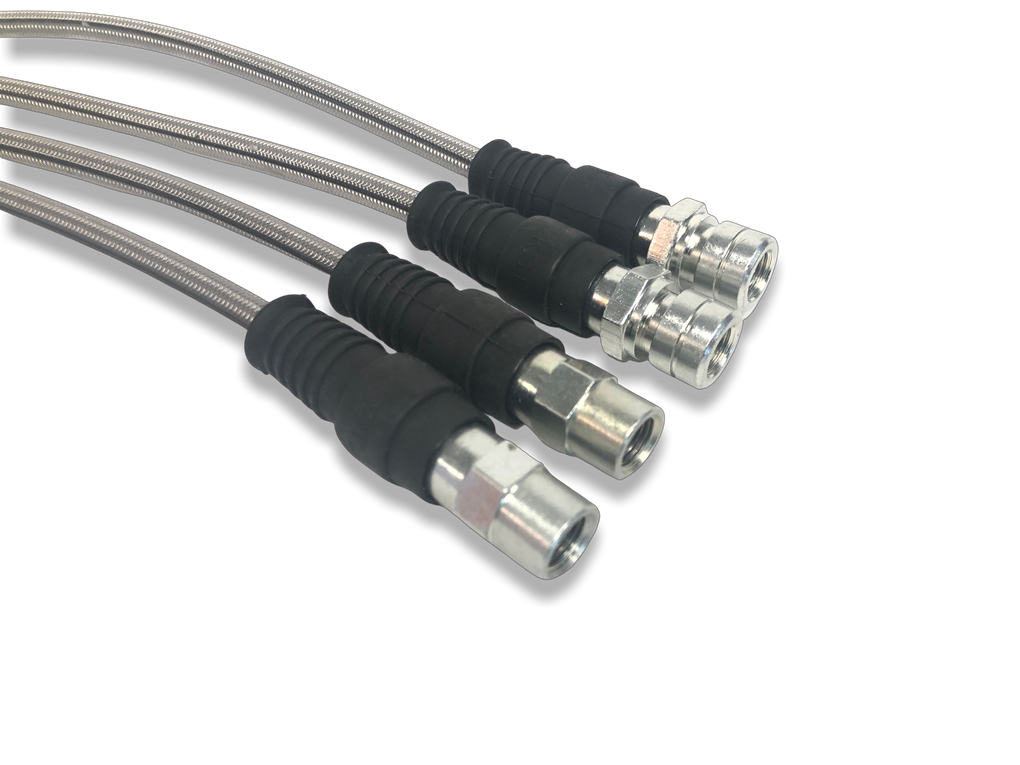

PMB Performance DirectFit™ DOT Stainless Brake Line Specifications

Built to the Following Standards
• DOT - FMVSS 106
• SAE - J1401
• ISO - 3996
• GB - 16897-2010

Composition
• PTFE (Teflon®) inner lining
• Braided 304 Stainless Steel Covering
• Clear UV Protective PVC Outer Cover
• Steel fittings: Triple Zinc and Nickel finishes

Features
• High-performance ultra-low expansion rate of 0.000295cc/ft. at 4,000 psi (ZeroFlex™)
• ZeroFlex™ offers extremely precise pedal modulation and feel
• DirectFit™ OE designed fittings and vehicle specific lengths accommodate ease of installation
• Tough UV protective PVC outer coating to protect the braid and resist impact and abrasions
• Protective fitting caps reduce fatigue
• Tested to exceed DOT standards
• All lines pressure tested to 4250 psi
• Ultra-high burst pressure rated to 12,550-13,500 psi
• Extreme temperature resistance -70℃/-94°F to +260℃/500°F
• Compatibility: for all non-petroleum brake fluids DOT3, DOT4, DOT4 LV, DOT5.1

Lifetime Warranty on all Stainless Steel Line Sets

Group Buy Pricing: $99.00 (914World members only weigh in on this thread, not available for this price online) ***Pricing Good Through January 15th***

Attached Image

PMB Performance DirectFit™ DOT Rubber Brake Line Specifications

Built to the Following Standards
• DOT - FMVSS 106
• SAE - J1401
• ISO - 3996
• GB - 16897-2010

Unique 5-Layer Composition

• EPDM Inner Layer (excellent resistance to non-petroleum-based fluids))
• Polyester (OET) Inner Braid
• EPDM Middle Interleaf (prevents abrasion)
• PVA Outer Braid (provides strong bonding between layers)
• EPDM Outer Layer for Excellent Ozone and UV Resistance

Features
• High-performance low expansion rate of 0.14cc/ft. at 1,500 psi (LowFlex™)
• LowFlex™ offers extremely precise pedal modulation and feel over other rubber lines
• DirectFit™ OE designed fittings and vehicle specific lengths accommodate ease of installation
• Tough UV and Ozone protective EPDM outer coating
• Tested to exceed DOT standards
• Unique 5-Layer Composition
• 10-Year Warranty
• Extreme temperature resistance -50℃/-122°F to +121℃/250°F
• Compatibility: for all non-petroleum brake fluids DOT3, DOT4, DOT4 LV, DOT5.1

10-Year Warranty on all Rubber Line Sets

Group Buy Pricing: $39.95 (914World members only weigh in on this thread, not available for this price online) ***Pricing Good Through January 15th***

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Dec 27 2021, 05:39 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,038
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains



I'm in for a set of SS
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 27 2021, 05:58 PM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 19,142
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



I’ll take a set of rubber lines.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
iankarr
post Dec 27 2021, 06:04 PM
Post #4


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,469
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region



Beautiful work. Congrats, @Eric_Shea ! Thanks for all you do to keep our cars not just on the road...but safe and fun.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bossboy302
post Dec 27 2021, 06:16 PM
Post #5


Member
**

Group: Members
Posts: 73
Joined: 13-December 21
From: NorCal
Member No.: 26,158
Region Association: None



In for set of rubber lines-thx.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
treemn
post Dec 27 2021, 07:38 PM
Post #6


Member
**

Group: Benefactors
Posts: 50
Joined: 25-December 02
From: Klamath Falls,Oregon
Member No.: 13
Region Association: None



One set of each style please.
Thanks Eric!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GermermanCarGuy
post Dec 27 2021, 08:27 PM
Post #7


GermanCarGuy
**

Group: Members
Posts: 81
Joined: 13-May 14
From: Rapid City, SD
Member No.: 17,346
Region Association: Upper MidWest



I'm in for a set of rubber lines.
Thanks in advance
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillJ
post Dec 27 2021, 09:09 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,078
Joined: 4-March 13
From: charlotte, NC
Member No.: 15,610
Region Association: None



Eric- i have my calipers on the way to you right now off my 914-6. They're A fronts and carrera rears. Would this discount apply? Would want steel braided as they are for race car
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Van B
post Dec 27 2021, 09:18 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,581
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None



Could you make some (stainless) for my 996 too?! I’ll even ask real nice! Pretty Pleeeeeezzzzz!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lg914
post Dec 27 2021, 09:24 PM
Post #10


Member
**

Group: Members
Posts: 53
Joined: 4-July 19
From: Lake Geneva
Member No.: 23,275
Region Association: None



In for a set of stainless.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Movin6
post Dec 27 2021, 09:35 PM
Post #11


Member
**

Group: Members
Posts: 76
Joined: 27-July 09
From: New England
Member No.: 10,615
Region Association: North East States



I'll take a set of SS for a 914-6!
Please advise about payment.
Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Dec 27 2021, 09:53 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,596
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest



Eric- one set SS for 914-6 front and rear calipers, another set SS front 6 ('70T calipers) and rear 4 calipers (that you rebuilt (IMG:style_emoticons/default/smile.gif) )

Thx!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Dec 27 2021, 10:07 PM
Post #13


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



@Eric_Shea 1 set of rubber lines for 74 pls. thank you again!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Dec 27 2021, 10:34 PM
Post #14


Get that VIN ?
*****

Group: Members
Posts: 9,225
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



Do the front 911M calipers take the same hose as the rear 914 calipers ?

Great offer, I’m in for a set. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Dec 27 2021, 10:52 PM
Post #15


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California



2 rubber pls
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Dec 28 2021, 03:42 AM
Post #16


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



I'll take a rubber set.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Dec 28 2021, 08:15 AM
Post #17


Senior Member
***

Group: Members
Posts: 1,366
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States



I'm in for a set of the late 914 SS lines but here's the issue.
On my brother's 914 he is using the late Boge struts off a 911 SC and the 914 front lines will not fit. I had to order a set of SC lines for it to work. If anyone has a 5 lug converted car they would also need to confirm this as well. The line kit would more then likely be 914 rears with a set of late 911 fronts to work. Maybe Eric can confirm this.. @Eric_Shea
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Dec 28 2021, 08:52 AM
Post #18


Senior Member
***

Group: Members
Posts: 781
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States



I am in for one set of rubber lines.
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Dec 28 2021, 08:56 AM
Post #19


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,042
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



A set of rubber ones please. Are these to be ordered or in stock? What is the cut off date for payment? Mail a check or call and order with a CC?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
branston
post Dec 28 2021, 09:12 AM
Post #20


Member
**

Group: Members
Posts: 89
Joined: 17-October 12
From: Michigan
Member No.: 15,053
Region Association: Upper MidWest



I'll take a set of rubber.

How do we get payment to you?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
