> what should this be connected to? 1.8 fuel injection/ air filter
lolkema
post Aug 5 2022, 01:33 PM
Post #1


Newbie
*

Group: Members
Posts: 11
Joined: 17-July 05
From: Idaho, USA
Member No.: 4,425
Region Association: None



Hi all,

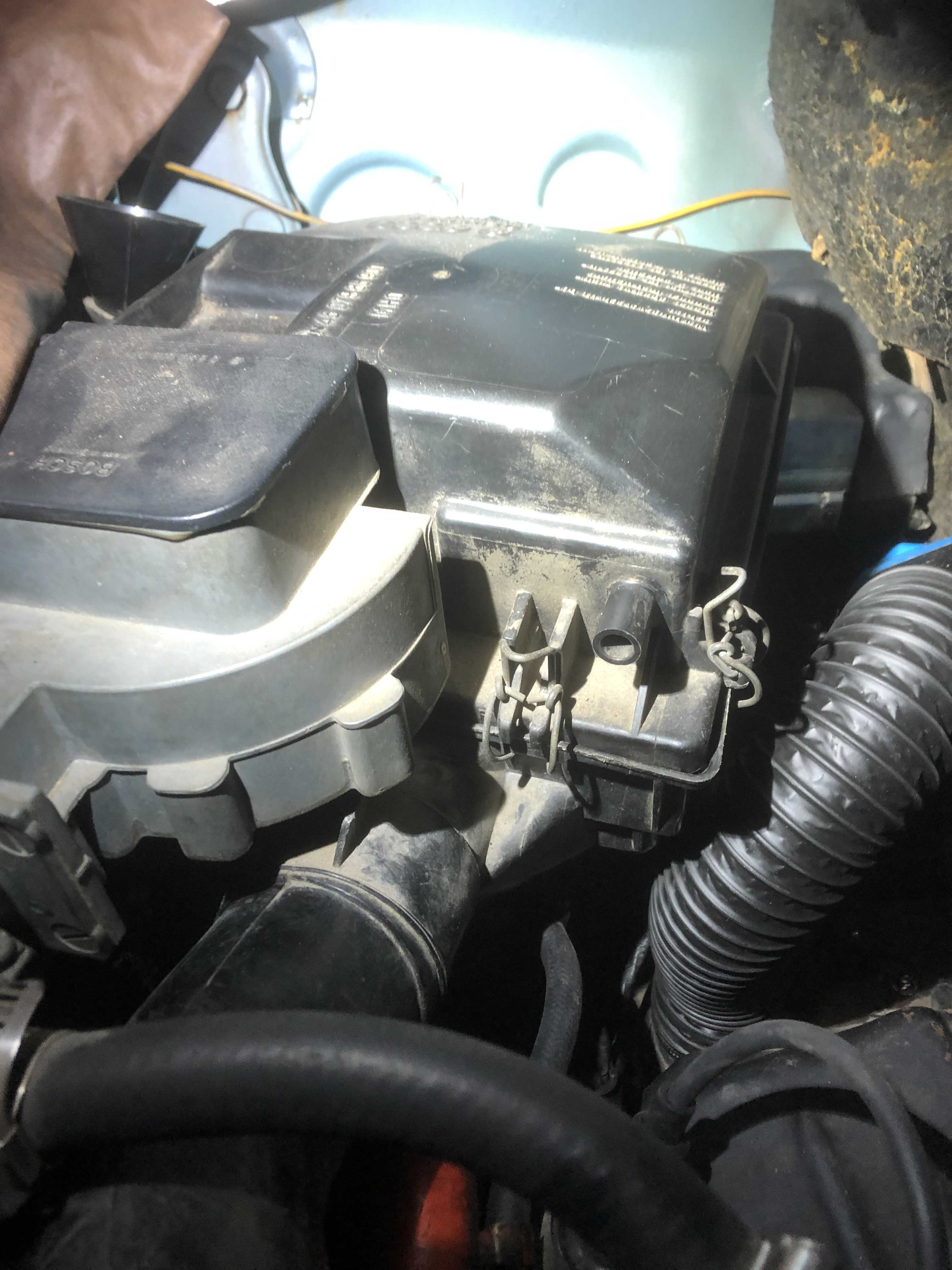

Can anybody tell me what should be connected to this little pipe on my air filter box? It is a '74 1.8 with the L-Jetronic. It came without anything connected to it when I bought it.Attached Image

Thank you in advance!

Frank
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
David Billo
post Aug 5 2022, 01:48 PM
Post #2


Member
**

Group: Members
Posts: 61
Joined: 23-November 17
From: Plainfield, Ontario
Member No.: 21,625
Region Association: Canada



My guess, charcoal canister.

http://www.914world.com/bbs2/index.php?sho...amp;pid=1587665
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 5 2022, 01:52 PM
Post #3


914 Wiring Harnesses
*****

Group: Members
Posts: 7,907
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

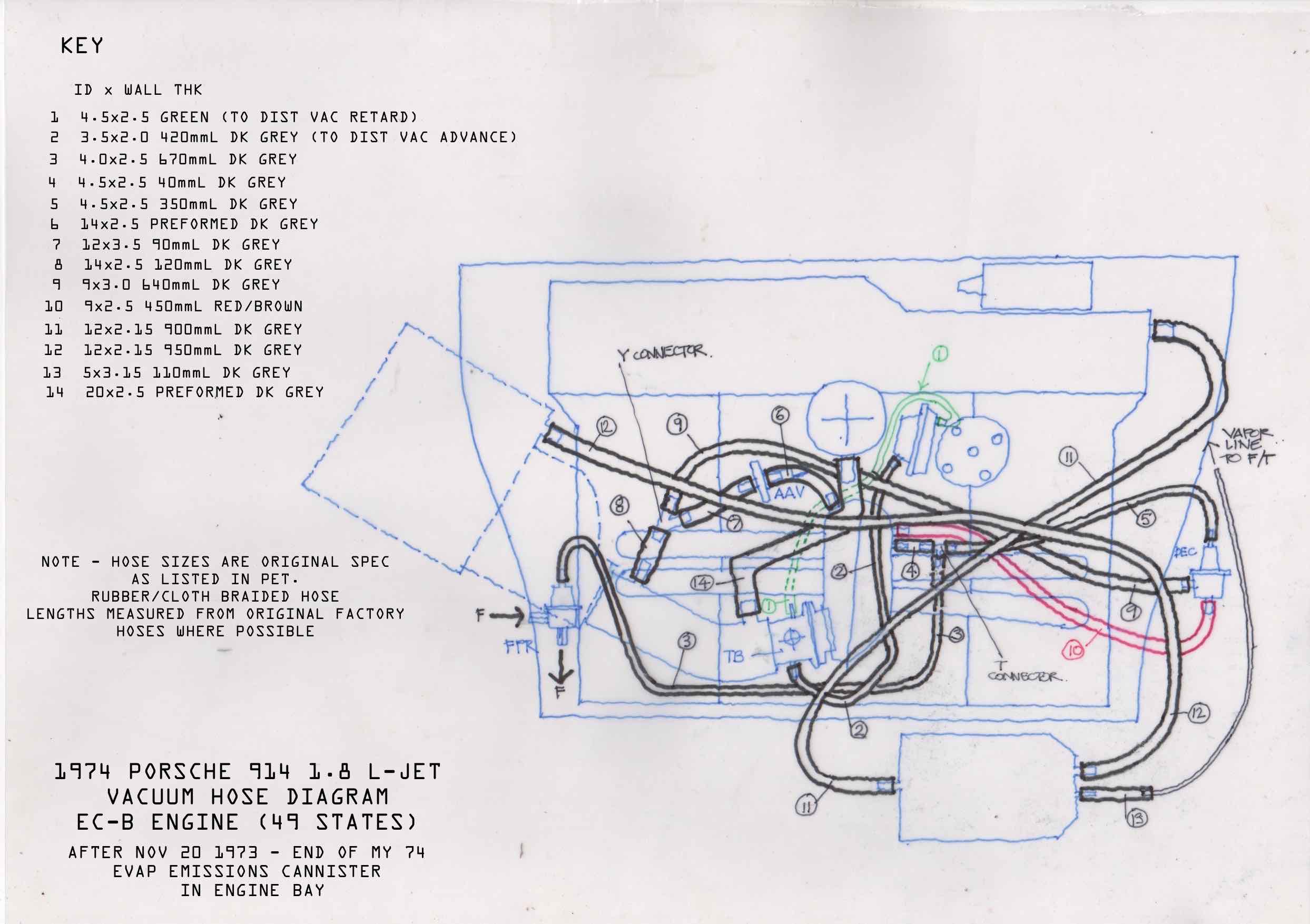

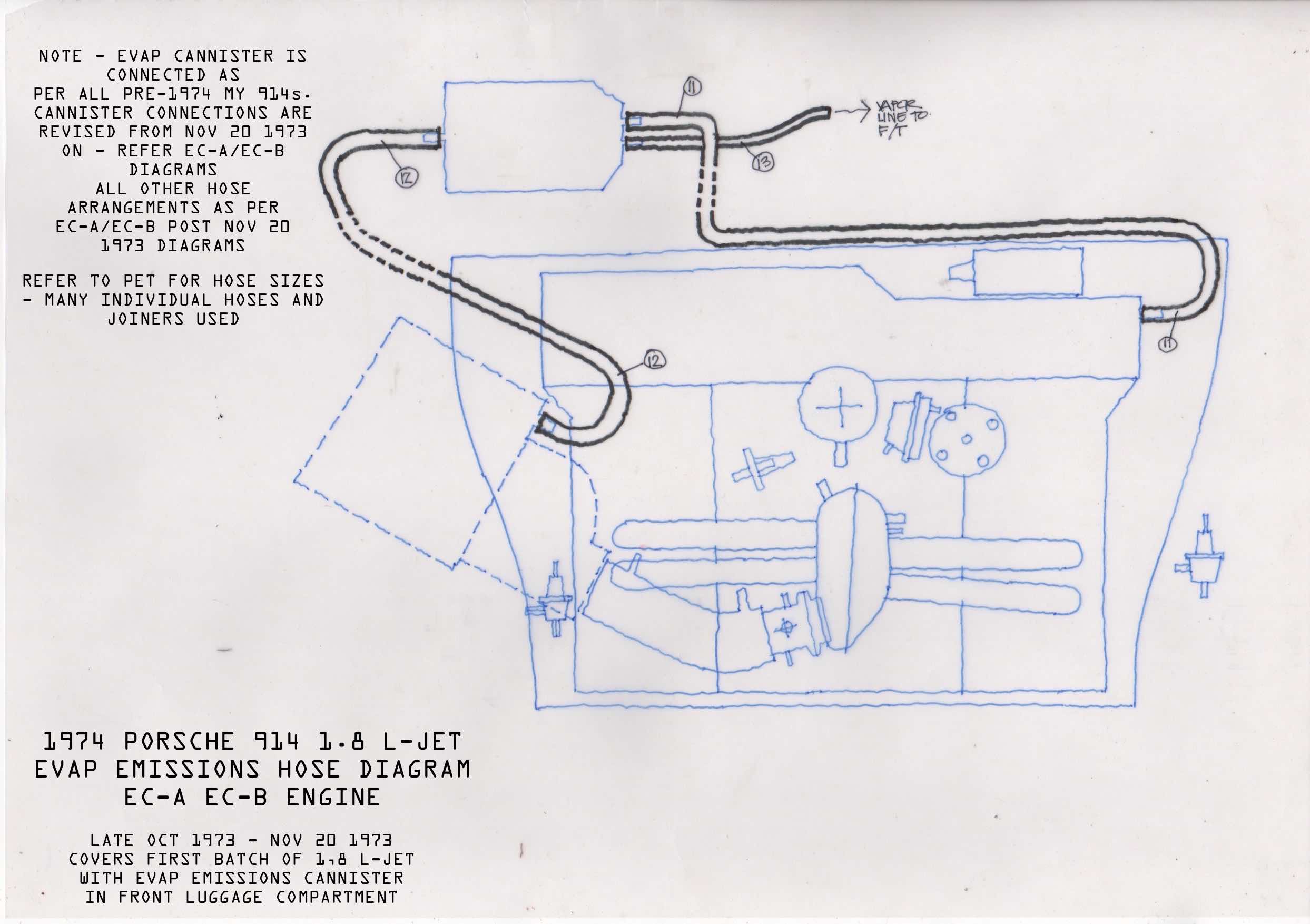

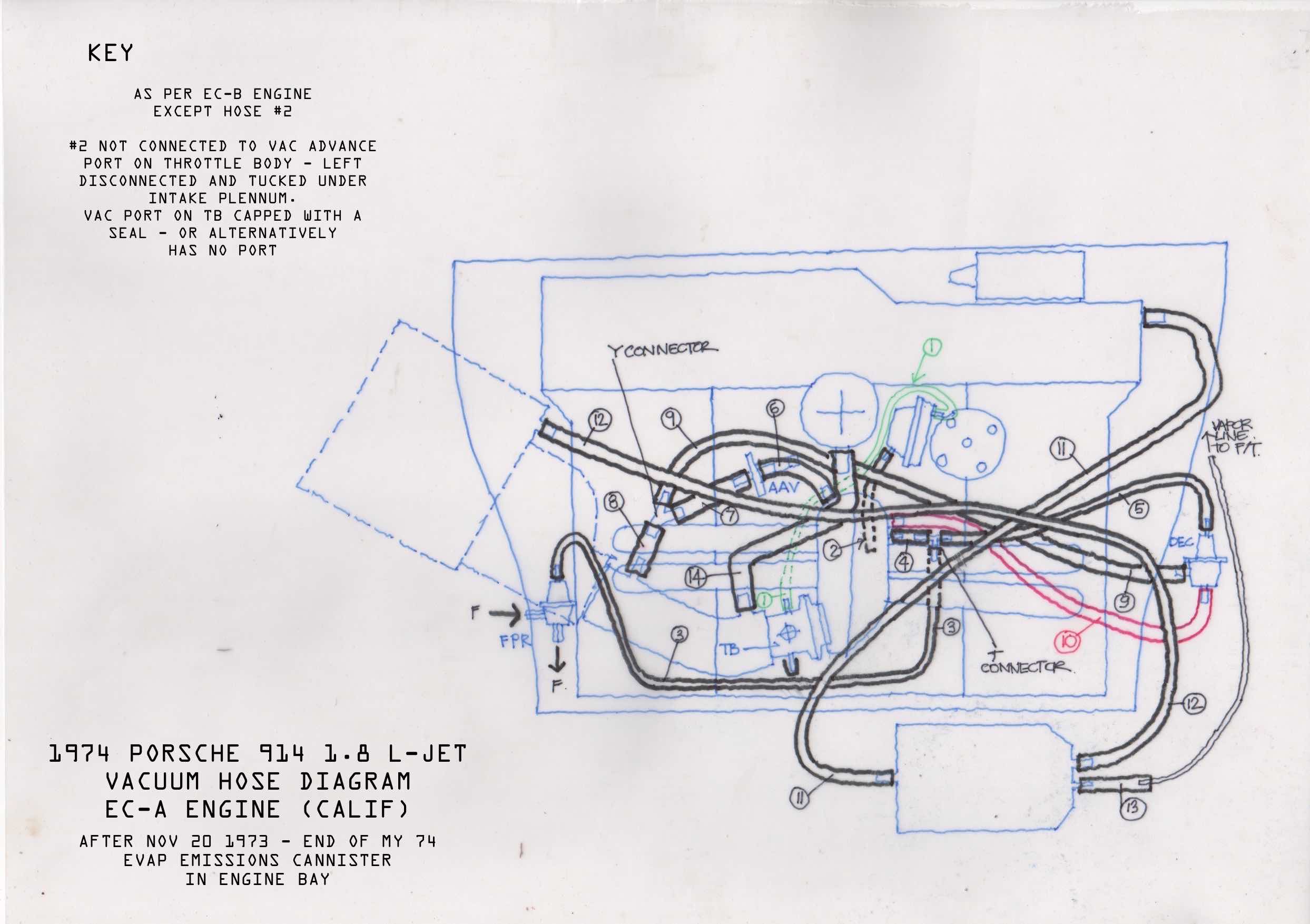

These are better, thanks to our friend from downunder @wonkipop


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
wonkipop
post Aug 6 2022, 04:21 AM
Post #4


Advanced Member
****

Group: Members
Posts: 2,363
Joined: 6-May 20
From: australia
Member No.: 24,231
Region Association: Australia and New Zealand



or you can do @JeffBowlsby 's resto mod on the set up. (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/aktion035.gif)

frank - probably your whole charcoal cannister set up is missing?
what is the build date on the car?

it would be sucking air above the filter (and dirt/dust) through that port.
if the vapor emission equip is missing i would plug that port on the air cleaner if i was you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lolkema
post Aug 8 2022, 11:53 AM
Post #5


Newbie
*

Group: Members
Posts: 11
Joined: 17-July 05
From: Idaho, USA
Member No.: 4,425
Region Association: None



Thank you all for the help, those drawings clarifies a lot. I still have the charcoal canister although I highly doubt it does any good after 50 years. But I will connect it as in the drawings.
I wonder what the reason is for this connection, it doesn't really make sense to me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wonkipop
post Aug 8 2022, 04:15 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,363
Joined: 6-May 20
From: australia
Member No.: 24,231
Region Association: Australia and New Zealand



QUOTE(lolkema @ Aug 8 2022, 11:53 AM) *

Thank you all for the help, those drawings clarifies a lot. I still have the charcoal canister although I highly doubt it does any good after 50 years. But I will connect it as in the drawings.
I wonder what the reason is for this connection, it doesn't really make sense to me.


the connection to the air filter allows engine induction to pull fuel tank vapor emissions trapped by the activated charcoal in the canister to be drawn in for burning when the engine is running. the hose from the fan bleed port floods the charcoal with oxygen to release the hydrocarbons. its a good little system. has no effect on the performance of the engine whatsover. might even improve performance. (IMG:style_emoticons/default/biggrin.gif) by about 0.0001 hp. (IMG:style_emoticons/default/smile.gif)

out of interest @lolkema - does your car still have a white painted stamped number on the engine tin. it will be on the left hand side often, hidden from view by the heater fan blower hose. or it might be on the right hand side near the battery.

also an emission sticker. that will be on the left hand side of the engine bay on the body just above the black plastic fuse/relay board. the sticker is white with red writing.

if they are still there what do they say.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Aug 8 2022, 07:18 PM
Post #7


Advanced Member
****

Group: Members
Posts: 4,979
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



Boy! I just got a good reminder of how well the evap system on these cars works. Took the car for a drive earlier and refilled the gas tank. Then drove home and parked it in the garage. Wife comes home just a few minutes later in the DD and parks in the other bay. A half hour later and the garage WREAKED of gas fumes. So much so that I started checking both cars for fuel leaks. Finally found the culprit. I had removed the charcoal canister over the weekend to access the intermittent wiper relay. When I reinstalled, I forgot to reconnect the little hose from the charcoal canister to the evap tank. (IMG:style_emoticons/default/blink.gif) What an unbelievable stench that belched out of there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Aug 9 2022, 06:24 AM
Post #8


Life's been good to me so far.....
**********

Group: Admin
Posts: 13,672
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(bbrock @ Aug 8 2022, 08:18 PM) *

Boy! I just got a good reminder of how well the evap system on these cars works. Took the car for a drive earlier and refilled the gas tank. Then drove home and parked it in the garage. Wife comes home just a few minutes later in the DD and parks in the other bay. A half hour later and the garage WREAKED of gas fumes. So much so that I started checking both cars for fuel leaks. Finally found the culprit. I had removed the charcoal canister over the weekend to access the intermittent wiper relay. When I reinstalled, I forgot to reconnect the little hose from the charcoal canister to the evap tank. (IMG:style_emoticons/default/blink.gif) What an unbelievable stench that belched out of there.



That's why I hooked it up even on the big 4.0L engine. It makes a substantial difference and it only adds maybe a pound to the total vehicle weight. I still need to do the factory six, but I have all the parts now.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Aug 9 2022, 07:29 AM
Post #9


914 Guru
*****

Group: Members
Posts: 7,176
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



yes as david said the charcoal cannister


QUOTE(lolkema @ Aug 5 2022, 12:33 PM) *

Hi all,

Can anybody tell me what should be connected to this little pipe on my air filter box? It is a '74 1.8 with the L-Jetronic. It came without anything connected to it when I bought it.Attached Image

Thank you in advance!

Frank

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
