> Muffler shield, Available?
nathanxnathan
post Oct 6 2022, 10:27 AM
Post #21


Member
**

Group: Members
Posts: 294
Joined: 16-February 18
From: Laguna Beach, CA
Member No.: 21,899
Region Association: Southern California
The factory removable ones, the brackets are attached/welded to the heat shield and there are speed nuts/clips on the flanges of the brackets.

When I took mine off my early 70, it may or may not have been the factory install so I can't say for sure how the factory did it, but there were Phillips head screws down through the trunk floor, and they were covered in seam sealer and painted over.

I can get a pic later of the heat shield with the brackets attached with the speed nuts in place.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nathanxnathan
post Oct 6 2022, 09:47 PM
Post #22


Member
**

Group: Members
Posts: 294
Joined: 16-February 18
From: Laguna Beach, CA
Member No.: 21,899
Region Association: Southern California
I didn't realize that the early and late are actually different stampings. The early one is rounder in profile and straight at the edges, no cutout bits like the late one.

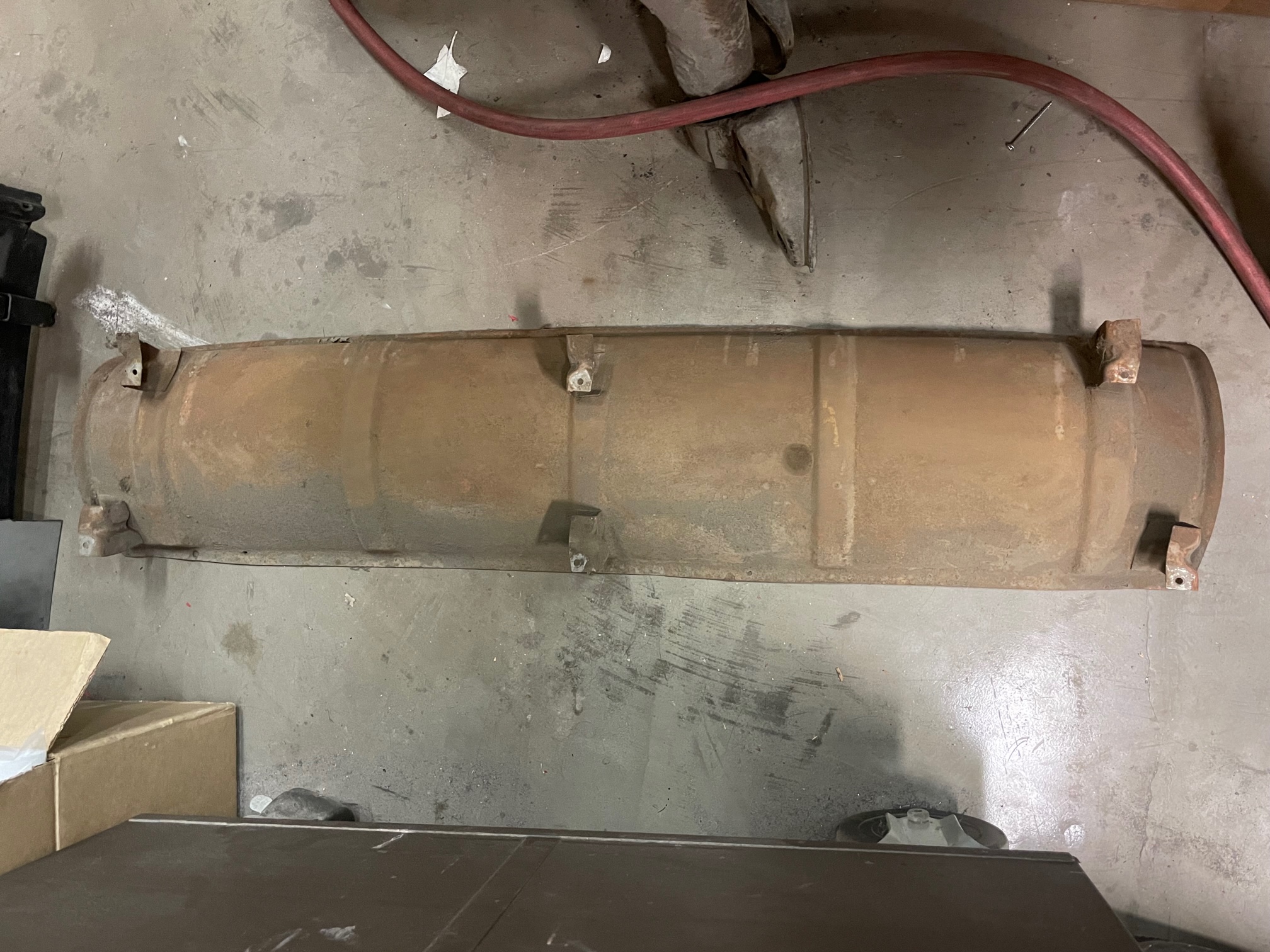

Here's the 1970 early removable one
Attached Image

Attached Image

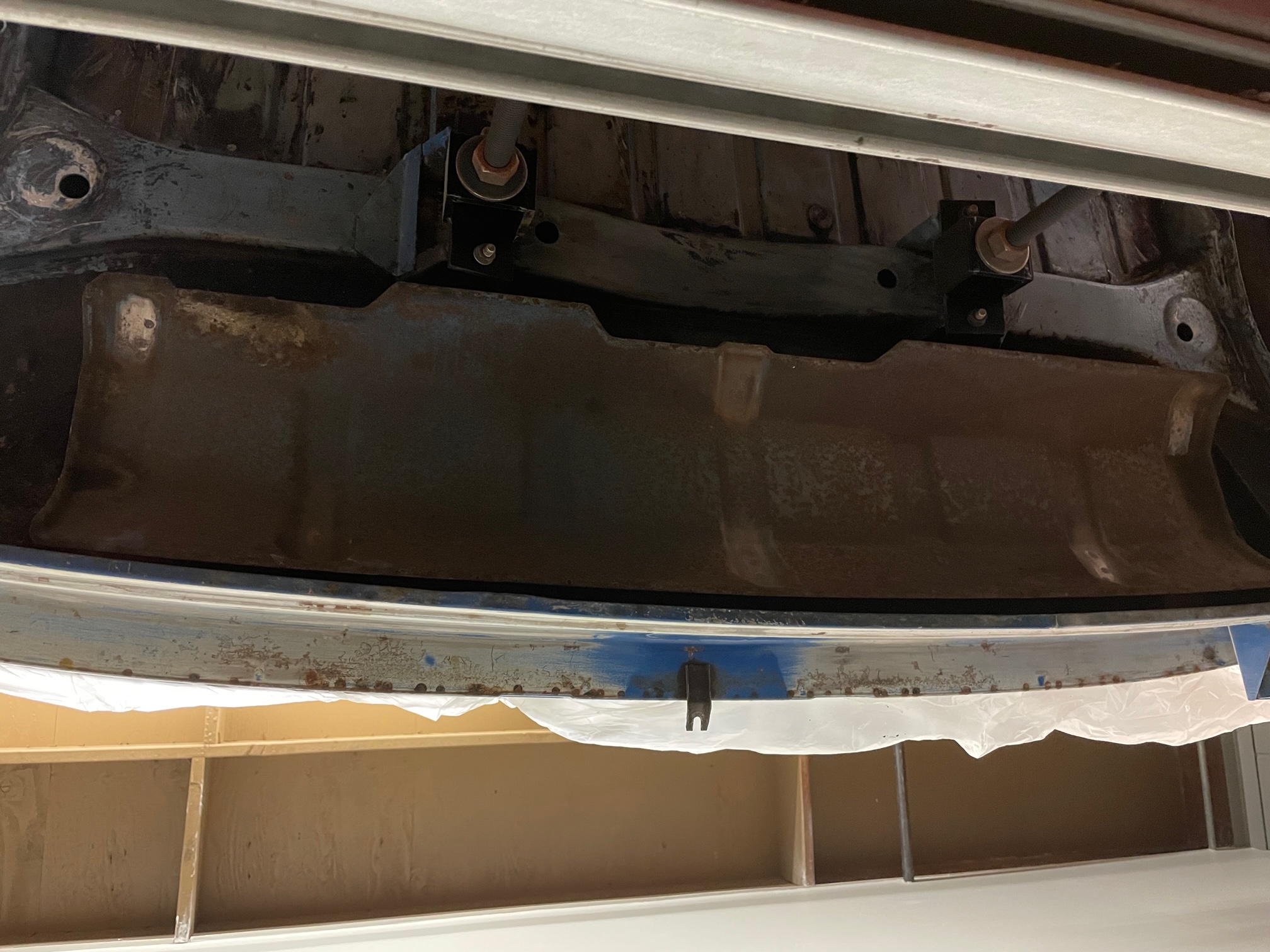

and the late one on a fairly early 72
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Oct 7 2022, 08:41 AM
Post #23


Senior Member
***

Group: Members
Posts: 1,416
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
@nathanxnathan Thanks, that helps a lot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Oct 7 2022, 09:14 AM
Post #24


Senior Member
***

Group: Members
Posts: 1,902
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California
Here is what I did (lower part of this post):

http://www.914world.com/bbs2/index.php?s=&...t&p=2910494

Missing picture in the thread, holes in the trunk done using template. Shield bolts on perfectly.



Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
NARP74
post Oct 7 2022, 09:17 AM
Post #25


Senior Member
***

Group: Members
Posts: 1,416
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
QUOTE(Montreal914 @ Oct 7 2022, 09:14 AM) *

Here is what I did (lower part of this post):

http://www.914world.com/bbs2/index.php?s=&...t&p=2910494

Thanks for showing me that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Oct 7 2022, 11:41 AM
Post #26


Winner of the Utah Twisted Joint Award
****

Group: Members
Posts: 3,493
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest
QUOTE(worn @ Sep 29 2022, 01:19 PM) *

QUOTE(NARP74 @ Sep 29 2022, 12:51 PM) *

Mine is missing and what is left behind looks like someone took a pair of pliers and yanked it off during a pit stop.

Is this part available just as a shield or part of a trunk patch? I looked at a couple of suppliers but I am not finding anything.

Also, if you have one, are the different versions interchangeable? If I backdate the exhaust on a 76 can I use the earlier version? Not to hijack the thread, but if new ones are made, which version?

Ahem. At the risk of repeating myself. How interchangeable are they vis a vis exhaust lines? Make any difference. With the 3.2 I decided to use machine screws cause it just made more sense.
Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
majkos1
post Mar 4 2023, 12:15 PM
Post #27


Member
**

Group: Members
Posts: 227
Joined: 11-August 17
From: Mile High 914
Member No.: 21,338
Region Association: Rocky Mountains
Of the later heat shied,
what's the purpose of notch and rounded cut out?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Mar 4 2023, 12:25 PM
Post #28


Senior Member
***

Group: Members
Posts: 1,416
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
@worn did you get an answer? I don't know. @majkos1 I don't know since I don't have one yet. Still learning...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 4 2023, 12:43 PM
Post #29


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,351
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
@Worn Based solely on the vast # of /6 conversions the exist & have been running around for decades Id suggest there is no real "interference" issue.
Think of it this way the 911, /6 and the /4 banana OE mufflers were/are kidney shaped not straight /right angled like the late shield ...but still fit w/o clearance issues.
So unless going for originality, a late shield should do the job intend just fine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 4 2023, 12:46 PM
Post #30


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,351
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE(majkos1 @ Mar 4 2023, 10:15 AM) *
Of the later heat shied, what's the purpose of notch and rounded cut out?

(IMG:style_emoticons/default/confused24.gif) Its been discussed before.
Could be argued that the round cut (& wire tabs) was for the routing of the EGR wiring cept, they exist on shields prior to 75 ? (IMG:style_emoticons/default/huh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Front yard mechanic
post Mar 4 2023, 12:51 PM
Post #31


Senior Member
***

Group: Members
Posts: 1,372
Joined: 23-July 15
From: New Mexico
Member No.: 18,984
Region Association: None
I prefer no shield it keeps my burritos warm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 4 2023, 12:53 PM
Post #32


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,351
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Just dont put your ice cream in the trunk on the way back form the grocery store.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
majkos1
post Mar 4 2023, 01:02 PM
Post #33


Member
**

Group: Members
Posts: 227
Joined: 11-August 17
From: Mile High 914
Member No.: 21,338
Region Association: Rocky Mountains
QUOTE(914werke @ Mar 4 2023, 01:46 PM) *

QUOTE(majkos1 @ Mar 4 2023, 10:15 AM) *
Of the later heat shied, what's the purpose of notch and rounded cut out?

(IMG:style_emoticons/default/confused24.gif) Its been discussed before.
Could be argued that the round cut (& wire tabs) was for the routing of the EGR wiring cept, they exist on shields prior to 75 ? (IMG:style_emoticons/default/huh.gif)



makes sense.

I also thought since the body I have (and chopped up) was a '76 Calif. 914 so,
calif emission stuff?

Sorry Guys, the shell was severely cracked up and PO didn't want it repaired.
(IMG:style_emoticons/default/sawzall-smiley.gif) party! (IMG:style_emoticons/default/beerchug.gif)
Most of the good parts found good homes. (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Mar 4 2023, 05:02 PM
Post #34


Winner of the Utah Twisted Joint Award
****

Group: Members
Posts: 3,493
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest
QUOTE(NARP74 @ Mar 4 2023, 10:25 AM) *

@worn did you get an answer? I don't know. @majkos1 I don't know since I don't have one yet. Still learning...

Kind of. My ‘76 has a burned out shield and I have a replacement that looks different. Presumably i am putting an early shield on a newer car. But. The heat exchangers will be back dated. So i will just wait and pop rivet whatever fits when the painting is done
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2023, 10:04 PM
Post #35


914 Guru
*****

Group: Members
Posts: 8,489
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Here's my 73 muffler shield bolt-on modification. Two new brackets that bolt through the shield.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2023, 10:05 PM
Post #36


914 Guru
*****

Group: Members
Posts: 8,489
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Brackets welded to the trunk floor.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2023, 10:07 PM
Post #37


914 Guru
*****

Group: Members
Posts: 8,489
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Shield bolted on. All this was before I did paint. I eventually had the shield powder-coated with high-temp powder.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
