> Can someone identify this, a plug from the interior wiring harness
Type 47
post Dec 5 2022, 08:53 PM
Post #1


Senior Member
***

Group: Members
Posts: 782
Joined: 1-June 10
From: St. Louis, MO
Member No.: 11,790
Region Association: None

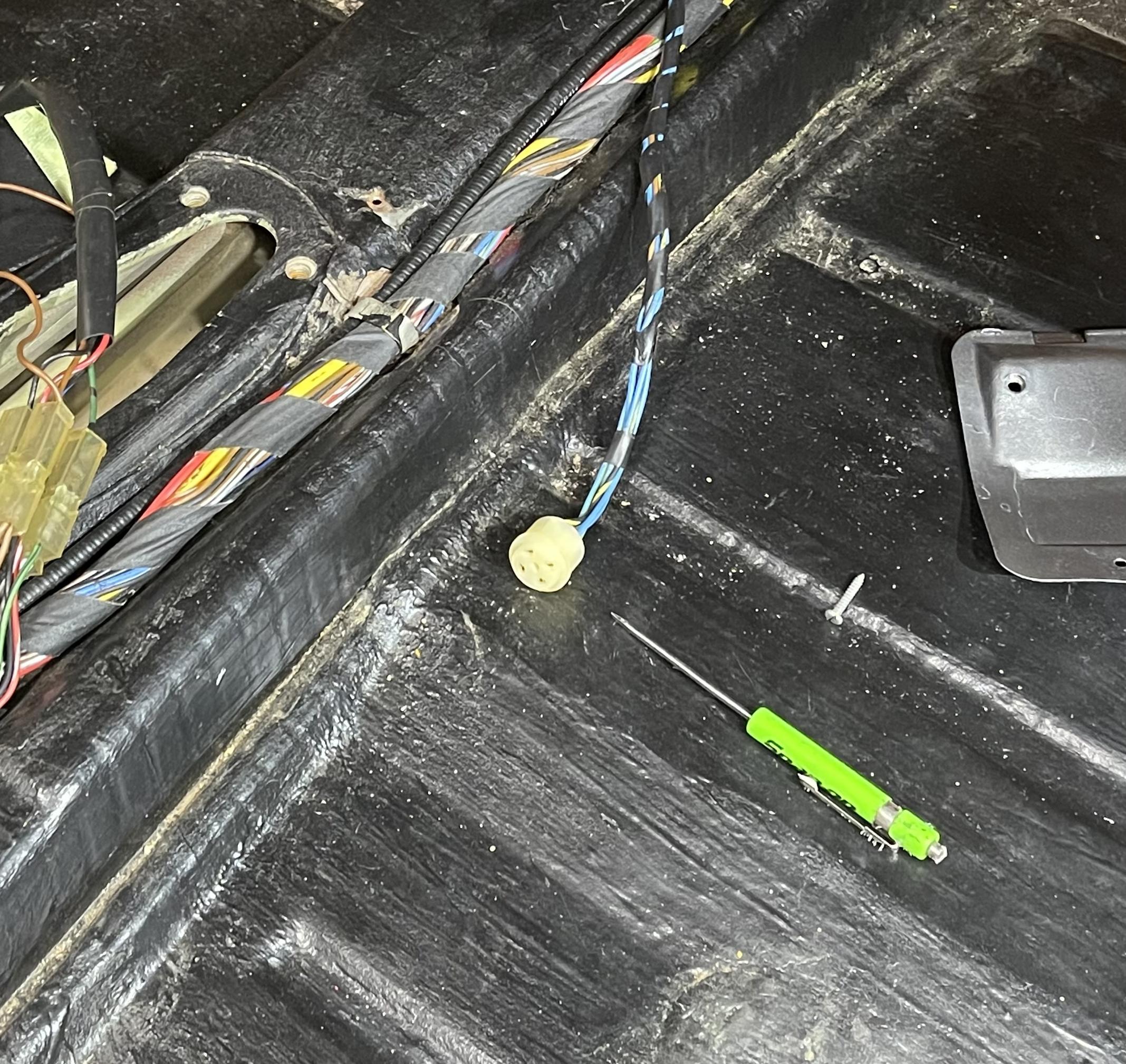

Not sure I remember this in the disassembly or with any of my other 914's.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 5 2022, 09:29 PM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,507
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
What year is your car?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
windforfun
post Dec 5 2022, 09:30 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,785
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
QUOTE(Type 47 @ Dec 5 2022, 06:53 PM) *

Not sure I remember this in the disassembly or with any of my other 914's.
Attached Image


That doesn't look stock. Four terminals... Hmm... I think I see a brown ground wire. The tape isn't factory correct either.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 47
post Dec 5 2022, 09:42 PM
Post #4


Senior Member
***

Group: Members
Posts: 782
Joined: 1-June 10
From: St. Louis, MO
Member No.: 11,790
Region Association: None
an early 75'
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ejm
post Dec 5 2022, 09:50 PM
Post #5


I can see the light at the end of the tunnel
****

Group: Members
Posts: 2,691
Joined: 3-February 03
From: Massachusetts
Member No.: 224
Region Association: None
That is for the EGR counter box that would be in the passenger footwell if the car has that equipment.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Dec 5 2022, 09:55 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,785
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
QUOTE(ejm @ Dec 5 2022, 07:50 PM) *

That is for the EGR counter box that would be in the passenger footwell if the car has that equipment.


(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 47
post Dec 5 2022, 10:13 PM
Post #7


Senior Member
***

Group: Members
Posts: 782
Joined: 1-June 10
From: St. Louis, MO
Member No.: 11,790
Region Association: None
QUOTE(ejm @ Dec 5 2022, 07:50 PM) *

That is for the EGR counter box that would be in the passenger footwell if the car has that equipment.


Awesome.

Of the 7 914's I've owned (all earlier than MY 75) I've never seen this.

What is an EGR counter box?

I'm assuming this car was not equipped with one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 5 2022, 11:22 PM
Post #8


914 Wiring Harnesses
*****

Group: Members
Posts: 8,507
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(JeffBowlsby @ Dec 5 2022, 07:29 PM) *

What year is your car?


Again I ask?

It connects to the EGR counter in the pass footwell foam block. It’s in the 75-76 cars, CA models only. If you have a 74 model year it’s not original to your chassis.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Dec 6 2022, 04:03 AM
Post #9


914 Idiot
**********

Group: Members
Posts: 14,986
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE(Type 47 @ Dec 5 2022, 09:13 PM) *

What is an EGR counter box?


It is a box that sits in a recess in the foam at the front of the passenger footwell. When the car has driven a certain number of miles, it turns on the "EGR" light in the dash. It gets reset by pressing a button on the box. The Haynes manual has an illustration of it, I believe.

The box is driven by a speedometer cable that is a different length (shorter?) than the "normal" one, and a second cable goes from the box to the speedometer.

As has been stated already, not all 75-76 cars came with one.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Dec 6 2022, 08:12 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,215
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States
Interesting. Guess my '76 CA car has this tho I've not uncovered it. It does have the EGR light but it doesn't work.

Speedo cable in my car has been replaced, but new cable goes directly from tranny to speedometer. Old cable remains in place.

GN
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Dec 6 2022, 08:18 AM
Post #11


Senior Member
****

Group: Members
Posts: 4,030
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
QUOTE(Gatornapper @ Dec 6 2022, 08:12 AM) *

Interesting. Guess my '76 CA car has this tho I've not uncovered it. It does have the EGR light but it doesn't work.

Speedo cable in my car has been replaced, but new cable goes directly from tranny to speedometer. Old cable remains in place.

GN


Check under the passenger foot rest (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Dec 6 2022, 08:18 AM
Post #12


Advanced Member
****

Group: Members
Posts: 3,062
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
My '75 CA car has this connection and a rebate in the foam where the counter would reside.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 47
post Dec 6 2022, 11:03 AM
Post #13


Senior Member
***

Group: Members
Posts: 782
Joined: 1-June 10
From: St. Louis, MO
Member No.: 11,790
Region Association: None
QUOTE(JeffBowlsby @ Dec 5 2022, 09:22 PM) *

QUOTE(JeffBowlsby @ Dec 5 2022, 07:29 PM) *

What year is your car?


Again I ask?

It connects to the EGR counter in the pass footwell foam block. It’s in the 75-76 cars, CA models only. If you have a 74 model year it’s not original to your chassis.



Sorry, I wasn't very clear was I. It's a 75', the last one listed in my sig. (upon further review it's in the 4th post from top)

Non-CA car, it never had one.

Thanks guys for your help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 6 2022, 12:37 PM
Post #14


914 Wiring Harnesses
*****

Group: Members
Posts: 8,507
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
So its a known 49-state 75 2.0L wiht no EGR or CAT, and it has the wiring in place for the CA-model EGR system.

Can you tell me if it also has the wiring for the CAT sensor/relay in the rear trunk by the drivers side rear tailight housing? It may just be a few 1/4" female wire terminals taped to the harness and not used.

Really appreciate your confirmation.

@Type 47
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Dec 6 2022, 02:20 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,215
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States
No can do. Car is 40 min. away at restoration paint shop being repainted in original Malaga Red.

Can't wait.

GN

QUOTE(Chris H. @ Dec 6 2022, 09:18 AM) *

QUOTE(Gatornapper @ Dec 6 2022, 08:12 AM) *

Interesting. Guess my '76 CA car has this tho I've not uncovered it. It does have the EGR light but it doesn't work.

Speedo cable in my car has been replaced, but new cable goes directly from tranny to speedometer. Old cable remains in place.

GN


Check under the passenger foot rest (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Dec 6 2022, 03:00 PM
Post #16


Advanced Member
****

Group: Members
Posts: 3,062
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
QUOTE(JeffBowlsby @ Dec 6 2022, 01:37 PM) *

So its a known 49-state 75 2.0L wiht no EGR or CAT, and it has the wiring in place for the CA-model EGR system.

Can you tell me if it also has the wiring for the CAT sensor/relay in the rear trunk by the drivers side rear tailight housing? It may just be a few 1/4" female wire terminals taped to the harness and not used.

Really appreciate your confirmation.

@Type 47


I can probably get to the car shop later, or tomorrow to check the connections in the rear trunk
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 47
post Dec 6 2022, 03:01 PM
Post #17


Senior Member
***

Group: Members
Posts: 782
Joined: 1-June 10
From: St. Louis, MO
Member No.: 11,790
Region Association: None
QUOTE(JeffBowlsby @ Dec 6 2022, 10:37 AM) *

So its a known 49-state 75 2.0L wiht no EGR or CAT, and it has the wiring in place for the CA-model EGR system.

Can you tell me if it also has the wiring for the CAT sensor/relay in the rear trunk by the drivers side rear tailight housing? It may just be a few 1/4" female wire terminals taped to the harness and not used.

Really appreciate your confirmation.

@Type 47


Yes confirmed. Original owner purchased car new from a Porsche dealer in St. Louis.

There is similar wiring in the rear trunk on the drivers side.

Note: electrical tape is still on wiring harness from reinstallation, cloth tape has to be wrapped before trunk gets wrapped up.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 6 2022, 03:32 PM
Post #18


914 Wiring Harnesses
*****

Group: Members
Posts: 8,507
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
That solves a mystery, thank you. I have only ever seen the 75-76 chassis harnesses with the wiring for both the EGR/CAT systems thinking I only been able to acquire the CA-model versions, but yet knew that the cars were equipped differently for CA and 49-state markets, so there was the possibility of two different harnesses.

Your confirmed 49-state market car with that oriignal harness which has both the EGR/CAT branches (just not used) means that there is only one type of 75-76 chassis harness for both markets. They just did not mount the equipment for the 49-state cars that was needed on the CA-model cars.

Thanks.

Anyone who finds a 1975-76 chassis harness without the EGR/CAT connections please let me know.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
aturboman
post Dec 6 2022, 03:51 PM
Post #19


Member
**

Group: Members
Posts: 135
Joined: 18-October 11
From: CA
Member No.: 13,687
Region Association: None
I recently revived a 75 CA car and it had a relay in the left rear trunk with that same connector and also has the front counter box plug.

I suspect in 75 if it was a 49 state car without the counter they just left the system unplugged and relays our of the car?

The rear relay was for a catalyst warning light, it had a wire running through the rear trunk panel to the cat at one point in its life.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 6 2022, 04:01 PM
Post #20


914 Wiring Harnesses
*****

Group: Members
Posts: 8,507
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
That appears to be the case.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
