> Rear trunk pivots
East coaster
post Mar 1 2023, 07:47 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,675
Joined: 28-March 03
From: Brigantine, NJ
Member No.: 487
Region Association: None
I tried searching but alas……..looking for measurements/references for placement of the rear trunk pivots. I have 2 new pivots to weld in but the previous hinges were such a mess I don’t really have a reference.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Mar 1 2023, 08:19 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,305
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
Are you shooting for a top-level concourse restoration? If not, just make it easy for yourself...

https://www.jwestengineering.com/914-Rear-T...-EACH_p_17.html

https://www.jwestengineering.com/assets/ima...nstructions.pdf
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Mar 1 2023, 11:23 PM
Post #3


The rubber man
**********

Group: Members
Posts: 12,670
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
Typically you can see where the old ones were tack welded in and replace in the same position. Much easier with the engine out. Will require welding if you go OEM.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 2 2023, 07:49 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,675
Joined: 28-March 03
From: Brigantine, NJ
Member No.: 487
Region Association: None
I just sold a set of those in the classified here. I’m looking to weld in stock replacements. Not going for concours look but have something else (very non-stock) in mind that I want to base off of the stock mounts. Mine were so hacked up and booger welded you can’t really tell where they’re supposed to be.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 2 2023, 10:02 AM
Post #5


914 Guru
*****

Group: Members
Posts: 5,836
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
There is no great way to position them via measurement only, especially after the originals have been broken and booger welded up.

Trial fit the trunk without springs. Position gaps, tack the hinges.

Remove the trunk - weld them in place.

Kudos to you for avoiding the aftermarket bolt on. Personally, I hate solutions that add more parts and more weight to what is supposed to be a lightweight car. Sure it’s not much added weight but that is how cars get so heavy. Death by a thousand cuts. A little weight here, a little over there, next thing you know the car is 10 - 20% heavier. (IMG:style_emoticons/default/barf.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 2 2023, 11:47 AM
Post #6


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,081
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE(Superhawk996 @ Mar 2 2023, 08:02 AM) *
Personally, I hate solutions that add more parts and more weight to what is supposed to be a lightweight car. Sure it’s not much added weight but that is how cars get so heavy. Death by a thousand cuts. A little weight here, a little over there, next thing you know the car is 10 - 20% heavier. (IMG:style_emoticons/default/barf.gif)

By that logic you would be an advocate for never adding power to the cars. Because thats the way the car was designed (IMG:style_emoticons/default/confused24.gif)
Considering the the average weight of a new car is somewhere in the 2 TON range, I think you are picking nits (IMG:style_emoticons/default/smile.gif)
The other way to think of it is the 914 engineers might have prefered to uses a BETTER solution but opted for a cheaper one considering the target market & VW deal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Mar 2 2023, 12:49 PM
Post #7


Custom Member
***************

Group: Members
Posts: 24,577
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE(East coaster @ Mar 2 2023, 08:49 AM) *

I just sold a set of those in the classified here. I’m looking to weld in stock replacements. Not going for concours look but have something else (very non-stock) in mind that I want to base off of the stock mounts. Mine were so hacked up and booger welded you can’t really tell where they’re supposed to be.

Let me go see if I can get you a few measurements to help you locate them.

Rich
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Mar 2 2023, 02:41 PM
Post #8



***

Group: Members
Posts: 1,671
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States

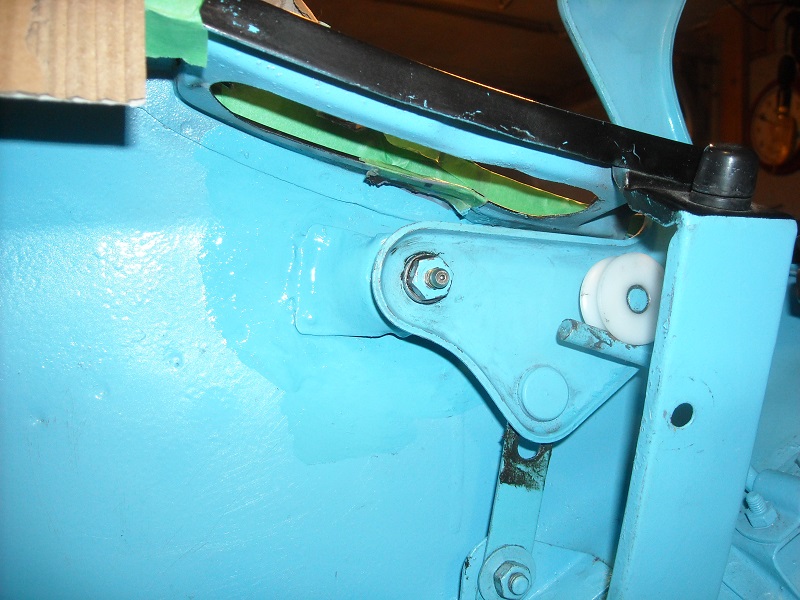

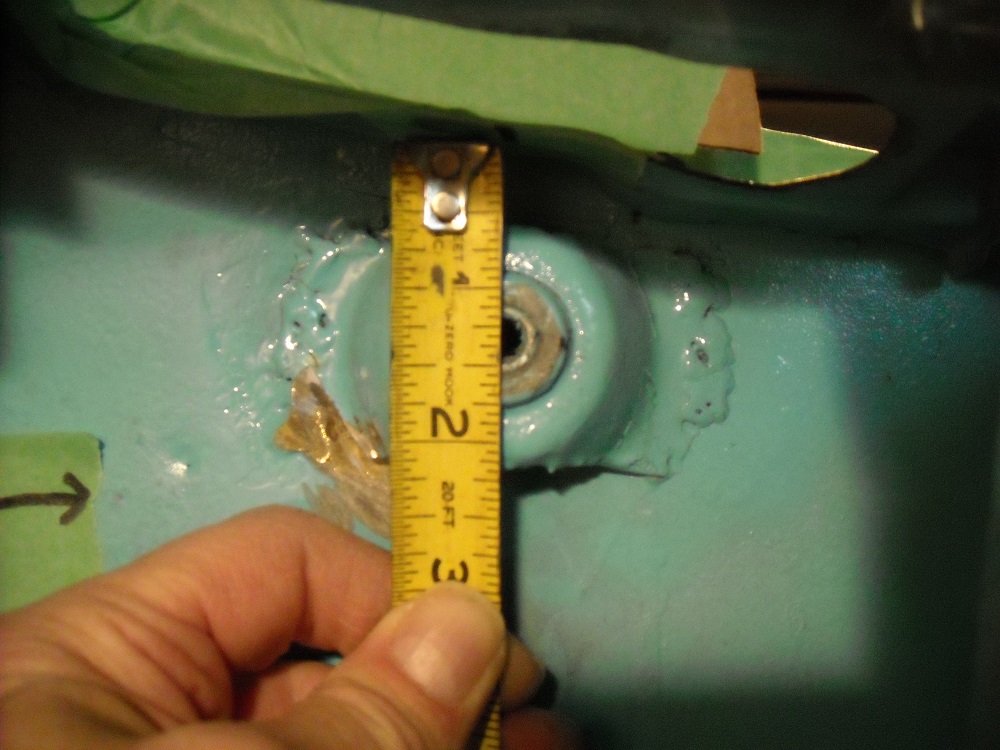

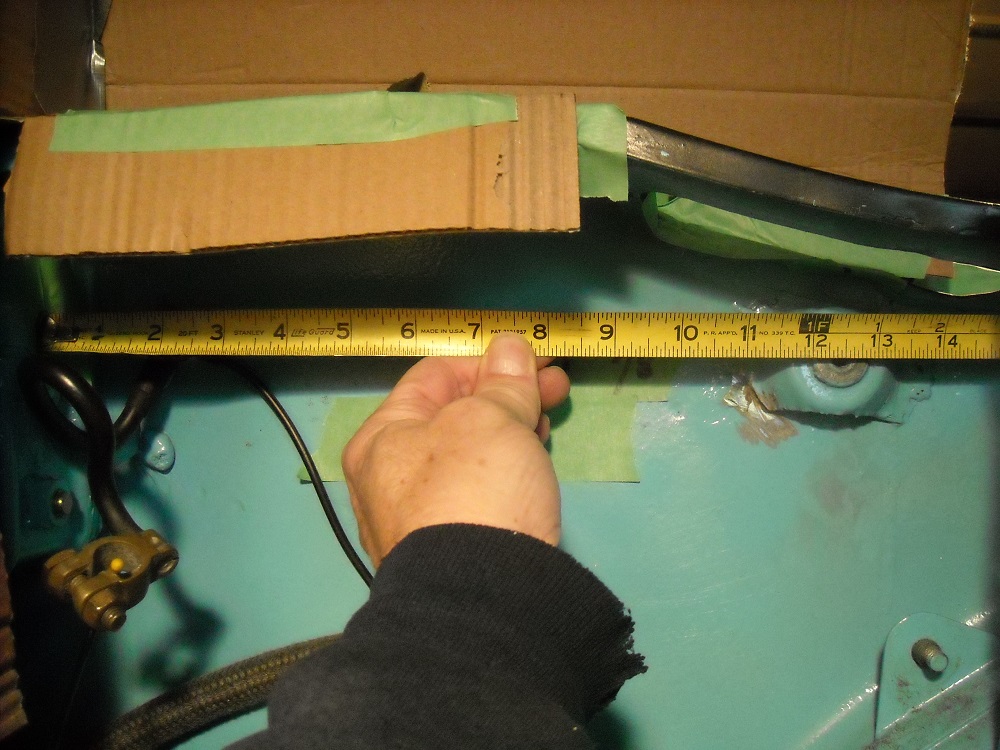

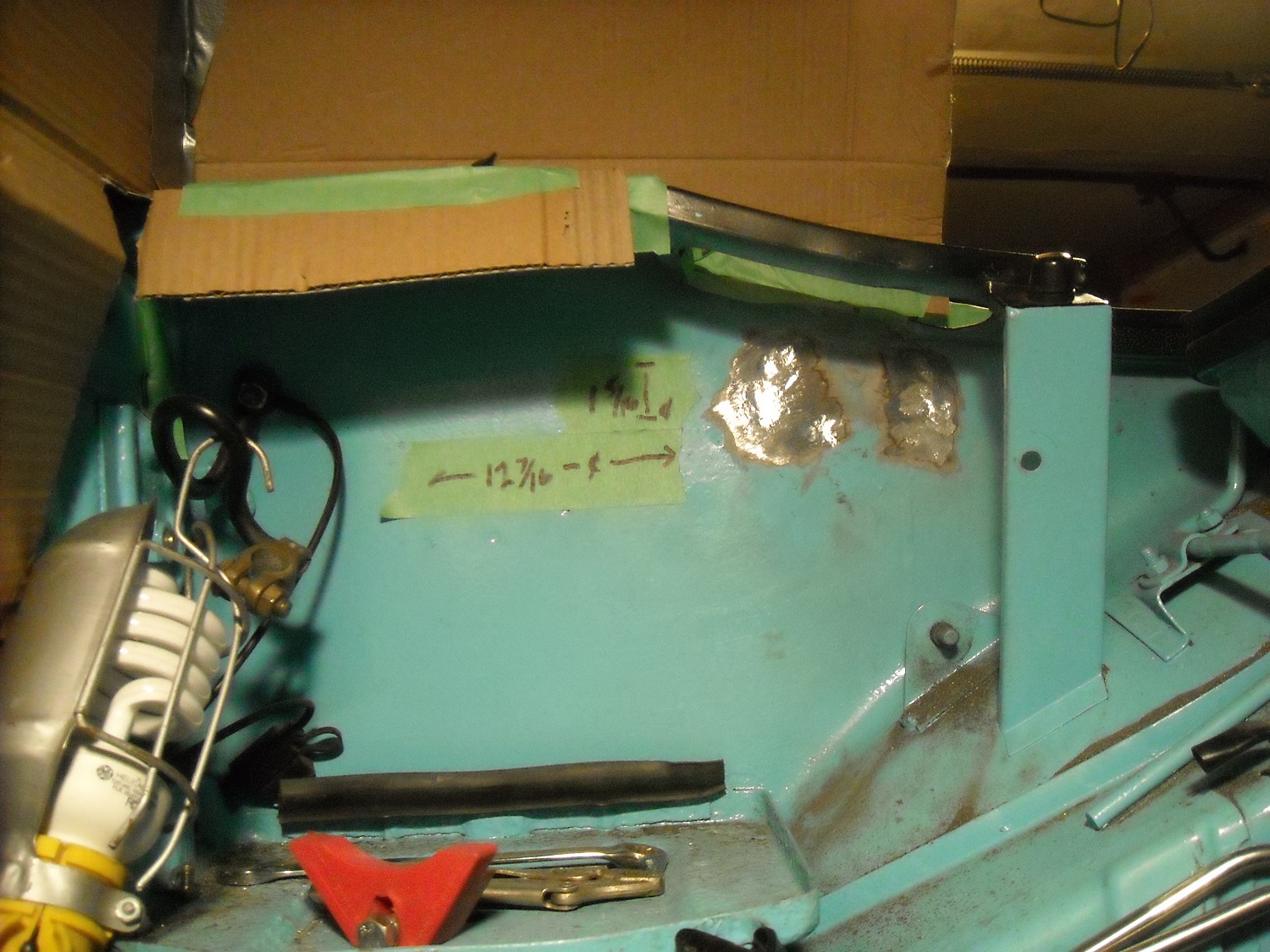

This is what I had... But each car is different. so use my measurements with caution.

What I ended up doing was what @Superhawk996 recommended, and mounted the trunk lid with the trunk arm hinges in place and spot welding them in. then removing everything and welding them in solid.

Also since I didn't want to try bending over and welding upside down, (Not that skilled a welder) I removed the engine and just sat comfortably in the engine bay do do the welding.

But I am weird that way.

Attached Image
Attached Image
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 2 2023, 04:18 PM
Post #9


914 Guru
*****

Group: Members
Posts: 5,836
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(914werke @ Mar 2 2023, 12:47 PM) *

QUOTE(Superhawk996 @ Mar 2 2023, 08:02 AM) *
Personally, I hate solutions that add more parts and more weight to what is supposed to be a lightweight car. Sure it’s not much added weight but that is how cars get so heavy. Death by a thousand cuts. A little weight here, a little over there, next thing you know the car is 10 - 20% heavier. (IMG:style_emoticons/default/barf.gif)

By that logic you would be an advocate for never adding power to the cars. Because thats the way the car was designed (IMG:style_emoticons/default/confused24.gif)
Considering the the average weight of a new car is somewhere in the 2 TON range, I think you are picking nits (IMG:style_emoticons/default/smile.gif)
The other way to think of it is the 914 engineers might have prefered to uses a BETTER solution but opted for a cheaper one considering the target market & VW deal.

And your logic is why American car industry can’t produce a light weight car - been there done that (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 2 2023, 05:39 PM
Post #10


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,081
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE(Superhawk996 @ Mar 2 2023, 02:18 PM) *
And your logic is why American car industry can’t produce a light weight car - been there done that (IMG:style_emoticons/default/poke.gif)
not on my radar..I ride a Motorcycle (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanpaulmc
post Mar 2 2023, 07:01 PM
Post #11


Member
**

Group: Members
Posts: 300
Joined: 6-December 16
From: Orlando, FL
Member No.: 20,649
Region Association: South East States
Here’s my experience…

Trunk hinge replacement


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 2 2023, 07:01 PM
Post #12


914 Guru
*****

Group: Members
Posts: 5,836
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(914werke @ Mar 2 2023, 06:39 PM) *

QUOTE(Superhawk996 @ Mar 2 2023, 02:18 PM) *
And your logic is why American car industry can’t produce a light weight car - been there done that (IMG:style_emoticons/default/poke.gif)
not on my radar..I ride a Motorcycle (IMG:style_emoticons/default/happy11.gif)

I’m with you - good call. Always lighter, faster, and more fun than cages.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Mar 2 2023, 07:17 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,796
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
Dump the plastic rollers. Aluminum ones are available from somewhere. BTDT.

(IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 2 2023, 08:18 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,675
Joined: 28-March 03
From: Brigantine, NJ
Member No.: 487
Region Association: None
QUOTE(Olympic 914 @ Mar 2 2023, 01:41 PM) *

This is what I had... But each car is different. so use my measurements with caution.

What I ended up doing was what @Superhawk996 recommended, and mounted the trunk lid with the trunk arm hinges in place and spot welding them in. then removing everything and welding them in solid.

Also since I didn't want to try bending over and welding upside down, (Not that skilled a welder) I removed the engine and just sat comfortably in the engine bay do do the welding.

But I am weird that way.



Thank you!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
