Deusexmachina77 |
![]()
Post
#1
|
Member ![]() ![]() Group: Members Posts: 98 Joined: 30-March 22 From: Chicago Member No.: 26,426 Region Association: Upper MidWest ![]() ![]() |
|
mepstein |
![]()
Post
#2
|
914-6 GT in waiting ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 19,841 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region ![]() ![]() |

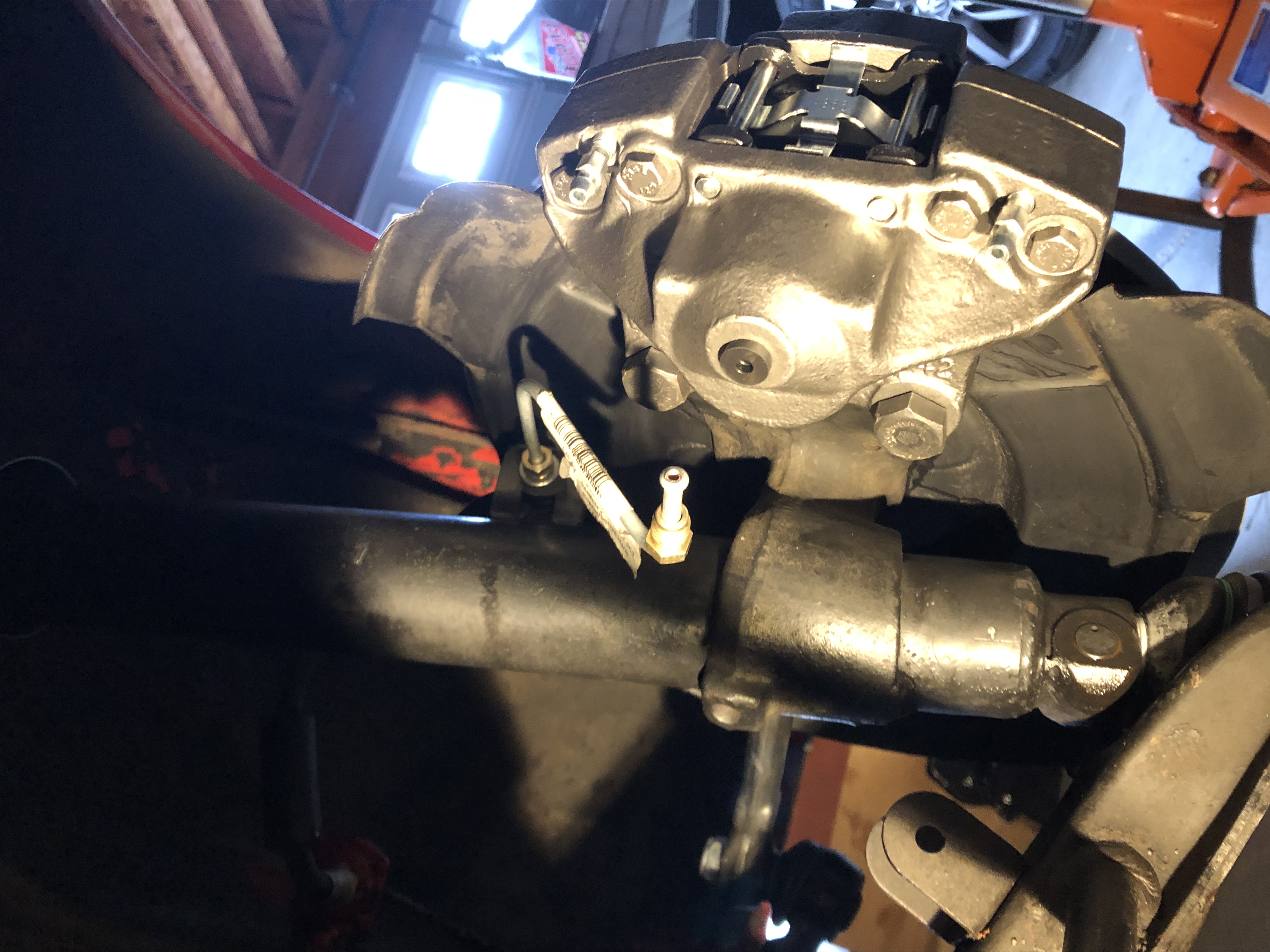

The brake line used a banjo bolt
|
Deusexmachina77 |
![]()
Post
#3
|
Member ![]() ![]() Group: Members Posts: 98 Joined: 30-March 22 From: Chicago Member No.: 26,426 Region Association: Upper MidWest ![]() ![]() |
|
mepstein |
![]()
Post
#4
|
914-6 GT in waiting ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 19,841 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region ![]() ![]() |
The connection from the hardline to the caliper is a banjo bolt. No need to bend the line. It’s a very common way to attach the brake line to a caliper.
|
davep |
![]()
Post
#5
|
914 Historian ![]() ![]() ![]() ![]() ![]() Group: Benefactors Posts: 5,260 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada ![]() ![]() |

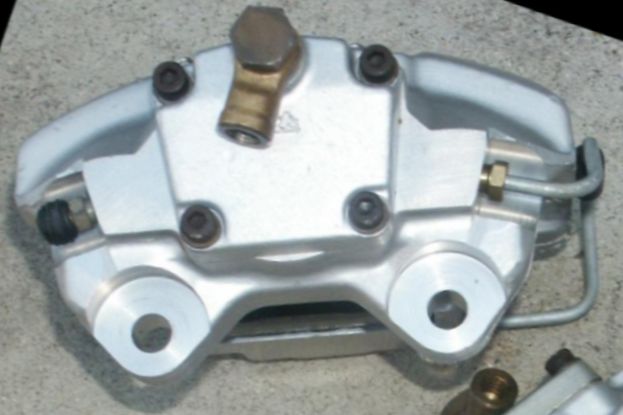

Many front calipers use the Banjo connection for a right angle direction change. It has a hollow bolt with 2 different copper washers and the brass banjo.

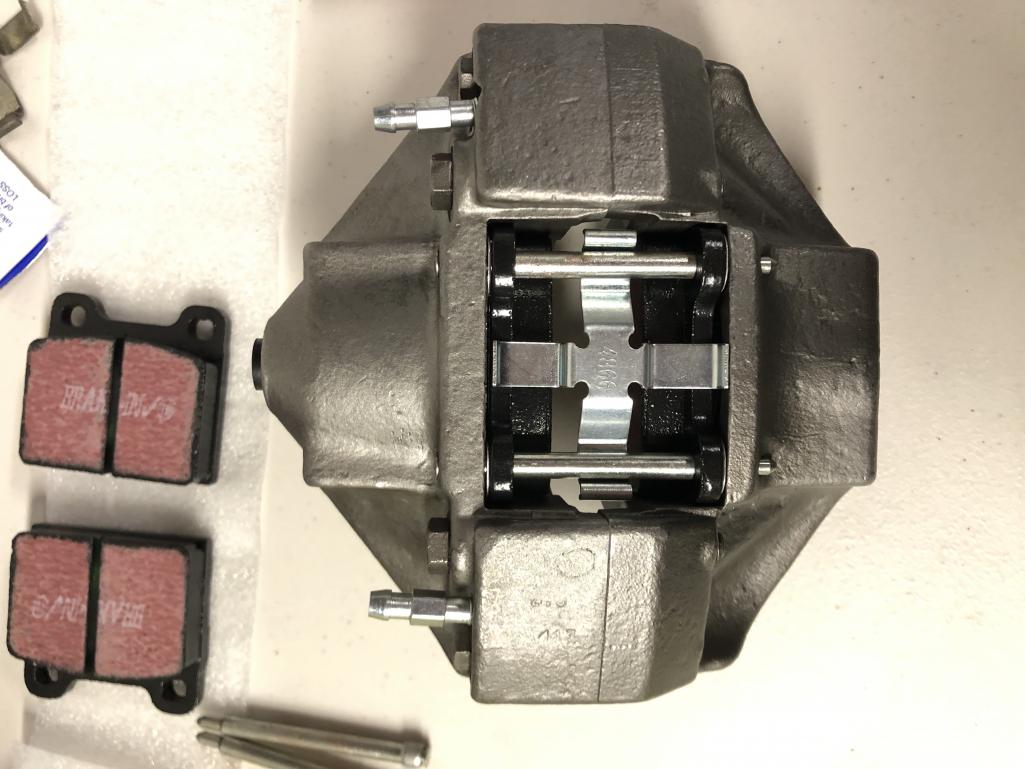

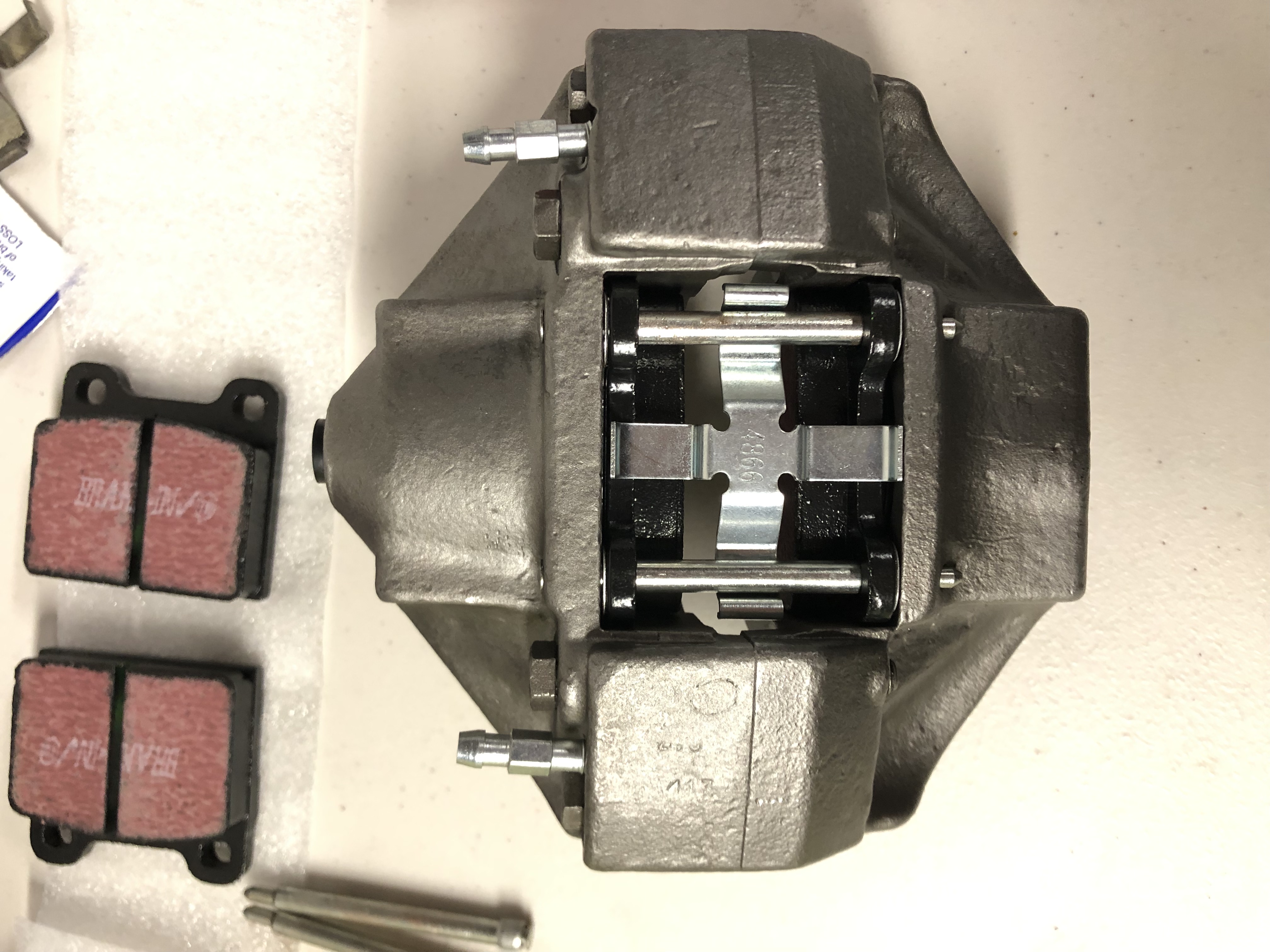

![]() Your pad installation looks correct, the pins have a compressible collar that holds them in place. The caliper looks to be just sandblasted but not plated or painted. It should at least be rattle can painted with high temperature paint to keep the rusting down or the pads will rust into place. |
Deusexmachina77 |
![]()
Post
#6
|
Member ![]() ![]() Group: Members Posts: 98 Joined: 30-March 22 From: Chicago Member No.: 26,426 Region Association: Upper MidWest ![]() ![]() |
I guess I didn't think to look for something else because I didn't remove anything.
|
mgphoto |
![]()
Post
#7
|
"If there is a mistake it will find me" ![]() ![]() ![]() Group: Members Posts: 1,374 Joined: 1-April 09 From: Los Angeles, CA Member No.: 10,225 Region Association: Southern California ![]() |
|

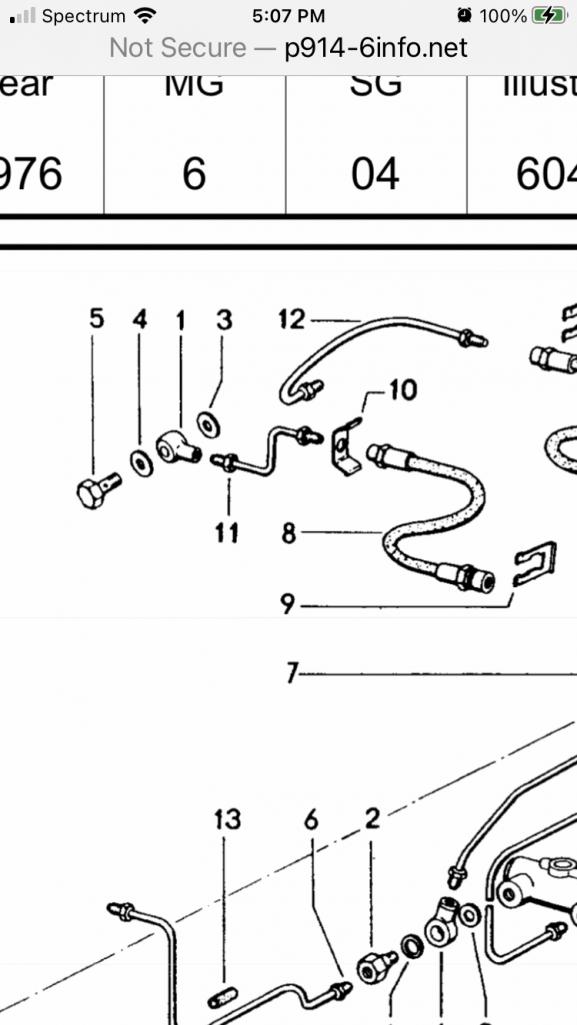

Deusexmachina77 |
![]()
Post
#8
|
Member ![]() ![]() Group: Members Posts: 98 Joined: 30-March 22 From: Chicago Member No.: 26,426 Region Association: Upper MidWest ![]() ![]() |
Many front calipers use the Banjo connection for a right angle direction change. It has a hollow bolt with 2 different copper washers and the brass banjo. ![]() Your pad installation looks correct, the pins have a compressible collar that holds them in place. The caliper looks to be just sandblasted but not plated or painted. It should at least be rattle can painted with high temperature paint to keep the rusting down or the pads will rust into place. Thank you for the photo. Now it makes sense. Not to be a complete idiot, but do I paint the inside as well and mask off the piston area? |
Deusexmachina77 |
![]()
Post
#9
|
Member ![]() ![]() Group: Members Posts: 98 Joined: 30-March 22 From: Chicago Member No.: 26,426 Region Association: Upper MidWest ![]() ![]() |
|
r_towle |
![]()
Post
#10
|
Custom Member ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 24,705 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States ![]() ![]() |
Many front calipers use the Banjo connection for a right angle direction change. It has a hollow bolt with 2 different copper washers and the brass banjo. ![]() Your pad installation looks correct, the pins have a compressible collar that holds them in place. The caliper looks to be just sandblasted but not plated or painted. It should at least be rattle can painted with high temperature paint to keep the rusting down or the pads will rust into place. Thank you for the photo. Now it makes sense. Not to be a complete idiot, but do I paint the inside as well and mask off the piston area? Yup |
914 RZ-1 |
![]()
Post
#11
|
Porsche Padawan ![]() ![]() ![]() Group: Members Posts: 684 Joined: 17-December 14 From: Santa Clarita, CA Member No.: 18,230 Region Association: Southern California ![]() |

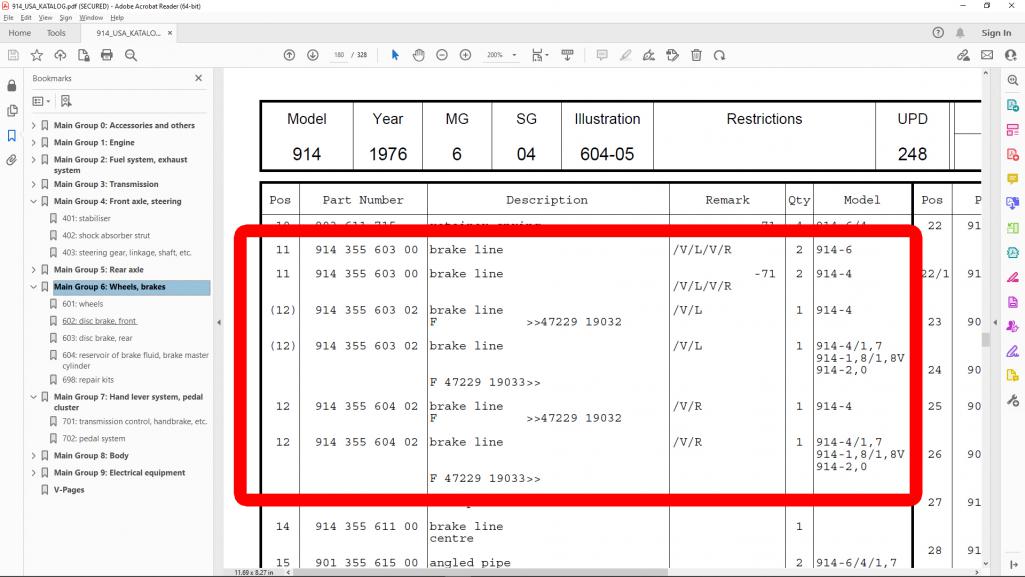

I'm having a similar issue: I want the brake line have a bend in it that allows it to go into the caliper without a banjo bolt. If you look at the PET, there are 2 hard lines that go into the front calipers. One has the 90° bend, the other does not and requires the banjo.

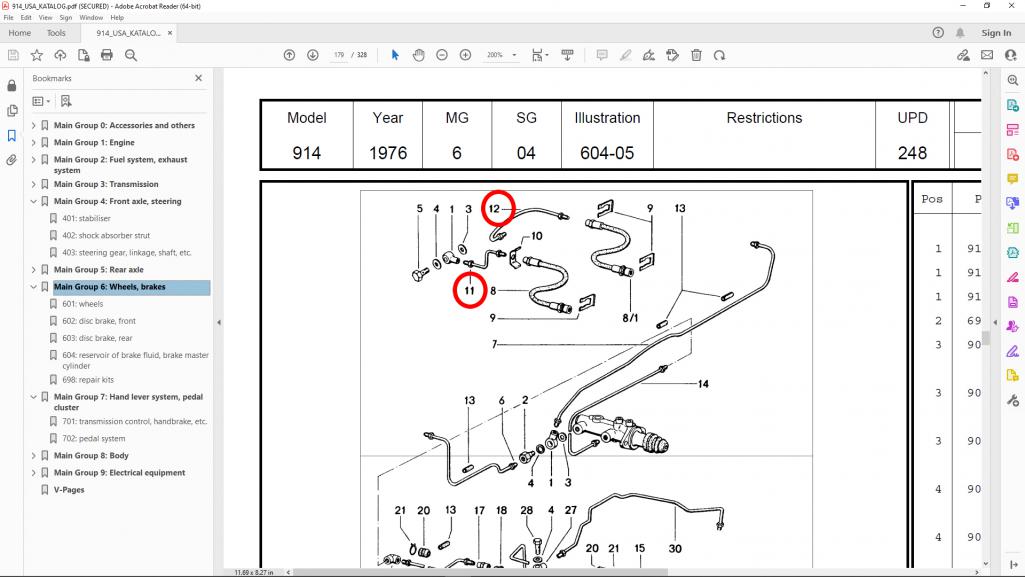

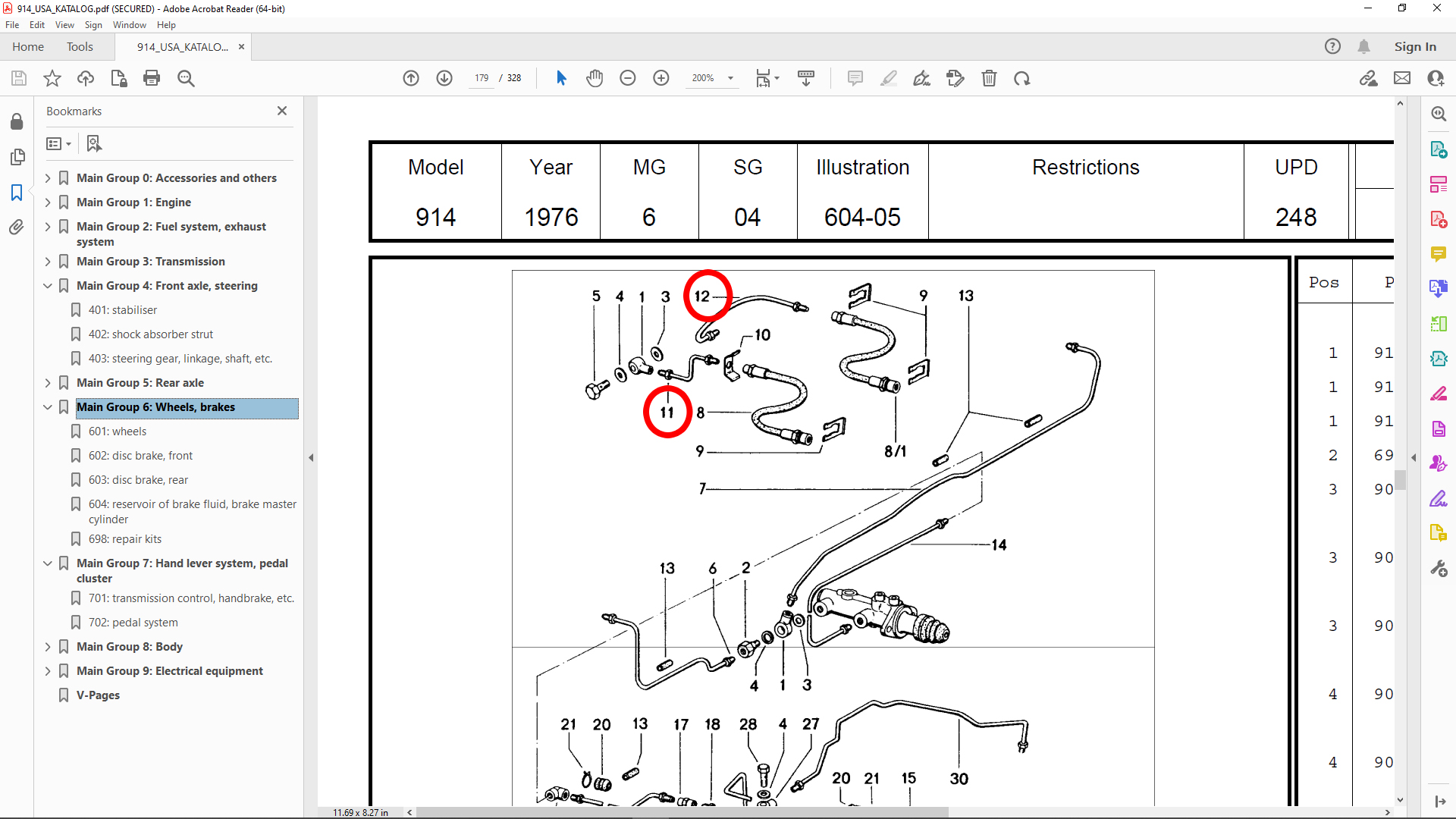

#11 is for cars up thru 1971 and #12 is for cars with VIN 19032 and later, if I'm reading the PET correctly. ![]() ![]() I bought what I thought were the correct hard lines from PMB, but they are the same as #11, even though my order was indicated as #12. I could not easily find the banjo bolt and other parts on PMB's site. I will be calling them on Monday top get some clarification. |
willieg |
![]()
Post
#12
|
Member ![]() ![]() Group: Members Posts: 146 Joined: 13-August 18 From: Pleasant Hill Member No.: 22,389 Region Association: Northern California ![]() ![]() |
I had a similar problem with two calipers I purchased. The very easy solution, which I did, was to purchase two banjo bolts and banjo fittings from PMB, along with the washers. There are other ways but for me, this was the easiest.
|
914 RZ-1 |
![]()
Post
#13
|
Porsche Padawan ![]() ![]() ![]() Group: Members Posts: 684 Joined: 17-December 14 From: Santa Clarita, CA Member No.: 18,230 Region Association: Southern California ![]() |
I had a similar problem with two calipers I purchased. The very easy solution, which I did, was to purchase two banjo bolts and banjo fittings from PMB, along with the washers. There are other ways but for me, this was the easiest. I could not find either of these on the PMB website. I typed in the part name, the part number and looked in the sections I thought they would be in and got nothin'. You got a link? I'm pretty sure they shipped me the wrong ones. My car currently has the ones I'm looking for, but I'm replacing them while I'm redoing the calipers. |
Mike D. |
![]()
Post
#14
|
OK, It runs now, and pretty good too! ![]() ![]() ![]() Group: Members Posts: 1,454 Joined: 3-January 03 From: Santa Clarita, Ca Member No.: 85 Region Association: None ![]() ![]() |
914 RZ-1 is Right.

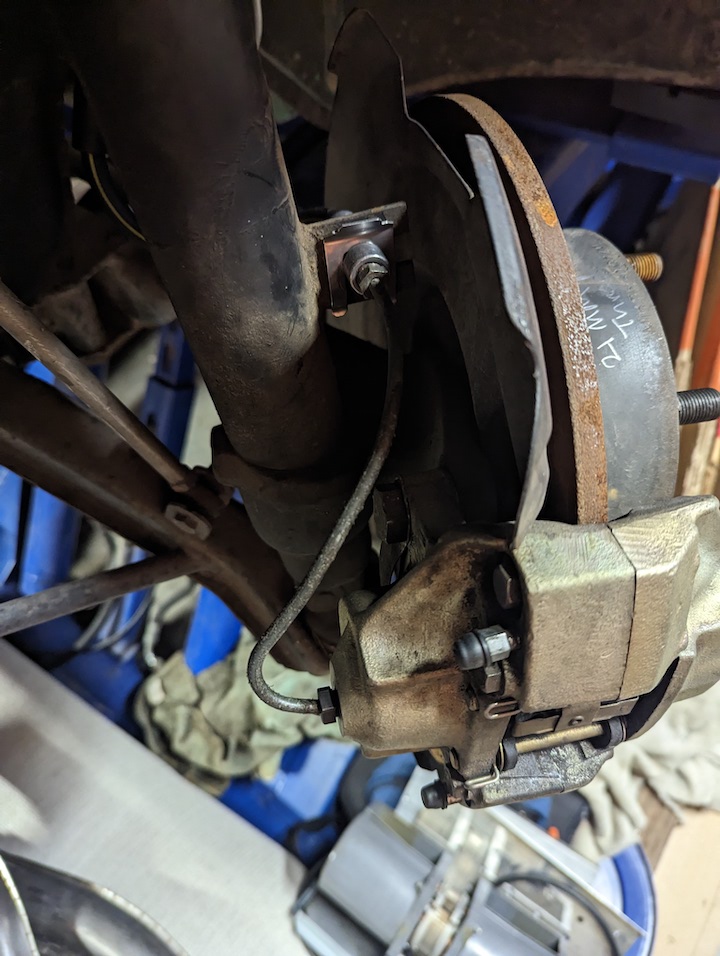

The later front caliper, 73 on did not have the banjo bolt. Seeing how the correct hard lines should be $20 a pair, and the Banjo bolt complete set on Pelican and PMS are about $70, I think I'd just opt for the correct later set at $20 and not spend $90 for 8 inches of brake line... I have 3 cars here that have this on the front... Attached image(s) ![]() |
Eric_Shea |
![]()
Post
#15
|
PMB Performance ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 19,299 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains ![]() ![]() |
As per Mike's post, you have a late caliper and an early line. You need to order the late lines and it will bolt right in. Banjo not needed or recommended for the late calipers.
https://pmbperformance.com/products/12-cali...14-72-8-76-pair Keep in mind, the parts diagram shows the correct line, the photos are for representational purposes to show the various materials (OM Steel, Stainless Steel and Cohline Green). They just so happen to be the 914 355 603 00 line that you "don't" need so, that may be confusing. Hope that helps, Eric |
914 RZ-1 |
![]()
Post
#16
|
Porsche Padawan ![]() ![]() ![]() Group: Members Posts: 684 Joined: 17-December 14 From: Santa Clarita, CA Member No.: 18,230 Region Association: Southern California ![]() |
Thanks, Mike D. and @Eric_Shea .
I called PMB and they sent me the wrong part. I originally ordered the correct one. The ones I want are on sale, so I'm sending back the wrong ones and getting the right ones. |
![]() ![]() |
![]() |
