> Fan Shroud, Option A or B
930cabman
post Jan 1 2024, 11:58 AM
Post #1


Advanced Member
****

Group: Members
Posts: 4,051
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
Fitting a 2.7 into a Palma Green example from Cali, engine was built by Eksten. I have gathered a couple fan shrouds, which if either is more effective for cooling the oil,

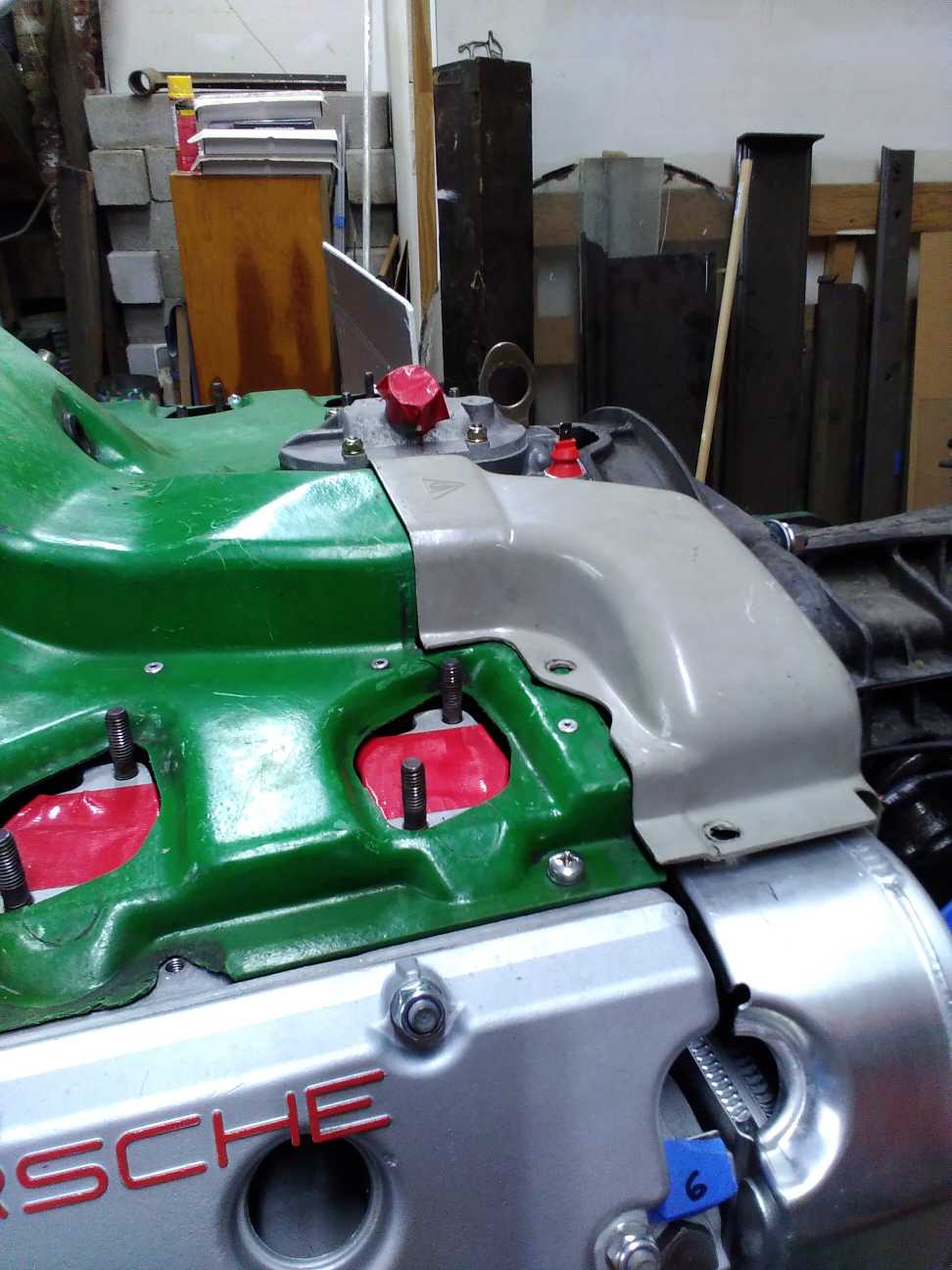

A: Attached Image

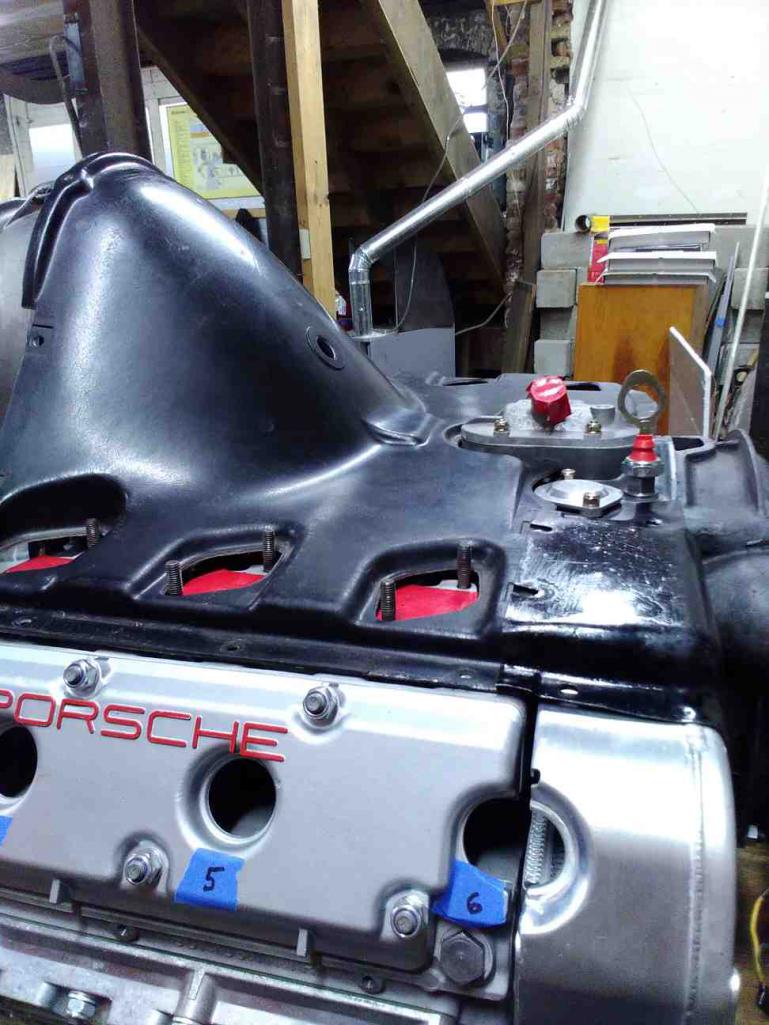

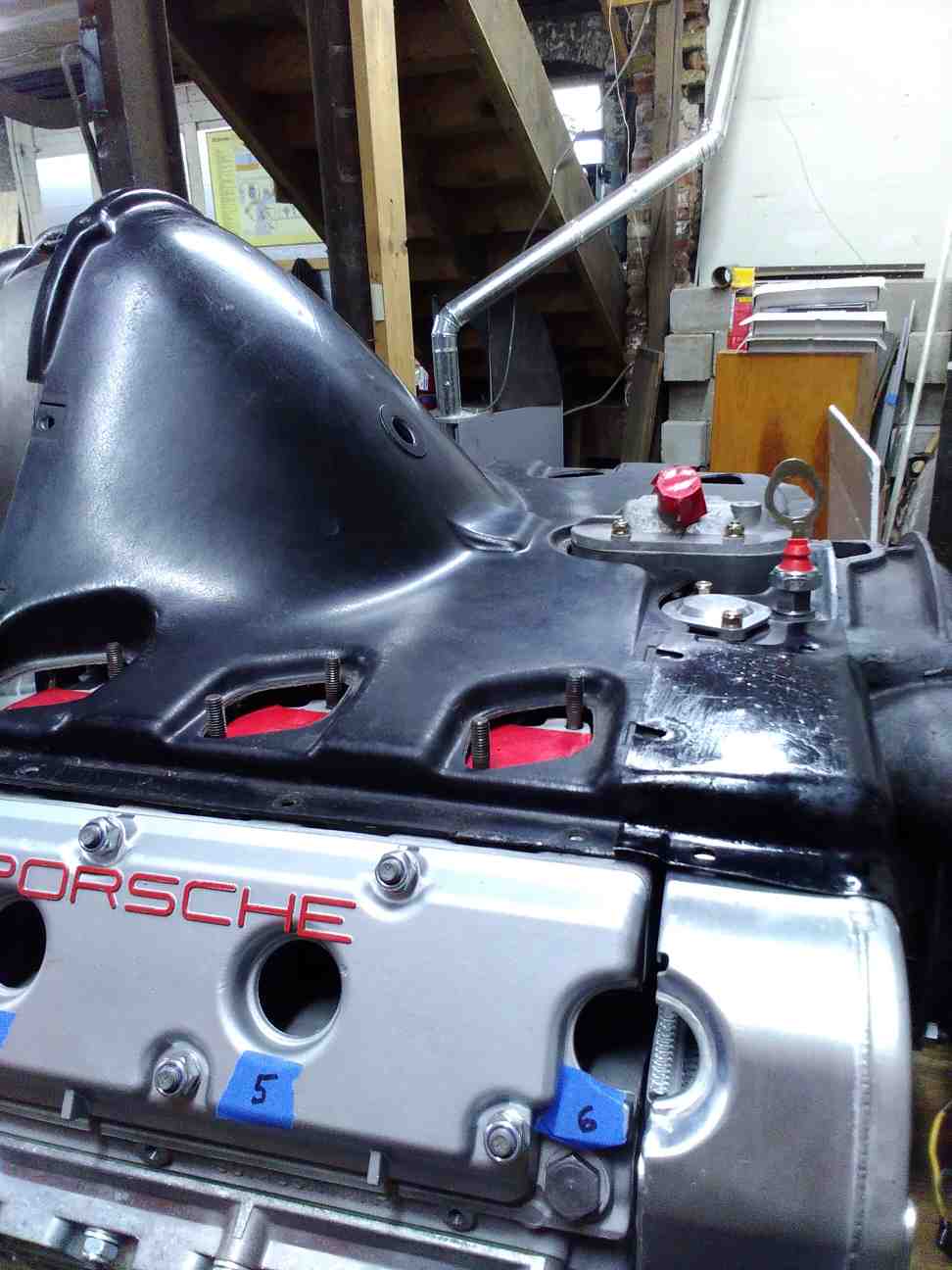

Or B: Attached Image

Also, when fitting the intake manifolds for Weber 40 IDTP it seems as there is more gap between the manifolds and the fan shroud. Is this gap sealed?

Thanks
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Jan 1 2024, 12:32 PM
Post #2


Senior Member
***

Group: Members
Posts: 640
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
Hi - I'd suggest the green one will perform much better; looks like the black shroud has been made/modified to work with external oil coolers only. Of course, if you are planning on an external oil cooler, then the black one is the better choice.

There is a set of phenolic insulators / spacers that should sit between the heads and the manifolds. This fills the gap somewhat, but more importantly, minimizes conducted heat transfer from the engine to the carbs. You can buy these from a couple of sources, don't forget the extra gaskets too.

If you don't fit these and idle the car in hot weather, you may see clouds of gasoline gently boiling up from the carbs in the rear view mirror. Ask me how I know.....

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Jan 1 2024, 01:16 PM
Post #3


Senior member, and old dude
****

Group: Members
Posts: 3,805
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California

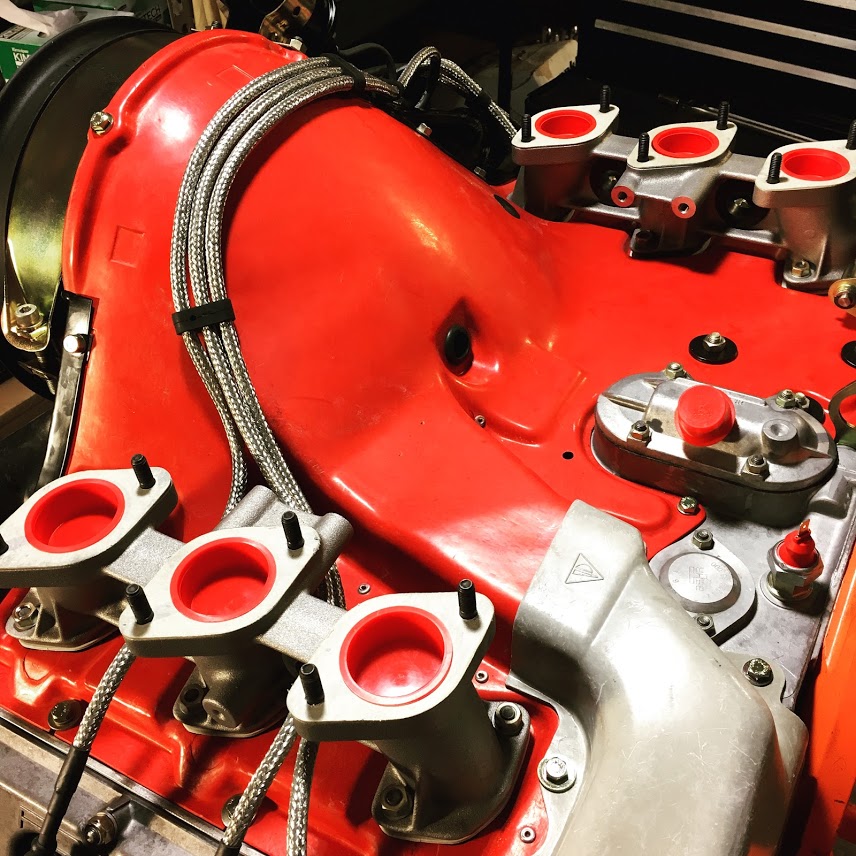

The green one shown will give you better cooling. Picture of the shroud on my 3.0 in red

Best Bob B

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 1 2024, 01:16 PM
Post #4


Michael
**********

Group: Members
Posts: 10,303
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
@Retroracer and Bob nailed it. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Jan 1 2024, 01:26 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,661
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
Yup, top one with baffle on #6 cylinder.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 1 2024, 02:42 PM
Post #6


Advanced Member
****

Group: Members
Posts: 4,051
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
Thank you Gents, I may be coming back with a few more Q's

Hoping to run the factory oil cooler. It's a stock 2.7

The black fan shroud appears factory, but who knows ..........
User is online!Profile CardPM
Go to the top of the page
+Quote Post
brant
post Jan 1 2024, 02:44 PM
Post #7


914 Wizard
**********

Group: Members
Posts: 11,945
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Fan shrouds changed early /late
It could be factory
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dion
post Jan 2 2024, 09:32 AM
Post #8


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
The black one looks appropriate for a six (early) 914. As Brant stated they changed gradually adding the extension to the cooler area. More efficient with the extension.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnhora
post Jan 2 2024, 03:36 PM
Post #9


Senior Member
***

Group: Members
Posts: 883
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None

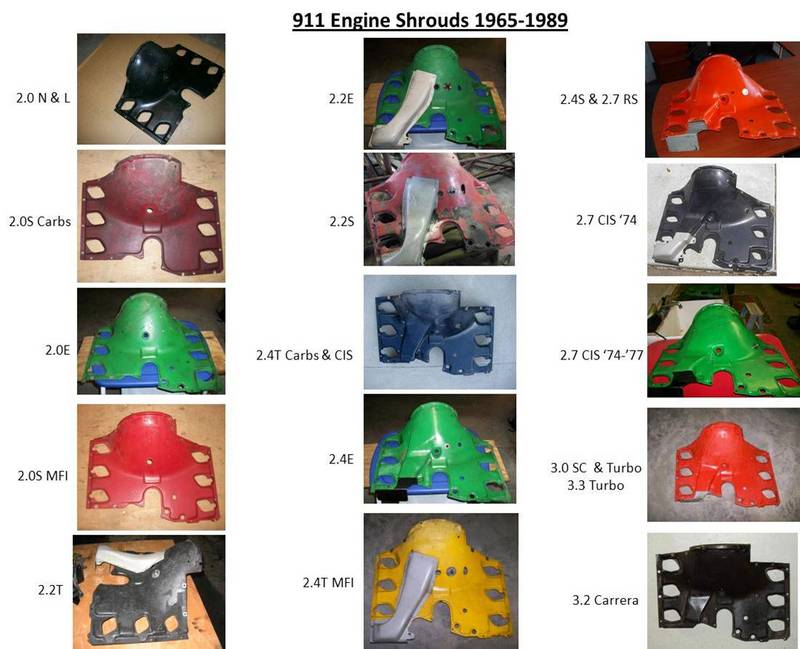

here you go...shroud info...original 914-6 used the one list as 2.2T...that was the start of pushing more air to the oil cooler


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 2 2024, 05:26 PM
Post #10


Advanced Member
****

Group: Members
Posts: 4,051
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
Great assortment John, thanks for sharing. I have a couple and it looks as though a 2.7 version will be getting the call.

I also picked up a pair of heater block off plates and not too happy with the fit, looks like a bit of adjustment is required.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
johnhora
post Jan 3 2024, 11:15 AM
Post #11


Senior Member
***

Group: Members
Posts: 883
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
Are the block off plates fiberglass or metal. The factory metal ones are the best fit...every fiberglass one that I have used needed some adjustments to work. Maybe someone is making better ones now...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 3 2024, 01:14 PM
Post #12


Advanced Member
****

Group: Members
Posts: 4,051
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
QUOTE(johnhora @ Jan 3 2024, 12:15 PM) *

Are the block off plates fiberglass or metal. The factory metal ones are the best fit...every fiberglass one that I have used needed some adjustments to work. Maybe someone is making better ones now...


I found the fiberglass ones on Ebay and the fit is not the best. I will try to make a few adjustments and maybe a bit of foam tape.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
johnhora
post Jan 3 2024, 04:37 PM
Post #13


Senior Member
***

Group: Members
Posts: 883
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
Yeah it takes a little effort to get them to work. Dremel tool is good for this and you may need some fiberglass resin epoxy and fabric.
Good luck on your project..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 4 2024, 01:02 PM
Post #14


Advanced Member
****

Group: Members
Posts: 4,051
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
QUOTE(johnhora @ Jan 3 2024, 05:37 PM) *

Yeah it takes a little effort to get them to work. Dremel tool is good for this and you may need some fiberglass resin epoxy and fabric.
Good luck on your project..


Thanks, I was hoping to fill with PC 7 epoxy or maybe 18 gauge with rivets

Or maybe just start over with 18 or 20 gauge and return the ill fitting fiberglass ones
User is online!Profile CardPM
