> type 1 & T-III engine builds, I built these last week for fun$
sean_v8_914
post Aug 25 2005, 03:52 PM
Post #1


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

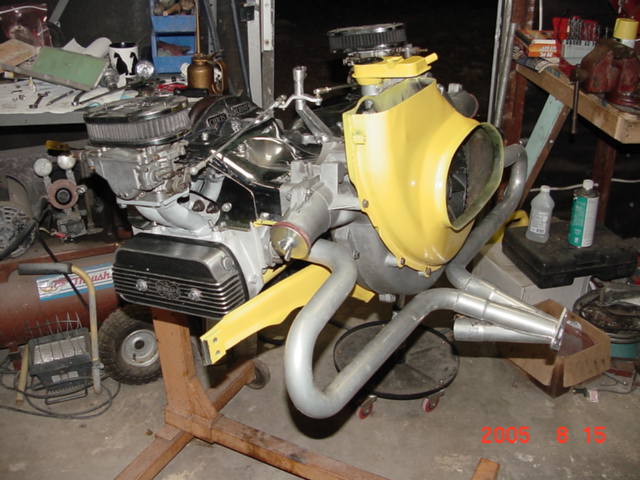

I had some parts laying around so I got bussy
T-III specs
1776 welded cw 69mm
90.5 w total seals
40 x 35.5 041 heads @ 52cc
.044 deck height, CR 8.5 to 1
H grind, Magnum straight cut gears and 1.25 rockers
yes, a 30mm Melling can fit in a T-III



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 03:55 PM
Post #2


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

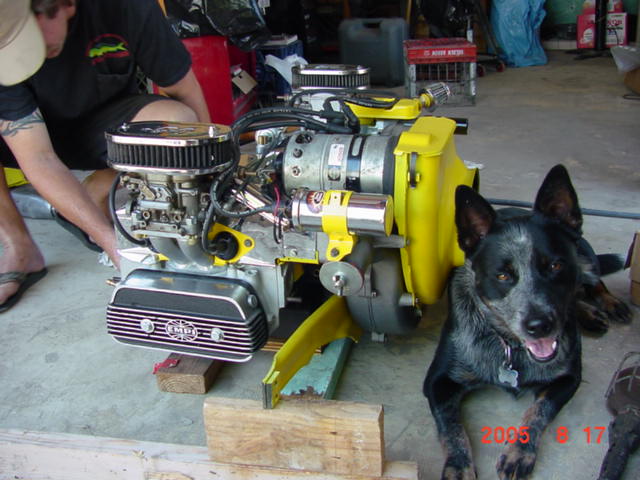

42mm DCNFs w 32mm venturis. I think thtey are too big but that is what I have.

jet coated 1 5/8 merged


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 03:56 PM
Post #3


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

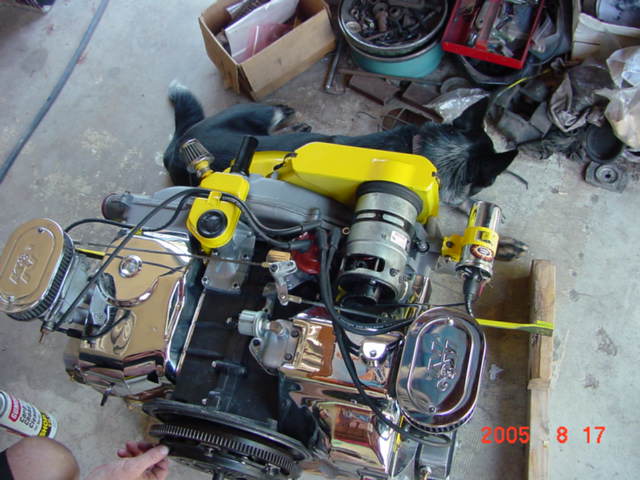

KEP stage 1
pertronics flame thrower in an 009 dizzy


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 03:57 PM
Post #4


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541
it is going into my neighbors 1970 yellow squareback


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Aug 25 2005, 04:02 PM
Post #5


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Well that looks nice...sent you an email with an offer....I need a motor.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:03 PM
Post #6


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

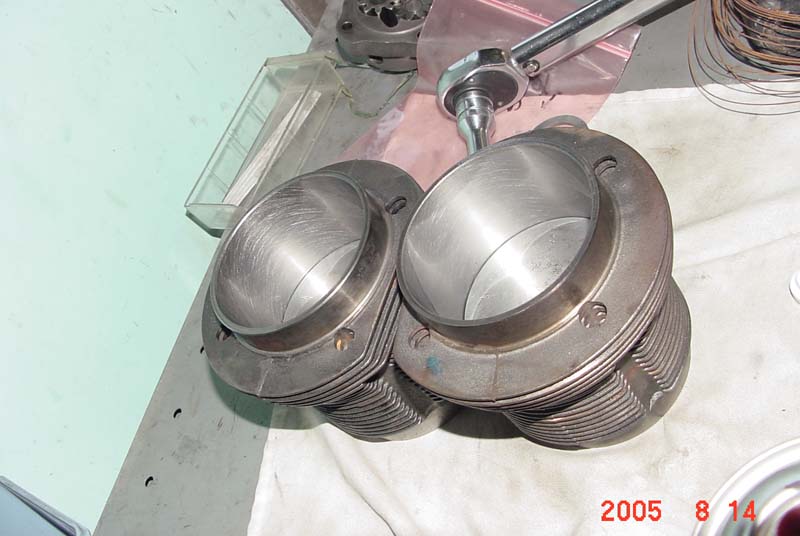

all the parts were used but measured out nice or cleaned up within spec.
Long live teh dingle ball hone


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:04 PM
Post #7


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

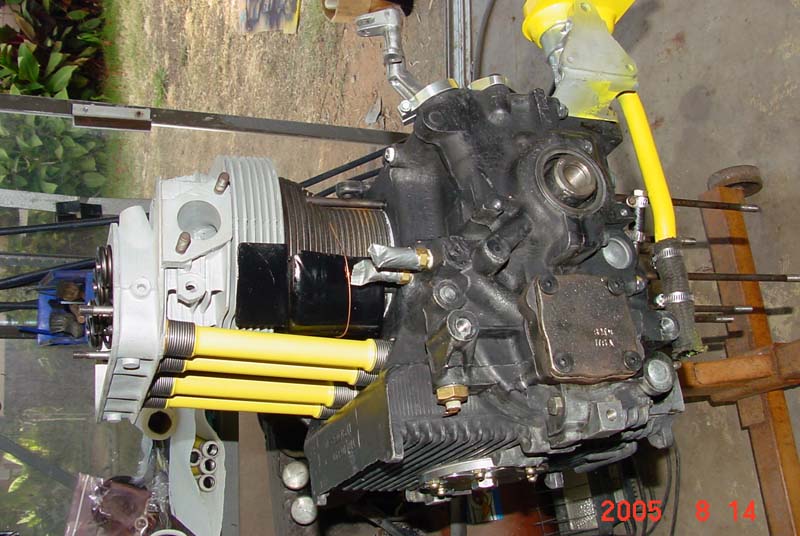

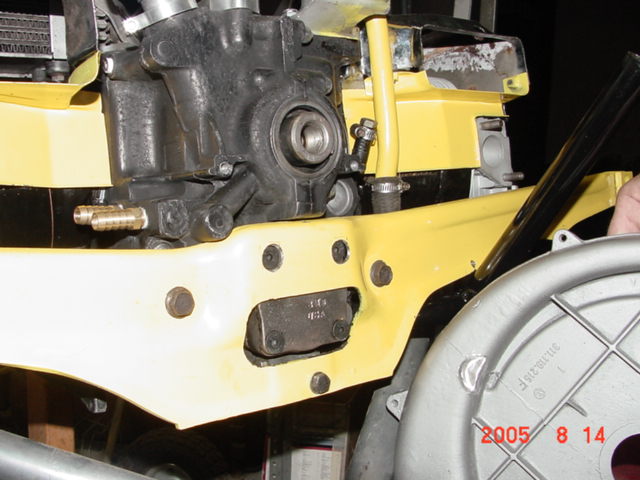

cool tins over 8 mm studs need safety wire to behave


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:19 PM
Post #8


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541
I built two type 1 engines last week. teh super sweet T-III has been sold. this other 1776 is available. it lives in my kit car right now

stock crank
stock heads 50cc, CR @ 8.4 to 1
stock Mahle rings 90.5 Ps & Cs
100 grind cam
55 amp alternator
dog house oil cooler
34mm Dellorto dual carbs. they are over 10 years old but this is the first time they made it on an engine. I took them apart to inspect prior to install and they are very clean inside


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:21 PM
Post #9


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541
new type 3 universal case, standard size mains


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:22 PM
Post #10


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

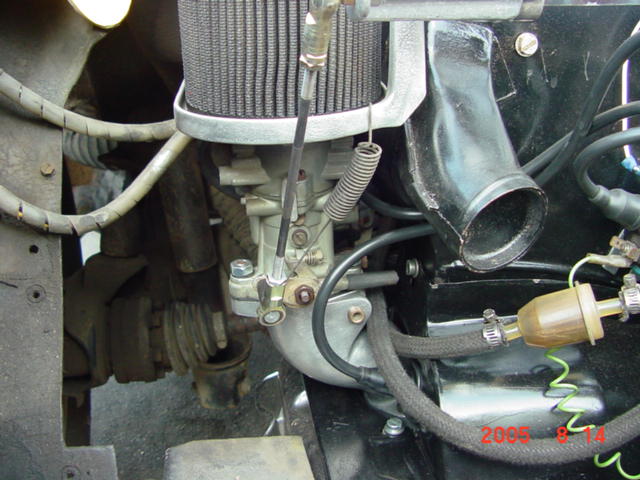

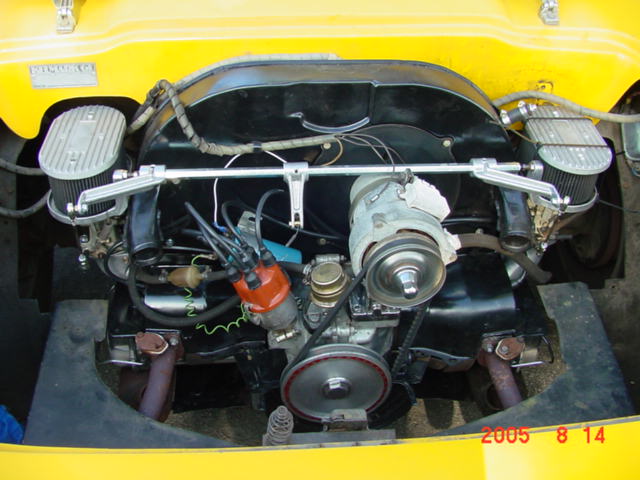

baby Dells, new linkage, old K&N air cleaners


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:24 PM
Post #11


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

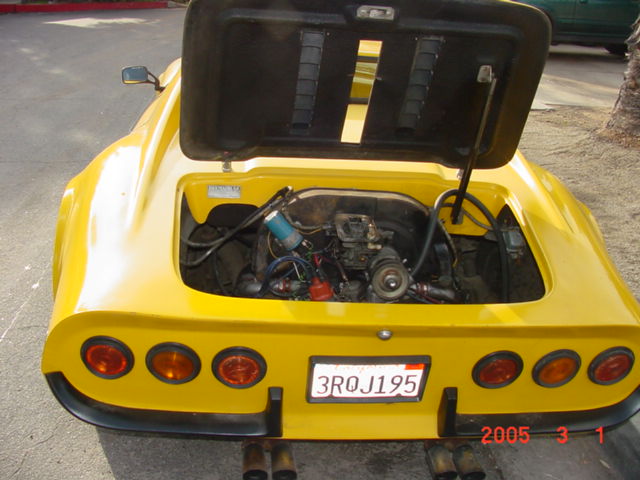

before


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:25 PM
Post #12


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

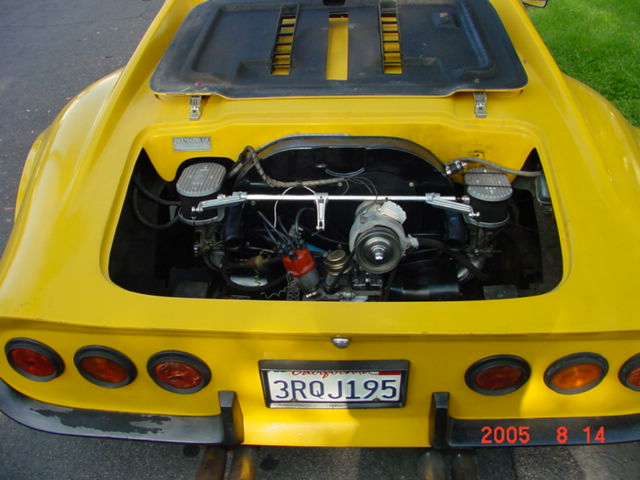

after


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:26 PM
Post #13


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

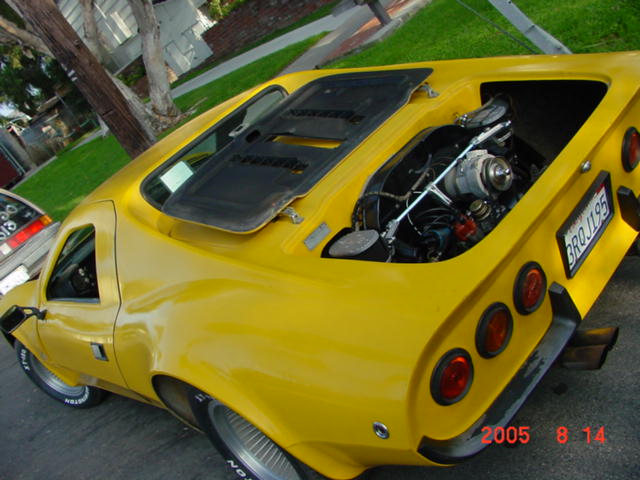

I like the lines of the rear fenders


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:28 PM
Post #14


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

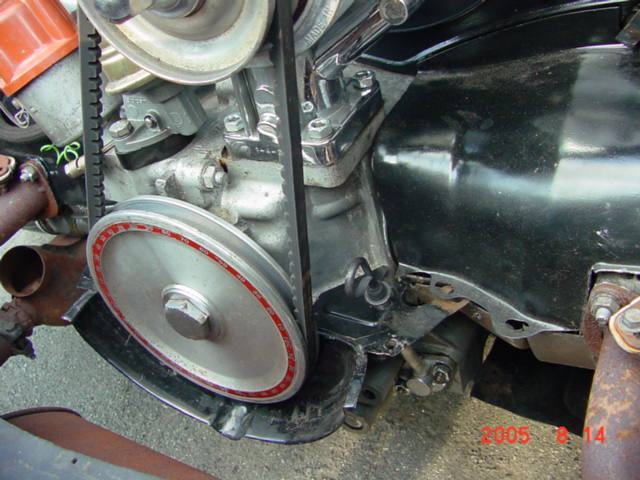

rear side marker is 68 Barracuda

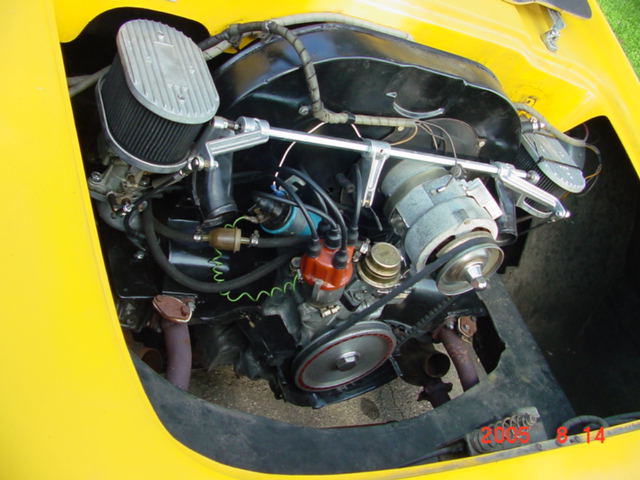

009 dizzy with points


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 04:53 PM
Post #15


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

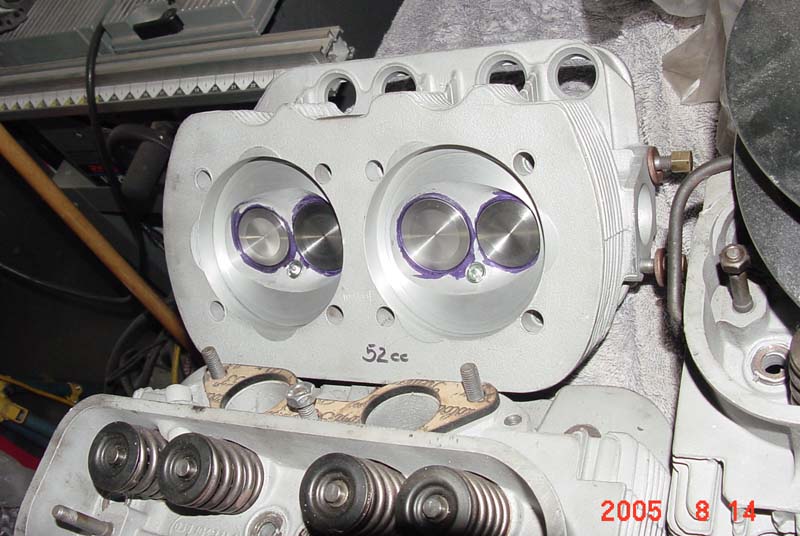

every guy likes some head...s


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Aug 25 2005, 05:28 PM
Post #16


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,240
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
kelmark? always loved em'. what year pan did you use?

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 07:52 PM
Post #17


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

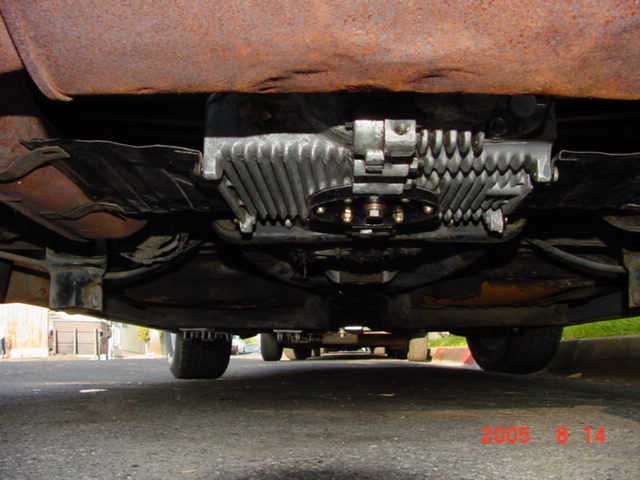

ball joint front & IRS. I dont know what year it is. reg is 78 but pan is earlier. i think 70


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 25 2005, 07:54 PM
Post #18


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541
exhaust is ugly but does its job


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
