So Im here at my father in laws house in Buenos Aires about to make a bracket for the alternator for my subaru conversion and I left the key dimension for the alternator at ou apartment w are staying in, which is prtty far from here.
So if anyone has access to a 2.5RS alternator and can measure the bolt spacing I would appreciate it a LOT. Im guessing the WRX uses the same alternator... -Tony |
   |

|
| ArtechnikA |
Aug 27 2005, 01:02 PM
Post
#2
|
|
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
i have an EJ25 alternator in the parts pile waiting to be installed later today; if you thik that'd be the same, i can measure whatver you want. it's from a '97 Legacy Outback with power everything so it's pretty big...
|
|
|
|
| phantom914 |
Aug 27 2005, 01:06 PM
Post
#3
|
|
non-914-owner non-club member Group: Benefactors Posts: 1,013 Joined: 24-February 04 From: Covina,CA(North ofWest Covina) Member No.: 1,708  |
Sorry, I can't help you and even if I could, I wouldn't. (IMG:http://www.914world.com/bbs2/html/emoticons/wavey.gif)
Andrew |
|
|
|
| TonyAKAVW |
Aug 27 2005, 01:18 PM
Post
#4
|
||
|
That's my ride. Group: Members Posts: 2,151 Joined: 17-January 03 From: Redondo Beach, CA Member No.: 166 Region Association: None |
Thats the exact alternator... I want the spacing between the bolts, i.e. the pivot axis and the tensioning axis. Thanks! |
||
|
|
|
||
| Kostamojen |
Aug 27 2005, 03:42 PM
Post
#5
|
|
Newbie Group: Members Posts: 37 Joined: 30-July 05 From: Roseville, CA Member No.: 4,504 |
17.5cm, thats from the center of the bolt hole to the center of the bolt hole (pivot vs. tension)
|
|
|
|
| ArtechnikA |
Aug 27 2005, 04:03 PM
Post
#6
|
||
|
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif) |
||
|
|
|
||
| Matt Monson |
Aug 29 2005, 09:02 AM
Post
#7
|
|
Member Group: Members Posts: 156 Joined: 9-August 05 From: Boulder, CO Member No.: 4,562 Region Association: Rocky Mountains |
For future reference if anyone has to search for this, all EJ series Subaru alternators are the same dimensions. Doesn't matter if it is EJ18, EJ20, EJ22, or EJ255.
And I have a pile of these alternators in my garage if anyone ever needs a good used one for their project... |
|
|
|
| Cap'n Krusty |
Aug 29 2005, 09:13 AM
Post
#8
|
||
|
Cap'n Krusty Group: Members Posts: 10,794 Joined: 24-June 04 From: Santa Maria, CA Member No.: 2,246 Region Association: Central California |
What is that in Whitworth? The Cap'n |
||
|
|
|
||
| TonyAKAVW |
Aug 29 2005, 10:47 AM
Post
#9
|
|
That's my ride. Group: Members Posts: 2,151 Joined: 17-January 03 From: Redondo Beach, CA Member No.: 166 Region Association: None |
Thanks for the dimensions! The bracket is pretty much finished, just have to bolt it together and have a small amount of aluminum welding done here.

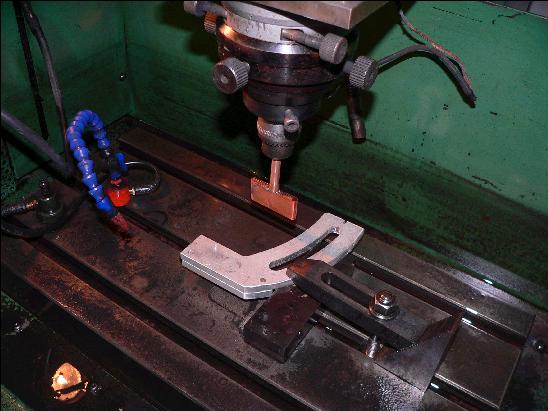

We used a variety of machines to make the parts, but the coolest one was my father-in-law's EDM machine. Instead of milling out a channel, or trying to mill out square corners, we just used a pre-made copper plug and set the thing up and let it go. Attached image(s)
|
|
|
|
|
