As a new 914 owner I’ll have numerous questions about the mechanical’s of my car. I’m a long time Porsche enthusiast and owner.

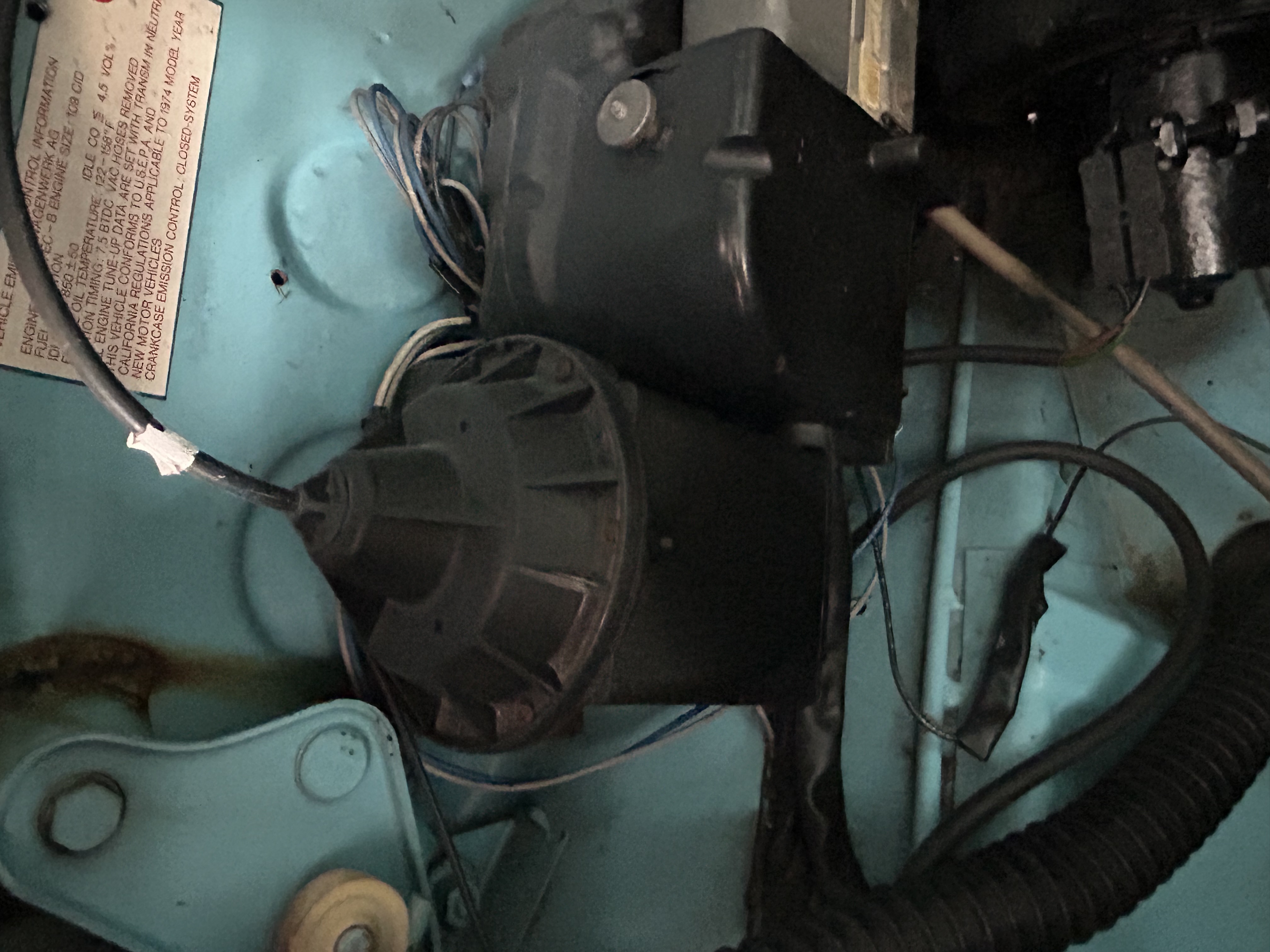

I have owned (2)1977 911S’s, a 924 Turbo and “Best Car Ever” a 1996 Carrera 4S. I currently own a 1986 928S, a 2013 Cayenne GTS and a 2017 Mac S. I grew up through my teenage years working on Volkswagens and have a fair amount of knowledge about them and their inner workings. At age 16, I built a Laser 917 kit car on a completely refurbished 1966 VW chassis. I built it from the ground up, so I’m pretty well-versed in Volkswagen technology and engineering design. I have also converted 1979 VW that had an automatic stick shift and converted it to a standard transmission. I also took the engine that I built for my Laser 917 and installed it into a 1974 Super Beetle at one point in time. I do not know the inner workings and engineering of a 914. I am attaching a photo of an area the engine compartment (driver’s side) and I believe that the components I’m looking at mounted in there are part of the fuel injection system that was originally on this car The car is currently carbureted. Am I correct? Are the superfluous and therefore can be removed? Attached thumbnail(s)
|
   |

|
| JeffBowlsby |
Jan 26 2025, 11:00 PM
Post
#2
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 8,907 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Dup post, sorry.
|
|
|
|
| JeffBowlsby |
Jan 26 2025, 11:01 PM
Post
#3
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 8,907 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
(IMG:style_emoticons/default/welcome.png)
Looks like you have a 74 1.8L, CA model. The round vertical can looks incorrect, what does it connect to? It’s not stock. |
|
|
|
| technicalninja |
Jan 26 2025, 11:27 PM
Post
#4
|
|
Advanced Member Group: Members Posts: 2,531 Joined: 31-January 23 From: Granbury Texas Member No.: 27,135 Region Association: Southwest Region
|
Sort of looks like an aftermarket cruise control...
If so, somewhere on the car you will have a magnetic pick up or some other way to determine speed. Might be an extra coupling in the speedo cable (will have wiring to it). Super common is a mag sensor reading driveshaft speed. In a 914 it will be on one of the half shafts. I would expect inboard towards/on the inner CV joint. My money is on cruise control... What does that cable hook up to? If its cruise it will connect to the throttle. (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/welcome.png) |
|
|
|
| 930cabman |
Jan 27 2025, 05:41 AM
Post
#5
|
|
Advanced Member Group: Members Posts: 4,069 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States
|
|
|
|
|
| ClayPerrine |
Jan 27 2025, 07:10 AM
Post
#6
|
|
Life's been good to me so far..... Group: Admin Posts: 16,312 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
QUOTE(technicalninja @ Jan 26 2025, 11:27 PM)  Sort of looks like an aftermarket cruise control... If so, somewhere on the car you will have a magnetic pick up or some other way to determine speed. Might be an extra coupling in the speedo cable (will have wiring to it). Super common is a mag sensor reading driveshaft speed. In a 914 it will be on one of the half shafts. I would expect inboard towards/on the inner CV joint. My money is on cruise control... What does that cable hook up to? If its cruise it will connect to the throttle. (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/agree.gif) That's an aftermarket cruise control. I have the exact same canister on my old Jeep. My father installed it. I removed it, but I can't get to the mounting points for the canister, so I just cut the cable off and left it. (IMG:style_emoticons/default/welcome.png) |
|
|
|
| Cairo94507 |
Jan 27 2025, 08:04 AM
Post
#7
|
|
Michael Group: Members Posts: 10,317 Joined: 1-November 08 From: Auburn, CA Member No.: 9,712 Region Association: Northern California
|
(IMG:style_emoticons/default/welcome.png) Welcome to the World. (IMG:style_emoticons/default/beerchug.gif)
|
|
|
|
| burton73 |
Jan 27 2025, 12:49 PM
Post
#8
|
|
Senior member, and old dude Group: Members Posts: 3,821 Joined: 2-January 07 From: Los Angeles Member No.: 7,414 Region Association: Southern California
|
Welcome to the 914World.
I also have an 1986.5 928 You are for sure at the right place for information on 914s. Plus more Best regards Porsche-VW brother Bob B  |
|
|
|
| Dave_Darling |
Jan 28 2025, 12:54 AM
Post
#9
|
|
914 Idiot Group: Members Posts: 15,161 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
The box in front of the round thing is the relay board. It is useful as a way to connect the main wiring harness to the engine wiring harness and to hold the relay for the heater blower fan. Also the relay for the fuel pump, if one is used in this particular conversion.
A few people like to get rid of it, but I feel it's nice to keep it around. It's not like that space in the engine bay is that useful for other stuff. --DD |
|
|
|
| MONACO |
Jan 28 2025, 08:30 AM
Post
#10
|
|
Newbie Group: Members Posts: 3 Joined: 24-November 24 From: Victor, New York Member No.: 28,477 Region Association: North East States |
Thanx Everybody for your input!
I'm quite embarrassed... Doing a bit more research on my car I now realize it is fuel injected, not carbureted. I mistook the throttle body for a carburetor. So the components I was asking about are part of the EFI system. Luckily, I enjoy learning experiences. MONACO  |
|
|
|
| GregAmy |
Jan 28 2025, 08:38 AM
Post
#11
|
|
Advanced Member Group: Members Posts: 2,490 Joined: 22-February 13 From: Middletown CT Member No.: 15,565 Region Association: North East States
|
QUOTE(technicalninja @ Jan 27 2025, 12:27 AM) Sort of looks like an aftermarket cruise control... Ditto. Looks a lot like the cruise actuator that I installed on my Beetle back in the mid-80s. It was a Volkswagen parts dept bolt-on kit for a VW Bus. The Hall Effect sensor was a pickup mounted against a CV joint with four magnets glued and taped the periphery. - GA |
|
|
|
| fiacra |
Jan 28 2025, 10:00 AM
Post
#12
|
|
Person.Woman.Man.Camera.TV Group: Members Posts: 549 Joined: 1-March 19 From: East Bay Region - California Member No.: 22,920 Region Association: Northern California
|
QUOTE(MONACO @ Jan 28 2025, 06:30 AM) Thanx Everybody for your input! I'm quite embarrassed... Doing a bit more research on my car I now realize it is fuel injected, not carbureted. I mistook the throttle body for a carburetor. So the components I was asking about are part of the EFI system. Luckily, I enjoy learning experiences. MONACO It's a learning curve, but given your background you'll be up to speed quickly. I personally prefer FI, but there are different opinions. I've had both carbureted and FI 914s, and I found that the FI system just runs cleaner and better. The L-Jet system you have on your 1.8 was also used on the 1975-79 Beetles. I found the well written description of the L-Jet system in the Bentley manual for my prior 1979 Super Beetle to be a concise and accessible explanation of how it works. If you haven't already found it, Jeff Bowlsby's site has lots of resources to help out as you figure things out on your 914. I'll attach links to his site, as well as a link to both the factory manual as well as the PET (parts catalog with diagrams). If you need parts, posting a "WTB" ad in the classified forum usually yields good results. This forum is a great place to post questions. Lots of people here with experience and knowledge. Post lots of pictures, they really help. Your background in VWs is a great basis for what you need to know, but in many ways the 914 is a different animal. Think of it as same genus, different species. My love of VWs led me to the 914, and I now I can't imagine having at least one of each. I can see you you ended up with a 914. You have a nice looking car, but if you haven't already, check it over thoroughly for rust issues. That's the killer, especially in areas of the country where they are exposed to road salt and inclement weather. Jeff's site: https://bowlsby.net/914/Classic/ PET: https://www.restoration-design.com/pdf/PET%...201970-1976.pdf Factory manual (the link is from Jeff's site): http://p914-6info.net/Manuals.htm |
|
|
|
| dr914@autoatlanta.com |
Jan 28 2025, 11:21 AM
Post
#13
|
|
914 Guru Group: Members Posts: 8,161 Joined: 3-January 07 From: atlanta georgia Member No.: 7,418 Region Association: None |
agree certainly not something in ANY 914 engine compartment
QUOTE(technicalninja @ Jan 26 2025, 10:27 PM) Sort of looks like an aftermarket cruise control... If so, somewhere on the car you will have a magnetic pick up or some other way to determine speed. Might be an extra coupling in the speedo cable (will have wiring to it). Super common is a mag sensor reading driveshaft speed. In a 914 it will be on one of the half shafts. I would expect inboard towards/on the inner CV joint. My money is on cruise control... What does that cable hook up to? If its cruise it will connect to the throttle. (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/welcome.png) |
|
|
|
| technicalninja |
Jan 28 2025, 12:08 PM
Post
#14
|
|
Advanced Member Group: Members Posts: 2,531 Joined: 31-January 23 From: Granbury Texas Member No.: 27,135 Region Association: Southwest Region
|
QUOTE(MONACO @ Jan 28 2025, 08:30 AM) Thanx Everybody for your input! I'm quite embarrassed... Doing a bit more research on my car I now realize it is fuel injected, not carbureted. I mistook the throttle body for a carburetor. So the components I was asking about are part of the EFI system. Luckily, I enjoy learning experiences. MONACO Pretty blue! Nice looking car! That nose cap is a reproduction of the 916 nose. The poor-quality ones change width of the upper surface. The decent ones (like yours!) do not. I've got a "proper" one too... "Inquiring minds want to know" Start an introductory thread showing off your new baby! Let us enjoy your car too! This site WILL be the quickest way to learn about her... I'm strong on the mechanicals but there are BIG DOGS on here who can smoke my ass any day! I've got 40 years of active wrenching experience, but THIS PLACE is the most valuable tool I own regarding 914 repair and knowledge... |
|
|
|
|
