> Double VDO Gauge Pod (Ashtray Mounted, 3d Printed), Includes Files
RTz
post Feb 8 2025, 02:54 PM
Post #1


Newbie
*

Group: Members
Posts: 21
Joined: 18-October 24
From: Oregon City
Member No.: 28,424
Region Association: None

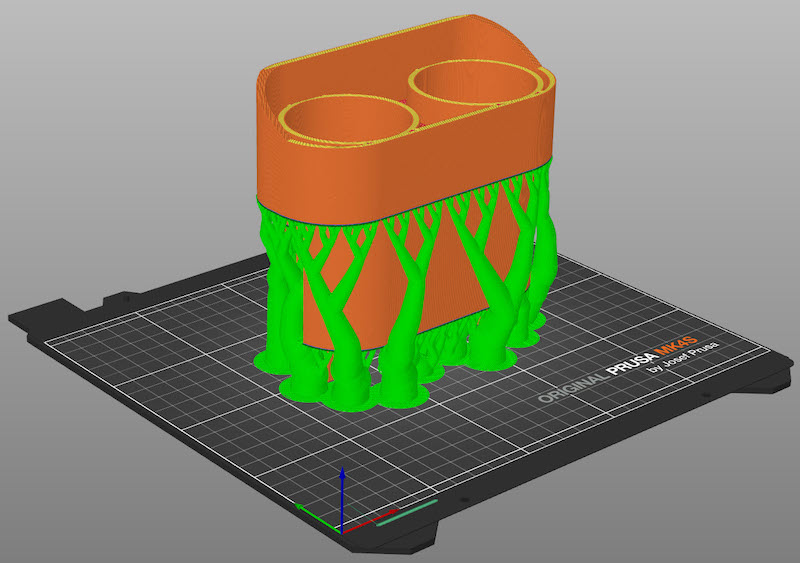

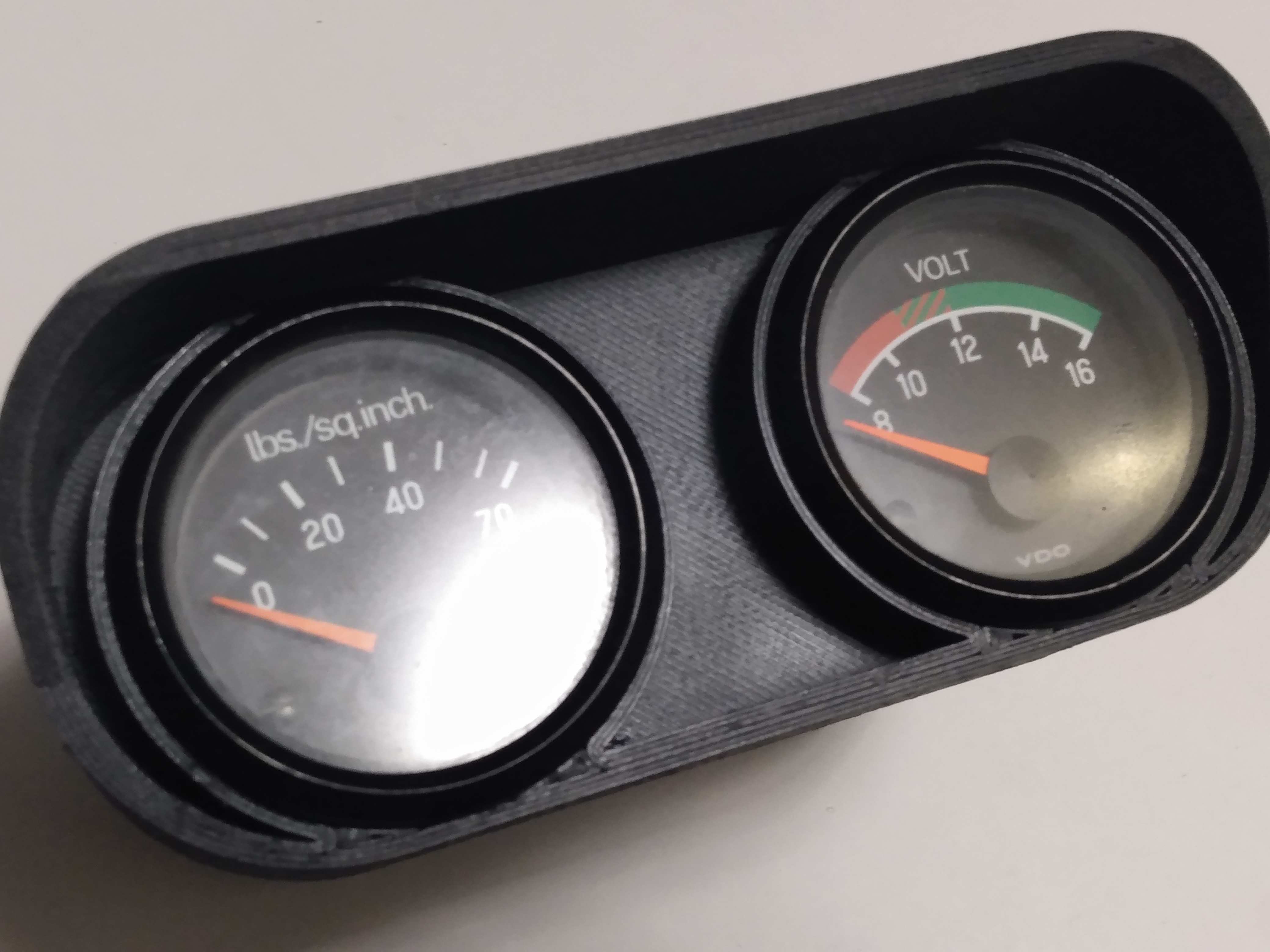

I put this together for one of our 914World members. It slides into the ashtray rails, no fasteners or drilling holes required.

STL: https://www.dropbox.com/scl/fi/2wnqiw1y1to6...75hgoj&dl=0

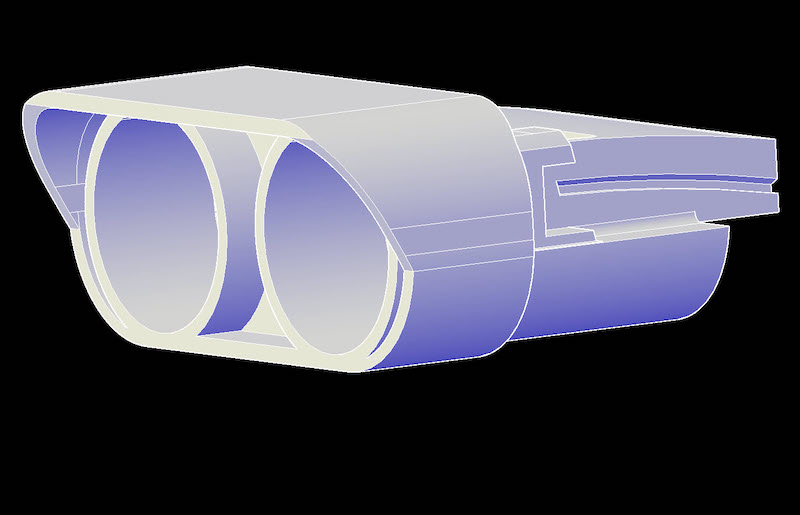

DWG: https://www.dropbox.com/scl/fi/xlfj9la982y7...jl26rm&dl=0

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image


Disclaimer:

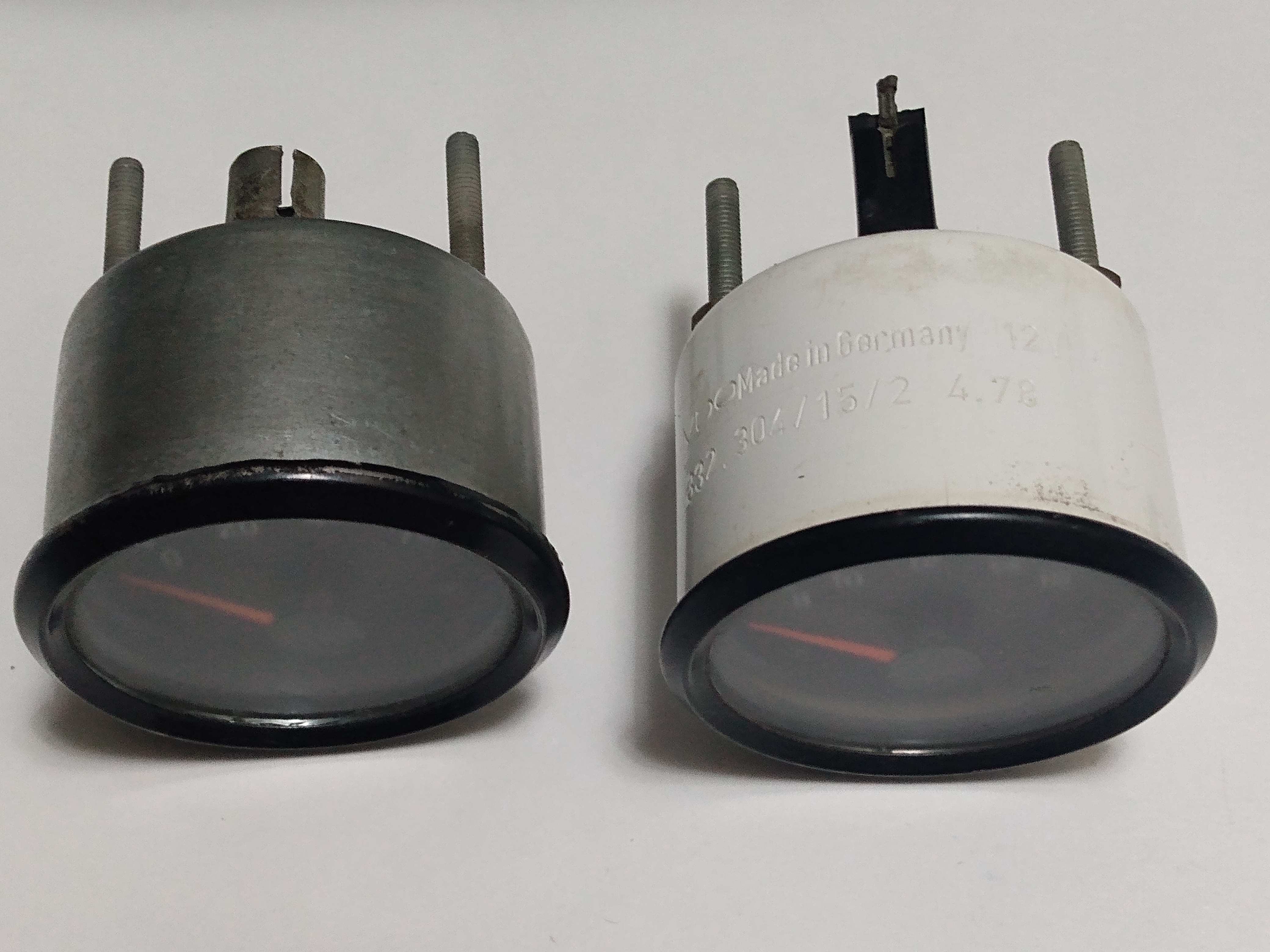

1) Designed for 52mm VDO gauges only. The two gauges shown have different depths, though either gauge will work on either side, I have no knowledge if VDO has built gauges with different depths or stud spacing other than these two. The voltmeter is the deeper gauge and has a body depth of 34mm.

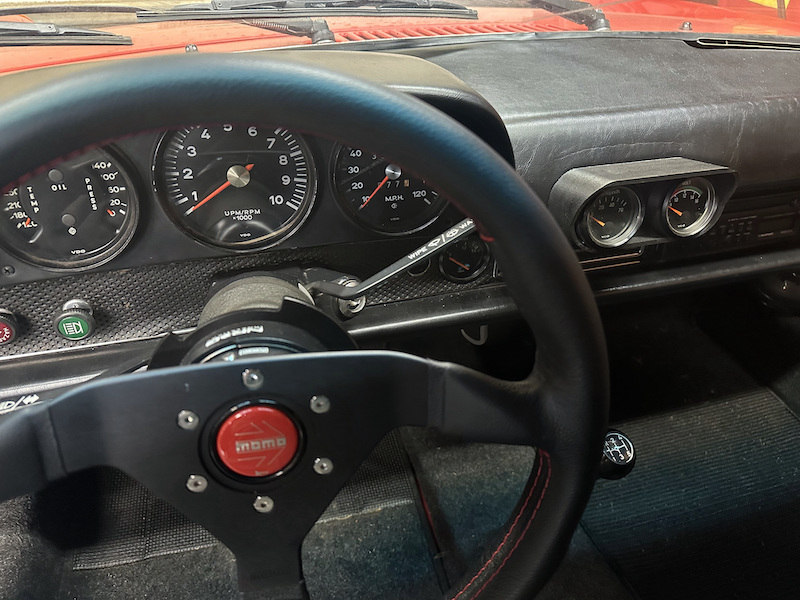

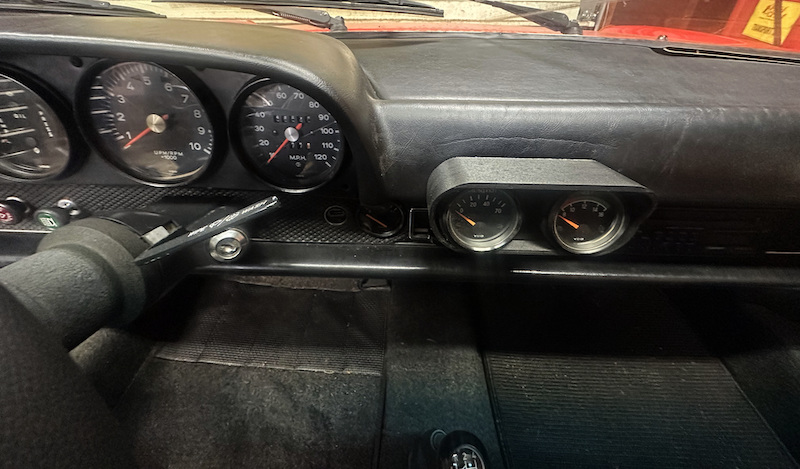

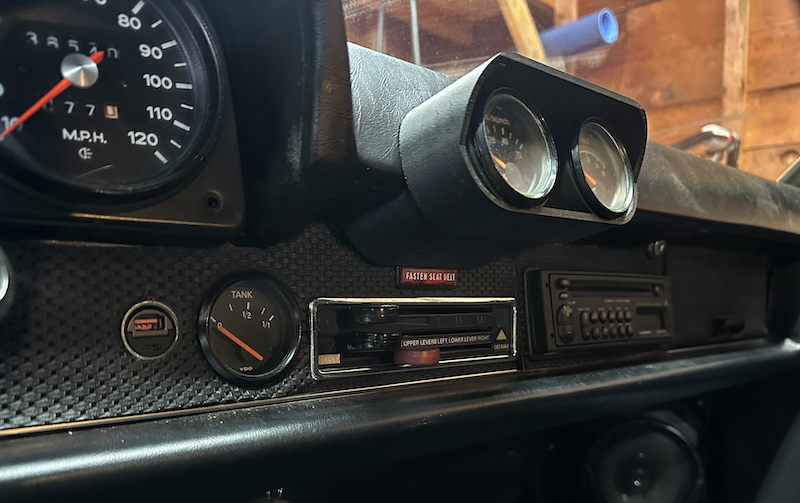

2) Pictured on a '72 model. I assume ashtray's & rails are the same for all years but I don't know that with certainty.

Do your own diligence.

Peace, Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slowrodent
post Feb 8 2025, 03:24 PM
Post #2


Member
**

Group: Members
Posts: 180
Joined: 29-February 20
From: Tucson/Oro Valley
Member No.: 23,981
Region Association: Southwest Region



Yeah....I'd pay for one of these. Very nicely done. (IMG:style_emoticons/default/beer.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 8 2025, 04:25 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,844
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States



Let me know if it shrinks. What filament did you use?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Feb 8 2025, 09:18 PM
Post #4


914 Guru
*****

Group: Members
Posts: 8,345
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



Very nice. If you are open to suggestions, the next version could have the gauge openings tilted towards the driver. I once made a sheet metal mount like that, and just a small angle made the gauges much easier to read.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fixer34
post Feb 13 2025, 06:16 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,264
Joined: 16-September 14
From: Chicago area
Member No.: 17,908
Region Association: Upper MidWest

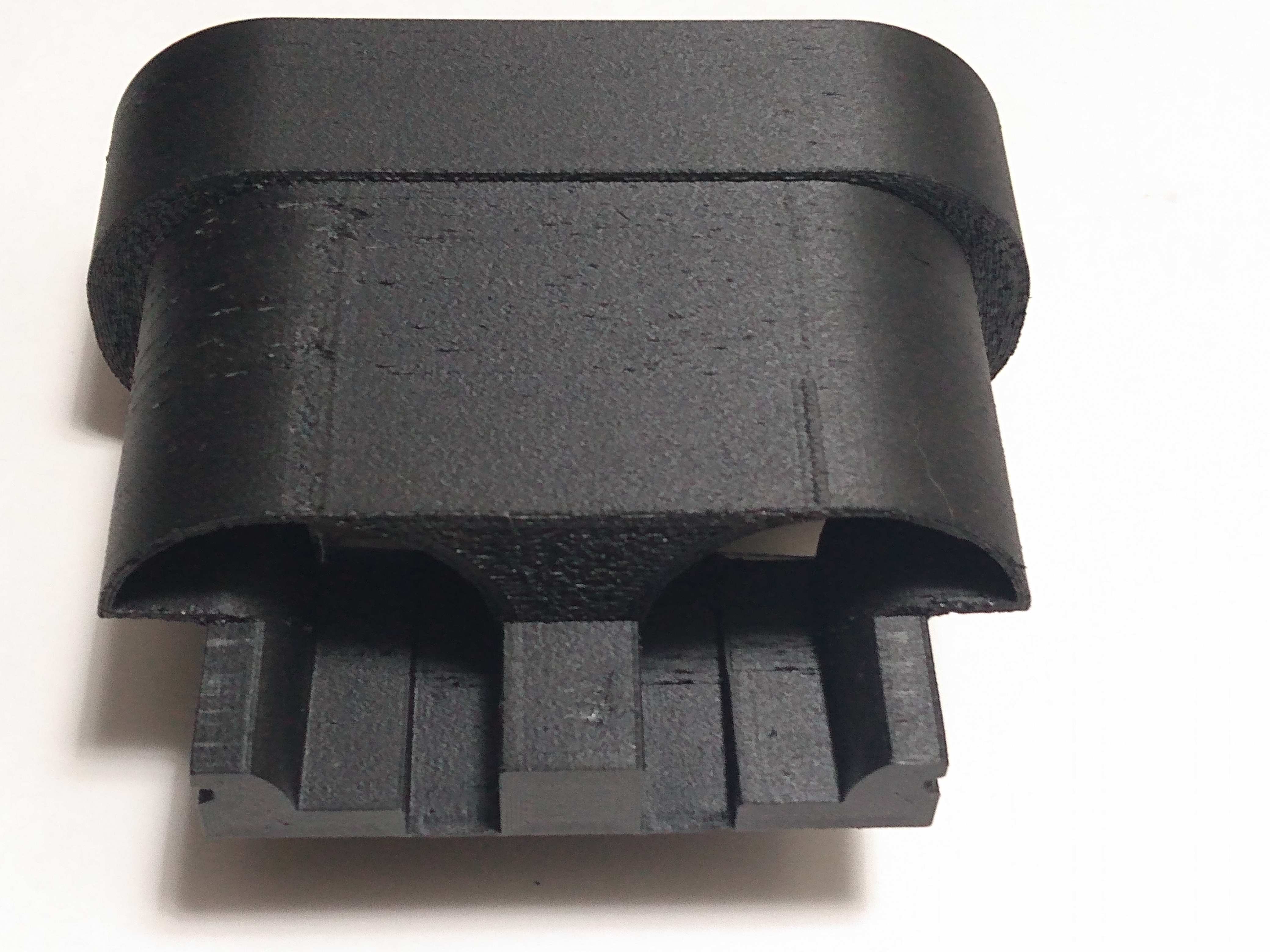

So I was the member that worked with RTz (Ron) on this. I received the prototype today. A LOT more complex than I had thought, but it does check all the boxes:

Easy install (in place of the ash tray) with no modifications.

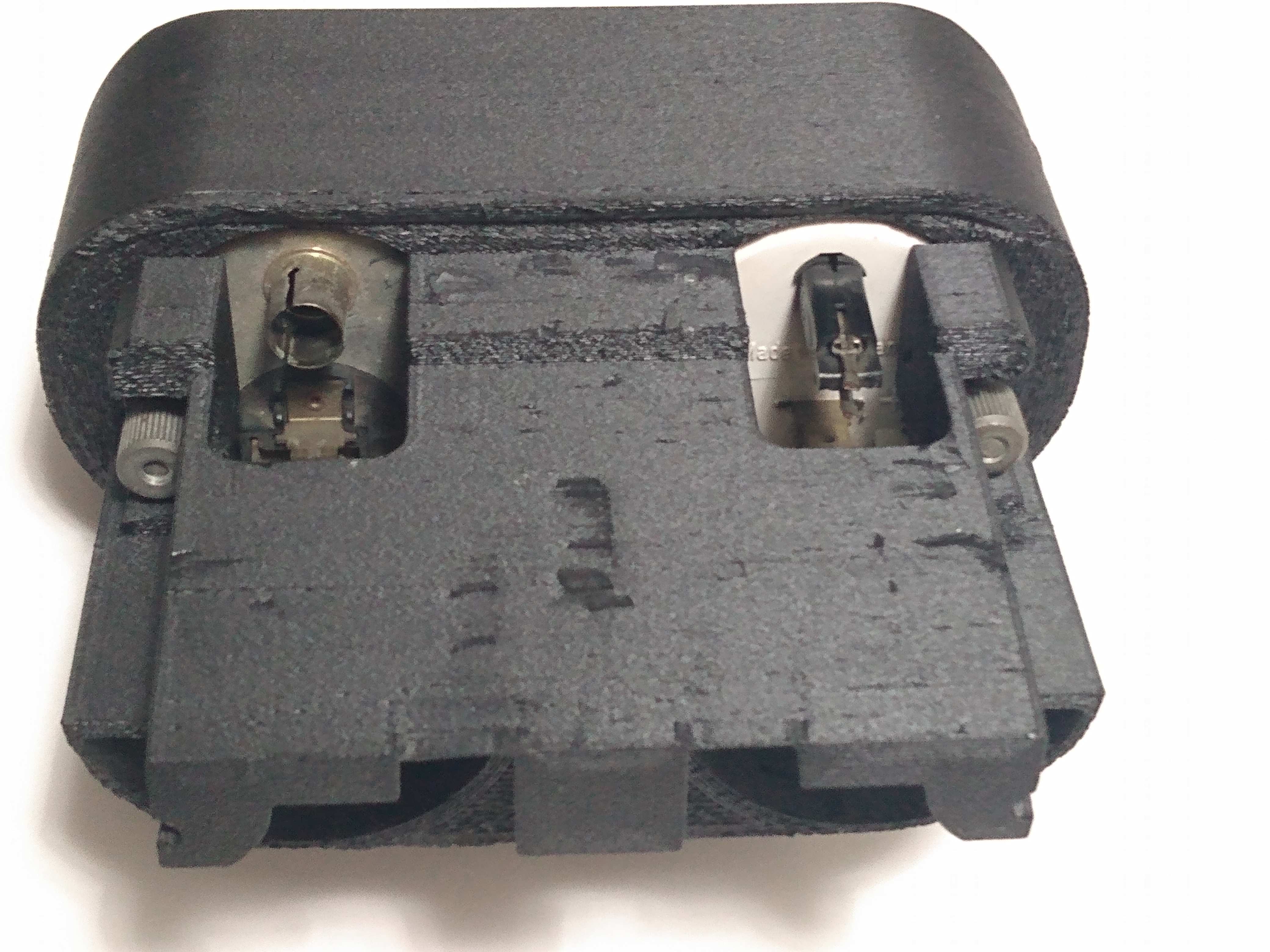

Access to the back of the gauges when pulled out for lights/wiring
Fits standard VDO gauges
Pretty close match to dash

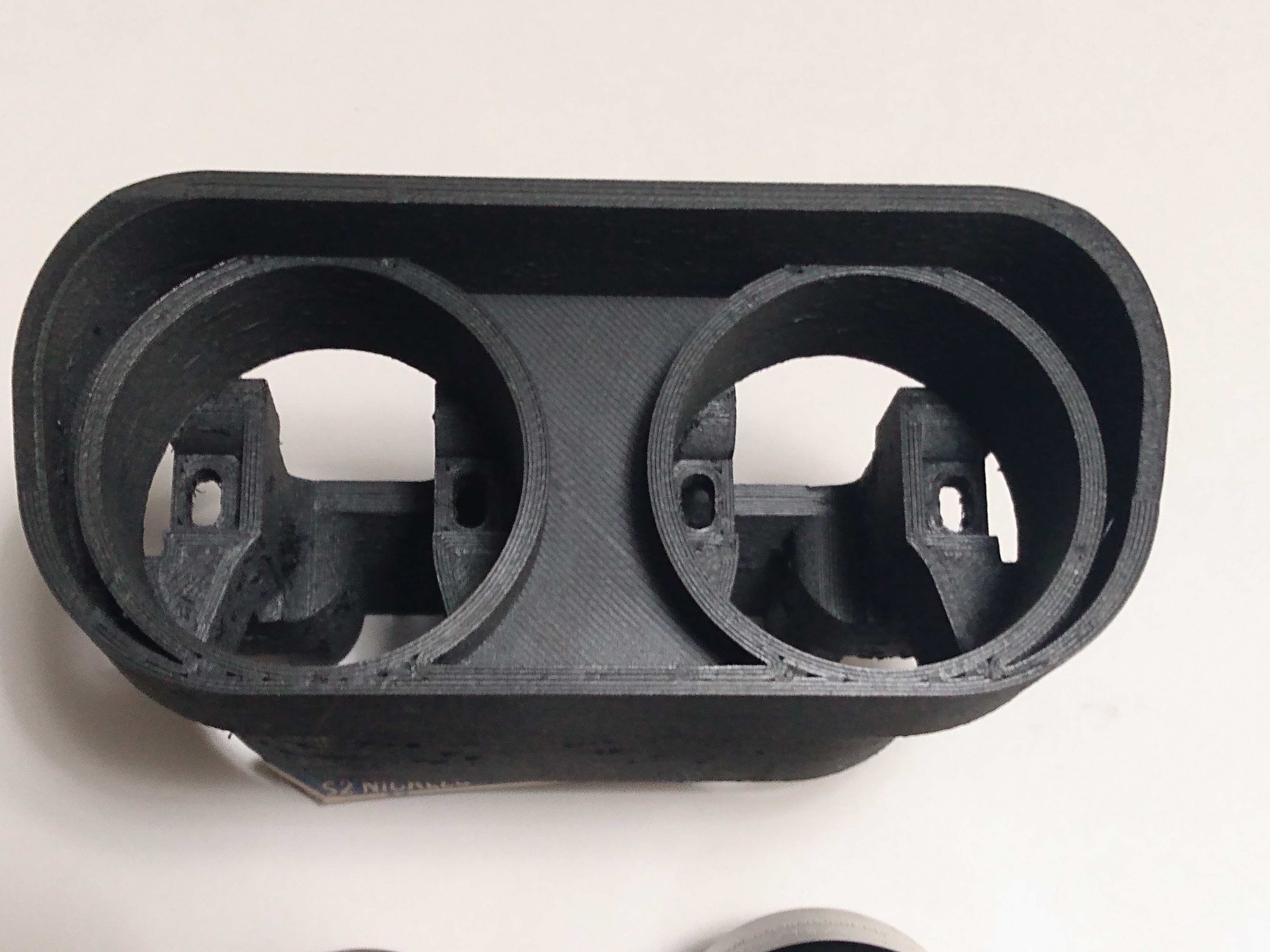

I tried to get some detail pictures of the design, not sure if tilting the gauges would be an option if retaining the threaded studs. Have to mount mine in the car to be sure, but I don't think viewing will be an issue.

Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fixer34
post Feb 13 2025, 06:19 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,264
Joined: 16-September 14
From: Chicago area
Member No.: 17,908
Region Association: Upper MidWest



more pictures

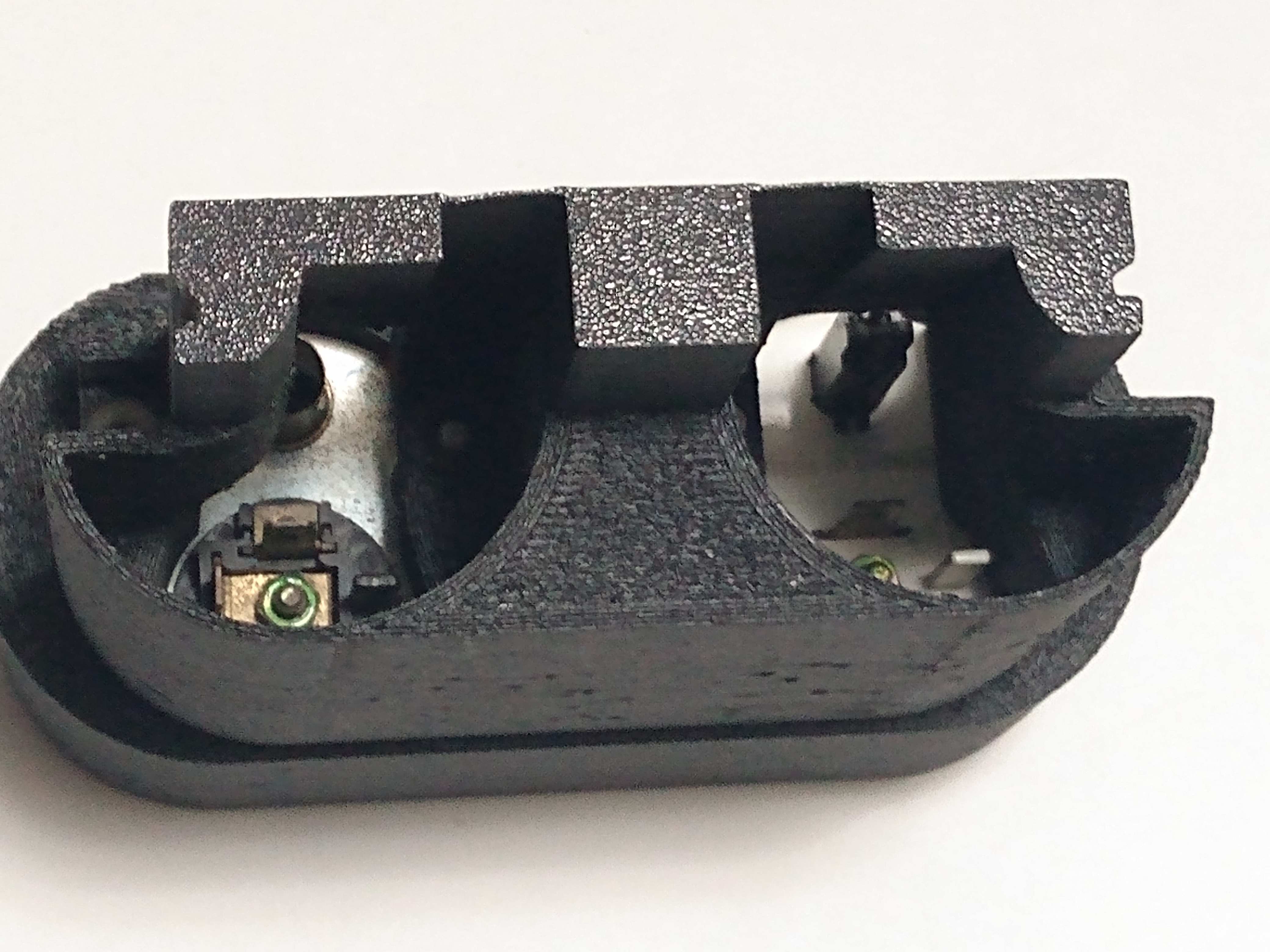

back Attached Image

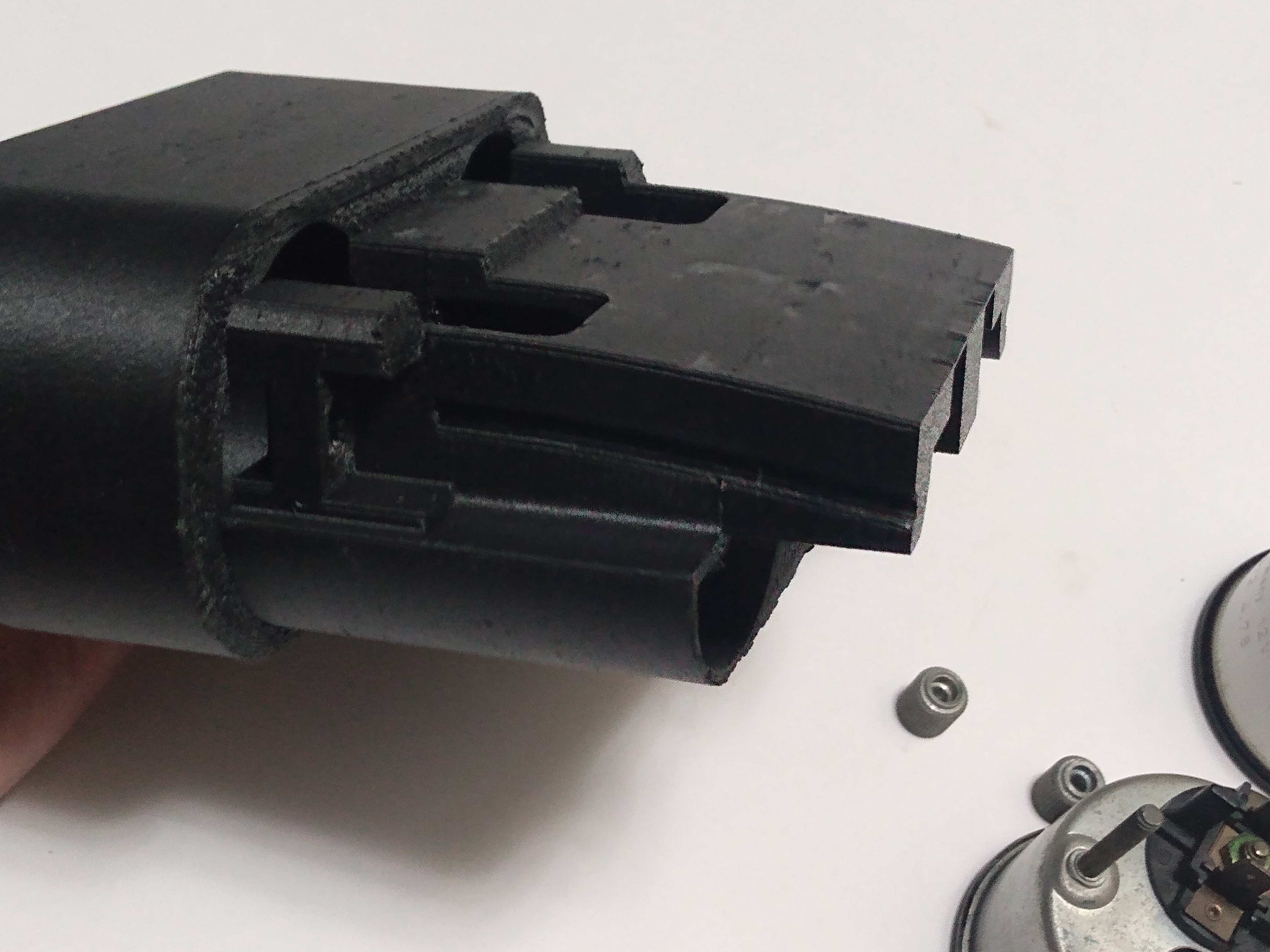

side Attached Image
bottom viewAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Feb 13 2025, 09:34 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,810
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



QUOTE(RTz @ Feb 8 2025, 12:54 PM) *

Attached Image



Nice part. I like the Gaudi inspired support material. (IMG:style_emoticons/default/biggrin.gif)

BTW, cool tach. (IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/sunglasses.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Feb 13 2025, 10:06 PM
Post #8


Distracted Member
***

Group: Members
Posts: 1,623
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California



Very cool, I’d buy one too…

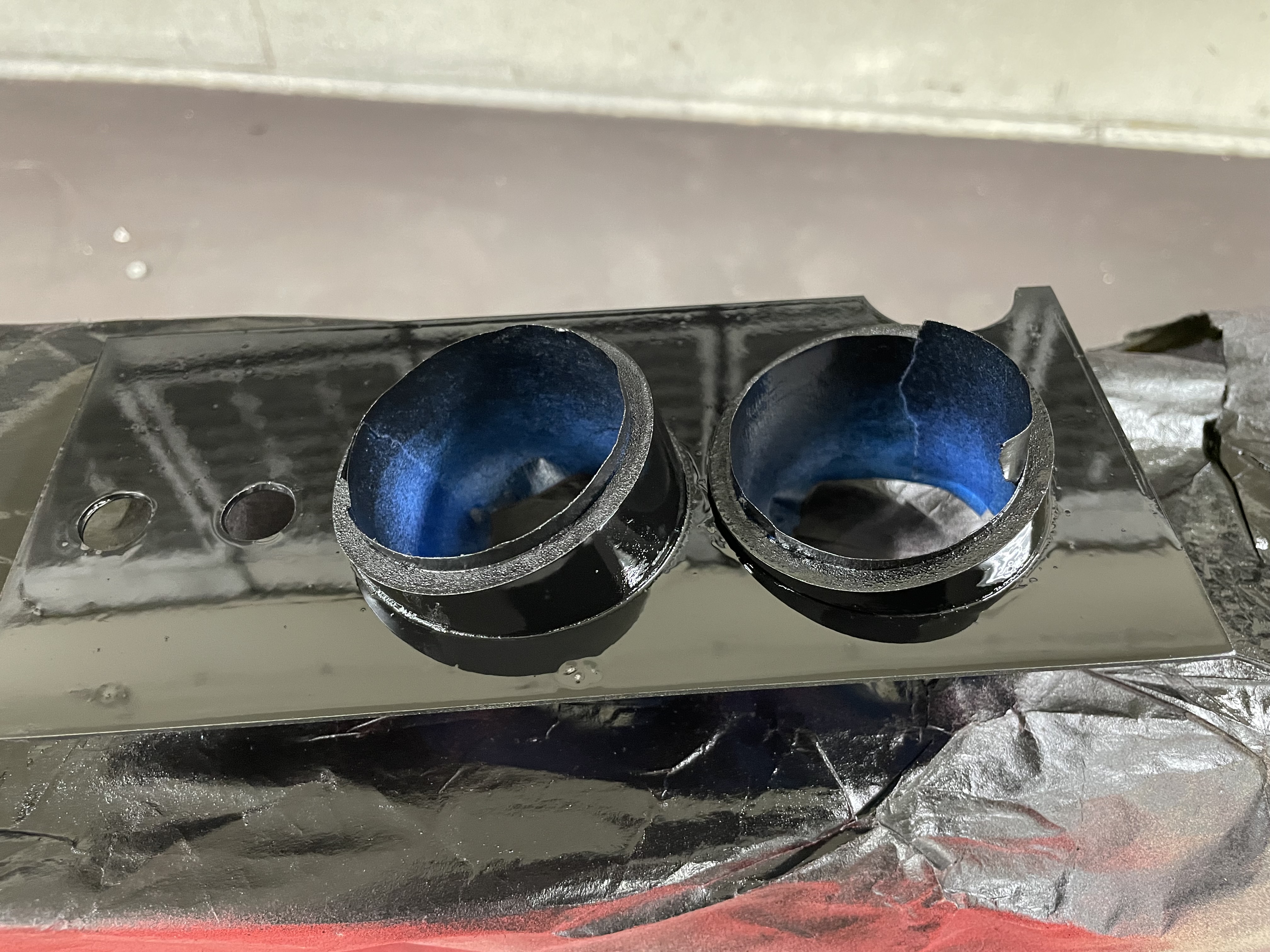

+1 on the angled gauges… i did a radio plate with angled (pvc) gauges… two different depths cause one of my gauges had a thicker bezel than the vdo gauge…

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
fixer34
post Feb 14 2025, 12:01 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,264
Joined: 16-September 14
From: Chicago area
Member No.: 17,908
Region Association: Upper MidWest



QUOTE(infraredcalvin @ Feb 13 2025, 10:06 PM) *

Very cool, I’d buy one too…

+1 on the angled gauges… i did a radio plate with angled (pvc) gauges… two different depths cause one of my gauges had a thicker bezel than the vdo gauge…

Attached Image

I think the challenge with doing angled gauges would be it is a much tighter space, plus the right side would need to be a smaller depth.
Lastly, they would be offset in the opening; the left gauge tight against the left side, the right one more to center with a wide space on the right side.

The only 'glitch' I found so far is apparently the early dash ('70) is a little narrower around the opening on the bottom.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RTz
post Mar 22 2025, 06:05 AM
Post #10


Newbie
*

Group: Members
Posts: 21
Joined: 18-October 24
From: Oregon City
Member No.: 28,424
Region Association: None



"New & Improved" version and for sale:
http://www.914world.com/bbs2/index.php?showtopic=373861
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Mar 23 2025, 08:47 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,682
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest



PM sent.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RTz
post Mar 25 2025, 11:31 AM
Post #12


Newbie
*

Group: Members
Posts: 21
Joined: 18-October 24
From: Oregon City
Member No.: 28,424
Region Association: None



Got it, and replied.
Thank you!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RTz
post Apr 5 2025, 08:39 AM
Post #13


Newbie
*

Group: Members
Posts: 21
Joined: 18-October 24
From: Oregon City
Member No.: 28,424
Region Association: None



..
