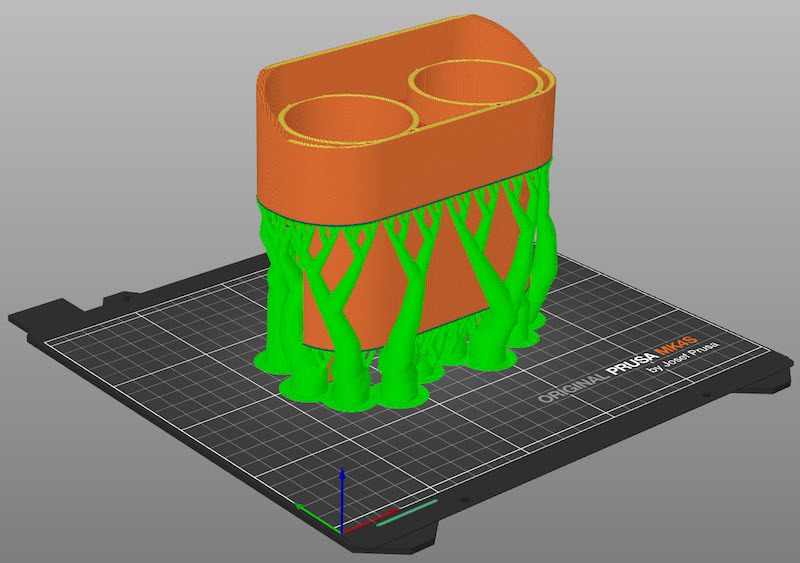

I put this together for one of our 914World members. It slides into the ashtray rails, no fasteners or drilling holes required.

STL: https://www.dropbox.com/scl/fi/2wnqiw1y1to6...75hgoj&dl=0

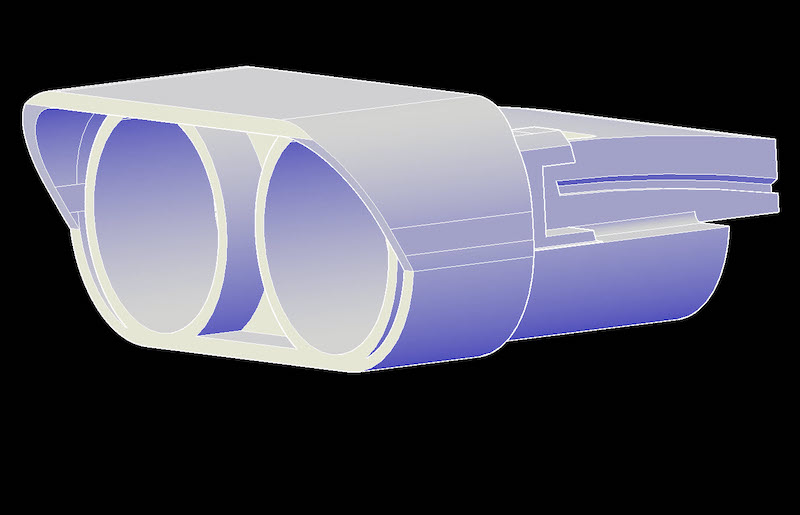

DWG: https://www.dropbox.com/scl/fi/xlfj9la982y7...jl26rm&dl=0

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment


Disclaimer:

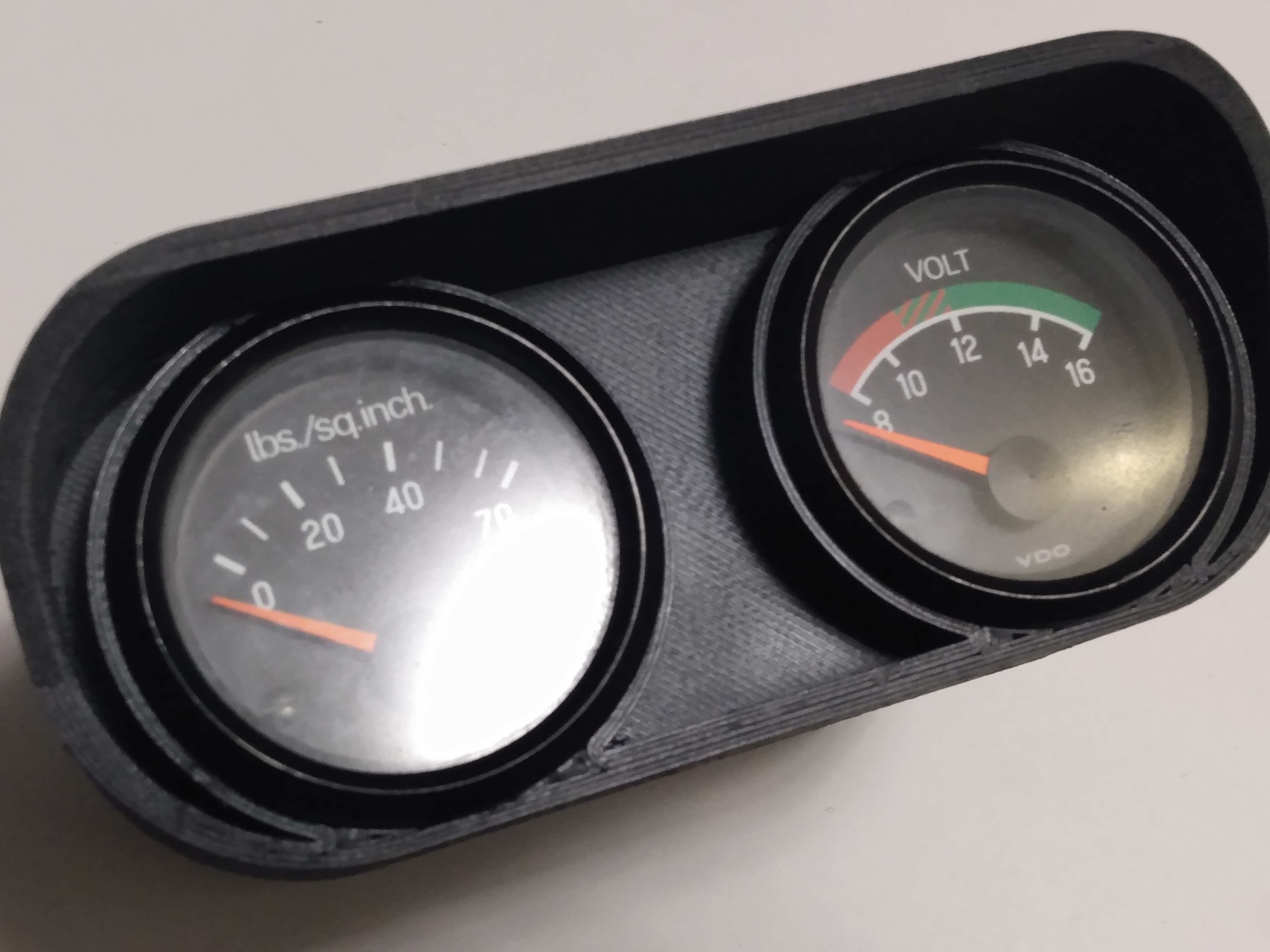

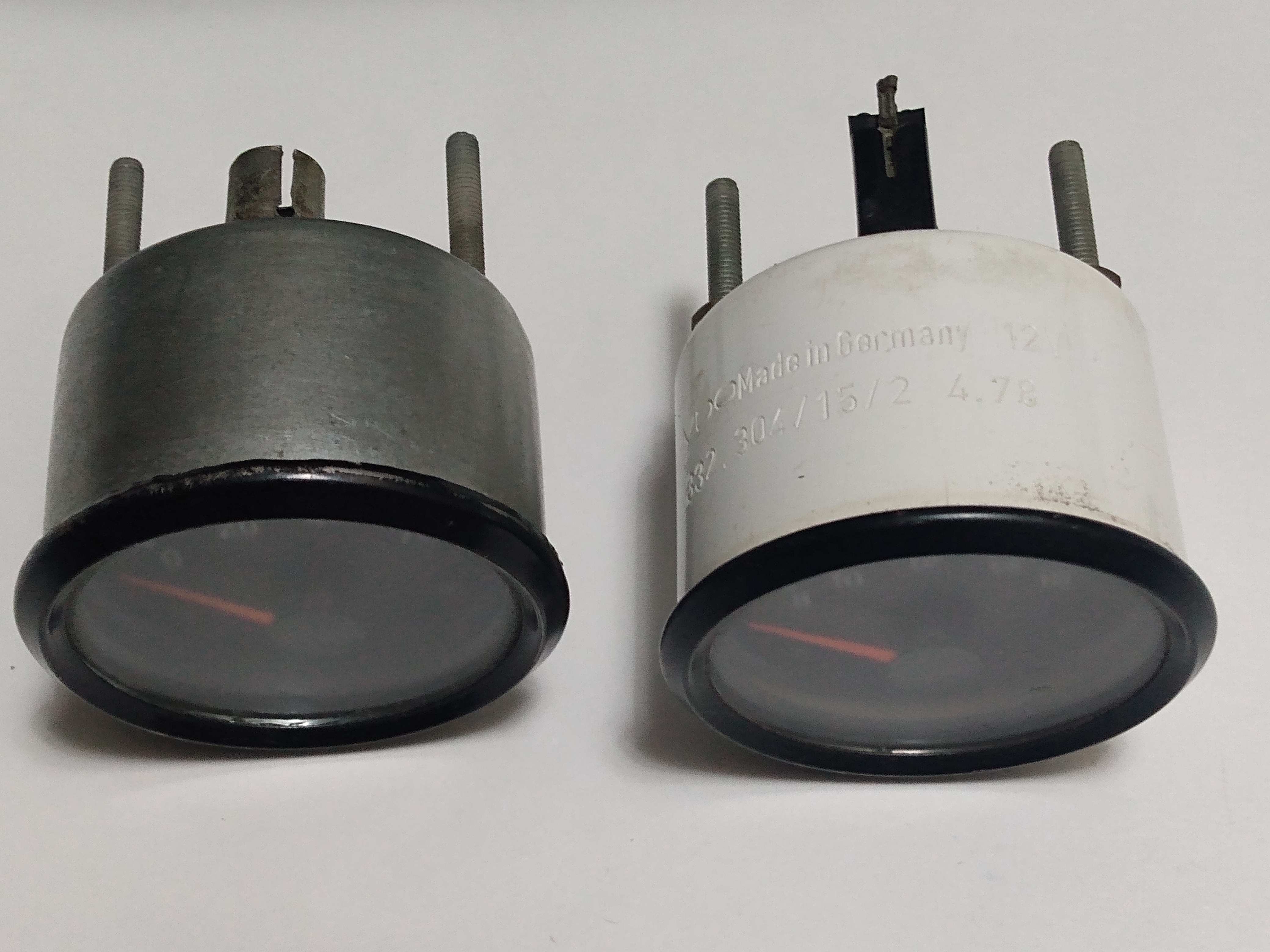

1) Designed for 52mm VDO gauges only. The two gauges shown have different depths, though either gauge will work on either side, I have no knowledge if VDO has built gauges with different depths or stud spacing other than these two. The voltmeter is the deeper gauge and has a body depth of 34mm.

2) Pictured on a '72 model. I assume ashtray's & rails are the same for all years but I don't know that with certainty.

Do your own diligence.

Peace, Ron

Yeah....I'd pay for one of these. Very nicely done.

Let me know if it shrinks. What filament did you use?

Very nice. If you are open to suggestions, the next version could have the gauge openings tilted towards the driver. I once made a sheet metal mount like that, and just a small angle made the gauges much easier to read.

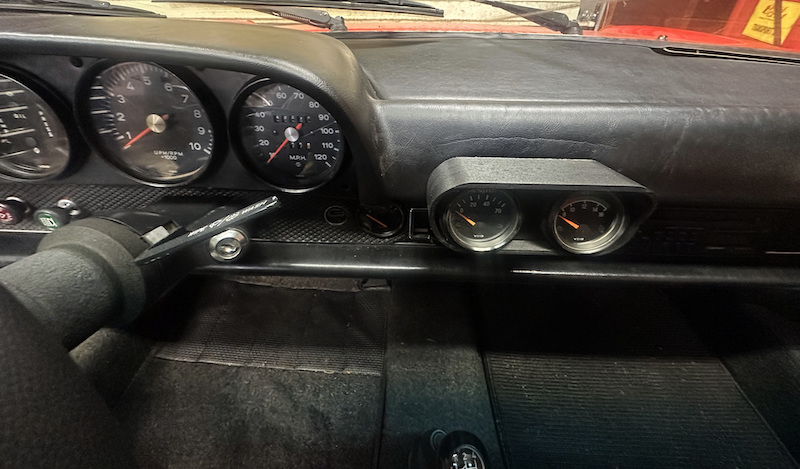

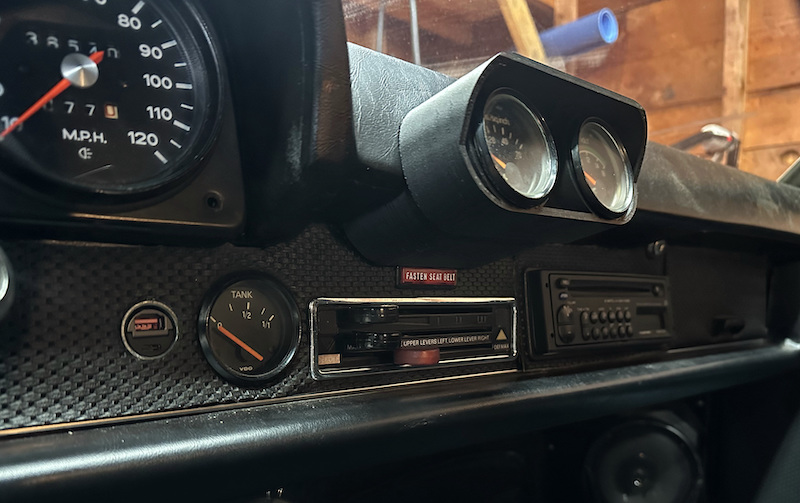

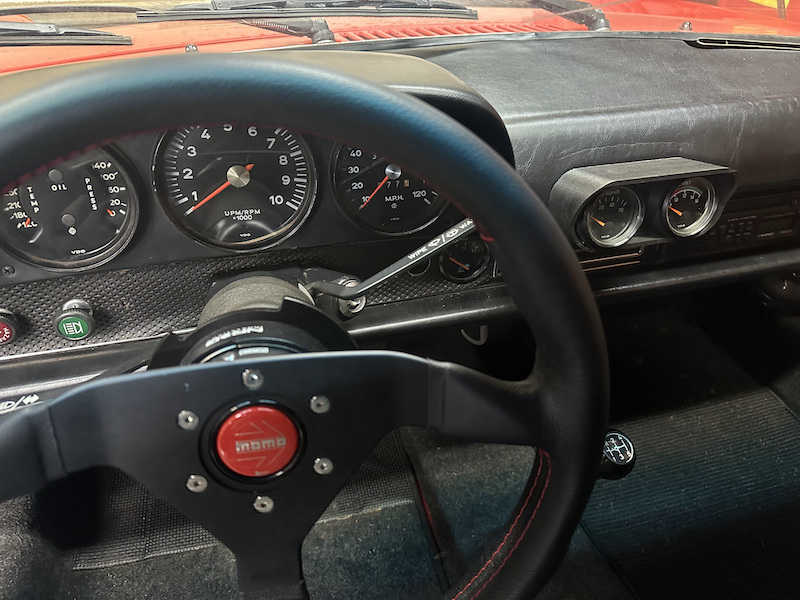

So I was the member that worked with RTz (Ron) on this. I received the prototype today. A LOT more complex than I had thought, but it does check all the boxes:

Easy install (in place of the ash tray) with no modifications.
Access to the back of the gauges when pulled out for lights/wiring
Fits standard VDO gauges
Pretty close match to dash

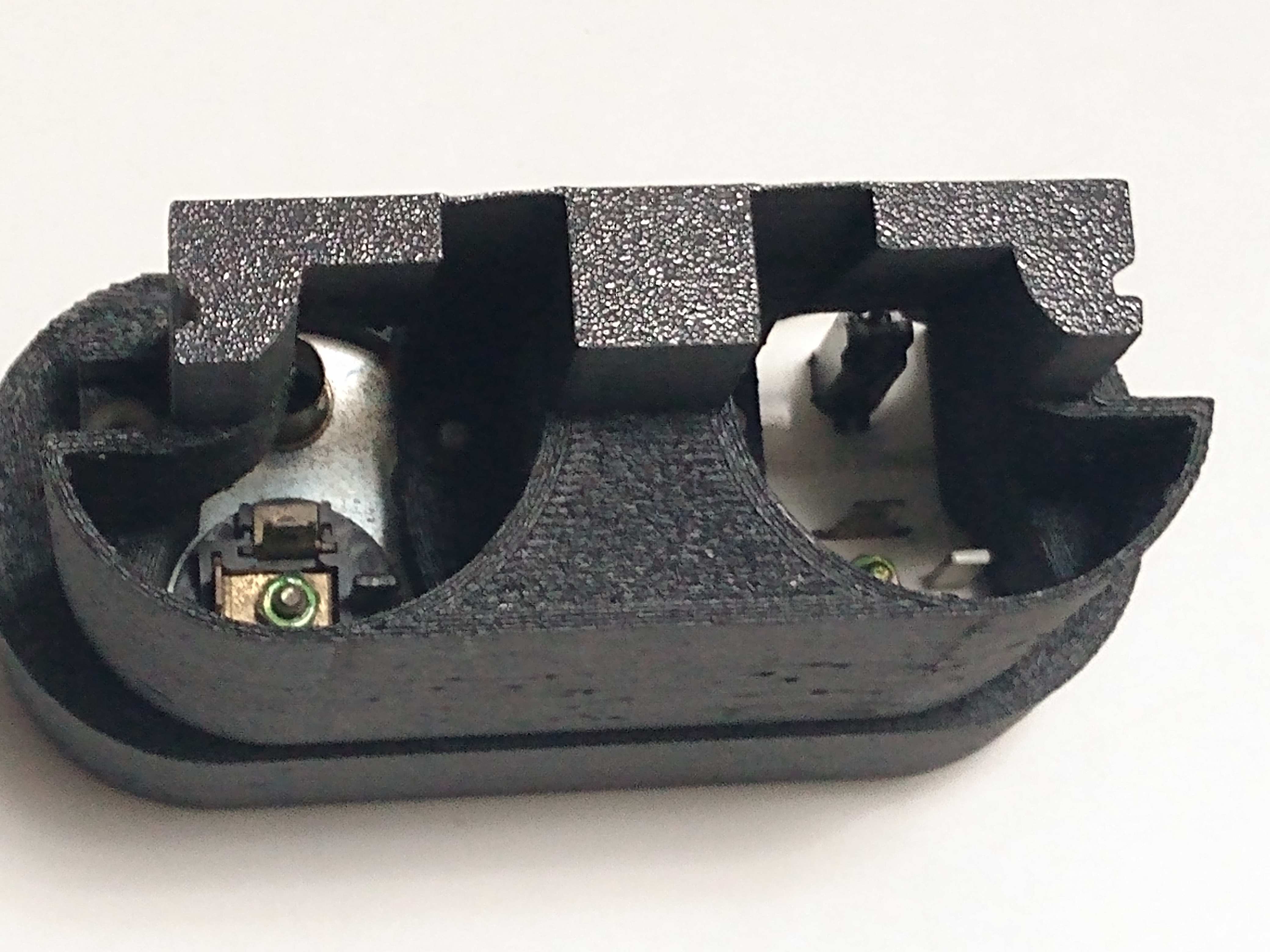

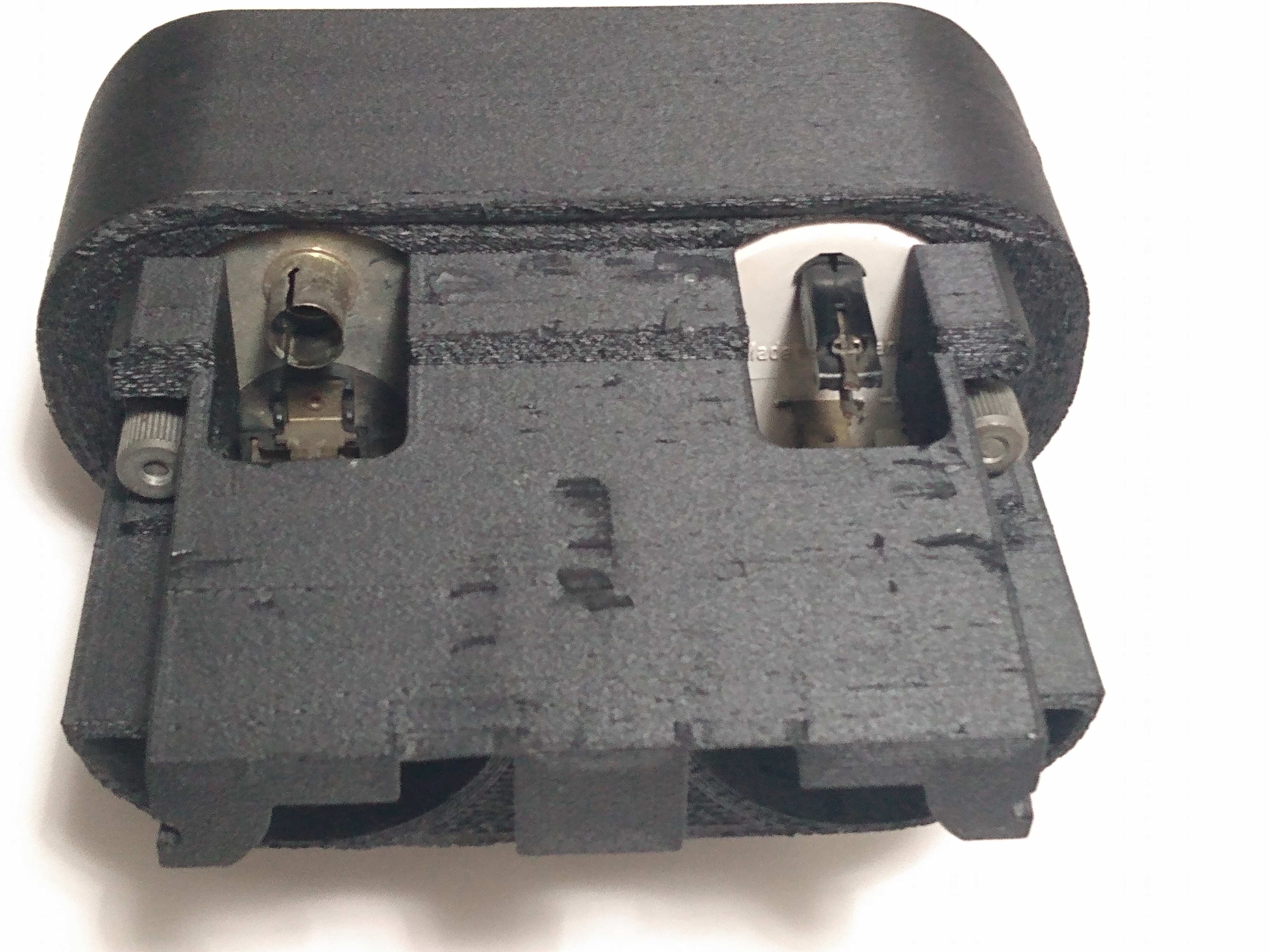

I tried to get some detail pictures of the design, not sure if tilting the gauges would be an option if retaining the threaded studs. Have to mount mine in the car to be sure, but I don't think viewing will be an issue.

Click to view attachment Click to view attachment Click to view attachment Click to view attachment

more pictures

back Click to view attachment
side Click to view attachment
bottom viewClick to view attachment

Nice part. I like the Gaudi inspired support material.

BTW, cool tach.

Very cool, I’d buy one too…

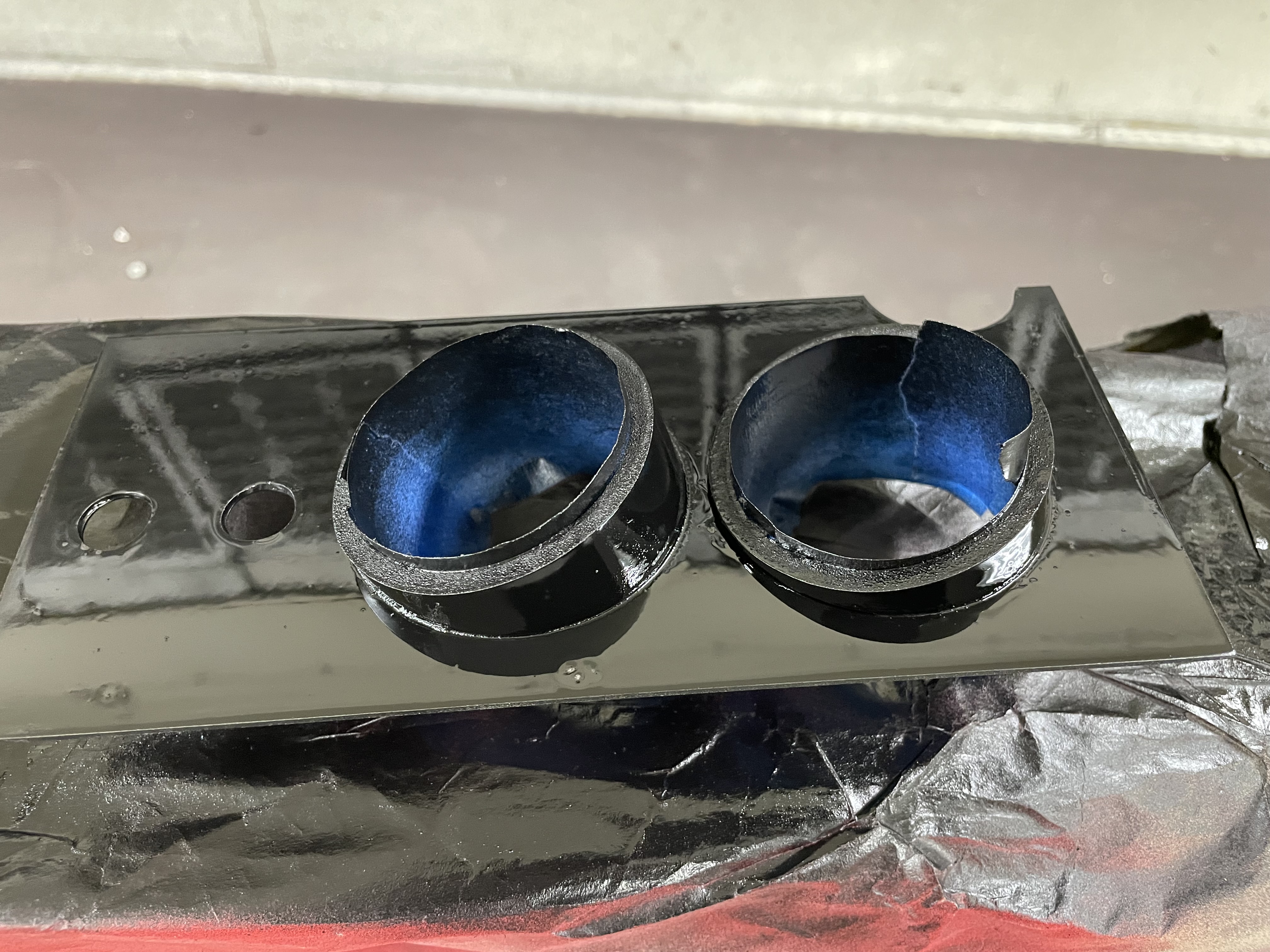

+1 on the angled gauges… i did a radio plate with angled (pvc) gauges… two different depths cause one of my gauges had a thicker bezel than the vdo gauge…

Click to view attachment

I think the challenge with doing angled gauges would be it is a much tighter space, plus the right side would need to be a smaller depth.
Lastly, they would be offset in the opening; the left gauge tight against the left side, the right one more to center with a wide space on the right side.

The only 'glitch' I found so far is apparently the early dash ('70) is a little narrower around the opening on the bottom.
