> FS Reproduction 914-6 style accelerator linkage sets, $225 early group buy or $250 later
bdstone914
post Jul 17 2026, 10:25 PM
Post #1


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
I have the first prototype parts for the 914-6 style accelerator cable bracket, bell crank and linkage pull rod.
I redesigned the pull rod and bell crank. The cable support support bracket is 3D printed in stainless steel for increased strenght and rust prevension.

The bell crank and pull rod use metric ball sockets wirh a safety wire clip and dust cover to prevent dirt from entering the socket.

The pull rod uses two ball sockets unlike the original rod which uses a wire loop that wears.
All parts will be yellow zinc plated.

The bell crank is made with sloted holes to adjust the throttle modulation. The pull rod lenght is adjustable as it is a hollow tube connecting two ball sockets with all thread.

The set will include an original pivot post with plastic bushings.
The set requires an intermediate plate with the threaded boss for the bell crank. These were used on tail shift and 914-6 transmissions.

Group buy price now is $225. It will increase to $250 when i have full production in 2-3 weeks.
At this time i only have 10 accelerator brackets but can get more in about two weeks.
I prefer payment by Zelle or check image.
Shipping at cost by UPS ground.

I used a piece of all thread in the pictures in place of an actual accelerator cable.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jul 18 2026, 06:26 AM
Post #2


914 Guru
*****

Group: Members
Posts: 9,519
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Real world solutions for hard to find parts. Like the adjustability for FINE tuning. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 18 2026, 08:11 AM
Post #3


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
@Luke M
@sixaddict
@Montreal914
@racer914
@scrz914
@markhoward
@Nate W
@live free & drive
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 18 2026, 08:13 AM
Post #4


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
@mate914
@rick 918-S
@mepstein
@pencap914
@yellowporky
@Niklas
@Robarabian
@mb911
---

---
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 18 2026, 08:15 AM
Post #5


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
@GTS
@Root_Werks
@Graydingo
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scrz914
post Jul 18 2026, 09:15 AM
Post #6


Member
**

Group: Members
Posts: 452
Joined: 21-April 04
From: Santa Cruz, CA
Member No.: 1,960
Region Association: Central California
Nice Bruce. Stainless steel and adjustability are a nice touch. Since the rod from the crank to the engine is a hollow tube, I’m assuming it’s a straight shot? No curve for the axle?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 18 2026, 10:21 AM
Post #7


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(scrz914 @ Jul 18 2026, 08:15 AM) *

Nice Bruce. Stainless steel and adjustability are a nice touch. Since the rod from the crank to the engine is a hollow tube, I’m assuming it’s a straight shot? No curve for the axle?


Correct. Straight tube. The curve is not needed to clear the axle. It was to clear the vacuum pot for the beloved sportomatic.
I could gave rhem made with the curve at added cost if someone wanted a original look. But the part is not original so why?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jul 18 2026, 11:03 AM
Post #8


914-6 GT in waiting
***************

Group: Members
Posts: 20,831
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I’m in for a set. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jett
post Jul 18 2026, 06:25 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,699
Joined: 27-July 14
From: Seattle
Member No.: 17,686
Region Association: Pacific Northwest
I’m in for a set please
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mate914
post Jul 19 2026, 07:11 AM
Post #10


Matt
***

Group: Members
Posts: 951
Joined: 27-February 09
From: Eagles mere, PA
Member No.: 10,102
Region Association: North East States
I'm in for a set also.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racer914
post Jul 19 2026, 07:13 AM
Post #11


Member
**

Group: Members
Posts: 111
Joined: 1-October 19
From: Keystone Heights, FL
Member No.: 23,513
Region Association: South East States
I will take a set
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 19 2026, 07:44 AM
Post #12


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(racer914 @ Jul 19 2026, 06:13 AM) *

I will take a set

PM send. I need your full address too.
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 19 2026, 09:46 AM
Post #13


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,311
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Thanks for the notification Bruce. I am in if I don't win the bid on that 6.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
NARP74
post Jul 20 2026, 08:39 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,469
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
What is everyone currently using if they don't have this?
I would get one but I am missing parts above the engine tins to make it work.
DAPO kludge solution.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 20 2026, 11:36 PM
Post #15


bdstone914
*****

Group: Members
Posts: 5,341
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
@NARP74

' date='Jul 20 2026, 07:39 PM' post='3265789']
What is everyone currently using if they don't have this?
I would get one but I am missing parts above the engine tins to make it work.
DAPO kludge solution.
[/quote]


I dont know what most people are doing for these parts. Patric Motorsports has a couple more expensive systems.
Some have modified the 911 bell cranks. The early 911 rod works.

I wanted to make a better and more affordable solution.
I have some of the linkage above the tin. Im looking at remaking some of those parts.

I have several cross bars. I can sell you one of those.
PMO is seĺling a kit for some of those partd
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jul 21 2026, 04:43 AM
Post #16


914 Guru
*****

Group: Members
Posts: 7,794
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Bruce,

I am in for a set and would also like to put on my website
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Jul 21 2026, 08:26 AM
Post #17


Senior Member
***

Group: Members
Posts: 1,469
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
What cable does this use?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Wes
post Jul 21 2026, 09:09 AM
Post #18


Member
**

Group: Members
Posts: 56
Joined: 9-March 22
From: SO CAL
Member No.: 26,388
Region Association: Southern California
QUOTE(NARP74 @ Jul 21 2026, 07:26 AM) *

What cable does this use?

It is setup for the stock 914-6 cable. Part number 91442306602

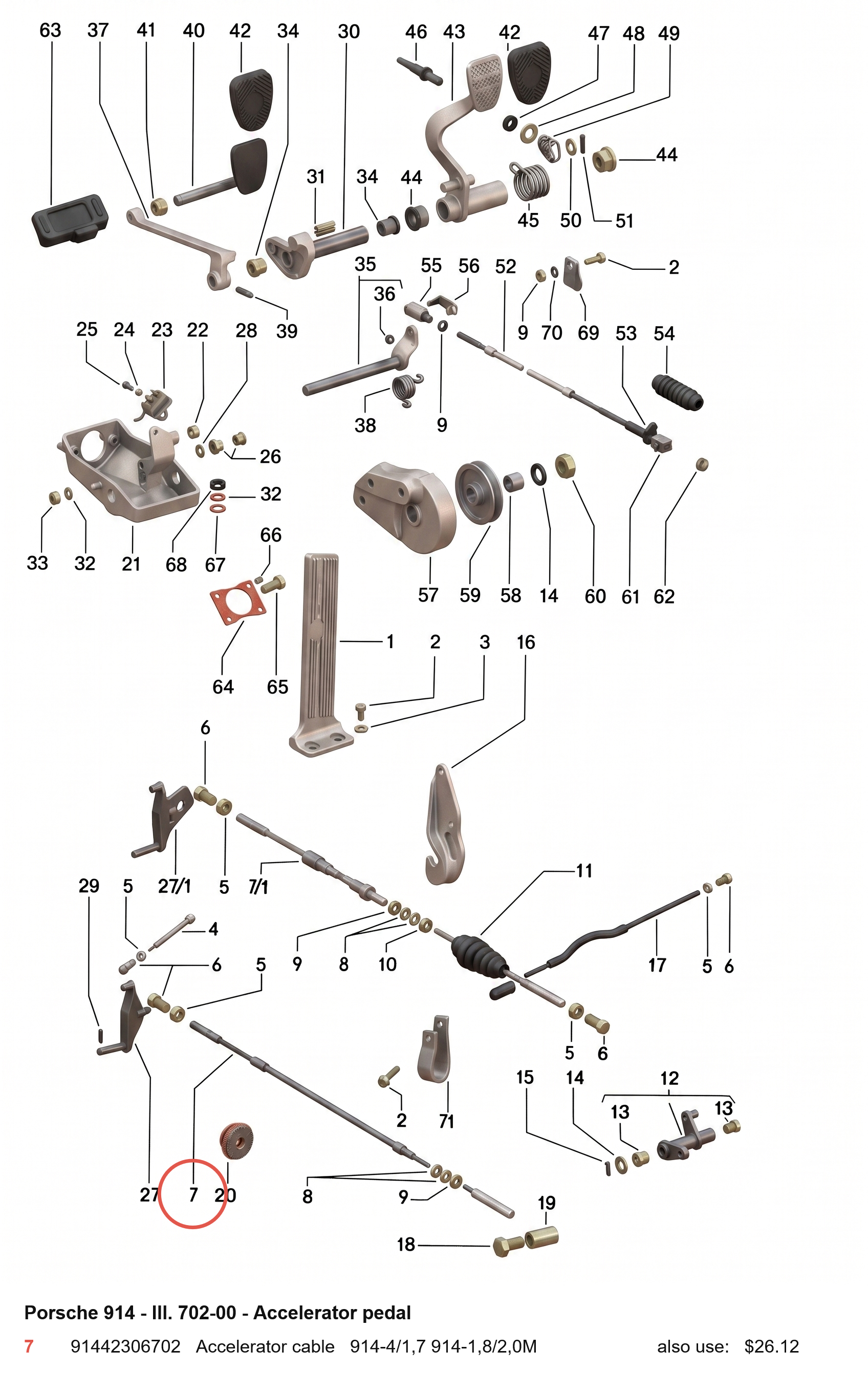

914 parts diagram - Ill. 702-00 - Accelerator pedal
Interactive version (click parts for prices + availability): https://914catalog.com/#i=702-00&p=7
(IMG:http://www.914world.com/bbs2/uploads_offsite/img.914catalog.com-26388-1784646543.1.png)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roundtwo
post Jul 21 2026, 11:14 AM
Post #19


Member
**

Group: Members
Posts: 371
Joined: 9-February 20
From: Petaluma, CA
Member No.: 23,905
Region Association: Central California
@bdstone914

Hi Bruce,

I have a 1973 with side shift 3.0 liter six with PMOs.

Does the kit contain everything I need to convert from the basic cable pull right to the carbs?

Can you describe what this is? :"The set requires an intermediate plate with the threaded boss for the bell crank."

If so, I'd like to buy the set.

I can send you pics of my current set up if needed.

Thanks, Todd
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aerostatwv
post Jul 21 2026, 04:41 PM
Post #20


Member
**

Group: Members
Posts: 152
Joined: 13-July 11
From: WV
Member No.: 13,315
Region Association: MidAtlantic Region
Hello, Bruce!

Please put me down for a set as well.

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
