> Relays... stupid question
Hammy
post Nov 10 2005, 06:44 PM
Post #1


mr. Wonderful
***

Group: Members
Posts: 1,826
Joined: 20-October 04
From: Columbia, California
Member No.: 2,978
Region Association: Northern California
Quick, stupid question. How do the relays on the relay board come out? The little plastic covers pop off but I can't seem to figure out how to get the rest out. I'm asking so i don't screw something up. (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 10 2005, 06:46 PM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
the relay should come off the board before the cover comes off...sounds like bad corrosion.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Nov 10 2005, 06:47 PM
Post #3


Custom Member
***************

Group: Members
Posts: 24,577
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
grab, wiggle, pull
platic cover stays on the relay
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Allan
post Nov 10 2005, 06:49 PM
Post #4


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
When I first got my car I had the same problem. I found out the adhesive that holds the cap on gets brittle and breaks after 30+ years. I just took a utility knife and pried it out of the socket then re-glued the cap back on.

Hope that helps...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Nov 10 2005, 06:49 PM
Post #5


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
some of the seals on those relays suck, so you end up pulling off the over before getting the relay off...

the old ones used a sealer glue to hold the 2 pieces together.

the new ones are much better.

but i typically use a knife to get some leverage and gently work the relay out of the socket.

b
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hammy
post Nov 10 2005, 06:49 PM
Post #6


mr. Wonderful
***

Group: Members
Posts: 1,826
Joined: 20-October 04
From: Columbia, California
Member No.: 2,978
Region Association: Northern California
(IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif) peachy.

So how shall I get them off now ?

edit... I'll try and use a knife. I won't get shocked will I (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 10 2005, 06:51 PM
Post #7


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (Hammy @ Nov 10 2005, 05:49 PM)
(IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif) peachy.

So how shall I get them off now ?

edit... I'll try and use a knife. I won't get shocked will I (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

with power off or being carefull, use a small blade screwdriver and pry them off.......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Nov 10 2005, 06:51 PM
Post #8


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
it's all in the plan (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)


nope...as long as your ignition is off.


b
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Nov 10 2005, 06:52 PM
Post #9


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (Hammy @ Nov 10 2005, 04:49 PM)
I won't get shocked will I (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

If in doubt, disconnect the battery. (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Flat VW
post Nov 10 2005, 06:53 PM
Post #10


Illegal Soapbox Derby Racecar
***

Group: Members
Posts: 1,692
Joined: 13-November 04
From: Phoenix, AZ
Member No.: 3,105
I grab em' with neddlenose pliars on the large pins (same diameter as the leg of the relay that extend up thru the base of the relay.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hammy
post Nov 10 2005, 07:23 PM
Post #11


mr. Wonderful
***

Group: Members
Posts: 1,826
Joined: 20-October 04
From: Columbia, California
Member No.: 2,978
Region Association: Northern California
Sweet
Turns out it was a bad relay making my heater blower not work (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Nov 10 2005, 07:42 PM
Post #12


Resident German
*************************

Group: Admin
Posts: 41,651
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE (Hammy @ Nov 10 2005, 05:49 PM)
I'll try and use a knife. I won't get shocked will I (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

how about disconnecting the battery ???

(IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Marlow
post Nov 10 2005, 07:43 PM
Post #13


Member
**

Group: Members
Posts: 311
Joined: 14-August 03
From: Manassas, VA
Member No.: 1,027

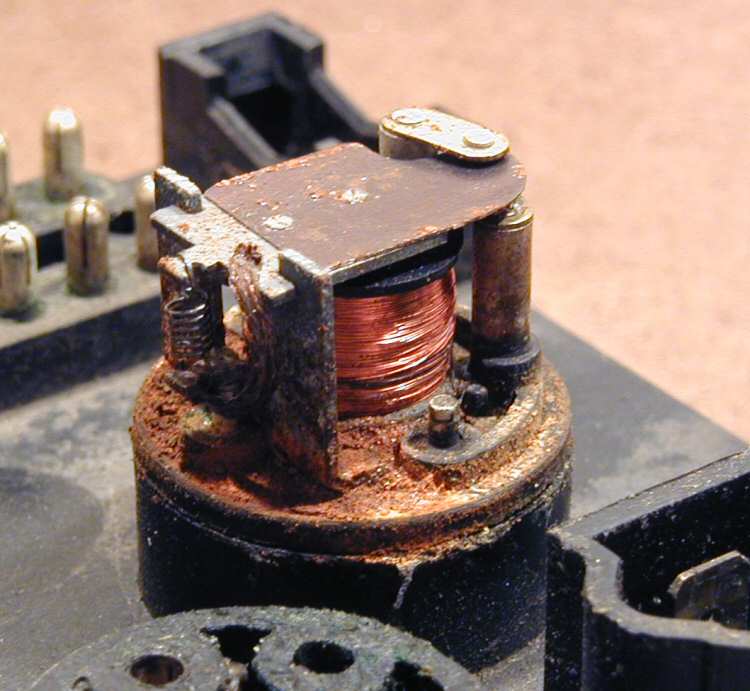

These little relays are pretty hardy. This one came out of my car's relay board, and it still worked!!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hammy
post Nov 10 2005, 07:46 PM
Post #14


mr. Wonderful
***

Group: Members
Posts: 1,826
Joined: 20-October 04
From: Columbia, California
Member No.: 2,978
Region Association: Northern California
Wow. (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
What do relays do ? how do they work? After looking at my busted one I see the little spring and a plate it connects to and then coil wire underneath that.. (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Nov 10 2005, 07:49 PM
Post #15


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
guys!!! i got this one:

okay, a relay is a switch. see, a switch can only handle loads up to a certain amount (25 amps or so)....

a relay is used to switch on a huge circuit....its like a switch for a switch...


switch--->relay---->starter/lights/heater blower.

the switch engages the relay which engages the desired object


(IMG:http://www.914world.com/bbs2/html/emoticons/clap.gif) b
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marlow
post Nov 10 2005, 07:59 PM
Post #16


Member
**

Group: Members
Posts: 311
Joined: 14-August 03
From: Manassas, VA
Member No.: 1,027
Relays allow a low power switch to control a large current device.

They have a low current side and a high current side. Power is applied to the low current side which energizes a magnetic field and draws the high current side open or closed (depending if the relay is Normally Open or Normally Closed).

In our little 914 relays (see photo above) power is applied to the copper coil, a magnetic field is created, pulls the top plate down and causes the high current side to make it's connection. Once the power is removed the magnetic field collapses and the spring pulls on the plate and breaks the connection on the high current side.

Their operation is pretty simple.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hammy
post Nov 10 2005, 08:06 PM
Post #17


mr. Wonderful
***

Group: Members
Posts: 1,826
Joined: 20-October 04
From: Columbia, California
Member No.: 2,978
Region Association: Northern California
(IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif)
Thanks for explanation guys

I'm thinking about going and buying a book on basic electronics and such... Figure I'll solve a lot of 914 problems too (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
motorhead
post Nov 10 2005, 08:20 PM
Post #18


Member
**

Group: Members
Posts: 67
Joined: 11-September 05
From: tehachapi, ca
Member No.: 4,784
While you're at it, go to your local wrecking yard/s, see if you can find a wrecked teener. Shouldn't be hard. I grabbed about 3 or 4 as spares about 15 years ago. Headlights each have one, and a few in the relay board. As I recall, tariff was about 3 bucks for the batch. If you have one in the glovebox, you'll never need it. (IMG:http://www.914world.com/bbs2/html/emoticons/cool.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Nov 10 2005, 08:33 PM
Post #19


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (motorhead @ Nov 10 2005, 06:20 PM)
If you have one in the glovebox, you'll never need it. (IMG:http://www.914world.com/bbs2/html/emoticons/cool.gif)

(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
blitZ
post Nov 11 2005, 06:06 AM
Post #20


Beer please...
****

Group: Members
Posts: 2,223
Joined: 31-August 05
From: Lawrenceville, GA
Member No.: 4,719
Region Association: South East States
I had a similar problem when the heat lever is engaged, a fuse on the relay board blew, which is shared by the fuel pump. Are these relays interchangeable or unique to each socket?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
