> Where is the VIN plate ona 76 914?
JeffBowlsby
post Jan 6 2006, 11:59 PM
Post #1


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

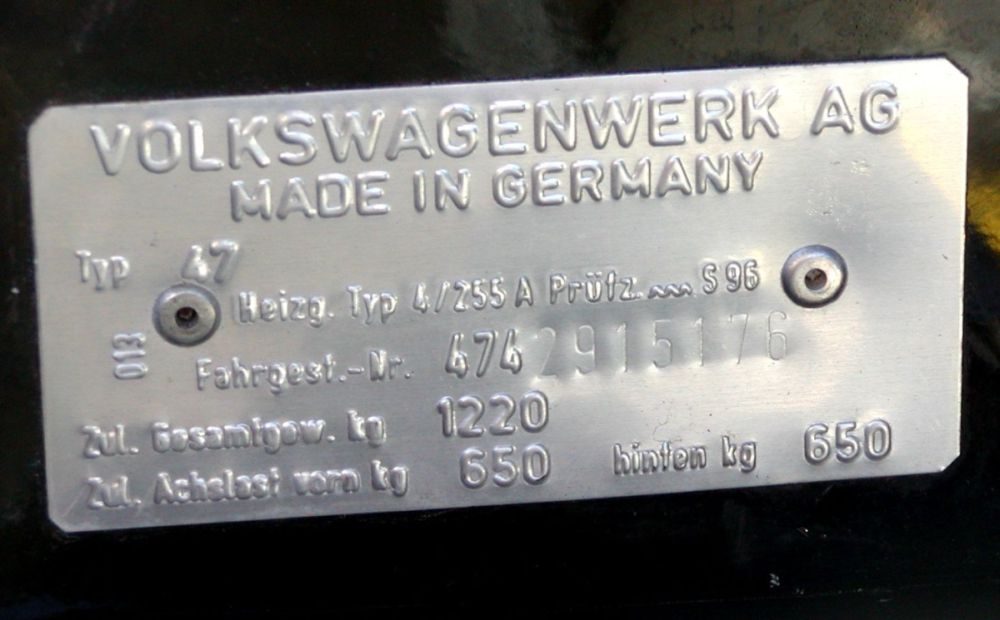

This plate...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 12:00 AM
Post #2


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

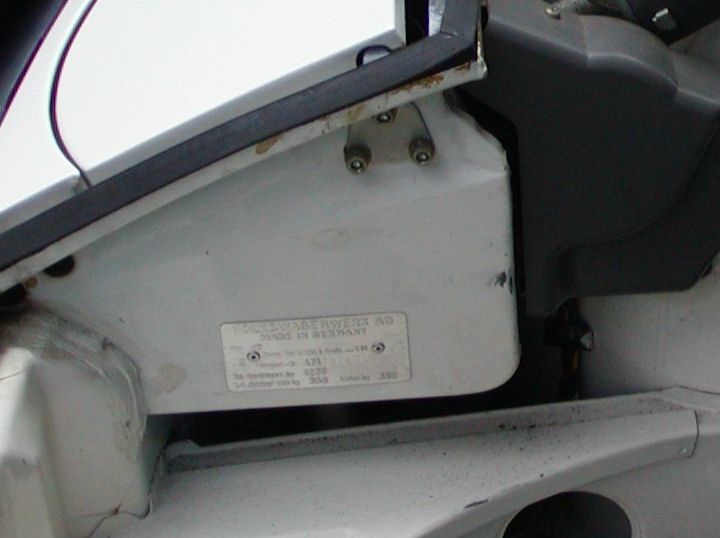

Here it is on a 70-74 914...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jan 7 2006, 12:00 AM
Post #3


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,542
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
front bulkhead IIRC...by the fuel pump i thought
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 12:01 AM
Post #4


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
And on a 75 914


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 12:04 AM
Post #5


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
And here is the 76 bulkhead...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 12:05 AM
Post #6


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Can you post a photo of it in its location?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxstr
post Jan 7 2006, 12:05 AM
Post #7


MEMBER:PACIFIC NORTHWEST REGION
*****

Group: Members
Posts: 7,522
Joined: 25-December 02
From: OREGON
Member No.: 12
Region Association: Pacific Northwest
The 76 914s do not have any "TYP 47" numbers on the car anywhere. VW did not have anything to do with the last year production run of the 914. This may be why you do not find the VIN plate on the 76 as you do on the70-75 914.
CCLINVIN#
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jan 7 2006, 12:06 AM
Post #8


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,542
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
QUOTE (bowlsby @ Jan 6 2006, 11:05 PM)
Can you post a photo of it in its location?

was just guessing....apparently its on the left bulkhead like your pic showed.....

could that be a replacement carpet piece and its underneath?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 12:17 AM
Post #9


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
As I recall Porsche bought-out VWs share of the 914 venture in January 1974. The Typ 47 designation was a VW designation and would have applied to the 1975 model year cars because they were already in mid-production at that time.

The Porsche buy-out would also explain the non-Typ 47 designation for the 1976 models, because they were fully under Porsche control by then. Is that why the 76 model cars do not have the Typ 47 designation? What about the VINs...I wonder why they did not also follow Porsche VIN-ology...for the 76 cars?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jan 7 2006, 12:18 AM
Post #10


914 Wizard
**********

Group: Members
Posts: 10,911
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

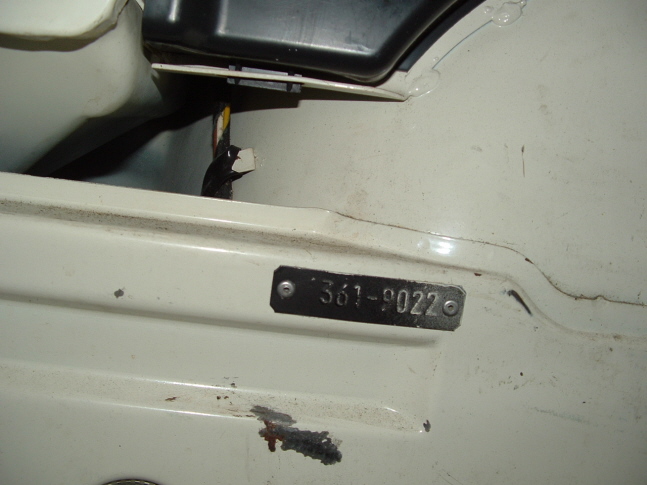

The only tag in my 76


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gustl
post Jan 7 2006, 01:29 AM
Post #11


914 enthusiast & historian
**********

Group: Members
Posts: 11,863
Joined: 16-June 04
From: TIROL / Austria
Member No.: 2,212
Region Association: Austria
I just posted this question at the german forum I'm in
I know that the '76 model wasn't available in Europe, but there are lots of re-imported cars

we'll see if there is an answer ...

(IMG:http://www.914world.com/bbs2/html/emoticons/wavey.gif) Gustl
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jan 7 2006, 07:28 AM
Post #12


914 Historian
*****

Group: Benefactors
Posts: 5,292
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
Jeff H's photo shows the chassis tag used on the late production cars. With the introduction of these tags there were other changes: (1) the format of the number changed from xxy95zz to xxy90zz, when daily production exceeded 99 cars the 5 or 0 would be incremented to 6 and 1 respectively. (2) the chassis number that was previously stamped into the Karmann badge on the drivers door hinge post was omitted. (3) the chassis number stamped into the rear trunk floor was omitted.

From my research it appears that the change occurred between the 36th and 40th week of 1974. VIN's from about 4752902800 got the new chassis #, but the old chassis # could still be found past 4752903000. This was Sept / Oct timeframe, although I have no specific Sept data at this time. Any further info on cars from this period to help nail down the transition would be appreciated.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:46 AM
Post #13


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

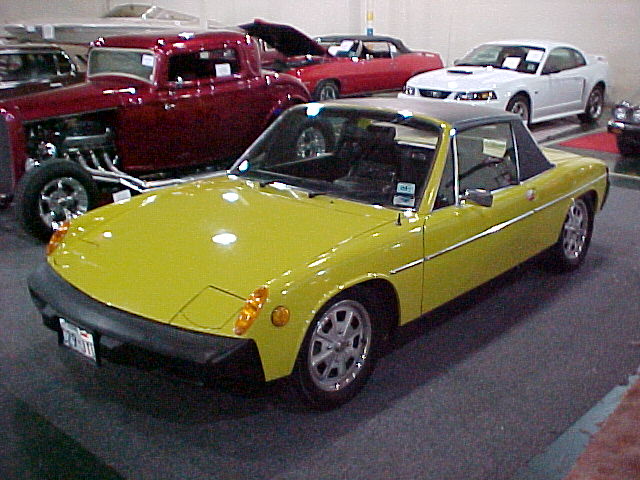

Here is the yellow 75 car with the dealer protective side strips we see on ebay once inawhile...VIN 4752903075



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:47 AM
Post #14


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

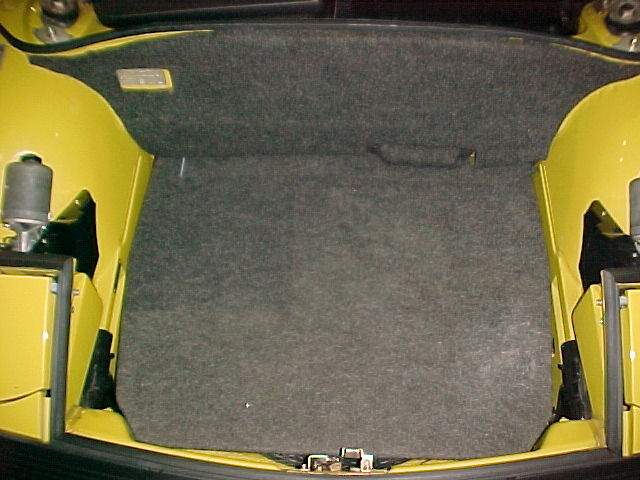

its front trunk, notice the VIN plate on the bulkhead


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:49 AM
Post #15


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

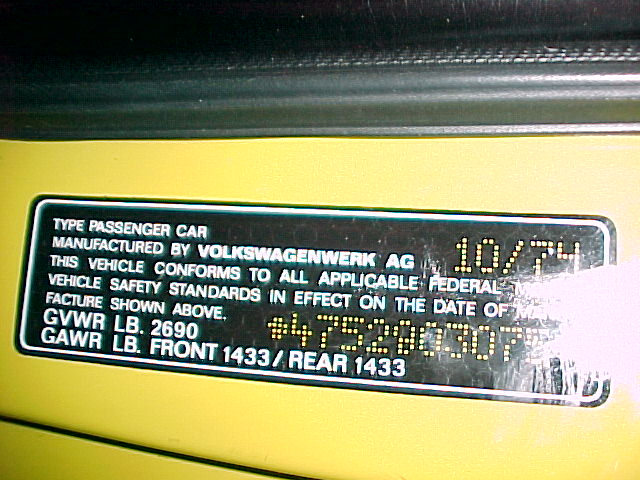

And the rear door jamb sticker 10/74. Sorry I dont have the front chassis plate or more info.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:53 AM
Post #16


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

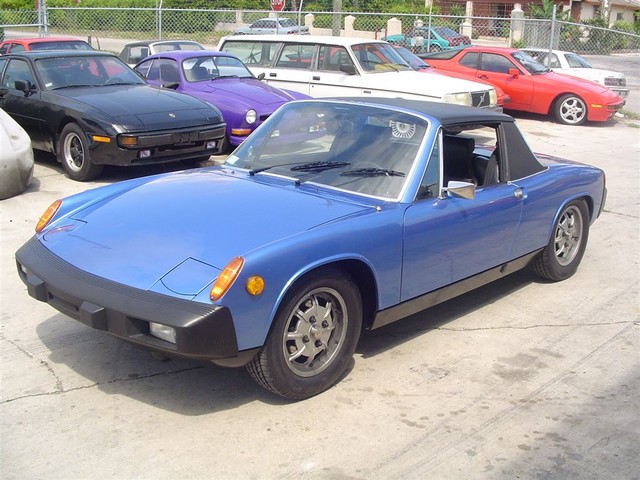

And this blue 76 VIN 4762901268.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:54 AM
Post #17


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
10/75


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:55 AM
Post #18


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

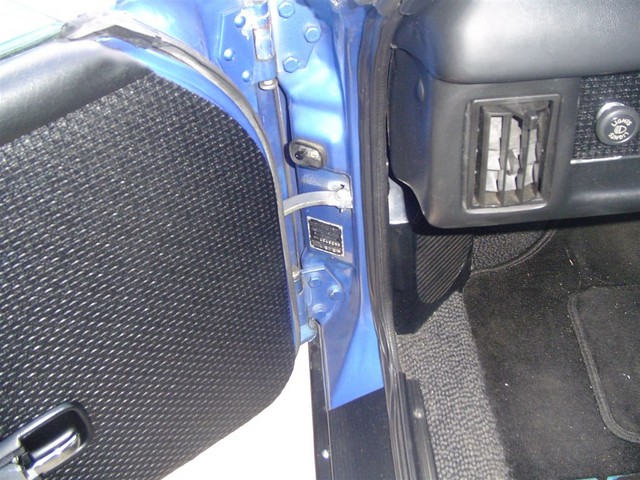

Chassis plate has numbers...but I dont know what they are...Dave this is a year after you suggested it should not have a chassis number on the chassis plate?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:57 AM
Post #19


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

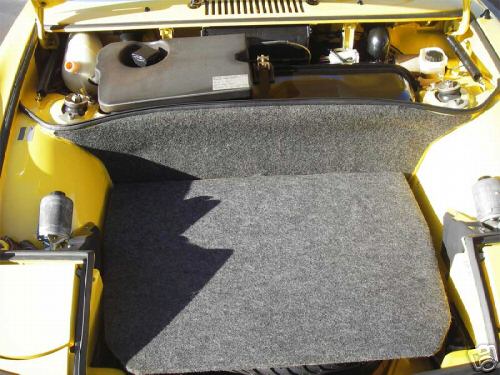

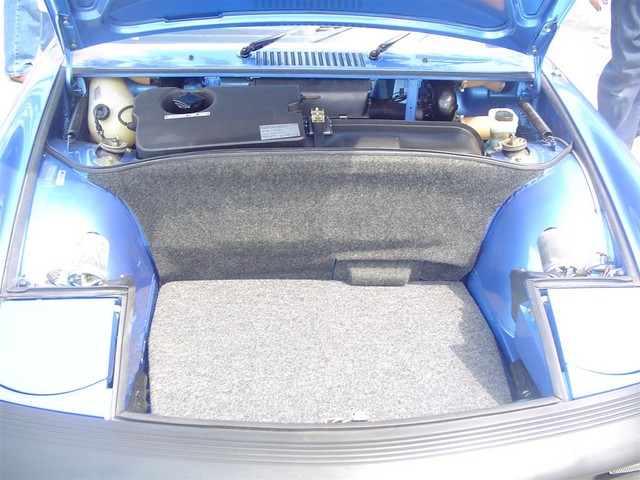

No VIN plate in front trunk...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 08:03 AM
Post #20


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,975
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
And our own Tom Trudells 76 car that is/was FS recently 4762901553.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
