> Where is the VIN plate ona 76 914?
Bleyseng
post Jan 7 2006, 03:41 PM
Post #41


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest

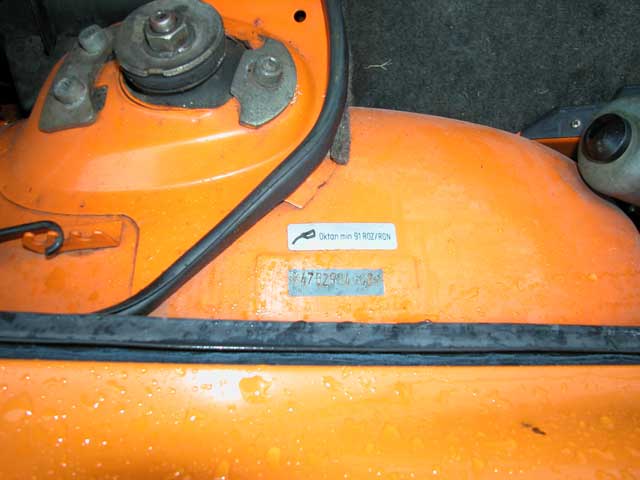

tag- I would again like to understand this coding number?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jan 7 2006, 03:41 PM
Post #42


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest

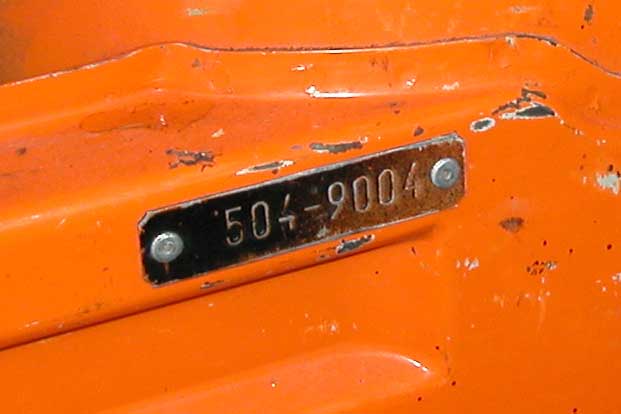

vin


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jan 7 2006, 03:42 PM
Post #43


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest

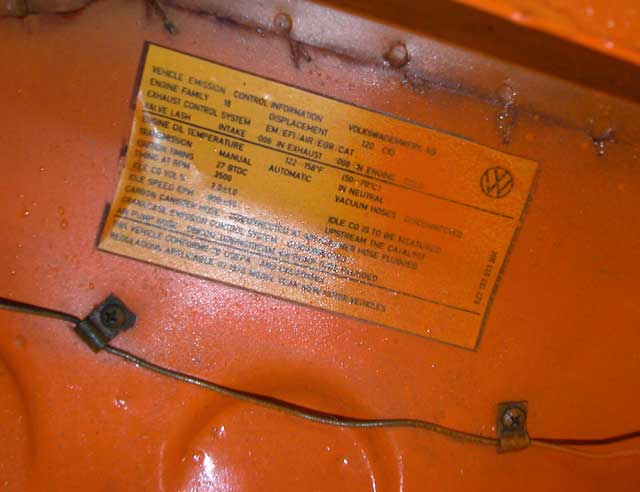

ljdlsjf


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Jan 7 2006, 04:00 PM
Post #44


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (Bleyseng @ Jan 7 2006, 01:41 PM)
tag- I would again like to understand this coding number?

I know it's the same number that is on the paint code plate in the front of the drivers door jamb.

I thought it was a chassis number or such...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jan 7 2006, 04:04 PM
Post #45


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
and the 5049004 relates to what? the chassis number? the car produced on the plant that year?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Jan 7 2006, 04:27 PM
Post #46


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (Bleyseng @ Jan 7 2006, 02:04 PM)
and the 5049004 relates to what? the chassis number? the car produced on the plant that year?

The way it was explained to me was that it was just a number the factory used to track the chassis assembly through the production process.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 05:17 PM
Post #47


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,978
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
More than that:

Chassis Plate data: Chassis Production Number and Paint Code: The chassis production number is found in two places, on the chassis plate attached to the front drivers door jamb and also stamped into the right rear trunk floor. The chassis production number is actually a code telling us the consecutive number of the particular chassis, and the date production was initiated on that particular chassis. The chassis production number decodement is:

WW-D-9-5XX Where:

WW = the week of a given calendar year

D = the day of the week of the calendar year (Monday =1)

9 = the code for the Karmann Factory at Osnabrueck where all 914 chassis were fabricated I have no idea about Tom Trudells 1976 car where his number is 0.

5XX = the consecutive chassis number, beginning with number 500 each day for 1974 Porsche 914 cars, begins with 000 for 1975-76 cars.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jan 7 2006, 05:21 PM
Post #48


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
ok, mine was the fourth car built on the 50th week and the on Thursday? -Dec 18th,1975-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 7 2006, 07:20 PM
Post #49


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,978
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
(IMG:http://www.914world.com/bbs2/html/emoticons/happy11.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
davep
post Jan 7 2006, 09:00 PM
Post #50


914 Historian
*****

Group: Benefactors
Posts: 5,294
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
Yes, Jeff has the decoding correct. Although, I have not determined if the first partial week of the year was week one or not.

Brotherbob has contributed a chassis number indicating up to 164 bodies produced in one day back in 1971. Can anyone beat that?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carreraguy
post Jan 7 2006, 11:00 PM
Post #51


It's not your dad's 914!
***

Group: Members
Posts: 1,197
Joined: 17-October 03
From: San Jose, CA
Member No.: 1,256
Region Association: Northern California
Hi Jeff:
Just noticed this thread. Per my email car is still here - will relist it in the spring. Give me a call - you're welcome to come over any time. However, I don't recall ever seeing on my car a "VIN plate" as pictured previously.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jan 8 2006, 12:11 AM
Post #52


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
What day was the last car made? (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gustl
post Jan 8 2006, 03:01 AM
Post #53


914 enthusiast & historian
**********

Group: Members
Posts: 11,863
Joined: 16-June 04
From: TIROL / Austria
Member No.: 2,212
Region Association: Austria
don't know the exact date, but it has to be in 12/75 - AFAIK

(IMG:http://www.914world.com/bbs2/html/emoticons/wavey.gif) Gustl
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jan 8 2006, 07:21 AM
Post #54


914 Historian
*****

Group: Benefactors
Posts: 5,294
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
My last entry, 4762904081 has chassis #5049021. This car was just 19 from the last one (we believe), and the chassis # puts it in mid December. DOT decal says 12/75.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jan 8 2006, 11:03 AM
Post #55


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
Well, its sounds like they built the last cars all on the same day then, Dec 18th, 1975

This also sounds like the story I have heard, that they built the final run will the last of the stashed pre-built bodies, assembling finished cars until they ran out of bodies. Vin Numbers 4059-4100, mine being the fourth car assembled that day. The other cars I have pics of are 4072 and 4081.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jan 8 2006, 11:23 AM
Post #56


914 Historian
*****

Group: Benefactors
Posts: 5,294
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
Careful now, the date the bodies were built and the date the cars were completed can be two different things. I'd guess that at a minimum there would be a few days lag to finish the assembly of the last body after it was painted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jim C
post Nov 22 2021, 08:29 AM
Post #57


Member
**

Group: Members
Posts: 206
Joined: 11-July 19
From: Pennsylvania
Member No.: 23,294
Region Association: MidAtlantic Region
Resurrecting an old thread. What was the final decision on whether 1976 models had an ID plate on the front trunk bulkhead? Mine has the holes for the rivets for one, but no evidence that a plate was ever mounted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Nov 22 2021, 04:40 PM
Post #58


914 Historian
*****

Group: Benefactors
Posts: 5,294
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
Jim, there are reports of 1976 MY cars with the manufacturer tag, but probably very low VIN. Then there may be those with the rivet holes and no tags, and finally no rivet holes.
There is also a thread with several variations of the front panel showing several changes in the last months of production. What would be really useful are photos of the various badges and VIN stamp, and also a photo of the rear trunk floor where the Karmann # was previously stamped to show it is not there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
