> What's the Official Name for "Taco Plate", and where do I get the seal/gasket??
vesnyder
post Mar 9 2006, 03:29 PM
Post #1


Senior Member
***

Group: Members
Posts: 680
Joined: 14-April 05
From: Cleveland, OH
Member No.: 3,933
Went to Stoddard at lunch today and they were clueless? The cover did not appear in his engine blow-up and I was not much help? Anybody have a part number and/or source? Your help is appreciated!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 9 2006, 03:31 PM
Post #2


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
engine sump temp sender plate?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TROJANMAN
post Mar 9 2006, 03:31 PM
Post #3


Looks nice in pictures.........
*****

Group: Members
Posts: 5,275
Joined: 5-March 04
From: Colorado
Member No.: 1,753
Region Association: None
try combination #5 (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 9 2006, 03:32 PM
Post #4


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
PET calls it "cover for oil sump" and "cover for oil temperature sender"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Mar 9 2006, 03:34 PM
Post #5


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Not sure what Porsche calls it but if you tell them to look up oil temp sender they should see an exploded view of the immediate area. Tell them it's the plate that the sender mounts to.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 9 2006, 03:34 PM
Post #6


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California

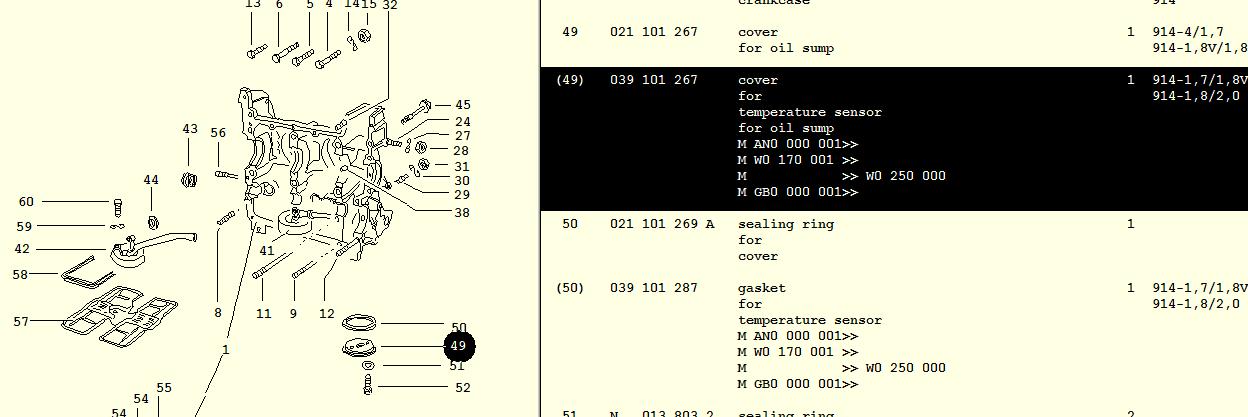

QUOTE (Aaron Cox @ Mar 9 2006, 02:32 PM)
PET calls it "cover for oil sump" and "cover for oil temperature sender"

(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Mar 9 2006, 03:34 PM
Post #7


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region
Temp Adapter Connection Orafice Plate?

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jimz73
post Mar 11 2006, 08:03 PM
Post #8


Newbie
*

Group: Members
Posts: 10
Joined: 15-April 03
From: Maumee, Oh.
Member No.: 575
Pelican Parts sells the rubber o-ring you're looking for. It's part # OEM-021101269A. They told me that the two copper washers are NLA, so I reused mine. The old o-ring didn't look bad, but a new one was only $ 5.88.

Regards,
Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Mar 11 2006, 08:11 PM
Post #9


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
I carry them and I have the copper crush washers that are NLA as well....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Mar 11 2006, 08:47 PM
Post #10


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region
cover for telethermometer?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Ricard
post Mar 11 2006, 09:14 PM
Post #11


CUMONIWANNARACEU
*****

Group: Members
Posts: 6,811
Joined: 5-January 03
From: Gautier, MS
Member No.: 92
Do you need the rubber O-ring? part #50 in Aarons pic post.
or the paper piece that goes between the two plates. cut a paper one from a sheet of gasket paper available at NAPA or other FLAPS.

and that pic looks different than my set up (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif) I have a cover that goes over all that is depicted above.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Howard
post Mar 11 2006, 09:19 PM
Post #12


Incontin(g)ent Member
*****

Group: Benefactors
Posts: 5,785
Joined: 24-July 03
From: Westlake Village, CA
Member No.: 943
Region Association: None
QUOTE (tat2dphreak @ Mar 9 2006, 01:34 PM)
Temp Adapter Connection Orafice Plate?

(IMG:http://www.914world.com/bbs2/html/emoticons/happy11.gif) Get out more often!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Mar 12 2006, 07:39 PM
Post #13


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region
QUOTE (Howard @ Mar 11 2006, 10:19 PM)
QUOTE (tat2dphreak @ Mar 9 2006, 01:34 PM)
Temp Adapter Connection Orafice Plate?

(IMG:http://www.914world.com/bbs2/html/emoticons/happy11.gif) Get out more often!

says you?! (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
