> Electronic speedometer pickup in the side cover of a 915, Anyone installed one?
PRS914-6
post Feb 11 2007, 11:09 AM
Post #1


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
I'm building a 915 tranny in my spare time and just got the machining done for the R&P flop.

The speedometer pickup will have to be machined into the side of the side cover. Unfortunately, it will not be nearly as close to the magnetic ring as original.

Anyone done this with success?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Feb 11 2007, 03:44 PM
Post #2


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
We did machine a pickup point on the side cover of my 915 by dremeling away part of a stiffening rib, and flattening the cover to mount the pickup. We safety wired the pickup onto the adjacent ribs, and it's worked fine. You do have to have a pretty strong signal through the case to pick up the magnetic pulses, but it's been working fine. I used the quarter sized pickup, I believe the later ones are smaller.

I believe it would be easier to get an aftermarket billet side cover that would be easier to machine, but mine works nicely.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 11 2007, 04:00 PM
Post #3


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
Thanks George. Really don't want to buy a billet cover. The thrust is in the opposite direction and I feel the billet is a waste of money.

What I was thinking was to filll a small area around the fins with Devcon metal filler. Then set it up in the milling machine and machine an area just like original.

However, the distance will be about twice as far to the magnets as the original side. It sounds like it still works though and that is good news.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dflesburg
post Feb 11 2007, 04:14 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,722
Joined: 6-April 04
From: Warm and Cheerful Centerville Ohio
Member No.: 1,896
Region Association: None
pictures!!! pictures!!! pictures!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dekman
post Feb 11 2007, 04:40 PM
Post #5


Member
**

Group: Members
Posts: 458
Joined: 12-December 04
From: Ojai,CA
Member No.: 3,274
Region Association: None

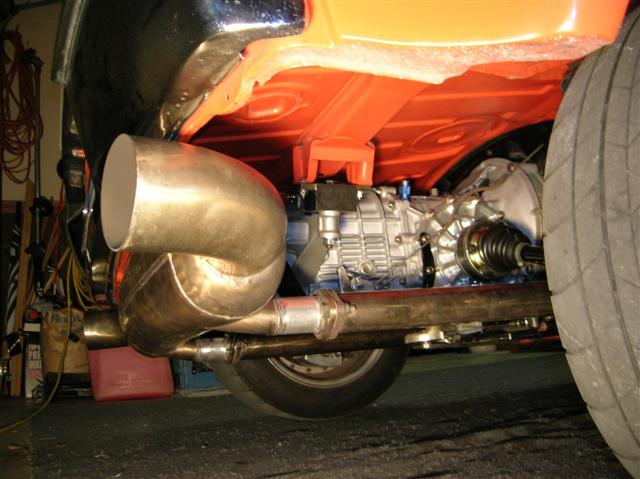

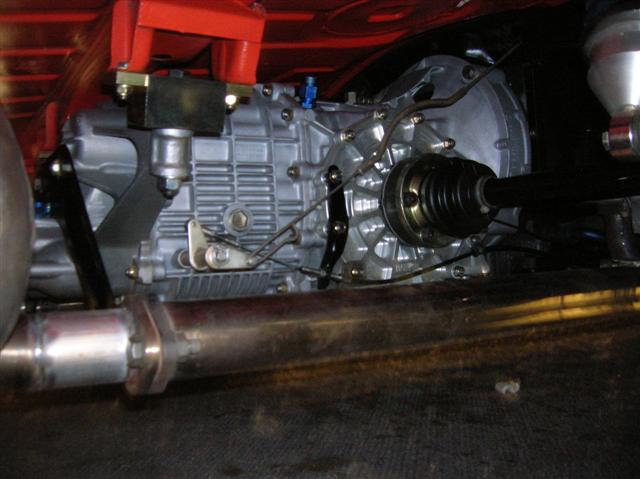

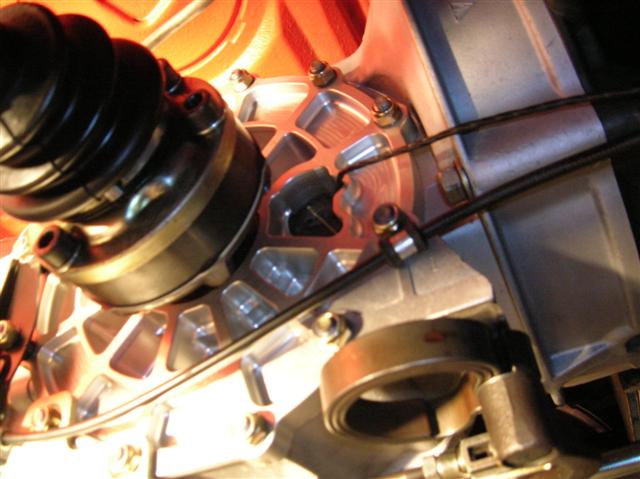

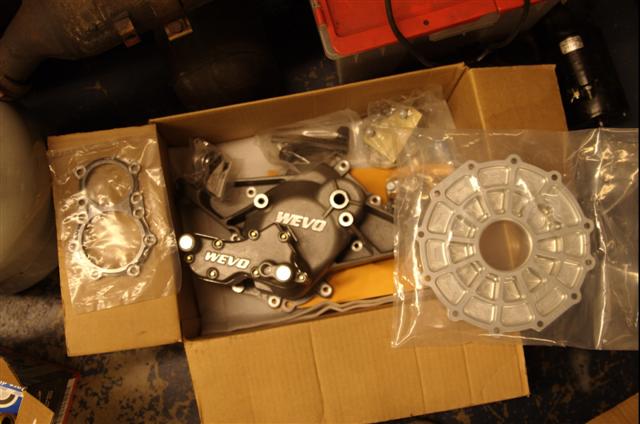

Just did a 915Wevo with billet side cover with speedo mount(wimped out...cover was about $300). Will try to load pic's........good luck! (IMG:style_emoticons/default/clap56.gif)


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Feb 11 2007, 05:07 PM
Post #6


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
dekman,

did you have to add the extensions on your muffler to clear the wevo?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Feb 11 2007, 05:08 PM
Post #7


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
QUOTE(PRS914-6 @ Feb 11 2007, 09:09 AM) *

I'm building a 915 tranny in my spare time and just got the machining done for the R&P flop.

The speedometer pickup will have to be machined into the side of the side cover. Unfortunately, it will not be nearly as close to the magnetic ring as original.

Anyone done this with success?



As one who was just helped break one off during a 911 instal....can't you use the stock 915 drive and then hang an adapter off the end?

BTW...do you are Dekman have an extra 915 nose cone that you want to sell?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 11 2007, 06:37 PM
Post #8


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
Mike, don't understand your question. Are you talking mechanical speedo?

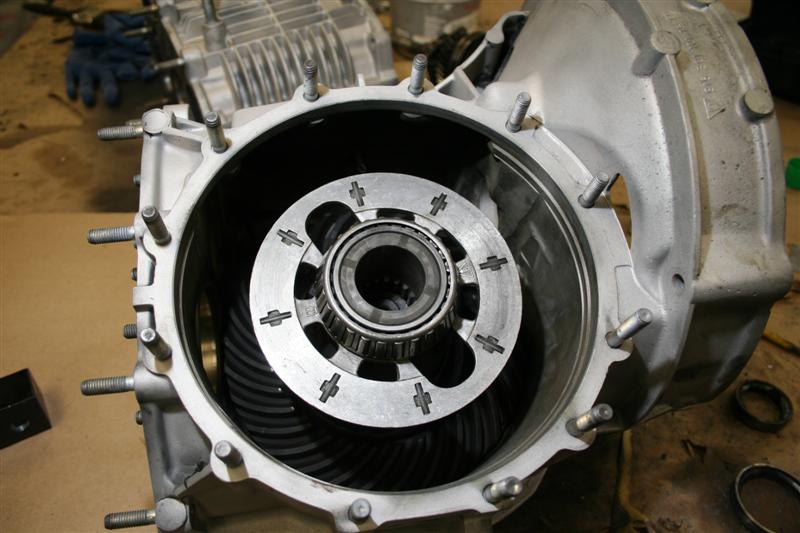

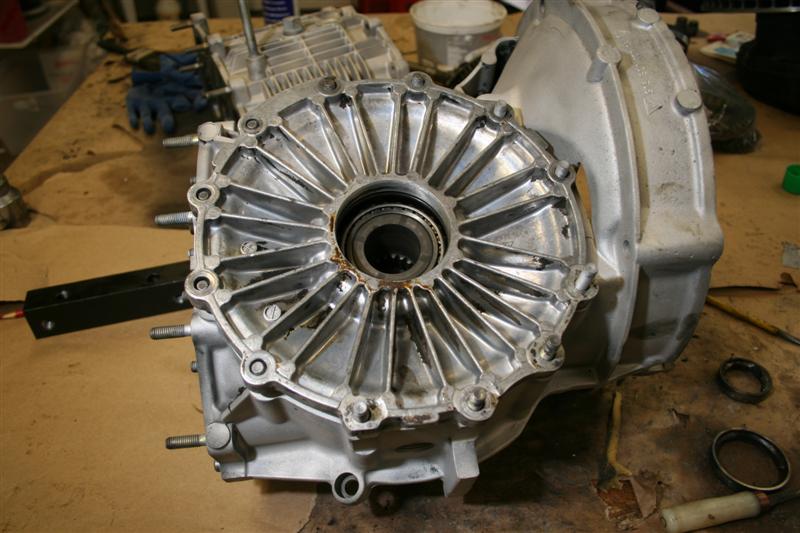

Here is a pic of the ring gear swapped and a stock cover. Note the thrust is now towards the solid part of the case unlike using it in a 911.
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Feb 11 2007, 06:40 PM
Post #9


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
i think mike meant... why not use the mechanical sender to provide an electronic signal? still need some sensor/adapter thing..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 11 2007, 06:42 PM
Post #10


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None

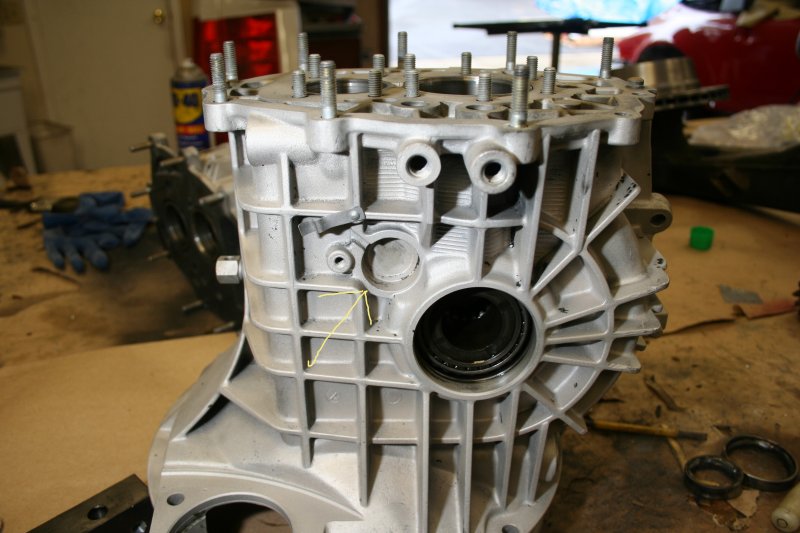

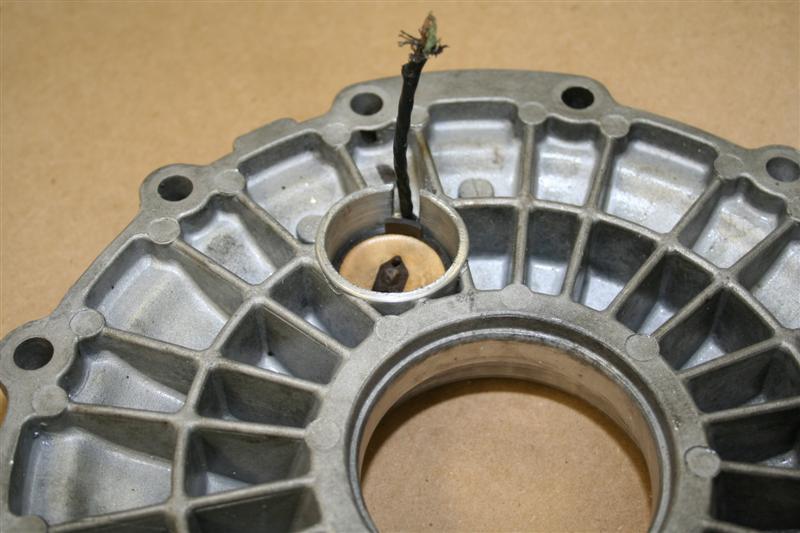

And here is how the speedo pickup is recessed in the case (stock)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 11 2007, 06:54 PM
Post #11


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
QUOTE(Aaron Cox @ Feb 11 2007, 04:40 PM) *

i think mike meant... why not use the mechanical sender to provide an electronic signal? still need some sensor/adapter thing..


WEVO setup does not accommodate the mechanical speedo. I wish it did.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Feb 11 2007, 08:57 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,842
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
I still need to do this to my car.

It would be nice to have a speedo (not the marble sack type).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dekman
post Feb 11 2007, 10:21 PM
Post #13


Member
**

Group: Members
Posts: 458
Joined: 12-December 04
From: Ojai,CA
Member No.: 3,274
Region Association: None
Aaron = yes. "Z" = yes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Feb 12 2007, 12:30 PM
Post #14


member? what's a member?
****

Group: Members
Posts: 3,393
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None
Do you have any pics showing what had to be done to the case to flip the ring gear.

I'm interested to see what exactly needed to be done.

Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Mar 10 2007, 08:25 PM
Post #15


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
OK, I machined my side cover and pressed in a cup to receive the sensor. It was a lot of work but free....The sensor is now exactly the correct distance from the magnets.

Here are a few pics....

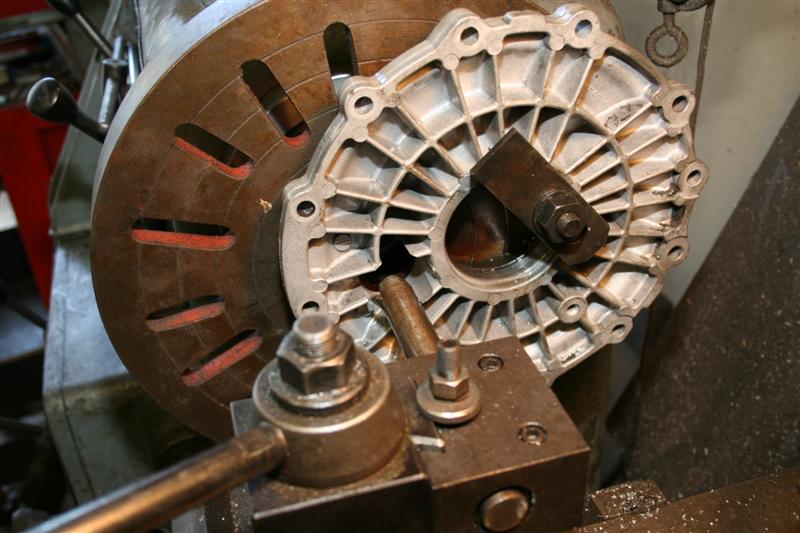

In the lathe
Attached Image

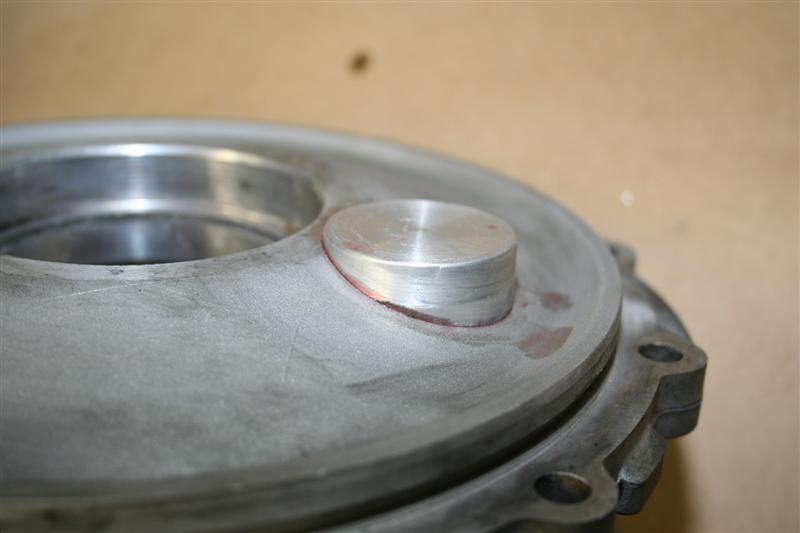

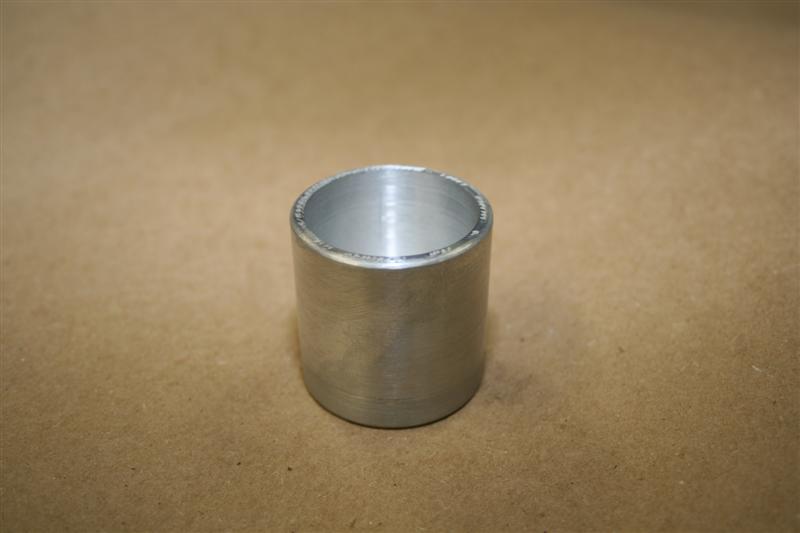

Cup made with .004 press fit.
Attached Image
The finished product
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Mar 11 2007, 09:37 AM
Post #16


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Awesome solution! (IMG:style_emoticons/default/w00t.gif) (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
