> Heater for Water cooled 914s, As promised, here are the pics
3d914
post Nov 6 2011, 07:19 PM
Post #41


Senior Member
***

Group: Members
Posts: 1,275
Joined: 24-September 03
From: Benson, AZ
Member No.: 1,191
Region Association: Southwest Region

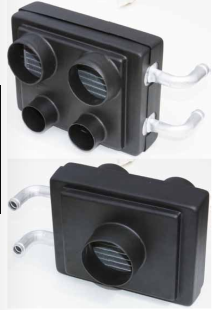

I was planning to put one of these
Attached Image

into one of these
Attached Image

and hook up the stock fan. It would still use the heater tubes in the longs like a stock system. By locating it in the engine bay, routing should be less of a hassle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
speed metal army
post Nov 6 2011, 10:56 PM
Post #42


Waiting for the rain to stop...
***

Group: Members
Posts: 1,068
Joined: 4-September 10
From: PNW
Member No.: 12,137
Region Association: Canada
QUOTE(kg6dxn @ Nov 6 2011, 04:31 PM) *

QUOTE(speed metal army @ Nov 6 2011, 05:16 PM) *

Couldnt a guy make some Heat exchangers for the V8 exhaust? (IMG:style_emoticons/default/confused24.gif)

Maybe with marine exhaust manifolds, but it's water heat. If you had good sheetmetal skills, a hot air exchanger could be made.

Yes!Hot air xchngr is what im talking about.Not that hard.Has anyone done this?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Nov 20 2011, 02:00 PM
Post #43


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None
QUOTE(3d914 @ Nov 6 2011, 05:19 PM) *

I was planning to put one of these
Attached Image

into one of these
Attached Image

and hook up the stock fan. It would still use the heater tubes in the longs like a stock system. By locating it in the engine bay, routing should be less of a hassle.


I like that box, where do you get it from?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3d914
post Nov 29 2011, 09:37 PM
Post #44


Senior Member
***

Group: Members
Posts: 1,275
Joined: 24-September 03
From: Benson, AZ
Member No.: 1,191
Region Association: Southwest Region
ruby,

Its from this catalog. You want page 191. I believe they are in the UK.

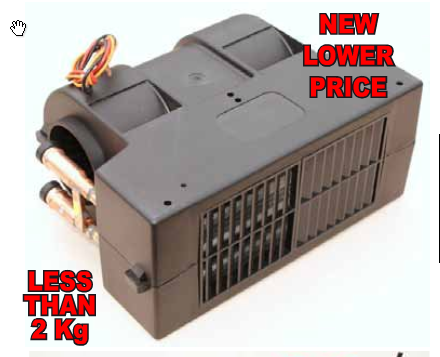

They also show this . . .
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThinAir
post Nov 29 2011, 11:49 PM
Post #45


Best friends
****

Group: Members
Posts: 2,541
Joined: 4-February 03
From: Flagstaff, AZ
Member No.: 231
Region Association: Southwest Region
QUOTE(3d914 @ Nov 29 2011, 08:37 PM) *

Its from this catalog. You want page 191. I believe they are in the UK.

They've got some great stuff! Is there any reason why this couldn't be set up as an external oil cooler? I'm thinking that if you run one on each side and connect them up to the tube in the longs you could have heat like crazy regardless of whether you are aircooled or watercooled.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3d914
post Dec 3 2011, 06:34 PM
Post #46


Senior Member
***

Group: Members
Posts: 1,275
Joined: 24-September 03
From: Benson, AZ
Member No.: 1,191
Region Association: Southwest Region
Ernie, that's basically what I had in mind, except I was going to start with one and go from there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Dec 3 2011, 06:56 PM
Post #47


Senior Member
***

Group: Members
Posts: 1,593
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787
The Renegade Hybrids under dash unit has the capability to run the air hoses up to the defrost vents or vent it out directly from the unit into the cab.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BRAVE_HELIOS
post Nov 7 2014, 11:28 PM
Post #48


"Knowledge speaks, wisdom listens"
**

Group: Members
Posts: 295
Joined: 25-September 06
From: The Land Of ID!
Member No.: 6,920
Region Association: Pacific Northwest

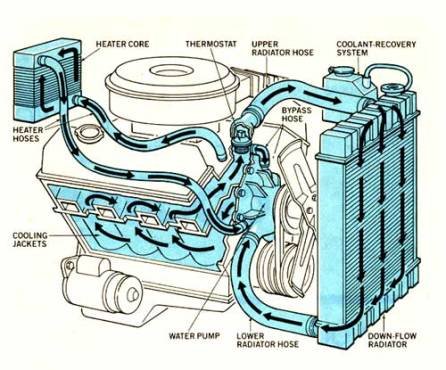

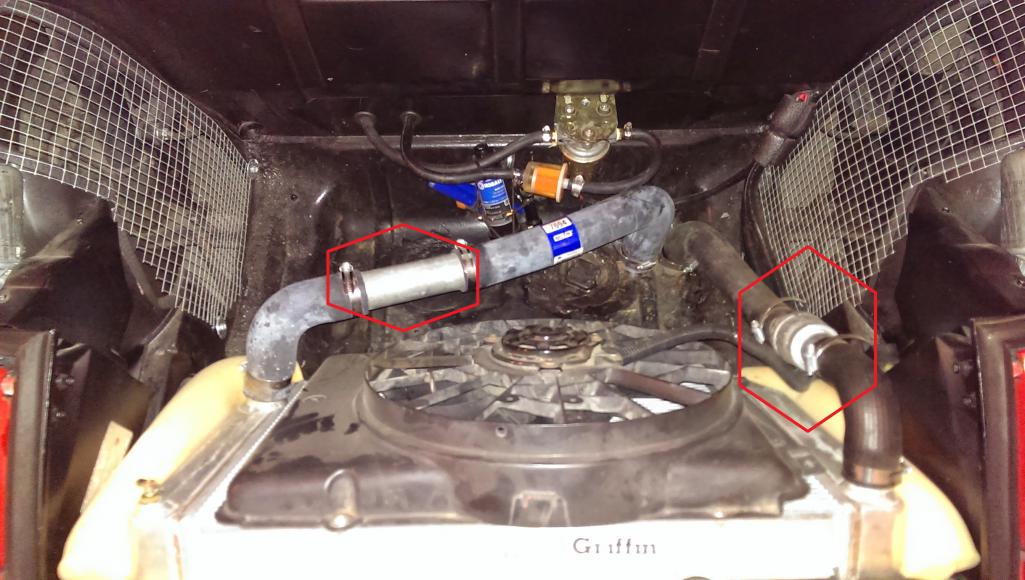

I have a 71 Chalon with a SBC. When building the car, I incorporated a heater core in the fresh air blower case and ran a couple of feet of heater hose from it with the intention of someday getting it all connected. Well, that day is here. My question is whether it's feasible to tie the the heater core lines to the radiator inlet and outlet hoses via T's instead of running the heater core lines back to the engine's intake manifold and water pump.

What do you think... doable?
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BRAVE_HELIOS
post Nov 8 2014, 03:37 PM
Post #49


"Knowledge speaks, wisdom listens"
**

Group: Members
Posts: 295
Joined: 25-September 06
From: The Land Of ID!
Member No.: 6,920
Region Association: Pacific Northwest
QUOTE(BRAVE_HELIOS @ Nov 7 2014, 10:28 PM) *

I have a 71 Chalon with a SBC. When building the car, I incorporated a heater core in the fresh air blower case and ran a couple of feet of heater hose from it with the intention of someday getting it all connected. Well, that day is here. My question is whether it's feasible to tie the the heater core lines to the radiator inlet and outlet hoses via T's instead of running the heater core lines back to the engine's intake manifold and water pump.

What do you think... doable?
Attached Image
Attached Image



Surely someone has an answer; an opinion... something! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Nov 8 2014, 04:45 PM
Post #50


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Sorry, I didn't see the question. Yes, in theory you should be able to flow a heater core from the inlet and outlet of the radiator. Flow will vary based on things like hose size, port resistance, parasitic drag, pressure differential, etc... But it should work. If you can find a Y fitting and point it the right direction (with flow) it should work better.

Like this...
(IMG:http://www.914world.com/bbs2/uploads_offsite/www.usrallyteam.com-10496-1415486712.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BRAVE_HELIOS
post Nov 10 2014, 10:27 PM
Post #51


"Knowledge speaks, wisdom listens"
**

Group: Members
Posts: 295
Joined: 25-September 06
From: The Land Of ID!
Member No.: 6,920
Region Association: Pacific Northwest
QUOTE(Mike Bellis @ Nov 8 2014, 03:45 PM) *

Sorry, I didn't see the question. Yes, in theory you should be able to flow a heater core from the inlet and outlet of the radiator. Flow will vary based on things like hose size, port resistance, parasitic drag, pressure differential, etc... But it should work. If you can find a Y fitting and point it the right direction (with flow) it should work better.

Like this...
(IMG:http://www.914world.com/bbs2/uploads_offsite/www.usrallyteam.com-10496-1415486712.1.jpg)


Thanks. I think I'll give it a try and see how it goes. What's the worst that can happen... no heat? Already there!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BRAVE_HELIOS
post Nov 17 2014, 11:30 PM
Post #52


"Knowledge speaks, wisdom listens"
**

Group: Members
Posts: 295
Joined: 25-September 06
From: The Land Of ID!
Member No.: 6,920
Region Association: Pacific Northwest
QUOTE(Mike Bellis @ Nov 8 2014, 03:45 PM) *

Sorry, I didn't see the question. Yes, in theory you should be able to flow a heater core from the inlet and outlet of the radiator. Flow will vary based on things like hose size, port resistance, parasitic drag, pressure differential, etc... But it should work. If you can find a Y fitting and point it the right direction (with flow) it should work better.

Like this...
(IMG:http://www.914world.com/bbs2/uploads_offsite/www.usrallyteam.com-10496-1415486712.1.jpg)


This might be a silly question but if I design the system so the heater core coolant T's off the radiator inlet and radiator outlet hoses; how does the coolant know to enter the heater core from the radiator inlet T and exit into the radiator outlet T. Or do I have that reversed? Or do I "T" in and out of the radiator's inlet hose? This is confusing!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Nov 17 2014, 11:53 PM
Post #53


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Pressure differential. it will flow. This is where angle, T size and internal resistance come into play.
