> Bringing out the dead
cary
post Jun 18 2016, 09:13 AM
Post #681


Advanced Member
****

Group: Members
Posts: 3,035
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest



QUOTE(Jeff Hail @ Nov 3 2007, 07:06 PM) *

Mocked up the inner and outer firewalls to see how everything fits. No welds just loose.



Any words of wisdom when it comes to installing the complete lower engine side firewall still having both heater tubes in place. Seems like the standard practice is cutting it in half. But I was hoping there is a more sanitary approach. The tubes really hinder your ability to get it into place.

My first thought is to make some cuts in the flange so I have the ability to bend the field portion. ????
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Jun 18 2016, 11:42 AM
Post #682


Senior Member
***

Group: Members
Posts: 1,046
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



It takes some jockeying to get it in with the air tubes not helping. I've had mine in and out for fitting of other pieces. Oddly it sometimes doesn't want to go in after it went in before.

To make matters even more jungle jimish the clutch and throttle conduits installed fight me all the way. I welded my PMS mount to the bulkhead out of the car which makes it impossible to bow the panel for insertion.


So you ask is there a way? For me the inner reinforcement goes last. Its pre fitted. I usually start the lower firewall in a semi tipped horizontal position (like a drawer and then bring it down like a garage door). You can tweek the sides where it meets the longs by bending the ears a bit vertically just inboard of the air tube exits. Then I insert the inner reinforcement which is a pain to get it under the tunnel lips.
Push everything forward.

I would pre fit everything a few times, trace any marks where you want to pre punch any holes for the welds, grind any weld landing zones clean at mating points. Self tapping screws secure the fit up.

There will be blood!

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Jan 16 2017, 08:35 PM
Post #683


Member
**

Group: Members
Posts: 359
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada



Hi Jeff. In post #191 (linked below) you show your repair to the outer right wheelhouse. Newbie question: In places you have clecos on the original wheelhouse. So, did you leave little tabs on the repair piece and flange them so they'd tuck under the original wheelhouse, then drill the 1/8" hole through both for the cleco?

http://www.914world.com/bbs2/index.php?s=&...t&p=1001455
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Jan 17 2017, 07:34 PM
Post #684


Senior Member
***

Group: Members
Posts: 1,046
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



QUOTE(doug_b_928 @ Jan 16 2017, 06:35 PM) *

Hi Jeff. In post #191 (linked below) you show your repair to the outer right wheelhouse. Newbie question: In places you have clecos on the original wheelhouse. So, did you leave little tabs on the repair piece and flange them so they'd tuck under the original wheelhouse, then drill the 1/8" hole through both for the cleco?

http://www.914world.com/bbs2/index.php?s=&...t&p=1001455


The repair panel was left a little large since I don't care to butt weld aprons or wheel houses. Pretty thin metal in those areas around the height of the battery tray so a little extra as a backer serves well to burn into. I used a small bead on on both sides instead of one fat hot bead since its visible from both sides.. The tail end of the repair panel was a butt weld to the wheelhouse. Both the panel removed and the repair panel have two larges hole in them for alignment of the outer console. The repair panel didn't overlay the old panel perfectly so the clecos were used to position it until I was satisfied where its permanent home would be versus having to use self tapping screws in, out, in out, in out. Just saved time in the fit up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Jan 17 2017, 08:12 PM
Post #685


Member
**

Group: Members
Posts: 359
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada



That's very helpful, thanks Jeff.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 24 2017, 05:55 PM
Post #686


Senior Member
***

Group: Members
Posts: 1,046
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



Enjoy!

https://youtu.be/3kLOnEKbuW0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Feb 24 2017, 06:42 PM
Post #687


914 Neferati
****

Group: Members
Posts: 4,000
Joined: 31-December 05
From: Renton, WA
Member No.: 5,344
Region Association: Pacific Northwest



QUOTE(Jeff Hail @ Feb 24 2017, 03:55 PM) *


That was fun! That road surface looks really rough. Was it that way back in the day?

Are you still working on the 914?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 26 2017, 12:30 AM
Post #688


Senior Member
***

Group: Members
Posts: 1,046
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



QUOTE(KELTY360 @ Feb 24 2017, 04:42 PM) *

QUOTE(Jeff Hail @ Feb 24 2017, 03:55 PM) *

Enjoy!



That was fun! That road surface looks really rough. Was it that way back in the day?

Are you still working on the 914?


Its been paved completely from the 101 fwy to Encino Hills Drive once in my lifetime. Its been patched and paved in sections depending on which celebrity cries the loudest or if a washout occurs. Its always been pretty rough. Pot holes are good for the reflexes.

Yup still working on the 914 as much as I can. Life happens and somethings take a back seat.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 20 2017, 08:41 AM
Post #689


Senior Member
***

Group: Members
Posts: 1,046
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

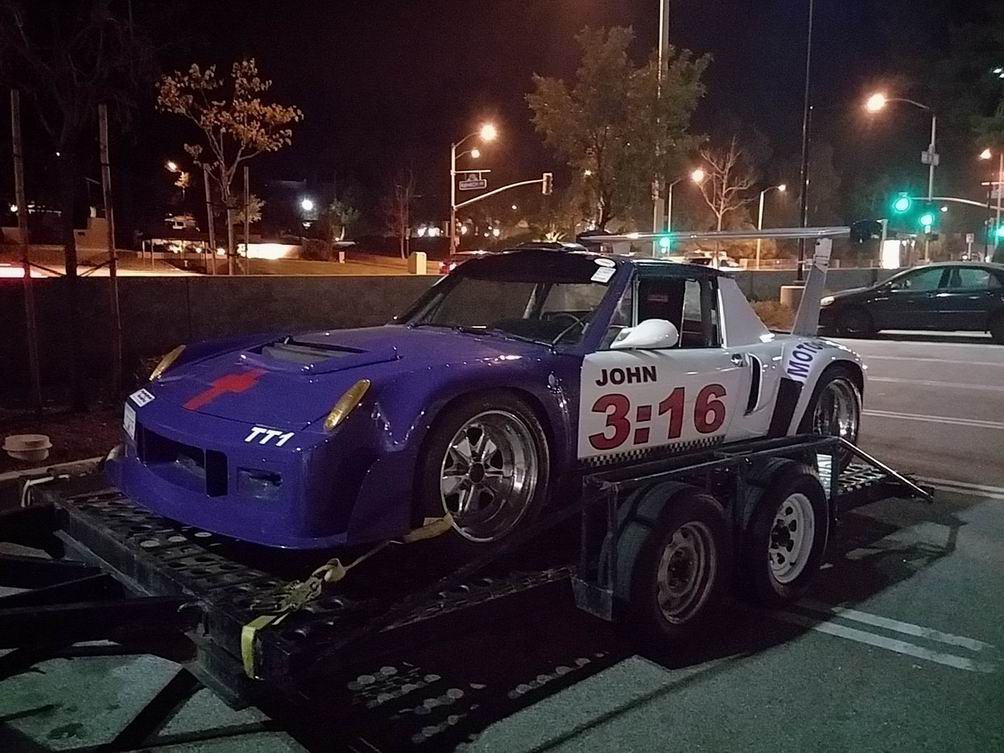

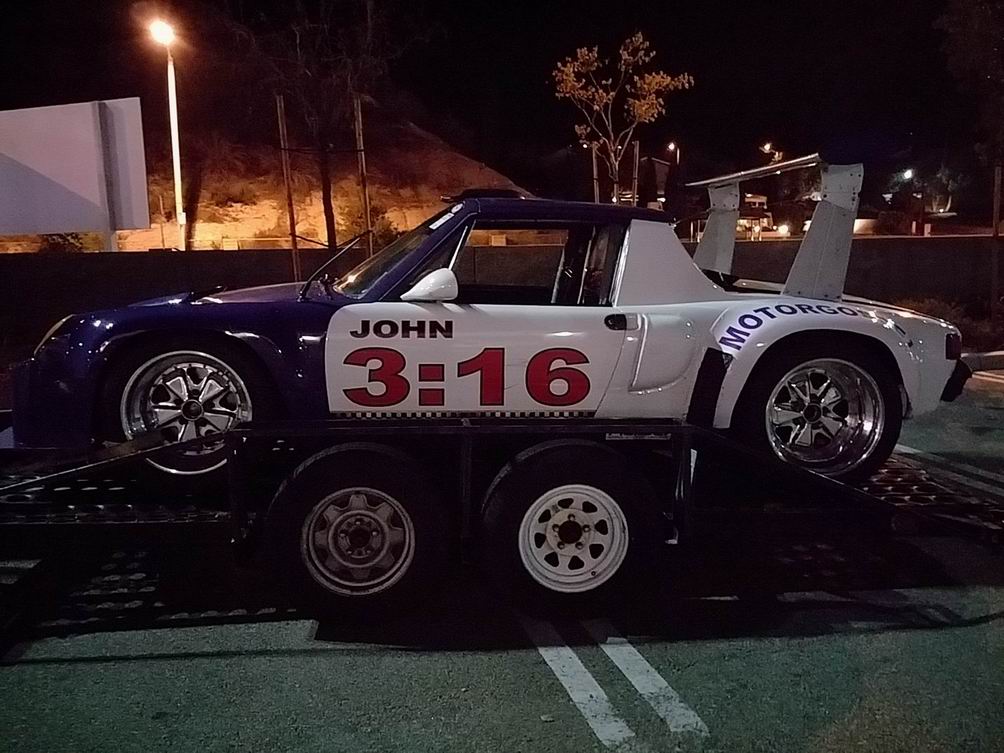

Ran into Aaron Schwartzbart. Trailer got a flat tire on his way home from the track. Interesting guy: ex rocket scientist turned pastor. Does a great job of getting guys off of street racing and onto the track.

Nice car with a 383 stroker and a 930 trans. There is a YouTube video of this car doing a 180mph dyno pull.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sb914
post Mar 20 2017, 08:52 AM
Post #690


Surf Guru
****

Group: Members
Posts: 2,039
Joined: 25-November 12
From: Seal beach CA
Member No.: 15,191
Region Association: Southern California



Beautiful car !!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 20 2017, 09:08 AM
Post #691


Senior Member
***

Group: Members
Posts: 1,215
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



Interesting rear wing location. I understand it's critical to get the wing up high. This one's mounted farther forward than most I've seen.
I'm not smart enough to know anything but I wonder how that might impact aero.
Farther back = more leverage?

Either way, I like the aesthetic. Great looking car (it's giving me some ideas for mine!)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tbrown4x4
post Mar 20 2017, 10:13 AM
Post #692


Member
**

Group: Members
Posts: 239
Joined: 13-May 14
From: Port Orchard, WA
Member No.: 17,338
Region Association: None



My guess is that the location is above the suspension/tire contact patch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 20 2017, 11:45 AM
Post #693


Senior Member
***

Group: Members
Posts: 1,215
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



QUOTE(Tbrown4x4 @ Mar 20 2017, 09:13 AM) *

My guess is that the location is above the suspension/tire contact patch.


Yep, I get that. I was just wondering:
if you put 10 lbs (of force) directly above the contact patch, you'd see 10 additional lbs at the contact patch (less whatever % transfers to the front axle line). But if you put 10 lbs at the end of the trunk, would that give you more at the contact patch?
I'm sure there are formulas for this sort of thing.

Way off topic, sorry... back to your regularly scheduled awsomeness of Jeff's work!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Mar 20 2017, 12:00 PM
Post #694


Senior Member
***

Group: Members
Posts: 1,437
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



QUOTE(Jeff Hail @ Mar 20 2017, 07:41 AM) *

Ran into Aaron Schwartzbart. Trailer got a flat tire on his way home from the track. Interesting guy: ex rocket scientist turned pastor. Does a great job of getting guys off of street racing and onto the track.

Nice car with a 383 stroker and a 930 trans. There is a YouTube video of this car doing a 180mph dyno pull.


Surely a Pastor that send or share the bible verse! John 3:16. God Bless you!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
