> chassis brace option?, possible bolt in undercar bracing
pffft
post Oct 3 2007, 12:46 PM
Post #1


Member
**

Group: Members
Posts: 189
Joined: 18-January 05
From: sierra foothills
Member No.: 3,465
Could something like this be done for 914s?
Flyin Miata frame brace

patrick
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Oct 3 2007, 01:19 PM
Post #2


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Engmans kit does the same thing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Oct 3 2007, 02:33 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
What I find attractive about this frame brace, is that it is a bolt-in solution, which avoids the pitfalls of a welded-in structure. Additionally unlike the popular 914 scab plate concept, this brace utilizes a formed structural shape for improved rigidity per unit weight. I think it's interesting, and spawns alternative design ideas.

Thanks for sharing,

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stateofidleness
post Oct 3 2007, 02:44 PM
Post #4


Senior Member
***

Group: Members
Posts: 810
Joined: 1-September 07
From: Canyon Lake, Texas!
Member No.: 8,065
Region Association: None
i, too, love the fact that it is bolt-in as opposed to weld-in

im trying hard to think how there could be a bolt-in solution for the 914 though...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pffft
post Oct 4 2007, 02:25 PM
Post #5


Member
**

Group: Members
Posts: 189
Joined: 18-January 05
From: sierra foothills
Member No.: 3,465

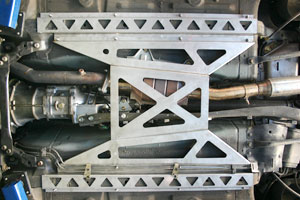

It is the bolt in possibility that interests me most. There are formed chassis rails
and then cross pieces. I certainly don't have any way of producing something like
this, but I would really consider using one if they were available.


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Oct 4 2007, 02:34 PM
Post #6


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
Yes, I think that would be very interesting, and no the Engman kit does not do the same thing. Plus, having it be something you can bolt on would be a cool addition.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grantsfo
post Oct 4 2007, 02:43 PM
Post #7


Arrrrhhhh!
****

Group: Members
Posts: 4,327
Joined: 16-March 03
Member No.: 433
Region Association: None
Part of what makes these so effective on the Miata is the structure is triangulating the transmission tunnel. On 914 it would just be reinforcing existing floor pan and probably be less effective. Still worth exploring however.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Oct 4 2007, 03:27 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
QUOTE(Blood red 914-6gt @ Oct 4 2007, 01:34 PM) *

Yes, I think that would be very interesting, and no the Engman kit does not do the same thing. Plus, having it be something you can bolt on would be a cool addition.



I disagree. The engman kits makes a box on the frame (well 3/4 of a box), true his kit does not make an X across the middle - but it attaches to the frame rail to box the section. Glorified subframe connectors if you like, it's been around for years.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Oct 4 2007, 05:13 PM
Post #9


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 126,350
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
The Miata brace creates a box section by enclosing the bottom of the tranny tunnel. It become somewhat like the old Lotus Elan which has a "backbone".

Adding an x-brace to the bottom of our cars will do very little.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brer
post Oct 4 2007, 05:13 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,555
Joined: 10-March 05
From: san diego
Member No.: 3,736
Region Association: None
I had an idea once. Kinda like this, but using prestressed members laminated in carbon fiber that would run down the ouside of each long in the rocker area and wrap under the rear area as a subframe, while also attaching to the forward suspension mounts. It was just a thought though. Way beyond my experience.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Katmanken
post Oct 4 2007, 07:34 PM
Post #11


You haven't seen me if anybody asks...
****

Group: Members
Posts: 4,738
Joined: 14-June 03
From: USA
Member No.: 819
Region Association: Upper MidWest
Just make a tall tranny tunnel to mimic the Lotus backbone.

The Lotus also hangs the suspension from the backbone. Colin Chapman was a nut for minimalistic lightweight structures.

Ken
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Oct 4 2007, 07:44 PM
Post #12


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
QUOTE(Travis Neff @ Oct 4 2007, 02:27 PM) *

QUOTE(Blood red 914-6gt @ Oct 4 2007, 01:34 PM) *

Yes, I think that would be very interesting, and no the Engman kit does not do the same thing. Plus, having it be something you can bolt on would be a cool addition.



I disagree. The engman kits makes a box on the frame (well 3/4 of a box), true his kit does not make an X across the middle - but it attaches to the frame rail to box the section. Glorified subframe connectors if you like, it's been around for years.


Don't get me wrong Travis. I like the Engamn kit, and I am about to weld it in my car next month. The thing about this brace that has the strength is in the trianglation. As stated by others, it would be kinda pointless on the 914 as our car has a flat bottom already. Adding strength to ours like the engman kit will help to make our cars a little stiffer, but you have to weld it in as opposed to this bolt in application.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Oct 5 2007, 11:34 AM
Post #13


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
There are some things about that Miata stiffener that perhaps doesn't suit the 914, but the product they call "FM frame rail reinforcement kit" http://www.flyinmiata.com/index.php?deptid...number=13-69010
may have some merit. Two bolt in longitudinal hat sections similar to these could greatly enhance stiffness with a bot-in scheme if configured properly.

The Engman kit looks to solve many of these same issues in a different way. The lower firewall brace portion looks to help tie-in "the box". If there was a way to do something similar in the front (bulkhead) as well, then it seems that would help complete the structure.

It's always interesting to look at alternative ideas.

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Air_Cooled_Nut
post Oct 5 2007, 12:20 PM
Post #14


914 Ronin - 914 owner who lost his 914club.com
***

Group: Members
Posts: 1,748
Joined: 19-April 03
From: Beaverton, Oregon
Member No.: 584
Region Association: None
QUOTE(URY914 @ Oct 4 2007, 04:13 PM) *

The Miata brace creates a box section by enclosing the bottom of the tranny tunnel. It become somewhat like the old Lotus Elan which has a "backbone".

Adding an x-brace to the bottom of our cars will do very little.

(IMG:style_emoticons/default/agree.gif)
The 914 was designed as a sports car by one of THE sports car houses. We have an actual enclosed tunnel whereas the others have an opened-bottom tunnel so ours is naturally stiffer.
