 '7X 2.7-6 Projekt Thread, Updated 5/4/08 - IT IS ALIVE... well, sort of... |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| KaptKaos |
 Feb 16 2008, 06:40 PM
Post
#41
|
|
Family  Group: Members Posts: 4,009 Joined: 23-April 03 From: Near Wausau Member No.: 607 Region Association: Upper MidWest  |
I put a new fuel filter on it today, and I "think" the fuel system is now solid.
I attempted to start the motor. I got the "whistle" as the CIS primed. It coughed a few times but did not start (IMG:style_emoticons/default/sad.gif) I stopped because I saw fuel coming out of the exhaust, so I hope I haven't buggered it up too badly. I am worried that this is a really bad sign. Anyway, I am sort of out of ideas at this point. Anyone have any suggestions? |
   |

|
| racerx9146 |
Feb 16 2008, 08:23 PM
Post
#42
|
|
good design never goes out of date.. Group: Members Posts: 174 Joined: 1-January 04 From: Sacramento, CA Member No.: 1,483 Region Association: Northern California |
try pull the intake boot off the cis fuel distributor. Make sure the air plate lever thingie is not stuck. Make it can move freely. The gas out of the exhaust is probably due to the plate being stuck engaged due to bad fuel. If you do free it, pull the plugs and turn it over a few cranks, there is going to be a lot of fuel in the engine. Dry out the plugs and try again. CIS can be a fussy beast.
good luck John Daron |
|
|
|
| KaptKaos |
Mar 29 2008, 09:52 PM
Post
#43
|
|
Family Group: Members Posts: 4,009 Joined: 23-April 03 From: Near Wausau Member No.: 607 Region Association: Upper MidWest |
I was following Slits' CIS issues.

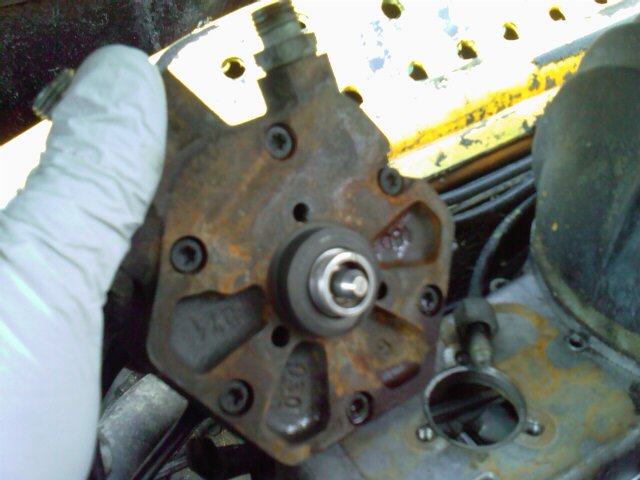

IIRC - he said to pull the fuel dizzy and clean it up. I "think" I have done that. Here's a pic:  That brass guy there in the middle doesn't seem to move at all. Is that what needs to move up and down? I think it's stuck up, which would mean WOT. Any help is appreciated. Thanks! |
|
|
|
| SLITS |
Mar 30 2008, 08:11 AM
Post
#44
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None  |
Joe, the center piston is what HAS TO BE FREE. It is the metering piston for the CIS. If stuck in the up position (pushed into the body of the fuel distibutor) you have WOT fuel flow, which is why you filled the exhaust will gas.
Cleaning that unit, the warm up regulator and injectors was what the post on NARP was all about. Tedious, but it can be done. There is a nut on the side of the fuel distributor that holds in a shim, spring and piston ... it is the main pressure regulator. If you take it out, don't loose ANYTHING. Clamp the exposed tit of the center plunger in a vise and pull to see if you can get it out of the housing. Clamp only on the tit as it is a machined piece matched to the bore of the fuel distributor. I will be at the shop today (Sunday) if you feel like driving to Riverside. I can give you a Fuel Distributor I have already cleaned up (bring your old one). In lieu of that ... couple of cans of Brake/Carb cleaner. Once you have pulled the center piston ... fill the cavity with brake cleaner and let it sit. Clean the piston carefully (don't scratch it) and set it aside. Flip the fuel distributor over and carefully fill each of the outlets with brake cleaner and let sit. Using a blow gun (rubber tipped is nice), start blowing back from the outlets on the top of the FD - don't use full pressure - trigger the gun slowly. When the passage is clear, you will feel air coming from the center cavity. Once all six are cleaned and clear, coat the piston with 3 in One oil and put it back in. Make sure it slides freely (the oil will give some resistance). Pull the injectors with the tool I described ... straight claw framing hammer and wood block. Using the brake cleaner can with the red plastic tube, insert tube into inlet of injector and trigger ... it has enough pressure to overcome the spring inside. You will see the spray from the injector change from dribbles to a fine conical spray when clean. The warm up regulator has a fuel in and a fuel out. Fill each hole with brake cleaner and let it sit for a while. Apply gentle air pressure with the gun until air flows freely through the holes (even in reverse). Once it's clean, you're ready to give the start a try. Warm up regulator modifys system fuel pressure according to temperature of the heating coil inside the unit and, depending upon the year, by vacuum also. Oh, the car will run without the Fuel Accumulator, but will not hot start. It smooths out pulses from the fuel pump and maintains pressure in the system for about 20 minutes after shutdown. I bought one from a member for $75 and one off eBay for $65. PS Gint ... I started to write this up for your site, but I HATE your template and gave up for the moment. Fixing The Dead |
|
|
|
| KaptKaos |
Mar 30 2008, 09:45 AM
Post
#45
|
|
Family Group: Members Posts: 4,009 Joined: 23-April 03 From: Near Wausau Member No.: 607 Region Association: Upper MidWest |
(IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif)
Danka Herr Doktor! I'd love to come out and do a swap, but I have to watch the kids today. |
|
|
|
| Gint |
Mar 30 2008, 01:25 PM
Post
#46
|
|
Mike Ginter Group: Admin Posts: 16,098 Joined: 26-December 02 From: Denver CO. Member No.: 20 Region Association: Rocky Mountains |
QUOTE(SLITS @ Mar 30 2008, 08:11 AM)  PS Gint ... I started to write this up for your site, but I HATE your template and gave up for the moment. Fixing The Dead (IMG:style_emoticons/default/WTF.gif) I don't get it. The post in your link follows the basic template almost exactly. And you don't need to follow it exactly for that matter. What you wrote there would be great as a tech article. In fact I'm going to need all of this info when I'm ready to get mine running. If you want to put it up as a tech article, email it to me. We'll work it out and get it posted. |
|
|
|
| euro911 |
Mar 30 2008, 02:25 PM
Post
#47
|
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,932 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California
|
QUOTE(KaptKaos @ Mar 30 2008, 07:45 AM) ... Danka Herr Doktor! I'd love to come out and do a swap, but I have to watch the kids today. (IMG:style_emoticons/default/idea.gif) I've got an idea for you Joe ... (IMG:style_emoticons/default/laugh.gif) Attached image(s)
|
|
|
|
| KaptKaos |
Mar 30 2008, 02:50 PM
Post
#48
|
|
Family Group: Members Posts: 4,009 Joined: 23-April 03 From: Near Wausau Member No.: 607 Region Association: Upper MidWest |
(IMG:style_emoticons/default/av-943.gif)
We really should build one of these. Extend the: fuel lines wiring harness shift rod throttle, clutch, speedo cables targa top We'd need to figure out how to mount the rear doors. (IMG:style_emoticons/default/laugh.gif) |
|
|
|
| Eric_Shea |
Mar 30 2008, 06:19 PM
Post
#49
|
|
PMB Performance Group: Admin Posts: 19,304 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains  |
QUOTE Danka Herr Doktor! It's "Professor" H-E-L-L-O! QUOTE I don't get it. It's Slits... H-E-L-L-O! He still has a rotory dial phone in them there hills. (IMG:style_emoticons/default/w00t.gif) |
|
|
|
| SLITS |
Mar 31 2008, 12:44 PM
Post
#50
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None |
QUOTE(Gint @ Mar 30 2008, 12:25 PM) QUOTE(SLITS @ Mar 30 2008, 08:11 AM) PS Gint ... I started to write this up for your site, but I HATE your template and gave up for the moment. Fixing The Dead (IMG:style_emoticons/default/WTF.gif) I don't get it. The post in your link follows the basic template almost exactly. And you don't need to follow it exactly for that matter. What you wrote there would be great as a tech article. In fact I'm going to need all of this info when I'm ready to get mine running. If you want to put it up as a tech article, email it to me. We'll work it out and get it posted. No worries Gint .... your tag coding is a little different from what I learned and use. I just thought I would pitch a bitch. I'll get around to setting it up 'cause it can save you $400 for a rebuilt fuel distributor and about $300 for a warm up regulator. I also need to write up how one checks the system cold and warm pressures and how they can be adjusted with gentle taps from a hammer,but then you can get the CIS service manual too! It won't tell you how to adjust the warmup reguator with a hammer though. |
|
|
|
| Dr Evil |
Apr 1 2008, 02:43 AM
Post
#51
|
|
Send me your transmission! Group: Members Posts: 23,041 Joined: 21-November 03 From: Loveland, OH 45140 Member No.: 1,372 Region Association: MidAtlantic Region
|
(IMG:style_emoticons/default/popcorn[1].gif) Mmm, Vicodin
|
|
|
|
| KaptKaos |
May 4 2008, 06:24 PM
Post
#52
|
|
Family Group: Members Posts: 4,009 Joined: 23-April 03 From: Near Wausau Member No.: 607 Region Association: Upper MidWest |
IT IS ALIVE! (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif)
But............. It won't idle. It kicks over and spits for a second or two and dies. So I am not out of the woods yet. Another problem, that I have been fearing, may have reared it's ugly head too. The starter wouldn't disengage very well before. I'd have to hit the switch from time to time to get it to stop cranking. I heard a nasty and assume that I might have dinged the flywheel. So I need to look for a starter now. (IMG:style_emoticons/default/headbang.gif) Thanks to Ron, Slits and the Professor for the fuel dizzy. I think that really helped. I need to get a claw hammer with a wider split to got those injectors out and cleaned. That's next. |
|
|
|
| SLITS |
May 4 2008, 11:23 PM
Post
#53
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None |
QUOTE(KaptKaos @ May 4 2008, 05:24 PM) IT IS ALIVE! (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) But............. It won't idle. It kicks over and spits for a second or two and dies. So I am not out of the woods yet. Another problem, that I have been fearing, may have reared it's ugly head too. The starter wouldn't disengage very well before. I'd have to hit the switch from time to time to get it to stop cranking. I heard a nasty and assume that I might have dinged the flywheel. So I need to look for a starter now. (IMG:style_emoticons/default/headbang.gif) Thanks to Ron, Slits and the Professor for the fuel dizzy. I think that really helped. I need to get a claw hammer with a wider split to got those injectors out and cleaned. That's next. Starter is no problem Joe ... I have a few. Good job. |
|
|
|
| shoguneagle |
Aug 17 2009, 09:03 PM
Post
#54
|
|
shoguneagle Group: Members Posts: 1,180 Joined: 3-January 03 From: CA, OR, AZ (CAZOR); New Mexico Member No.: 84 Region Association: Northern California |
Great job and excellent support as always from follow members. enjoyed reading and following the different stages. Great Job.
steve hurt |
|
|
|
|
