> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
plymouth37
post Jun 9 2008, 01:08 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest



Attached Image


Here's the plan:

Tub up restoration/customization (no cutting corners here).
Speedster styling.
40" tall
Under 1800 pounds.
350 horsepower WRX engine.

Let the games begin!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Jun 9 2008, 01:17 PM
Post #2


914 Neferati
*****

Group: Members
Posts: 5,091
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest



You are a naughty, naughty boy.

(IMG:style_emoticons/default/happy11.gif) (IMG:style_emoticons/default/happy11.gif) (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ferg
post Jun 9 2008, 01:17 PM
Post #3


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None



This is one Concours Weenie that say F*&^ yeah!!! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 01:20 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest



First off here is a little history on the car.
In 2002 I found this 1973 1.7 in a field outside Laramie WY where it had been sitting since 1982 with some other VWs.
After bolting on some webers and swapping out the battery, fluids, and tires I drove it out of there.
Attached Image

As you can see she was pretty rough but other than some surface rust she was darn near rust free.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
geniusanthony
post Jun 9 2008, 01:23 PM
Post #5


Its a brand new "Chrome-sicle"
***

Group: Members
Posts: 517
Joined: 12-December 05
From: Alexandria,VA
Member No.: 5,266
Region Association: MidAtlantic Region



Gee thanks, now I have to get a better job to buy a new house, bigger garage, new tub, and....

Seriously though, are those speedster humps I spy, what are you thinking for a windshield? Would it be rude to suggest flyscreens? I have been waiting to see what you were gonna do since you hinted at this way back when. GL Dana
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 01:25 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest



While in school I added a custom cage and interior both of which will be modified during the course of this project.
Here is a picture of the 914 about a month after I found it, next to it is my '37 Plymouth street rod.
As you can see I had already installed the rollcage when this picture was taken.
Attached Image

After school I moved to Las Vegas to work for Renegade Hybrids. This is when I really started upgrading the car.
Here is a picture of the car with stock body and drivetrain after I had installed the carrera front suspension and polished fuchs.
Attached Image

Here is a random pic I found, the car was my daily driver and I could only weld on half a set of flairs per weekend.
As you can see this shot was taken after the first weekend...
Attached Image

At Renegade we designed the 914 WRX conversion kit using my car as the test bed.
My car is running a 2004 WRX engine with exhaust and computer mods bumping the power up to around 320HP.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 01:28 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

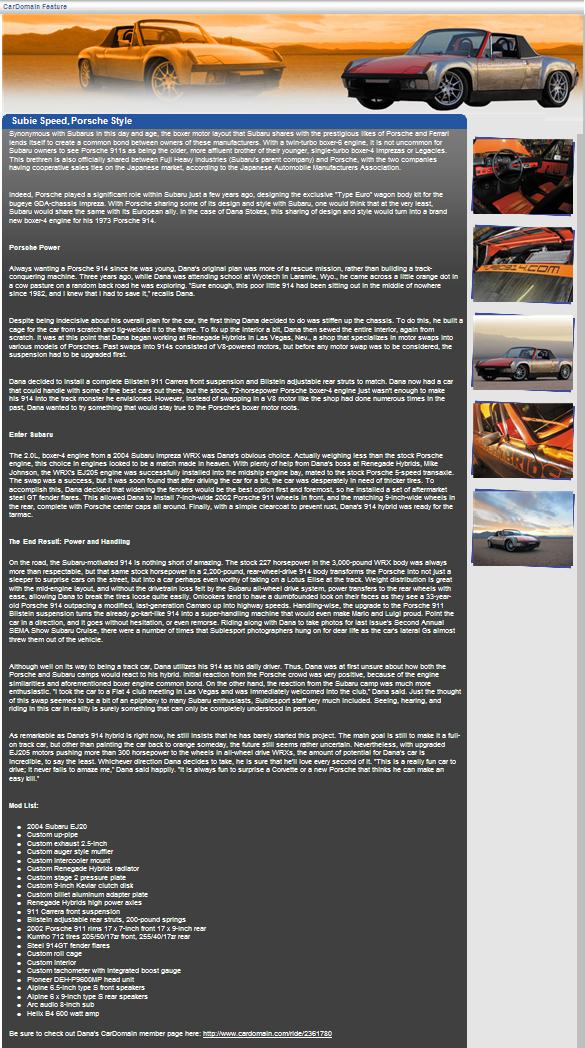

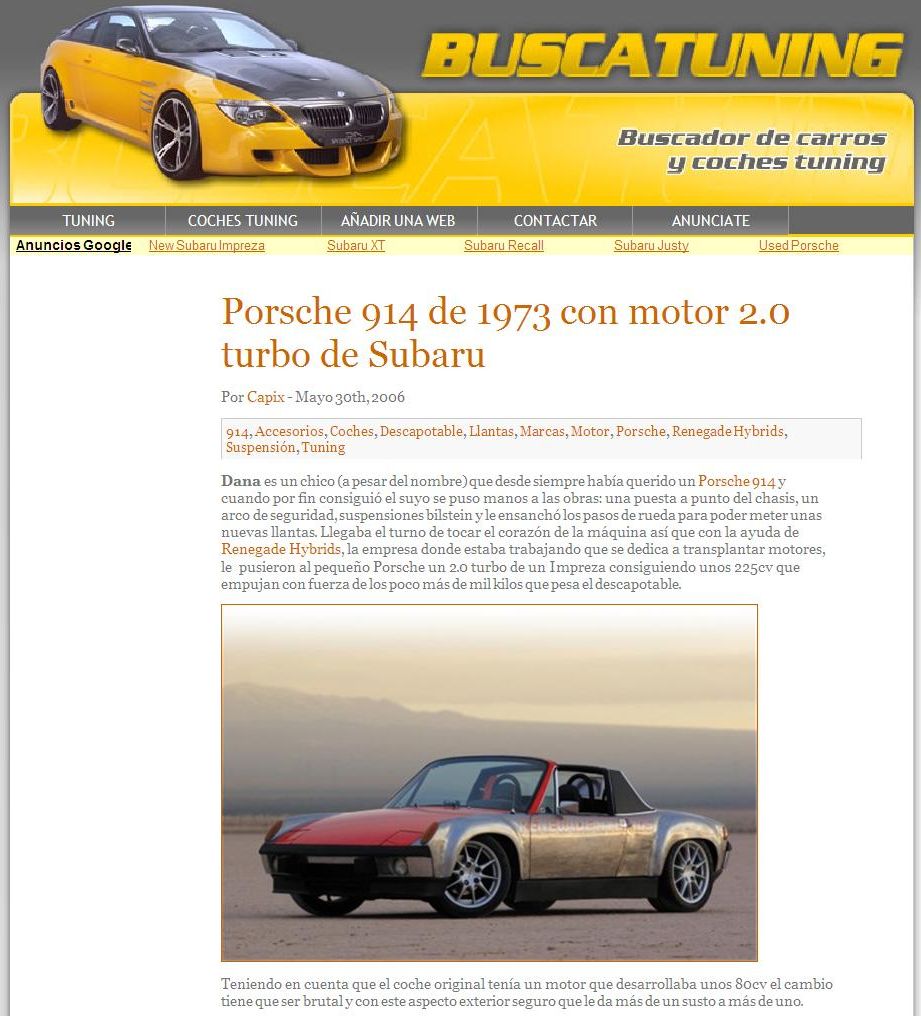

The car has been featured by SubieSport magazine and by several online publications including Cardomain.
Attached Image

Attached Image

Attached Image
I drove the car in its subie powered form as a daily driver for about 2 years then decided to move to Wyoming to pursue a Mechanical engineering degree.
I have now transfered into the Architectural Design program at CU Boulder.
I bought a real car for a daily driver and figured now would be a great time to build the street monster I had been dreaming of.
I am going to take my time and build this thing right.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ericread
post Jun 9 2008, 01:30 PM
Post #8


The Viper Blue 914
****

Group: Members
Posts: 2,177
Joined: 7-December 07
From: Irvine, CA (The OC)
Member No.: 8,432
Region Association: Southern California



That's a sweet looking mod you're planning. I, for one, don't go in for most of the mods shown in this board. I believe that most of these do nothing to add to the 914 experience. Your design appears to me as the exception!

I can't wait to see more!

(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kirmizi
post Jun 9 2008, 01:36 PM
Post #9


Senior Member
***

Group: Members
Posts: 836
Joined: 12-February 06
From: Wyoming, US
Member No.: 5,568
Region Association: None



You're one sick puppy Dana... LOL
Can't wait to see this one when it's finished!!
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 01:38 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest



The technical details:

2004 Subaru EJ20
Custom up-pipe
SS Wrx Header
3.5-inch straight pipe exhaust
Renegade Hybrids radiator
KEP stage 2 pressure plate
KEP 9-inch Kevlar clutch disk
KEP billet aluminum adapter plate
Renegade Hybrids high power axles
911 Carrera front suspension
Cantilever rear suspension
Qa1 adjustable Struts, 400-pound springs
2002 Porsche 996 rims 17 x 7-inch front 17 x 9-inch rear
Kumho 712 tires 205/50/17zr front, 255/40/17zr rear
Steel AA 914GT fender flares
Custom roll cage
Custom interior
No radio
No top
No windows
Getty C/F Rear lid
GT-Racing F/G non-headlight Front lid
Getty F/G Bumpers
Getty F/G Rockers
Chopped and raked windshield
Pontiac Solstice door mirrors
Customized Porsche Boxster Humps
Ferrari F430 rear diffuser
F/G Belly Pan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 01:48 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest



To keep track of my progress have been documenting my weight savings with excel.
Here is my spreadsheet showing the part removed or replaced, the resulting weight and power to weight ratio, along with the info from a few other cars for refrence. So far I have dropped just over 500 pounds.
I have a feeling this car will kill me if I ever get it on the road.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KaptKaos
post Jun 9 2008, 01:53 PM
Post #12


Family
****

Group: Members
Posts: 4,009
Joined: 23-April 03
From: Near Wausau
Member No.: 607
Region Association: Upper MidWest



I like your pic above. I always thought that a speedster style windshield would look cool on a 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 02:13 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

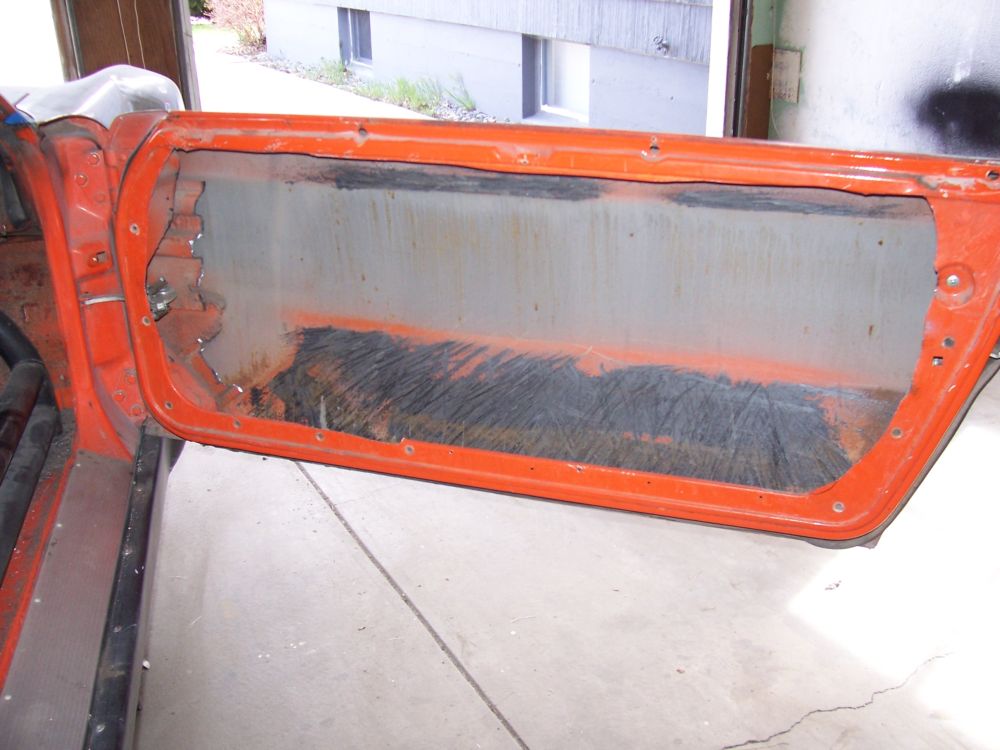

I finished scraping the tar out of the interior and gutted the pass side door.
I was glad to find very clean floors under the tar.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Jun 9 2008, 02:18 PM
Post #14


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest



QUOTE(plymouth37 @ Jun 9 2008, 12:48 PM) *


I have a feeling this car will kill me if I ever get it on the road.



Is that such a bad way to go? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Jun 9 2008, 02:19 PM
Post #15


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest



Wow those floors look great. I had just done that a few months ago and mine were not like that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roadster fan
post Jun 9 2008, 02:29 PM
Post #16


Project Frankenstein !!!!!!!!
***

Group: Members
Posts: 1,009
Joined: 24-November 05
From: Aptos, CA
Member No.: 5,184
Region Association: Northern California



yesssssssssssssssss! (IMG:style_emoticons/default/drooley.gif)

Eagerly awaiting the updates on the build. You say you bought a "real" car so you felt it was time to build the beast, but I think this will be the REAL car (IMG:style_emoticons/default/wub.gif)

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 03:45 PM
Post #17


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest



No turning back now!

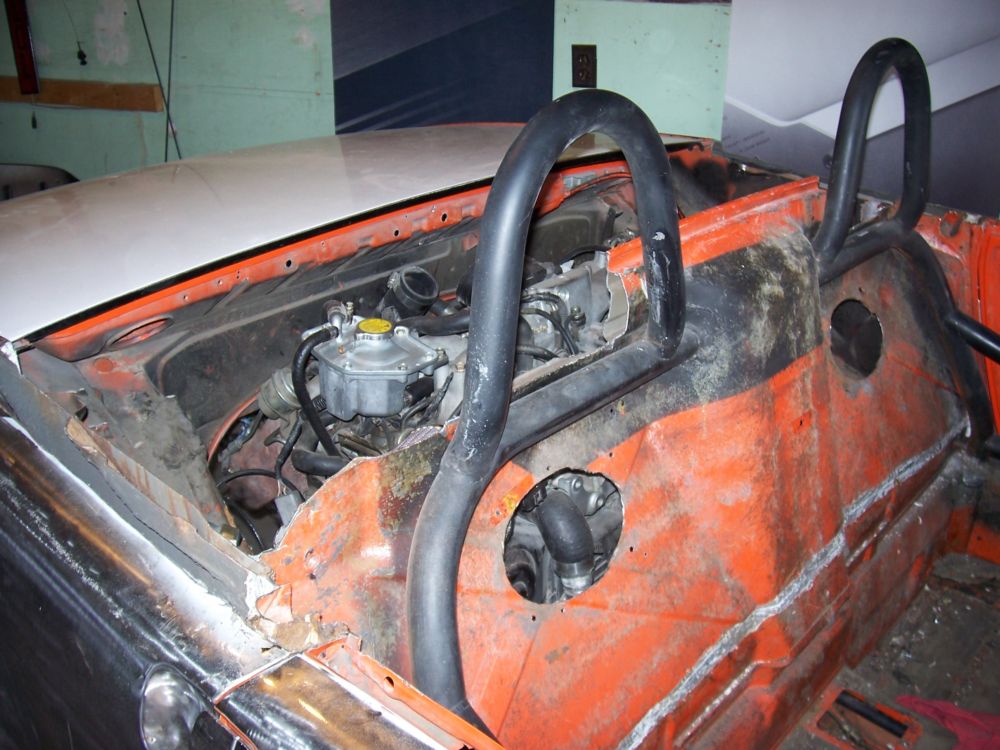

I cut off the targa bar and made this horrendous hole...
Attached Image
Attached Image

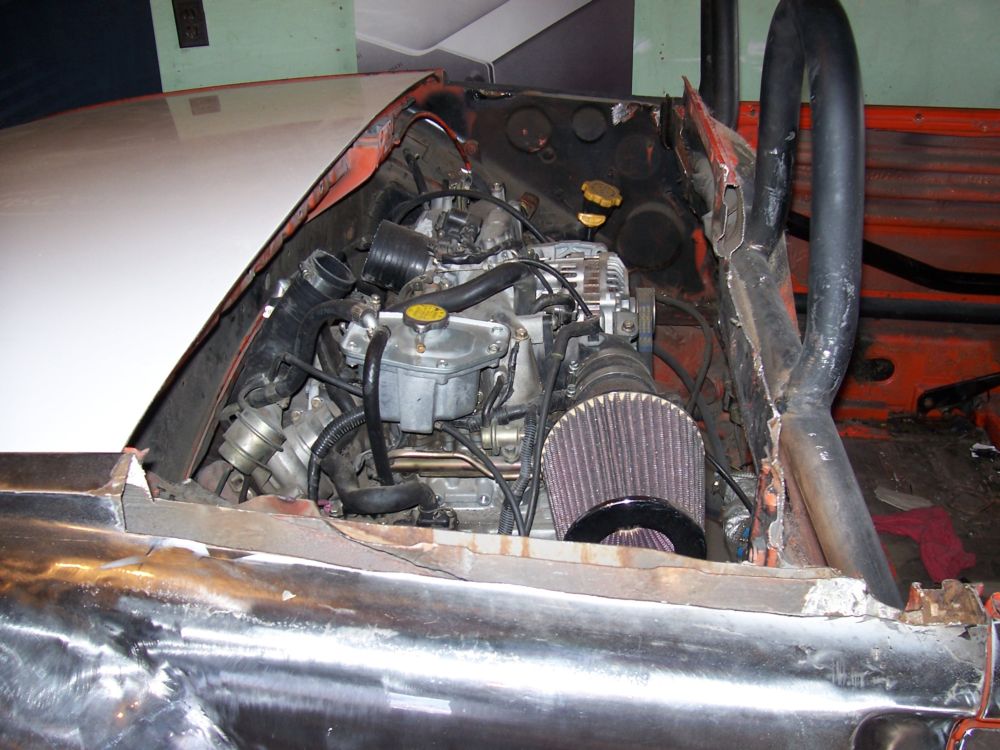

The car is pretty much stripped but I am leaving the engine and tranny in for now so I can build the belly pan and design the intercooler system.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 9 2008, 03:49 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

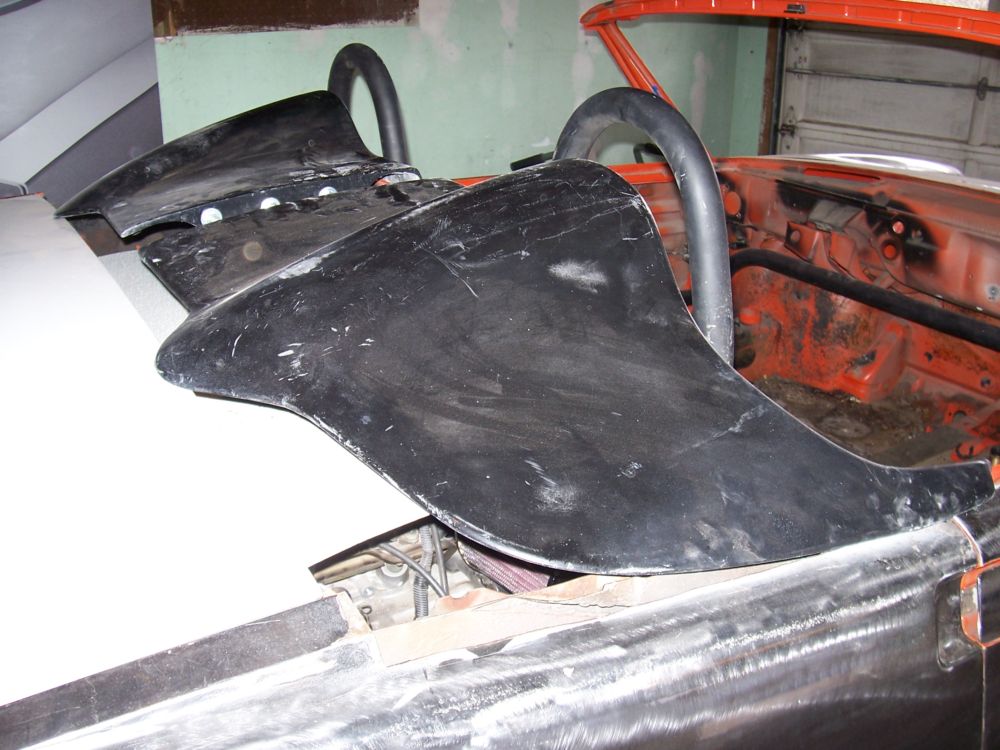

I got a heck of a deal on these Boxster Humps. The plan is to 'glass these into one piece and build up the lid to match the rest of the car. Then I will rebuild the metal around the area. I absolutely hate working with F/G so I will make the metal match the F/G lid rather than vice versa.
Attached Image

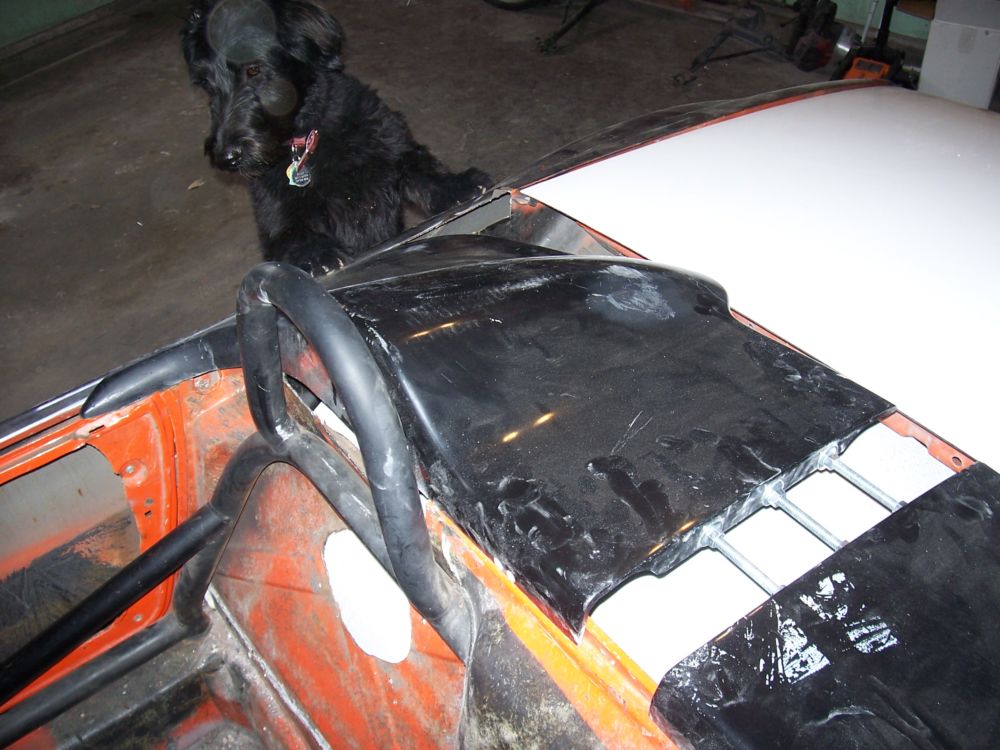

My dog Bailey checking the fit.
Attached Image
This just might work!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ferg
post Jun 9 2008, 04:06 PM
Post #19


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None



Baily's a cool looking pup (IMG:style_emoticons/default/smile.gif)

Ferg
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Jun 9 2008, 04:37 PM
Post #20


914 Wizard
**********

Group: Members
Posts: 11,806
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains



nice pics Dana!

and cool car

there aren't many 1900lb street legal teeners out there
good for you!

brant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
