silver button 150 mph guage, have questions... any guage experts Options

[orange914]

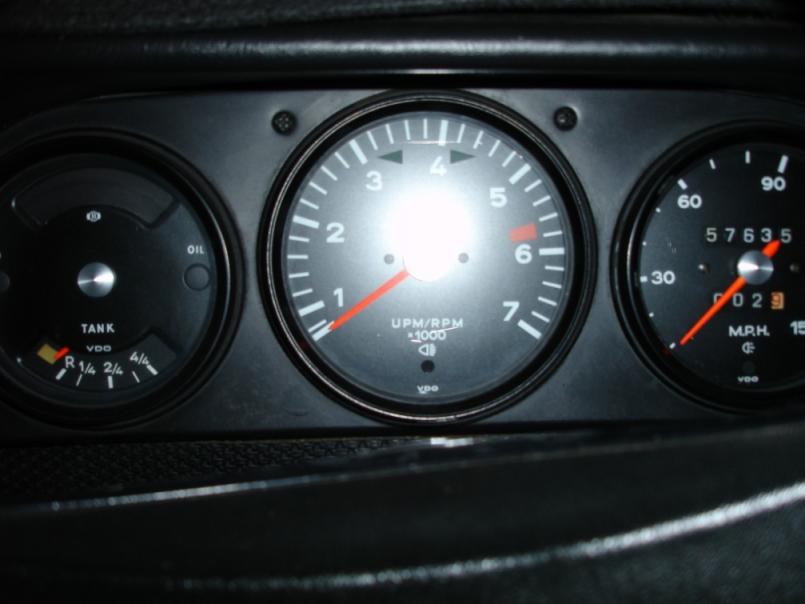

i've always thought the 150 mph speedo was put in my 73 1.7 somewhere before me. i was looking at a link showing the correct guages. it said the 150mph came out in the 2.0 std. it was unclear weither the 1.7 with the appearance package had it. not avalible in 70 - 72. in 73 had silver button. in 74, no button and was know as black face. (IMG:style_emoticons/default/confused24.gif)

http://www.p914.com/p914_gauges_speedos.htm

how do i know if my car has apperance package? i've always expected it does. the console appears to be factory except the guage face is obviously modified and the other thing is the heater lever is straight non curved but the opening has bigger opening to fit the lever (factory looking not cut). all the others i've seen are a slot for the lever. it's from the first 1000 group pulled from europeon sales that came with oddities. could this be why? the car has been fairly unmolested over the years.

mike

[914Sixer]

73 dealer service and info guide shows that the 150 speedometer was made standard.

[anderssj]

Hi Mike,

Looks like the fuel/combi gauge has the parking brake light at the top instead of a temp gauge, so I'd guess that the car was made with the appearance group--temp gauge would have been in the console.

Hope this helps.

Steve A-

[Dave_Darling]

The 1.7s and 1.8s that did not have center consoles did not have temp gauges. So the big red brake light is not really an indicator...

Let's see. Rollbar vinyl, chrome bumpers, center console, fog lights. I think those were all part of the "appearance group".

--DD

[anderssj]

Ooops--misread Mike's post . . . didn't see that it's a 1.7, so like Dave said, chrome bumpers, etc.

[TravisNeff]

My 73 non appearance package 1.7 has the 150 speedo

[So.Cal.914]

My early 74 also has a 150 silver button AWA the rest of the gauges.

[jonferns]

Paul, what is the build date of your '74?

[orange914]

The 1.7s and 1.8s that did not have center consoles did not have temp gauges. So the big red brake light is not really an indicator...

Let's see. Rollbar vinyl, chrome bumpers, center console, fog lights. I think those were all part of the "appearance group".

--DD

roll bar vinyll? didnt they all have vinyl?

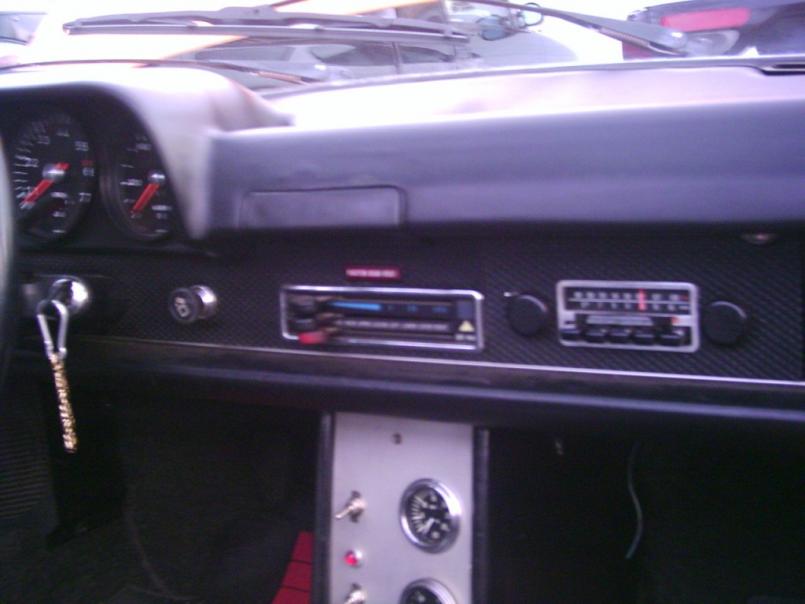

ever see this console face? what about the factory looking open area (not a slot) for a non console heat lever? it was a very early 73 (first full consoles). ya hink thats why?

Rollbar vinyl, chrome bumpers, center console, fog lights... check... is there any numbers somewhere indicating this option?

[dr914@autoatlanta.com]

70-72 914-4 silver button 120mph
70-72 914-6 silver button 150mph
73-early 74 silver button 150mph
74.5-76 black button 150mph

alert alert: Some 76 models when they started to run out of instruments had fitted silver dial 150 mph along with matching tach and fuel gauge

[So.Cal.914]

Paul, what is the build date of your '74?

47429XXXXX is all I have here, no sticker on the jam.

[orange914]

heres a clip from previously noted gauge guide information site... my question is what am i looking for in "slightly modified fuel gauge"?

http://www.p914.com/p914_gauges_speedos.htm


" The 1973 model year heralded the introduction of the 2.0L engine, and with it a 150 MPH speedometer. Additionally, the fuel level / oil temperature combination gauge was introduced on 2.0L vehicles ordered without the optional "Appearance Group." For cars with the "Appearance Group," and slightly modified fuel gauge was used. "

[gopack]

LOOKING AT THE SITE YOU LINKED TO, IT SEEMS THIS IS EASY. THE PART NUMBER IS ON THE FACE OF EACH GUAGE, TOP CENTER. THERE ARE -10, -20, -40 AN -50 GUAGES AVAILABLE. JUST LOOK AT THAT AND VIOLA!
FUEL GUAGE LINK

[Steve Snyder]

heres a clip from previously noted gauge guide information site... my question is what am i looking for in "slightly modified fuel gauge"?

http://www.p914.com/p914_gauges_speedos.htm


" The 1973 model year heralded the introduction of the 2.0L engine, and with it a 150 MPH speedometer. Additionally, the fuel level / oil temperature combination gauge was introduced on 2.0L vehicles ordered without the optional "Appearance Group." For cars with the "Appearance Group," and slightly modified fuel gauge was used. "

I agree; that was a very poorly written and confusing passage on the Gauge Clusters page (even without the typo). Thank you for pointing it out. I have both corrected the "and" typo and clarified the passage.

The fuel gauge used in 1973 1.7L cars and 2.0L cars with the three-gauge console is part number 914 641 102 40 (pictured above). The 'modification" I was referring to was merely the centering of the hand brake symbol from the prior iteration of the gauge, part number 914 641 102 20. Anyway, from the pics, your dash gauges look correct and original for a 1973 1.7L.

Sorry for the confusion!

[orange914]

heres a clip from previously noted gauge guide information site... my question is what am i looking for in "slightly modified fuel gauge"?

http://www.p914.com/p914_gauges_speedos.htm


" The 1973 model year heralded the introduction of the 2.0L engine, and with it a 150 MPH speedometer. Additionally, the fuel level / oil temperature combination gauge was introduced on 2.0L vehicles ordered without the optional "Appearance Group." For cars with the "Appearance Group," and slightly modified fuel gauge was used. "

I agree; that was a very poorly written and confusing passage on the Gauge Clusters page (even without the typo). Thank you for pointing it out. I have both corrected the "and" typo and clarified the passage.

The fuel gauge used in 1973 1.7L cars and 2.0L cars with the three-gauge console is part number 914 641 102 40 (pictured above). The 'modification" I was referring to was merely the centering of the hand brake symbol from the prior iteration of the gauge, part number 914 641 102 20. Anyway, from the pics, your dash gauges look correct and original for a 1973 1.7L.

Sorry for the confusion!

steve, i take it you did the gauge research from your post. i in no way meant it to be critical of the work that you've donated to the 914 cause. acually it's people such as yourself that make this car interesting. i've owned alot of unique cars but can't say i've ever found a more interesting vehicle/enthusiasum.

by the way my 150mph odometer doesn't work. from what i've experianced on other vehicles and what i've heard about the 914 the "plastic" gear strips. if so is the metal 120mph gears swapable to repair the 150mph gauge? the picture is obvious these 2 won't but are there some w/ steel gears that are interchangable?

mike

[Steve Snyder]

my 150mph odometer doesn't work. from what i've experianced on other vehicles and what i've heard about the 914 the "plastic" gear strips. if so is the metal 120mph gears swapable to repair the 150mph gauge?
mike

Mike,

Although plastic gear stripping may be your problem, it is likely that your 914 odometer failure is just a case of a specific gear coming loose. Pelican Parts has an excellent gauge repair article that may be of assistance. Check it out. Good luck!

[gopack]

my 150mph odometer doesn't work. from what i've experianced on other vehicles and what i've heard about the 914 the "plastic" gear strips. if so is the metal 120mph gears swapable to repair the 150mph gauge?
mike

Mike,

Although plastic gear stripping may be your problem, it is likely that your 914 odometer failure is just a case of a specific gear coming loose. Pelican Parts has an excellent gauge repair article that may be of assistance. Check it out. Good luck!

I have done the PP fix for the ODO, it was easy and took about 1 hour on the dining room table. While i was in there i cleaned the guage gace and the glass on the inside, and now it looks better than new, AND works!
