> Front Oil Cooler Location, Inside or Outside?
MikeSpraggi
post Apr 21 2009, 11:41 PM
Post #1


Senior Member
***

Group: Members
Posts: 781
Joined: 7-February 05
From: Silver Spring, Md
Member No.: 3,570
Region Association: MidAtlantic Region
Those of you running front oil coolers, did you mount them inside or outside of the front trunk? What type of thermostat are you using? Any photos of your setup? Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
jt914-6
post Apr 22 2009, 05:27 AM
Post #2


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,787
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States
I'm using an Earl's oil cooler. #26012, 60 row, 7 x 19" mounted inside. Trouman thermostat because it used the same internals as the Porsche engine so parts are avaliable for repair.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Apr 22 2009, 07:22 AM
Post #3


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,787
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States

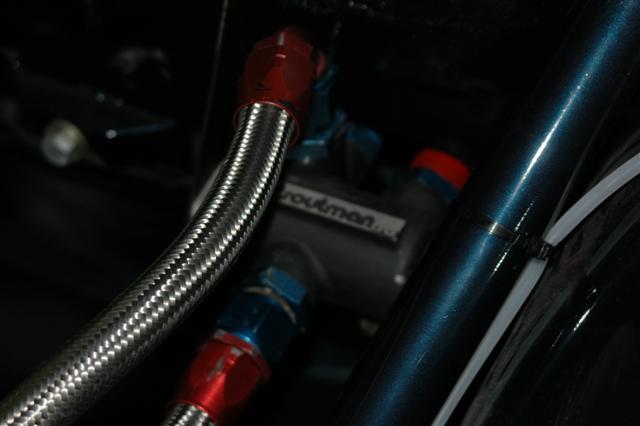

A better pic of the thermostat.....

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 22 2009, 10:33 AM
Post #4


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

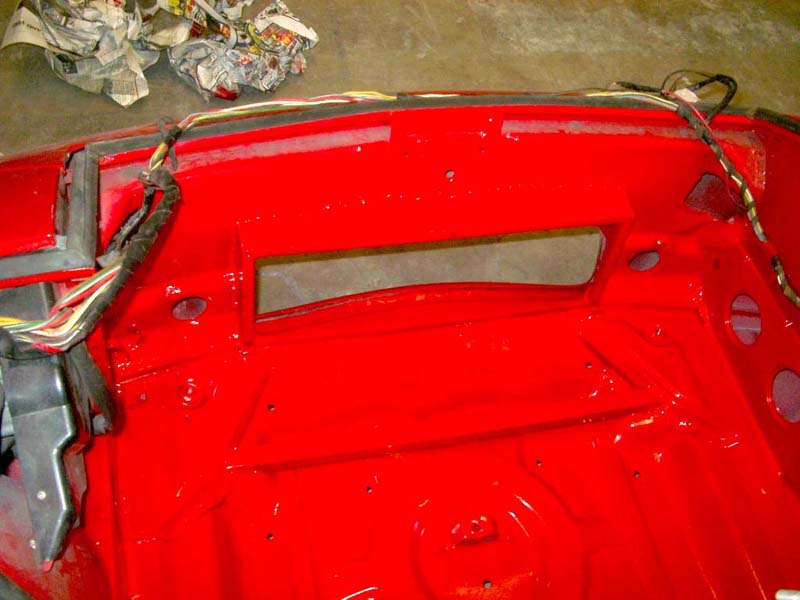

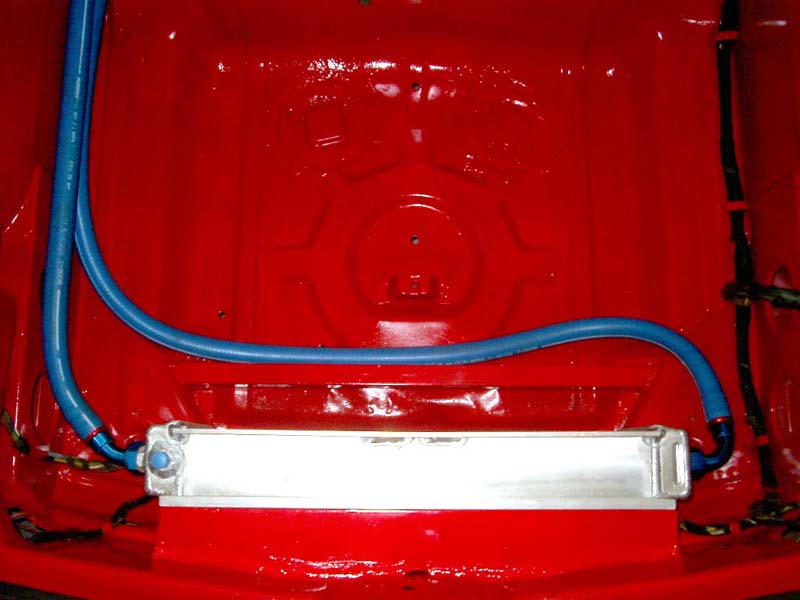

McMark and i made a box to fit the cooler inside the trunk. The lines run along the passanger long on the inside and the thermostat was sandwiched in a box in the rear firewall, close to the motor.

http://www.914world.com/bbs2/index.php?sho...4700&st=180

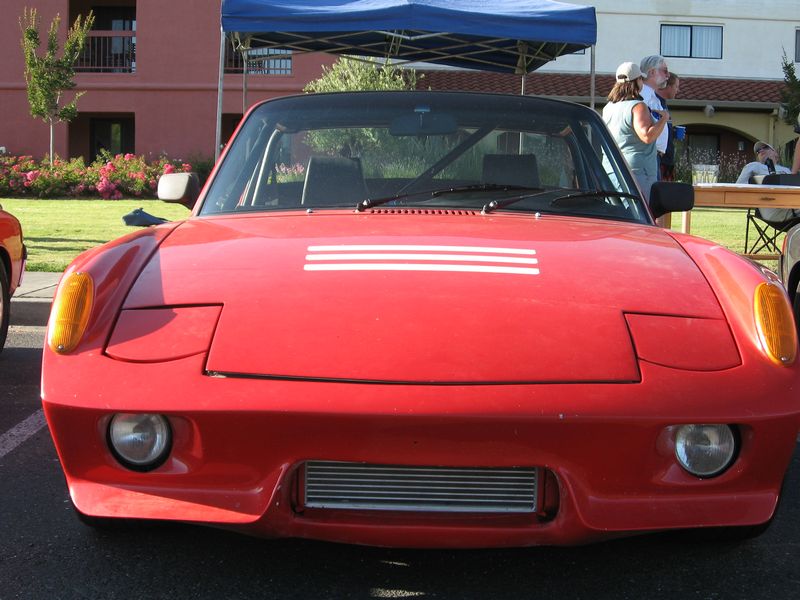

Right now, the air exits through the two large holes in the trunk floor, but the plan is to build a shroud and have it exit out the top through the hood.
(IMG:style_emoticons/default/driving.gif) Andy

(IMG:http://www.914world.com/bbs2/uploads/post-179-1177644949.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1177645001.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1177645013.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1177645175.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1175806054.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1175806091.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1182813892.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1182816483.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
number6
post Apr 22 2009, 12:57 PM
Post #5


Member
**

Group: Members
Posts: 352
Joined: 14-September 08
From: portland, or
Member No.: 9,546
Region Association: Pacific Northwest

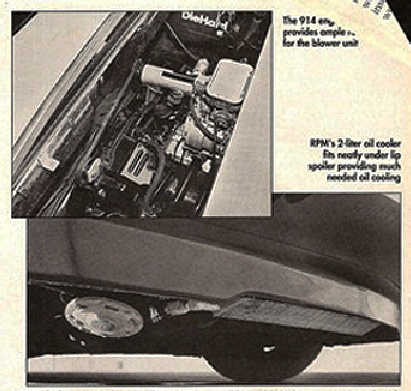

Is anyone running a setup like pictured below (from old article of a supercharged 4-cyl that's been posted here before)? It would be nice to not have to cut up the front.

Cooler would have to be on the smaller side, I'm guessing...
It's a bit more exposed to debris...
And I'm wondering if there would be sufficient airflow angled and tucked like that?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmill
post Apr 22 2009, 01:18 PM
Post #6


Green Hornet
****

Group: Members
Posts: 2,449
Joined: 9-May 08
From: Racine, Wisconsin
Member No.: 9,038
Region Association: Upper MidWest
That location isn't the greatest. You scrub up on a curb and oil goes everywhere. BTDT. If you don't figure it out fast enough you can kiss your engine goodbye.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Heeltoe914
post Apr 22 2009, 02:11 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,135
Joined: 31-January 06
From: Tujunga Calif,
Member No.: 5,506

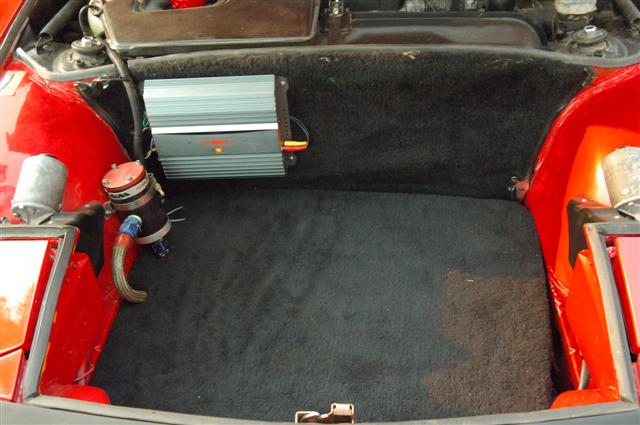

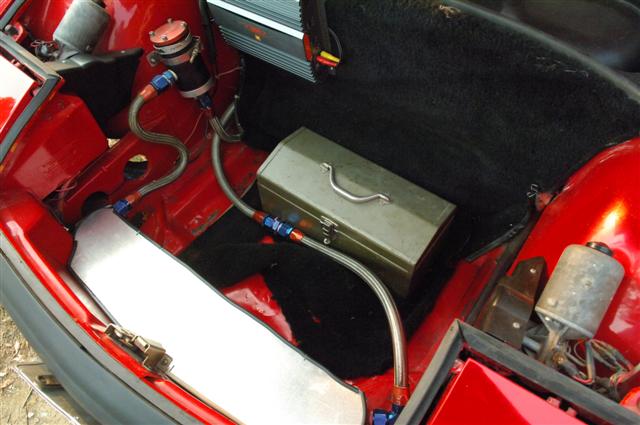

heres the one in my 6 but even a four I think up front is the best. In my car air exits out the wheel wells. Works great.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Apr 22 2009, 02:40 PM
Post #8


En Garde!
**********

Group: Admin
Posts: 13,728
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
I have neen a picture of a vinatge racer with the oil cooler bolted to the outside of the car, under the front bumper. I think that Andy had it.

Functional, but it looks way better in the front trunk.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 22 2009, 03:26 PM
Post #9


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Vacca Rabite @ Apr 22 2009, 01:40 PM) *

I have neen a picture of a vinatge racer with the oil cooler bolted to the outside of the car, under the front bumper. I think that Andy had it.

Ayupp, Hans Christian Jürgensen in his GT, now owned by Nicke Nilsson, a fellow World Member from Sweden ...
(IMG:style_emoticons/default/driving.gif) Andy



Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
burton73
post Apr 22 2009, 04:54 PM
Post #10


Senior member, and old dude
****

Group: Members
Posts: 3,821
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California

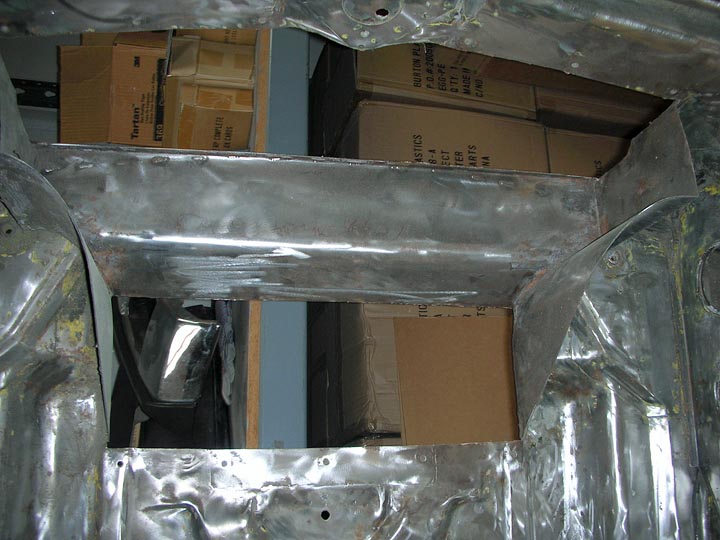

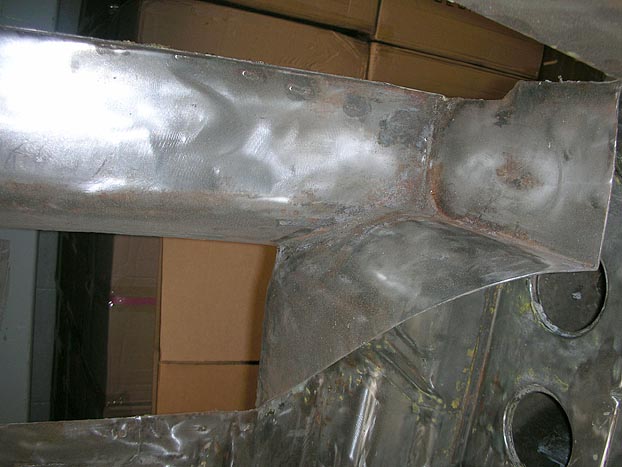

This is the one done in #41 by Troutman and Barnes shop and it runs a Troutman early 70s thermostat with the Troutman name in the casting.

The welding work and bending of the metal is a piece of art in the curves for the cooler area. The top is metal closing off the venting to the back of the bottom of the floor. I may screen it on the bottom or leave it like a 916. It has room for a space saver and I have built a bracket to hold it to the wall in front of the gas tank.

Bob




Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete-stevers
post Apr 22 2009, 05:46 PM
Post #11


saved from fire!
****

Group: Members
Posts: 2,648
Joined: 10-October 04
From: Abbotsford,BC, Canada
Member No.: 2,914
Region Association: Pacific Northwest
slick looking set up andy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Apr 22 2009, 06:00 PM
Post #12


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 124,854
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States

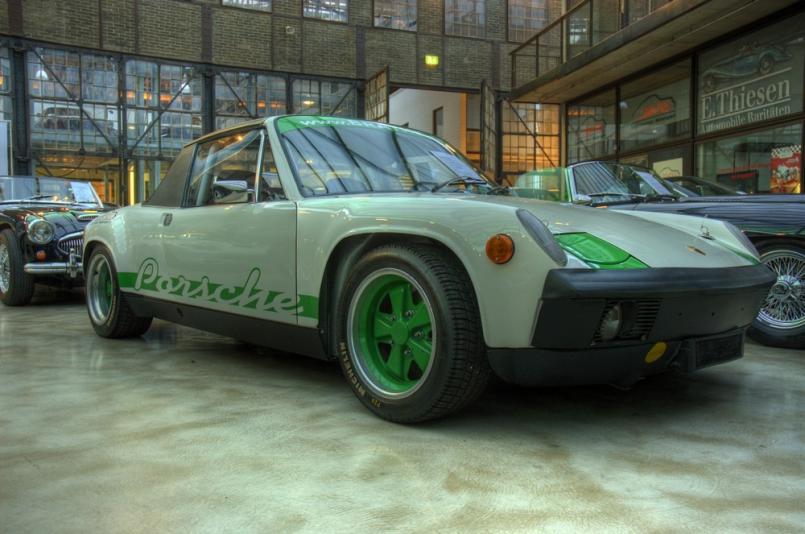

This one looks to be on the outside

T.C.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfuerst911sc
post Apr 22 2009, 07:05 PM
Post #13


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States
The picture that TC posted is what I am going to copy on my GT clone. I must be in the minority but I want to use the front trunk as a trunk (IMG:style_emoticons/default/biggrin.gif) . To each his own there is no right or wrong.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MikeSpraggi
post Apr 22 2009, 07:20 PM
Post #14


Senior Member
***

Group: Members
Posts: 781
Joined: 7-February 05
From: Silver Spring, Md
Member No.: 3,570
Region Association: MidAtlantic Region
I'll post of pic of what I'm doing tonight and tomorrow night. I have a Mazda RX7 oil cooler that I'm mounting to the front of the trunk and behind the air dam. The forced air will vent out through the wheel wells ... at least that's the plan.

I would mount the cooler inside, however the front trunk mounted fuel cell does not allow proper clearance. I can't move the fuel cell back because the front mounted oil tank is going where the stock gas tank is.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van914
post Apr 22 2009, 07:21 PM
Post #15


Van914
***

Group: Members
Posts: 702
Joined: 5-January 03
From: Cincinnati, Ohio
Member No.: 90
Region Association: Upper MidWest
Mike,
BAT sells one that you can mount to the engine lid. Works for a 4cyl I do not think it would work for a six.
Van914

http://64.202.180.37/files/kits.pdf

The Mocal oil cooling kit for the Porsche 914-4
consists of a 25 row -10AN oil cooler & 7/12"
cooling fan with with a SP1T thermostatic sandwich
plate and -10AN AQP stainless hose and
fittings. The cooler is mounted to the underside
of the engine grille, the plastic rain pan can be
removed or a hole the size of the cooler can be
made in the center. The SP1T thermo. sandwich
plate mounts between the oil filter and the filter
mount allowing oil flow to the cooler after 180
degrees. We supply enough AQP stainless oil
hose and aircraft fittings to link the sandwich
plate to the oil cooler.
Complete Kit Price $479.00
Kit Without Thermo Plate $439.00
Kit Without Fan-Pac $405.00
Basic Kit (no fan, no thermo plate) $335.0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 22 2009, 07:27 PM
Post #16


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(MikeSpraggi @ Apr 22 2009, 06:20 PM) *

I'll post of pic of what I'm doing tonight and tomorrow night. I have a Mazda RX7 oil cooler that I'm mounting to the front of the trunk and behind the air dam. The forced air will vent out through the wheel wells ... at least that's the plan.

I would mount the cooler inside, however the front trunk mounted fuel cell does not allow proper clearance. I can't move the fuel cell back because the front mounted oil tank is going where the stock gas tank is.

That should work well. We run the same setup on the 911 racecar. Just add some sort of bracing around the cooler so you don't rip it off the first time you "tap" something.

(IMG:style_emoticons/default/bye1.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
brant
post Apr 22 2009, 08:02 PM
Post #17


914 Wizard
**********

Group: Members
Posts: 11,949
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

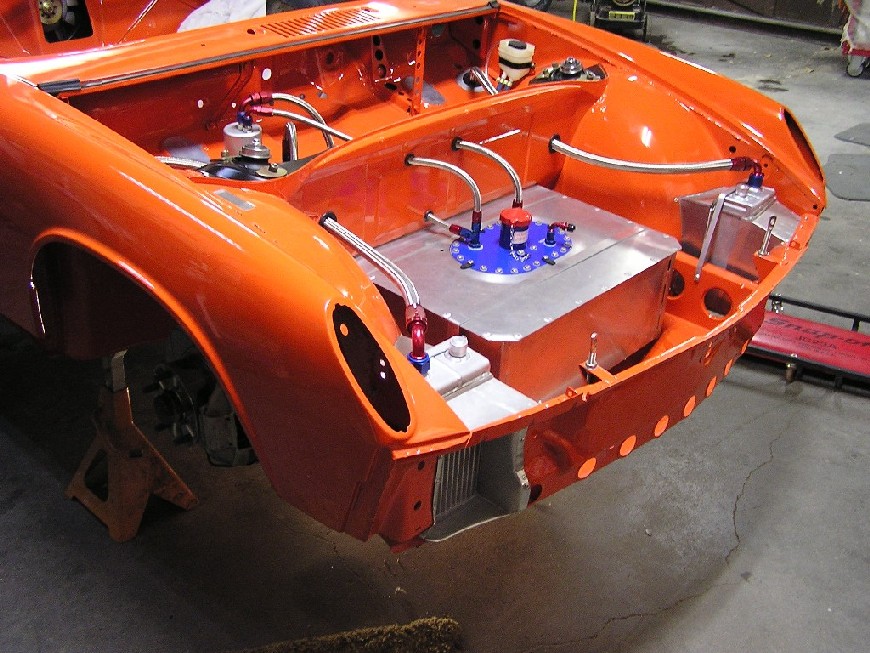

front trunks are way over rated.

here are 2 of my teeners:


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Apr 23 2009, 11:33 AM
Post #18


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None

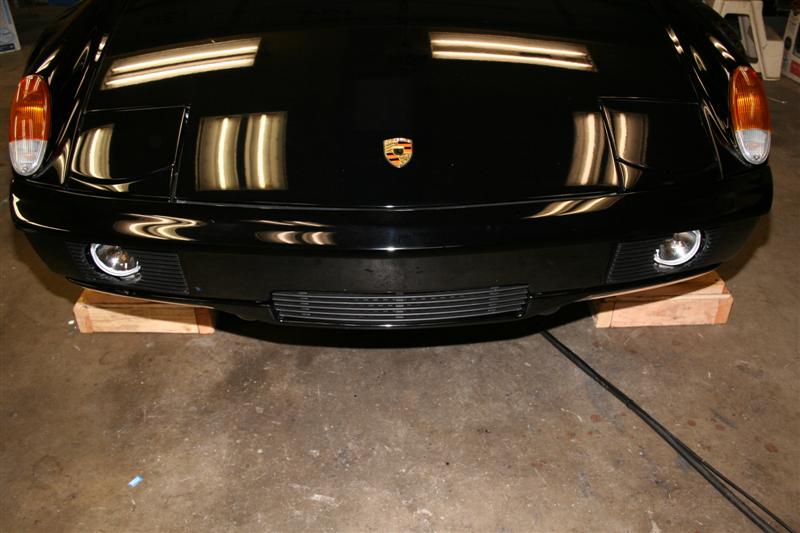

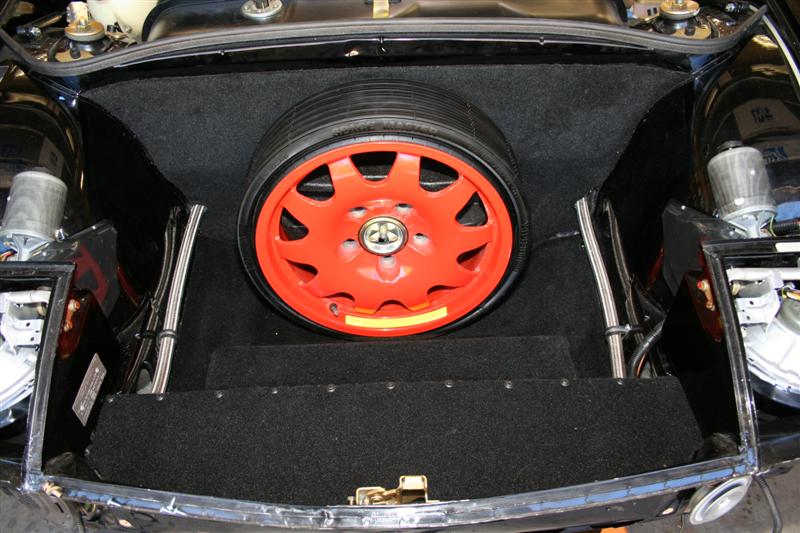

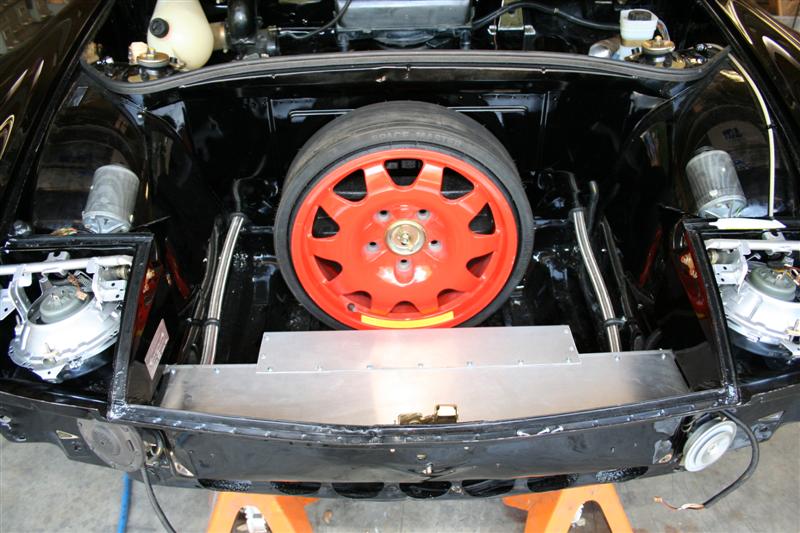

I mounted the largest cooler I could fit in the front. Money well spent. The aluminum ducting was fabricated by hand with a rubber mallet over wood and was pretty simple if you take your time.

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Grngoat
post Apr 23 2009, 11:35 PM
Post #19


Lurker Member
**

Group: Members
Posts: 158
Joined: 17-October 04
From: Fort Worth, TX
Member No.: 2,967
Region Association: Southwest Region

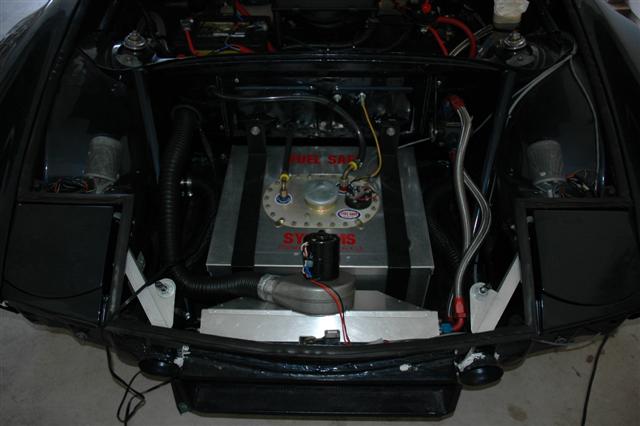

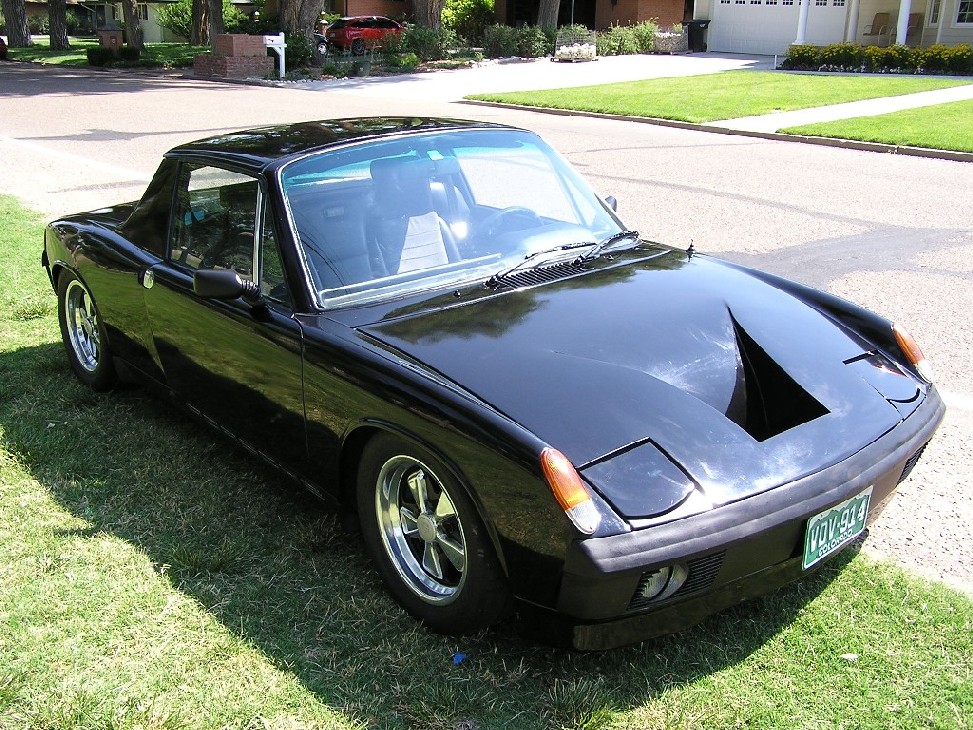

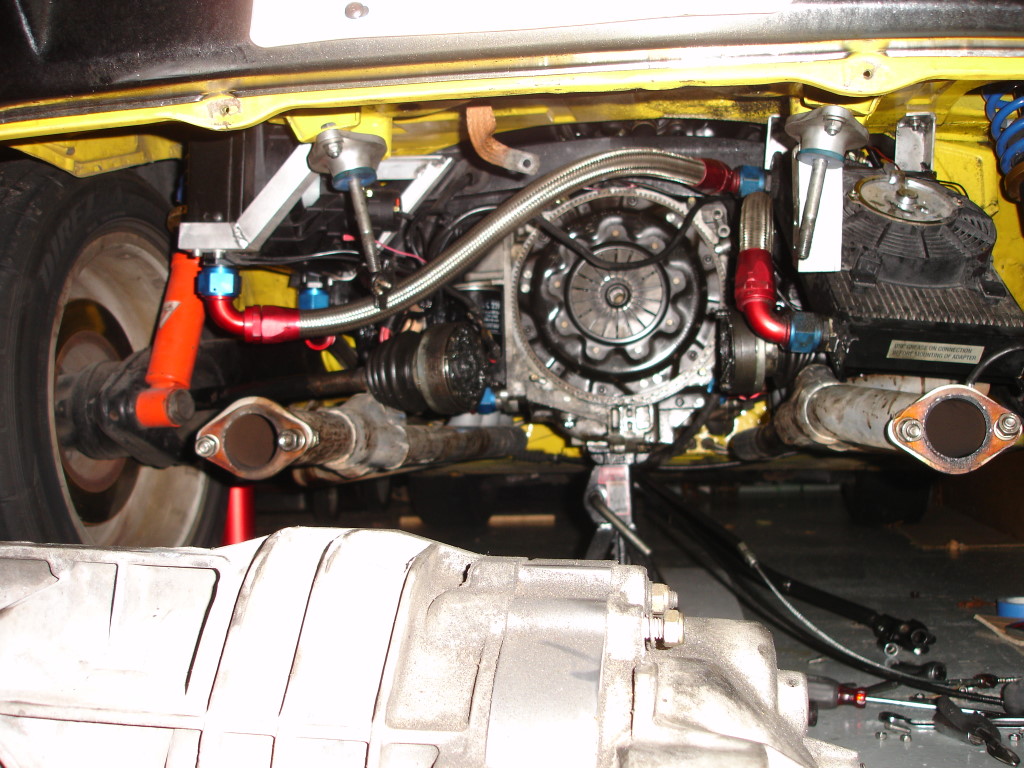

I find the front trunk to be incredibly useful and didn't want to cut it up. So I ended up with dual coolers mounted on either side of the transmission. Drivers side is a Setrab fan-pack cooler that comes with dual fans and is fully shrouded. Passenger side is a Setrab, but I added the fan so it's not shrouded. Would go with the fan-pack on both sides next time.

Attached Image

It cools my 3.6 perfectly fine in the Texas summer. Autocrossing is no problem either. I haven't take it to a DE yet, that might stress it. I like the sleeper look too. I still have the stock front valance, so most think it's a four.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Apr 24 2009, 07:31 AM
Post #20


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 124,854
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
Avery, what Tranny mounts are those?

T.C.
