> two "quick" six conversion questions....
Scott S
post Jul 7 2009, 02:59 PM
Post #1


Small Member
***

Group: Members
Posts: 1,698
Joined: 30-April 03
From: Colorado
Member No.: 633
Hi All -
I did some searching, but nothing came up...
I have two quick (yeah, right...) conversion questions. Does anyone have a step by step for the wiring on a six conversion? Have seen cars both with and without the relay board -not quite sure how it all should go. This will be for a carbed motor. My 2.0 4cyl is carbed and the relay board is still intact.

Also, I want to keep my front mounted oil cooler. I plan on using Rich Johnsons modified stock oil cooler and hopefully (depending on budget restraints) his reproduction GT oil lines. Just not sure what gets hooked to what in terms of inlet and outlet.

Thanks!!!
Scott S
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jul 7 2009, 03:48 PM
Post #2


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Wiring for a carbed motor is really simple.
You really NEED one wire...keyed power to the coil.
You have that now in the black/purple wire.

the optional ones are the tach wire (the little black one at the coil)
and the oil pressure sensor.

The way you currently have the motor wired is how you should wire the new motor.
The carbs (If they have an elec choke) could use switch power also..


As far as the oil lines...you need to find the pressure side and the return side for the 911 motor and route them accordingly.
You will want a remote filter to protect your oil cooler...so inline.
you will want a remote, inline thermostat to protect your cooler...so it does not explode with cold oil/high pressure.

Leave the oil cooler on the motor if it has one..

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Jul 7 2009, 04:42 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
The next thing you have to do is see if you have the correct pin out for the alternator. If yes, plug in and go. If not, you have to make sure you have all of the wiring straight.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Jul 7 2009, 05:02 PM
Post #4


914 Wizard
**********

Group: Members
Posts: 11,969
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Scott,

it will be pretty simple.
I do have a full color schematic in my race car book I can share
but really simple.

Give me a call at home this evening.
brant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 7 2009, 08:45 PM
Post #5


914 Idiot
***************

Group: Members
Posts: 15,173
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Black/purple is the tach wire. Black or black/red is the coil power wire. Not so good to mix them up. The power wire is thicker than the tach signal wire. Both the purple and the red can fade over the years.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jul 7 2009, 09:59 PM
Post #6


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I forgot about the alternator.
That would need to be redone.
the regulator for a 914/4 is on the relay board.
The 911 alternator has a built in regulator.
So, you will need Brants diagram to re-route that set of lines..

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Jul 7 2009, 10:11 PM
Post #7


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
The 911 alternator is either internally regulated, or uses the same external voltage regulator, depending on the year of the engine. I think all the 3.0 liter and later engines are internally regulated, but the earlier one are not.

George Hussey @ AA has a nice booklet available on doing a conversion. It has all the wiring diagrams for the different engines, and also has a diagram to help you drill out the oil tank mounts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
inschool
post Jul 7 2009, 10:43 PM
Post #8


Newbie
*

Group: Members
Posts: 30
Joined: 3-April 09
From: Florida
Member No.: 10,229
Region Association: South East States
^^ That conversion booklet is very, very vague .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van914
post Jul 8 2009, 05:14 AM
Post #9


Van914
***

Group: Members
Posts: 702
Joined: 5-January 03
From: Cincinnati, Ohio
Member No.: 90
Region Association: Upper MidWest
Brant,
Any chance you could post the diagram?
Thanks
Van
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Jul 8 2009, 06:17 AM
Post #10


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,787
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States

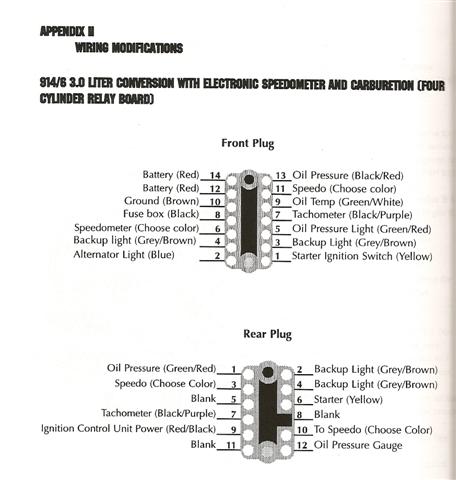

Attached Image

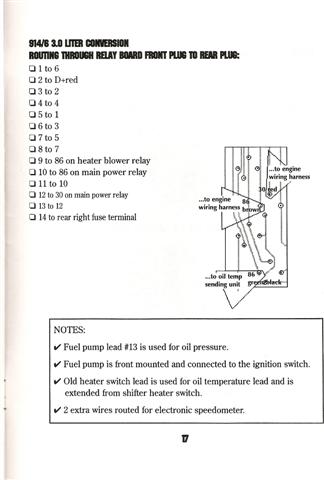

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Jul 8 2009, 07:41 AM
Post #11


Mike Ginter
***************

Group: Admin
Posts: 16,096
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Hurry up and buy the thing Scotty.. I'm gonna need a motor soon I think.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Scott S
post Jul 8 2009, 10:03 AM
Post #12


Small Member
***

Group: Members
Posts: 1,698
Joined: 30-April 03
From: Colorado
Member No.: 633
The leak down will happen the week of the 20th. If all goes as hoped, I will have it shortly there after. based on the other thread, I have decided not to use the CIS (I would like to continue to deal with the pain of having a carbed car at altitude - for old times sake... (IMG:style_emoticons/default/biggrin.gif) )
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty
post Jul 8 2009, 10:50 AM
Post #13


The Fun Never Stops
***

Group: Members
Posts: 773
Joined: 20-May 03
From: Portland. Oregon (SW)
Member No.: 718
Region Association: None
Here's a link to what I puzzled out when I converted my 74...have fun!

4 to 6 wiring
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Jul 8 2009, 10:55 AM
Post #14


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Cool Scott! the only down side for you is that your cool paperwork for a 916/4 won't work anymore! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Justinp71
post Jul 8 2009, 02:26 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,639
Joined: 11-October 04
From: Sacramento, CA
Member No.: 2,922
Region Association: None

Make sure that your oil cooler is atleast AN-12, if its any smaller you can't use it.

The early 911 alternator still uses a regulator, I'm not sure if they can be wired the same as the 914 alternator. The later alternators (I think 3.0 motors and newer) have the internally regulated alternator and require different wiring, but they are pretty easy to figure out. Also note that the internally regulated alternator uses a different cowling (the piece that goes behind the alternator).

Good Luck! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
