> Removing Transmission, Need advice and help..., Never pulled one before...
montoya 73 2.0
post Aug 16 2009, 12:37 AM
Post #1


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
I know the steps:

- take off 4 bolts tranny to engine
- unhook 2 tranny mounts in the back
- take off 2 axels
- take off shift linkage
- remove muffler/muffler hanger
- remove starter and wire to reverse switch
- remove speedo cable
- remove clutch cable
- disconnect tranny ground strap

(EDIT: Not necessarliy in correct order)

But whats the best way to remove without damaging:

Shift linkage (remove the Spam Can without damaging the clamp), speedo cable & clutch cable?

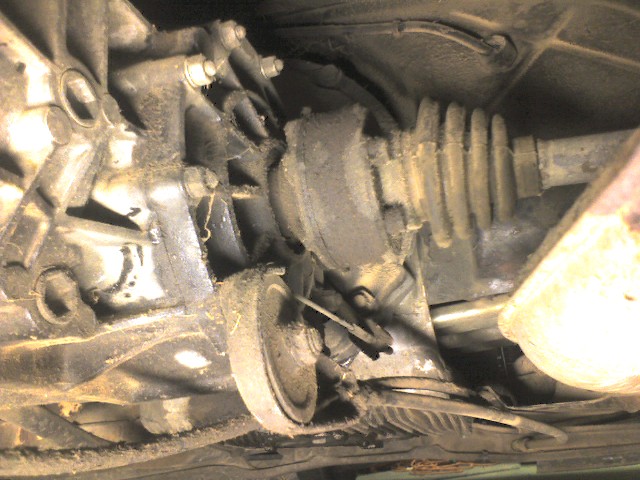

A few pictures of what I'm dealing with...

Attached Image

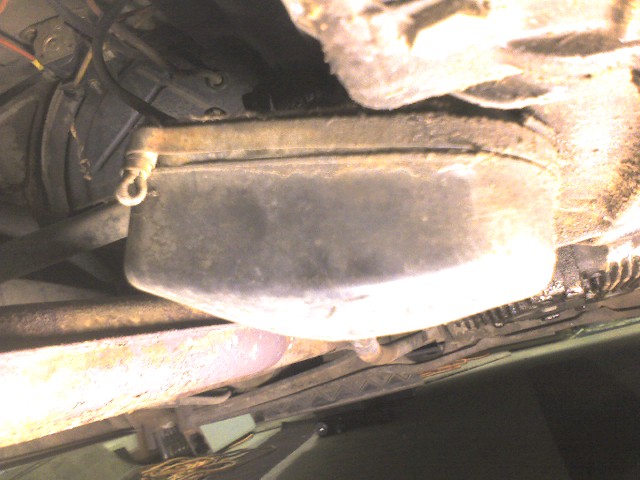

"Spam Can"
Attached Image


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Aug 16 2009, 01:04 AM
Post #2


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Big nut on speedo drive, do it carefully and don't twist on the drive.
Undo the clutch nut and the the pulley, remove cable.
Undo the spam can, carefully remove the cone screws front (firewall) and back and then sneak the shift rod out.

The clamp.... well that depends, but you have to undo it.
Prey, make offerings to the gods....?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Aug 16 2009, 01:31 AM
Post #3


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
4 bolts tranny to engine are LAST, unless you want to injure yourself.

-You need to put a jack under the engine/tranny
-Remove the axles, cables, starter wires, etc (you should already have the battery detached by now)
-Remove the 4 bolts and nuts that hold the rear mounts to the body
-Lower the rear part of the drive train
- Place a cinder block with wood on top of it under the square boss at the back of the engine
- Place the jack under the tranny
- Remove the 4 bolts/nuts for the tranny to the engine (remove starter)
- Carefully move the tranny back from the engine

It weighs 70-80# so you can man handle it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Aug 16 2009, 11:54 AM
Post #4


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
Thank you!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bristol
post Aug 17 2009, 11:32 AM
Post #5


Newbie
*

Group: Members
Posts: 18
Joined: 16-July 09
From: Texarkana, TX
Member No.: 10,573
Region Association: None
I just did this job last week (bad seal on trans shaft). The method I used worked VERY well. With the car off the ground already on jackstands, I put another jackstand under the engine with a section of 2X4 on it to support the rear part of the engine. I like to use wood between the jack/jackstand and the car so that there's a softer seat and the weight is distributed more, just make sure it's SECURE!

I then used a motorcycle lift to slightly lift the transmission and remove it from the engine. It took some wiggling and work, but the trans slide back on the motorcycle lift pretty nicely. One key here is that I used two sections of 2X4 (stacked on top of each other) at the rear of the transmission and one section of 2X4 and one section of 1X4 towards the front of the transmission. The wood was used between the lift and the trans. These sections were placed on each side (front and back) of the Spam Can so that no weight was actually put on the Spam Can. This way I could evenly support the trans and work it free of the engine without any damage. Once free of the engine I just slowly lowered the lift down and slid it from under the car. Easy peasy.... Install was the reverse of above.

Kirk
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Aug 17 2009, 02:15 PM
Post #6


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California

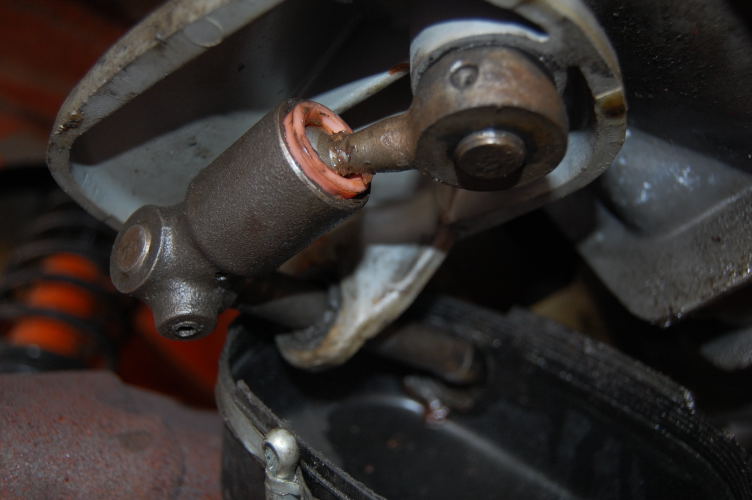

Where and what exactly do I remove?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cupomeat
post Aug 17 2009, 02:20 PM
Post #7


missing my NY 914 in VA
***

Group: Members
Posts: 1,338
Joined: 26-November 07
From: Oakton VA
Member No.: 8,376
Region Association: MidAtlantic Region
Ok, at the end of the shift rod, behind the bushing, the piece (which is also the cup for the ball socket) that slides over the shift rod has to be removed. You can see the set screw (pin) on the bottom side of it.

Use an allen wrench to remove the pin and gently knock forward the shift rod out of the piece.

Does that help?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Aug 17 2009, 02:57 PM
Post #8


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
QUOTE(Cupomeat @ Aug 17 2009, 01:20 PM) *

Ok, at the end of the shift rod, behind the bushing, the piece (which is also the cup for the ball socket) that slides over the shift rod has to be removed. You can see the set screw (pin) on the bottom side of it.

Use an allen wrench to remove the pin and gently knock forward the shift rod out of the piece.

Does that help?



Yep. Don't want to remove something that I will be pissed about later. thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Aug 17 2009, 06:30 PM
Post #9


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region

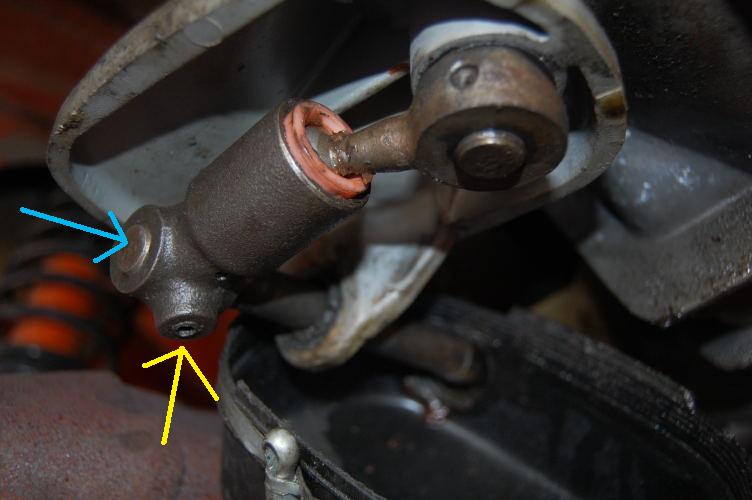

The yellow arrow is the rear conical screw. There is one in the front that needs to be removed as well. The whole outer linkage needs to be removed to pull the tranny without issue. The blue arrow shows the end of the rod that you push forward while you pull the cup rearward. Easy (IMG:style_emoticons/default/wink.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Aug 17 2009, 11:04 PM
Post #10


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
QUOTE(Dr Evil @ Aug 17 2009, 05:30 PM) *

The yellow arrow is the rear conical screw. There is one in the front that needs to be removed as well. The whole outer linkage needs to be removed to pull the tranny without issue. The blue arrow shows the end of the rod that you push forward while you pull the cup rearward. Easy (IMG:style_emoticons/default/wink.gif)



was wondering why the rod wouldn't back out of the case? So to the front I go! Thanks Doc. Oh, them triple square bolts are a real pain. I think I may have to destroy them to get them out. I got two out before the tool started to spin out. Vice grips should work good? Uh Doc, I'll buy two sets of bolts instead of one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Aug 17 2009, 11:12 PM
Post #11


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
PM and remind me. I will be making some this week I hope.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Aug 23 2009, 04:44 PM
Post #12


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California

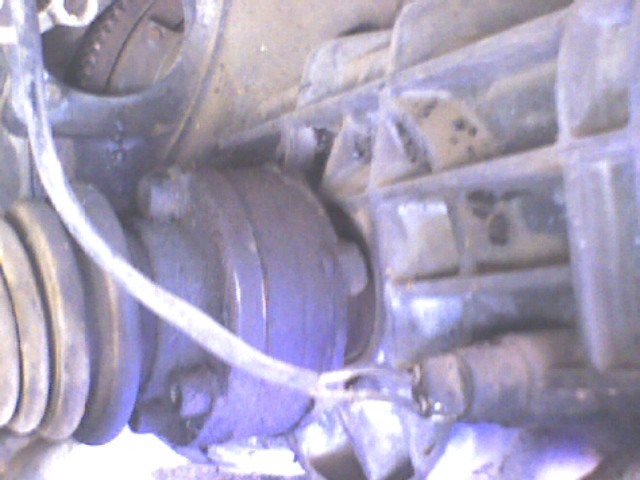

I believe this sending unit has to be removed but I don't know what it's for and do I plug it after removing?

(EDIT: It's probably the reverse switch. Damn I hate when I ask questions then figure it out after.)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Aug 23 2009, 04:55 PM
Post #13


914 Idiot
***************

Group: Members
Posts: 15,148
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Just unplug it; the wires have bullet-shaped connectors on the end that plug into the switch. Pull 'em out.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Aug 23 2009, 04:56 PM
Post #14


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
QUOTE(Dave_Darling @ Aug 23 2009, 03:55 PM) *

Just unplug it; the wires have bullet-shaped connectors on the end that plug into the switch. Pull 'em out.

--DD



Thank you Dave!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Sep 1 2009, 11:11 PM
Post #15


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
Pulled out the Tranny the next day (Monday). But this happened and I don't know if it was not supposed too.

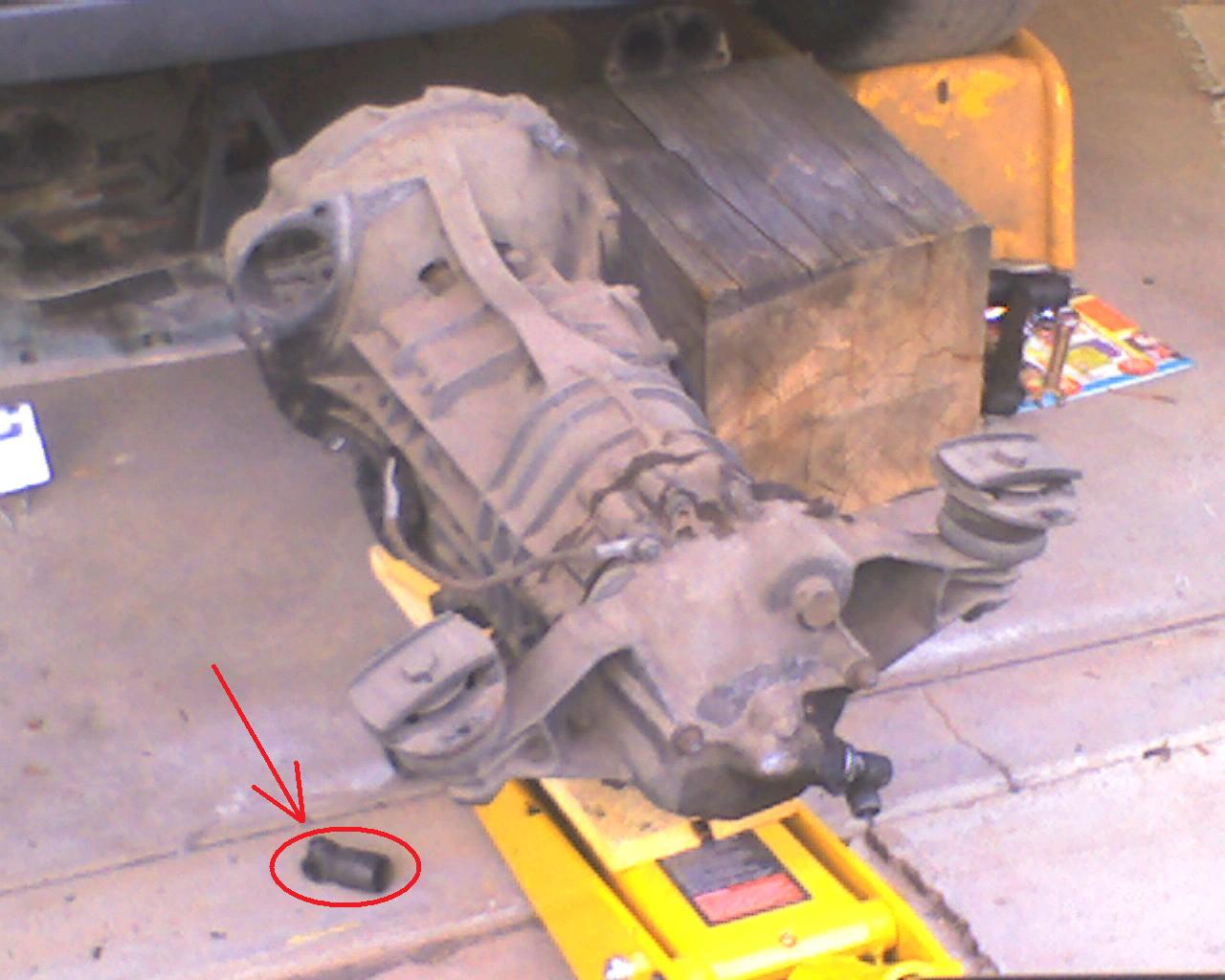

After dropping (pulling) the tranny, as I moved the Jack from under the car this fell off.
Attached Image

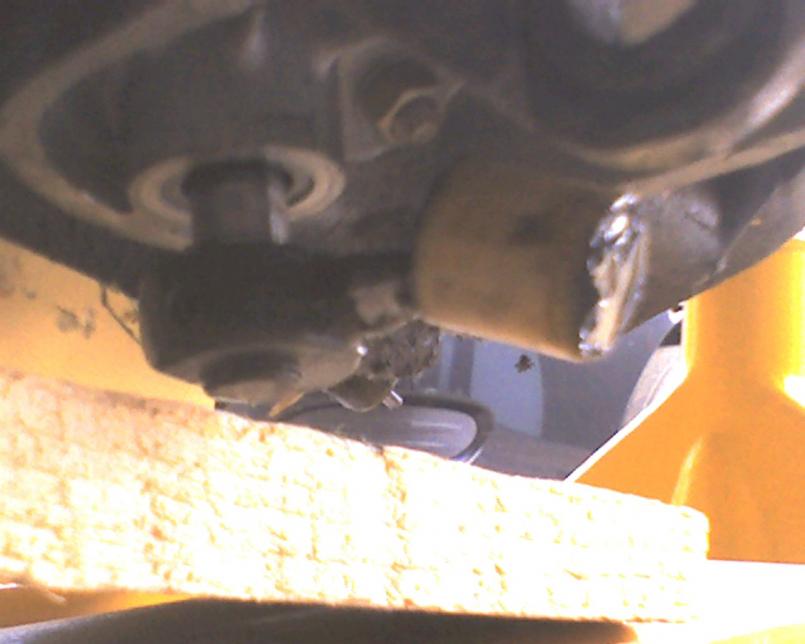

The bushing was left on the tranny.
Attached Image

Is this okay?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Sep 1 2009, 11:31 PM
Post #16


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Oh Shit! That is totally OK.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Sep 1 2009, 11:55 PM
Post #17


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
Okay cool! Just checking.

Quick question, Is there something I can do to lengthen second gear? Driving at 35 MPH in 2nd the RPM's are high and 3rd is to low.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Sep 2 2009, 12:18 AM
Post #18


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Sure, with enough money you can do anything. 2nd is not changeable unless you have an $1800+ 904 input shaft and the associated gears (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Sep 2 2009, 09:51 AM
Post #19


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
rpm's high - you want to drive in the gear that keeps your rpms in the ballpark of 3000-3300 range as this is the rpms your engine needs to stay cool. jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Sep 2 2009, 04:46 PM
Post #20


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
Wasn't thinking that far in advance, But i guess i should. I was just thinking about driveing through the neighborhoods in the morning on my way to work and trying to be nice about my exhaust being to loud.

Screw'em, they should be up at 6:45am like me! So inconsiderate of me!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
