> Restoration Design, front bumper mount ready Jan 2024
Luke M
post May 2 2017, 07:53 AM
Post #141


Senior Member
***

Group: Members
Posts: 1,369
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
Hi Pete,

So it's a copy or as close to as possible of the nos part.
That's what I was asking about. Sorry if I threw you off on the 90 degree thing.

Looks like I need to add this to my list now.

Thanks,




QUOTE(peteyd @ May 1 2017, 09:29 AM) *

The edge in question has the same radius as the NOS piece I copied. It should not be 90 degrees exact. It is a 5/32 rad.

Here is the NOS piece we have.



Here is my reproduction piece. Both were measured with the same radius gauge. There is a small lip on the other side of this piece where the tube is placed.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
peteyd
post May 8 2017, 02:47 PM
Post #142


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

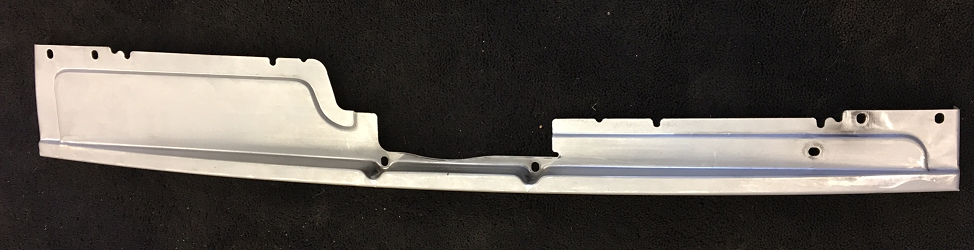

Here is another new part.

1 out of 5 pieces for the /6 engine tin. Laser cutting tomorrow so they should be up on the web in about a week. I will have a price at that point.

Attached Image

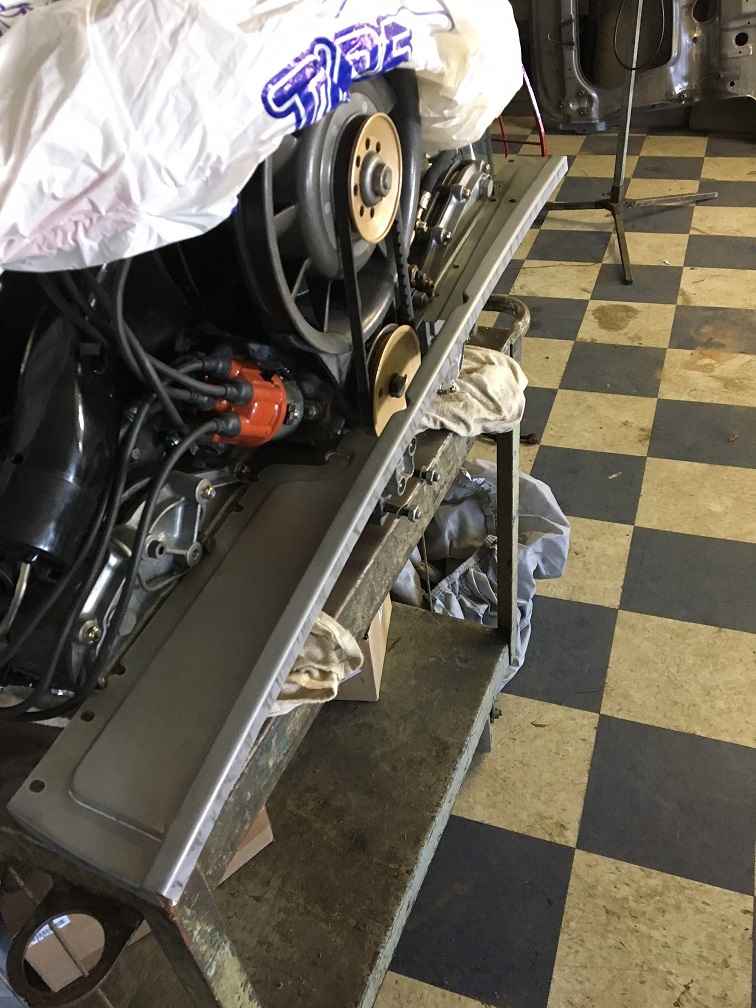

Test fitted to our engine.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
defianty
post May 9 2017, 01:10 AM
Post #143


Senior Member
***

Group: Members
Posts: 659
Joined: 9-August 06
From: Essex, UK
Member No.: 6,621
Region Association: None
QUOTE(peteyd @ May 8 2017, 09:47 PM) *

Here is another new part.

1 out of 5 pieces for the /6 engine tin. Laser cutting tomorrow so they should be up on the web in about a week. I will have a price at that point.

Attached Image

Test fitted to our engine.

Attached Image



Great, any eta on the other pieces?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post May 9 2017, 06:52 AM
Post #144


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
Two other panels will go into the press next week probably. Then if they work out fine laser cutting another week. If adjustments need to be made then add 3 weeks at least.

Then 2 more panels need to be tried and those will take another month at least.

Its hard to tell how long, too many variables.

Pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 10 2017, 10:17 AM
Post #145


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Engine tin will you be selling pieces separately or only as a package?
I ask because I have the OE pulley tin, but the rest is homemade.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
defianty
post May 10 2017, 11:37 AM
Post #146


Senior Member
***

Group: Members
Posts: 659
Joined: 9-August 06
From: Essex, UK
Member No.: 6,621
Region Association: None
QUOTE(peteyd @ May 9 2017, 01:52 PM) *

Two other panels will go into the press next week probably. Then if they work out fine laser cutting another week. If adjustments need to be made then add 3 weeks at least.

Then 2 more panels need to be tried and those will take another month at least.

Its hard to tell how long, too many variables.

Pete



Thanks for the information Pete.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post May 11 2017, 06:13 AM
Post #147


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
QUOTE(Mark Henry @ May 10 2017, 08:17 AM) *

Engine tin will you be selling pieces separately or only as a package?
I ask because I have the OE pulley tin, but the rest is homemade.


There will be a kit and they will also be sold separately.

Pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 11 2017, 08:46 AM
Post #148


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(peteyd @ May 11 2017, 08:13 AM) *

QUOTE(Mark Henry @ May 10 2017, 08:17 AM) *

Engine tin will you be selling pieces separately or only as a package?
I ask because I have the OE pulley tin, but the rest is homemade.


There will be a kit and they will also be sold separately.

Pete

(IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Jul 12 2017, 06:40 AM
Post #149


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

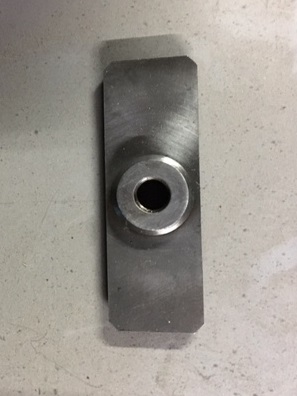

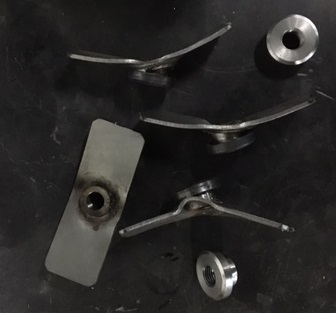

I was holding off on this piece because getting the NAFTA paperwork for the parts to cross the border has been slow. But it seems that people are in need of this part.

This is an exact copy of the original piece. 7/16-20 thread, spot welded stud to the reinforcement plate. You can see I tested the weld until the correct heat was put into it to ensure the welds hold. These were several wacks with a 25 lb sledge.

I have no price point yet either, so if you're interested in this piece either give me a call, or PM.

Pete
519-836-3555


Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Jul 12 2017, 08:25 AM
Post #150


I. I. R. C.
*****

Group: Members
Posts: 6,714
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
Will you be putting the wire retaining tabs on the engine tins?

I have some original pieces if you need any measurements.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Jul 12 2017, 11:27 AM
Post #151


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
QUOTE(Perry Kiehl @ Jul 12 2017, 06:25 AM) *

Will you be putting the wire retaining tabs on the engine tins?

I have some original pieces if you need any measurements.


The wire retaining tabs will be welded on. I have originals here to copy, but thanks for the offer Perry.

Pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jul 23 2017, 12:34 PM
Post #152


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Pete:

I need one of these as soon as they are ready.
Thanks

-Doug


QUOTE(peteyd @ May 8 2017, 01:47 PM) *

Here is another new part.

1 out of 5 pieces for the /6 engine tin. Laser cutting tomorrow so they should be up on the web in about a week. I will have a price at that point.

Attached Image

Test fitted to our engine.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Jul 31 2017, 02:38 PM
Post #153


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

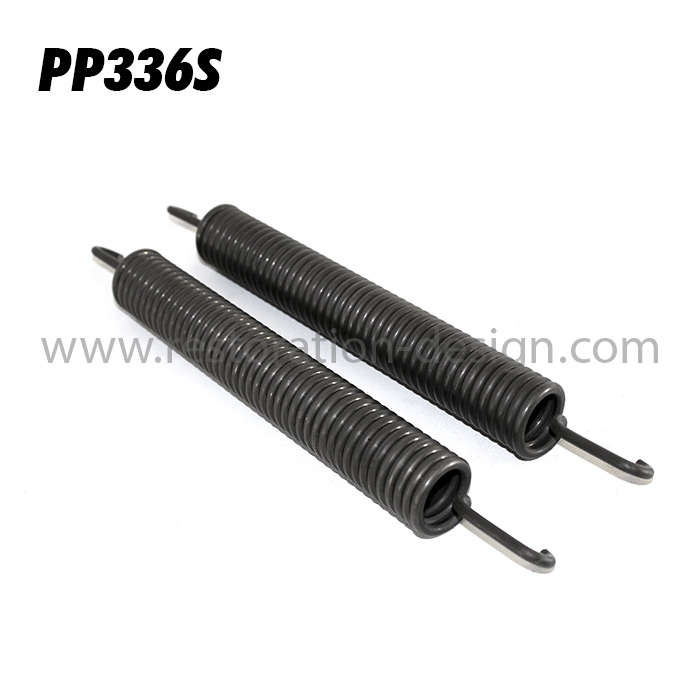

The front trunk springs are ready!
I tested them out on a car here at the shop and they keep the hood all the way up

Pete

http://www.restoration-design.com/store/product/PP336S

$50 for a pair

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Jul 31 2017, 02:43 PM
Post #154


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
Another new part.

e-brake cable pull.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Jul 31 2017, 02:45 PM
Post #155


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
one more...

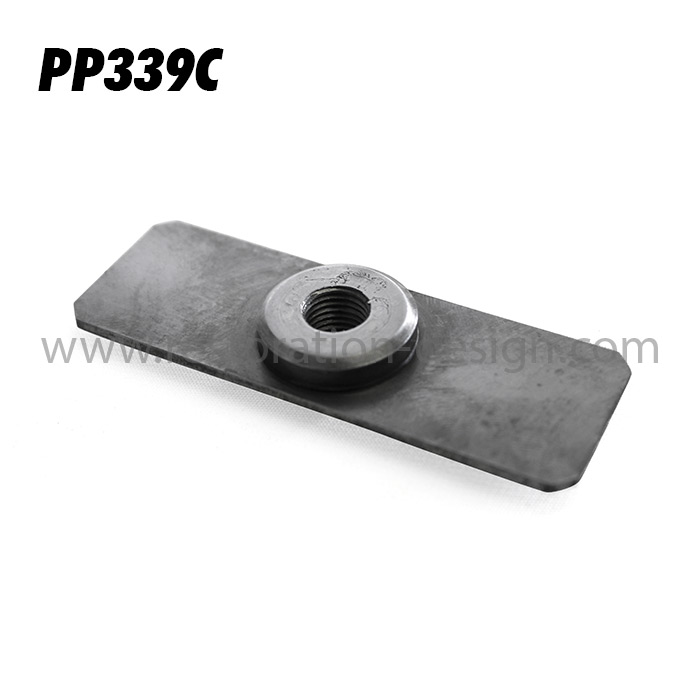

seat belt anchor

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Aug 3 2017, 12:14 PM
Post #156


Senior Member
***

Group: Members
Posts: 705
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

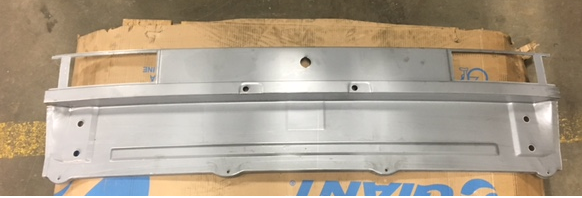

Rear latch panel is almost complete.

We just need to add to inventory and the website and then we can sell. If you need one quick send me a PM

there is no additional brackets on the panel, therefore you will need to take off the tail light brackets and the latch bracket from your old panel.

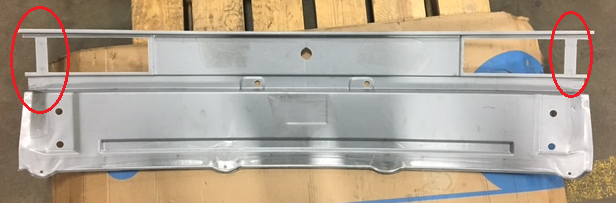

The area circled in red also needs to be cut out after the panel is welded into the car. they help keep the panel in shape to aid in the installation.

$265

Pete

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914work
post Aug 10 2017, 09:04 PM
Post #157


Member
**

Group: Members
Posts: 291
Joined: 9-November 11
Member No.: 13,762
Region Association: None
Nice, but I see you chose not to include the hole for the tow mount?
Is the late panel (76-75) significantly different?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bretth
post Aug 10 2017, 10:47 PM
Post #158


Senior Member
***

Group: Members
Posts: 899
Joined: 23-June 15
From: Central TX
Member No.: 18,882
Region Association: Southwest Region
Awesome job on the rear panel i will have to get one once i get to work on the rear end.

Brett
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 12 2017, 02:37 PM
Post #159


914 Guru
*****

Group: Members
Posts: 6,810
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
That looks fantastic. Great job.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 30 2017, 07:15 PM
Post #160


914 Guru
*****

Group: Members
Posts: 6,810
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Any 9/14/17 sales this year?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
