Hi all!

Real short introduction. I'm on a three month leave here in San Diego, with my wife and 3 month old daughter. I live in Norway, but my American wife has family here, and winter is a great time to visit. It gets cold in Norway... I have a BMW 635CSi and a Citroen SM in Norway, but that's a different topic altogether.

On to business. I have a 1974 914 (4742921095) that has been an AX car for the last ten years. My plan is to make the car more presentable--when I got it, it was quite rough. It's an SBC V8 build with a 915 transaxle and various 911 suspension parts. More about that later. The car doesn't look so good right now, in particular I don't like the flares, so I'm going to do a fairly thorough restoration. Not too much rust on the car, but it probably needs dealing with anyways. Here's the beauty:



I bought this car from nocones last year, and it's been sitting for most of that time, due to a broken transmission (and also I've been back in Norway). During some fairly normal driving, it popped out of third gear and self destructed. I wasn't in the car at the time, so I'm not really sure what happened. Only inspection will tell.

So, out the trans comes.

Click to view attachment

Unscrewed the drain plug. This does not bode well:

Click to view attachment

More carnage is visible once the nosecone is off:

Click to view attachment

I need bigger tools to get the fifth gear and reverse off, so I can't get to the innards where the real action is right now. Will investigate that tomorrow. I found parts of what I suspect is a grenaded second gear. It remains to be seen whether the transmission is a lost cause. Input is appreciated. Maybe I should just get a 930 and be done with it...

More tomorrow.

- Karl

Jackque at scotts porsche has a donor 915 for parts or sean at autobahn. you are here in SD, right? stop by my shop and I'll pop 5th and reverse for ya.
7323 el cajon blvd in la mesa

Yep, located at Rancho Peñasquitos. Maybe I'll stop by tomorrow!

- Karl

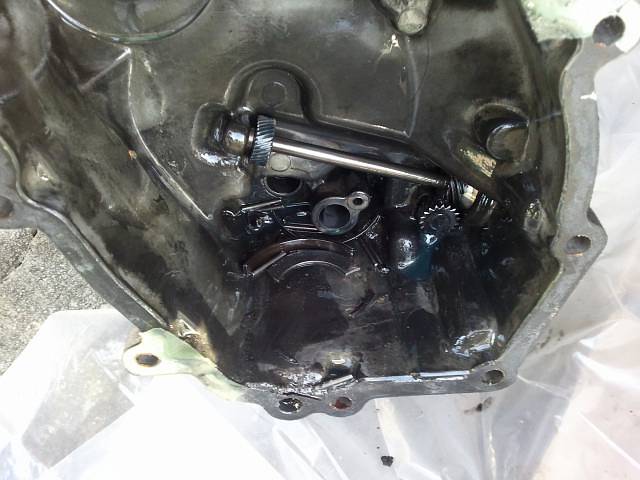

Got hold of some bigger tools, and pulled off 5th and reverse to inspect the internals. Hello Mr. Second Gear. Here's what it looks like after I pieced together the remains.

Click to view attachment

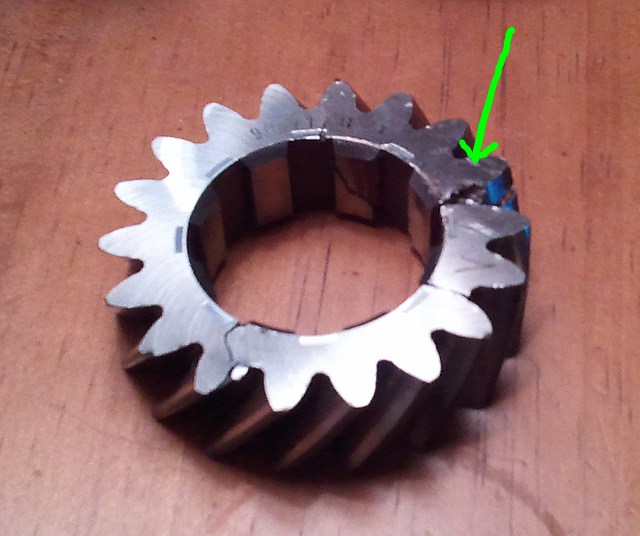

At the green arrow, there's a big indentation in the gear. The current hypothesis is that a dog tooth broke loose and made its way into 2nd gear, leaving the witness mark and shattering the gear. Inspecting the 3rd gear synchro, reveals that there's indeed a dog tooth missing.

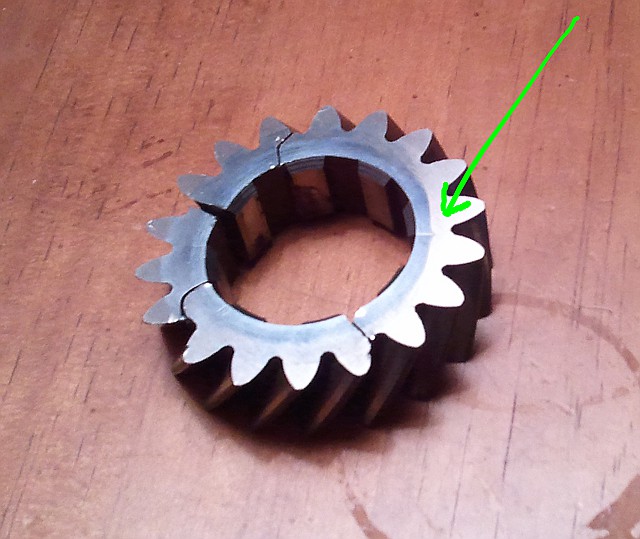

Looking at the backside of the gear reveals fracture lines (one at the green arrow). By the looks of it, these appear to have been there quite a while, but I may be mistaken.

Click to view attachment

Didn't snap any pictures of the shafts before it got dark, but the second gear is obviously toast, the third gear has damage, along with its synchro. Will get some pictures of that tomorrow.

I popped down to sean_v8_914's new hq to get a second opinion on the carnage. He was super nice and we hung around chatting for a while. He thought the trans wasn't that bad, and could be brought back in service with some new gears and synchros. He's going to make some phone calls to see if anyone has some useable parts lying around. Anyone else have any surplus gears I could use?

- Karl

Caught a cold today, so nothing of interest happening. Found a guy in Oceanside who might have some gear stacks that I can scrounge. Didn't get hold of Sean to see what he has found.

Here's the gear stacks with broken parts. Broken dogtooth in the middle of the picture.

Click to view attachment

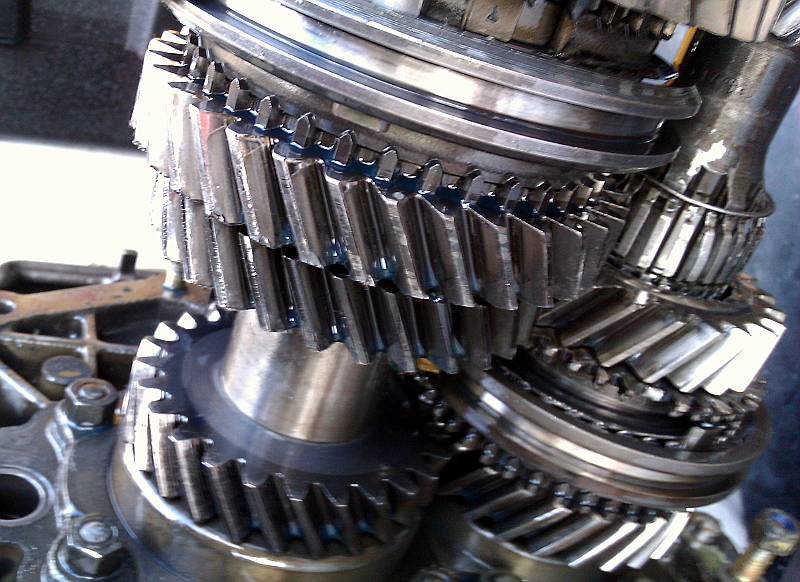

Damaged gears. 2nd, 3rd and 4th will have to be changed.

Click to view attachment

The dog teeth generally look quite worn, which probably is why it popped out of gear in the first place.

More when I know more.

- Karl

Your slider is worn, that is why it popped out most likely and broke the dog tooth. There is a needle bearing missing its needles there as well. That is what was stuck to the magnet.

Thanks for the insight. That's what I'm thinking as well, but it's good to have the experts weigh in. It doesn't look like the transmission was in the best of conditions before this happened.

- Karl

The Oceanside lead turned up empty, so no help there.

Considering downgrading to a 901 so I can drive the car while I fix the 915 or get another transaxle. Does anyone know if I can bolt the 901 straight on, or will I run into issues with the flywheel and clutch?

- Karl

Digging into rust issues while I'm considering my transaxle options. The car has been a California car all its life, so the rust hasn't consumed the car completely, but there is some to be found.

The driver's side hell hole has had standing water, due to the drain hole being plugged with a plastic plug. Is this how it's supposed to be? It's rusted pretty well, but seems to have survived.

The passenger sider hell hole is somewhat worse. Pretty bad pitting, but so far no holes in the long. How pitted can it be before I should replace it? Firewall, engine shelf and wheel well panel has holes, though.

Pictures to follow.

I would also suggest that you replace the main shaft while you have the trans apart for the updated/stronger 3.0L 915 main shaft. I had the same style that you have in my 911 and just broke all the gear stops off the main shaft with a stock 3.0L six. Granted the car is primarily a race car and sees quite a few hard launches on slicks but it is worth considering with the torque of a V8. Mine was caught about one launch away from shooting the gears out the end of the trans.

With all the parts you are looking at replacing, it is probably worth the gamble to just buy another used trans.

Yes and no.

Yes, there is a plastic plug. No, it's not supposed to hold water.

There are actually two plastic plugs, one larger one is for the /6 oil return line and is a solid plug. The smaller is a drain-plug that has a hole/slit in it to allow water to drain out of that area.
Those plugs usually get all blocked up with dirt. You can either try to clean it or do what most of us do and remove those completely allowing for the water to drain freely.

Pfft, that's the one.

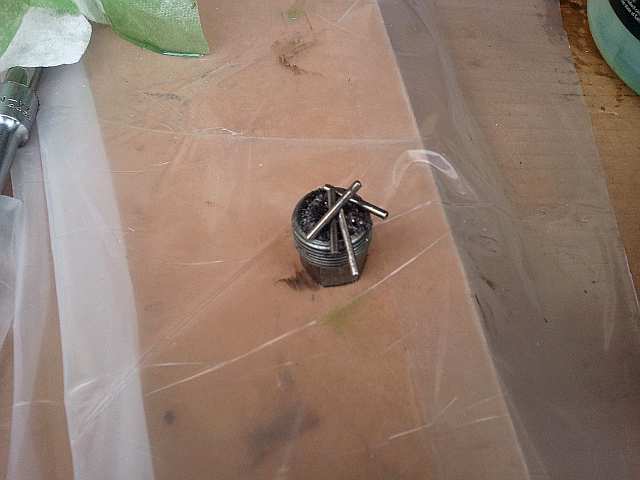

Click to view attachment

Solid with crap. Forgetting to put that in 30+ years ago would have saved me some rust issues now.

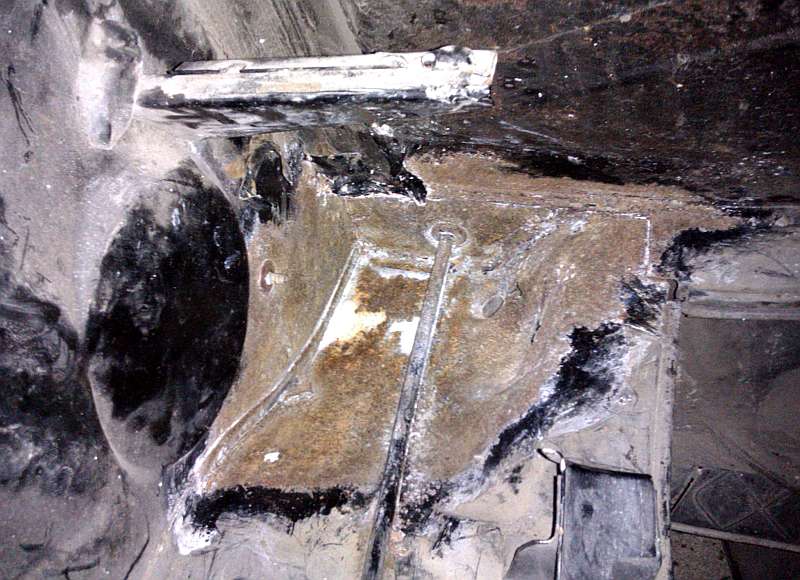

Pictures of the hell holes, as promised, treated a few times with Naval Jelly. Driver's side doesn't look so nice, but seems to hold up. Engine shelf has holes, but I don't need the shelf itself, so I'm not so worried about that.

Click to view attachment

Passenger side is a little worse. The pitting is more obvious, but no holes so far. All surrounding panels have holes, though.

Click to view attachment

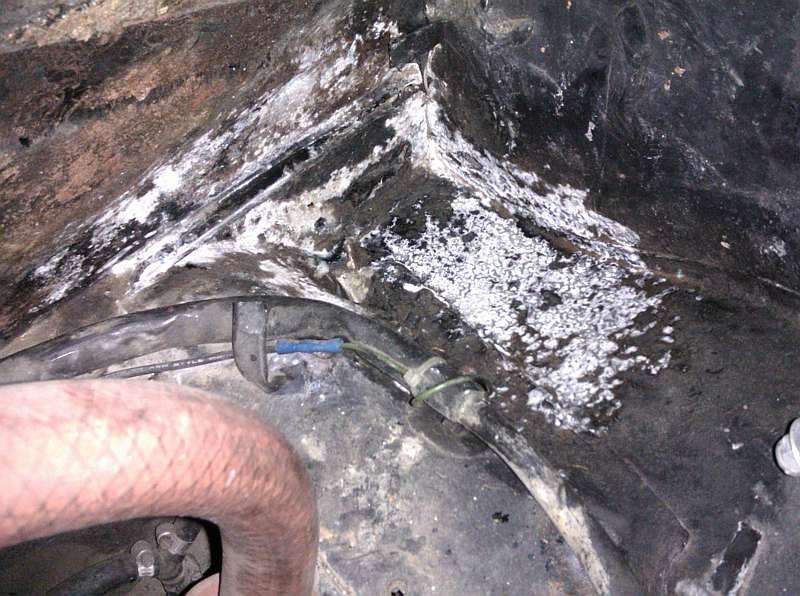

Rust removal continues. Have been derusting the hell hole and various other places. After a few days I finally found a hole in the long:

Click to view attachment

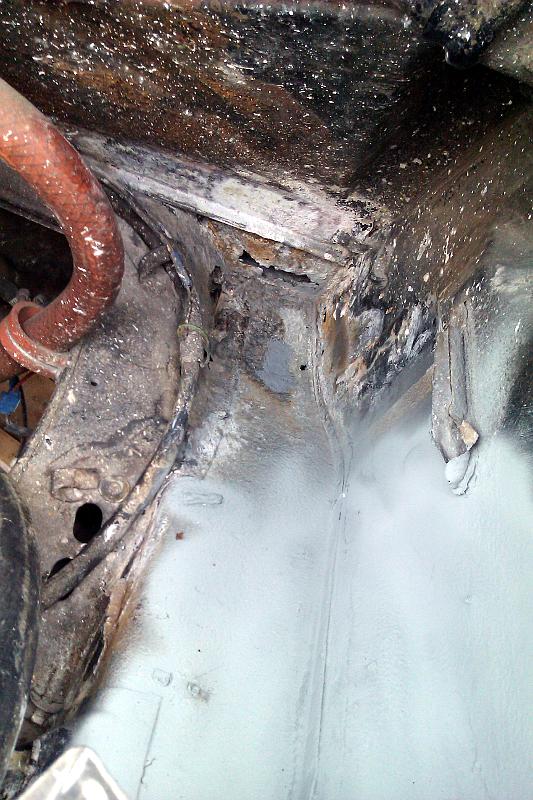

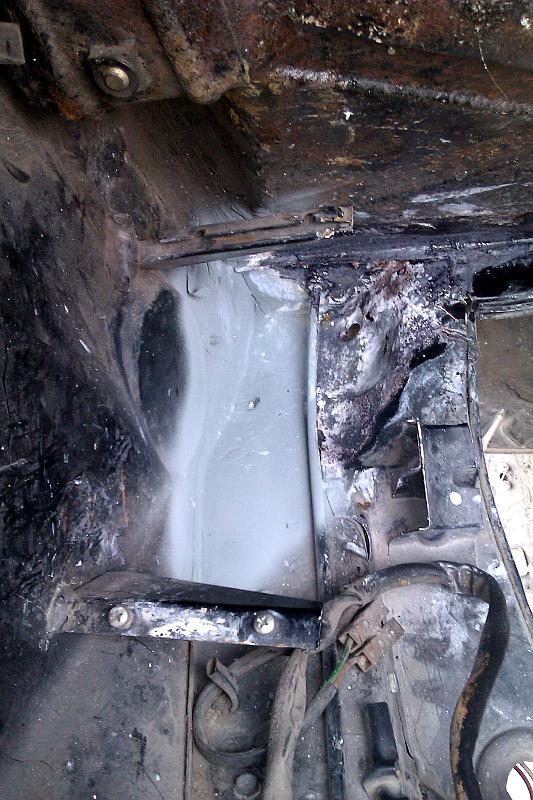

Further up, things appear to be in fair condition, the gray stuff is zinc primer over completely derusted metal. At this stage, some welding is required, so further derusting is pointless.

On the left hand side, things went a little better. I found two pin holes, but otherwise it seems to be pretty solid. I'll be getting an expert opinion on this when I get the car on all four wheels again. The engine shelf is toast, but that will be deleted in any case.

Click to view attachment

There appears to have been some leakage of water into the long, however. Under the jack post, the long has rusted through, probably from the inside. It's not very obvious from the picture, may have to snap another one:

Click to view attachment

Otherwise, collecting 915 parts. Getting a big delivery tomorrow.

...and the vertical wall (inner wheel house)behind the battery is a sheer panel. it helps keep the chassis box section (longitudinal) from flexing. while the vertical sides of the long keep things staight, the top and bottom of the long carry the load of flex in teh vertical plane. think I beam

snap a photo of the seam under teh hell hole. the bottom of the car where the 2 clam shells come together to form teh box

regardless, I would cut open that deeply pitted top of teh long from teh fire wall 12 inches back , up to the clean metal. cut off the lower fire wall, cut off teh engien shelf. once the long is open, you can treat the minimal surface rust you are going to find in there.

I doubt the jack point to be structurally compromising the long based on these photos but it is structurally important so carefull inspection will follow

once the top of the long is cut open we can inspect the jack point from teh inside

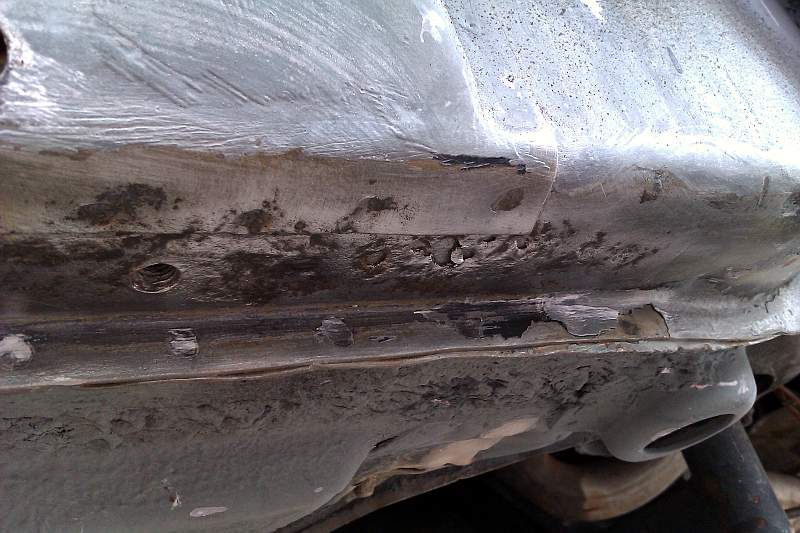

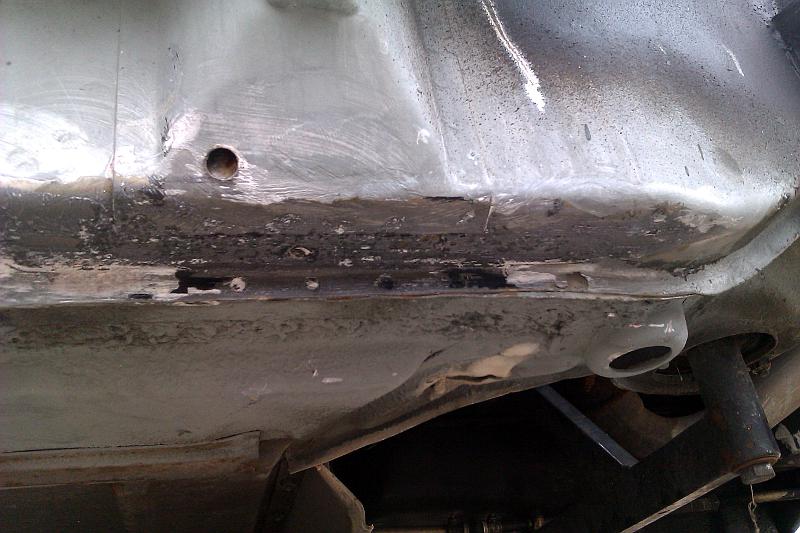

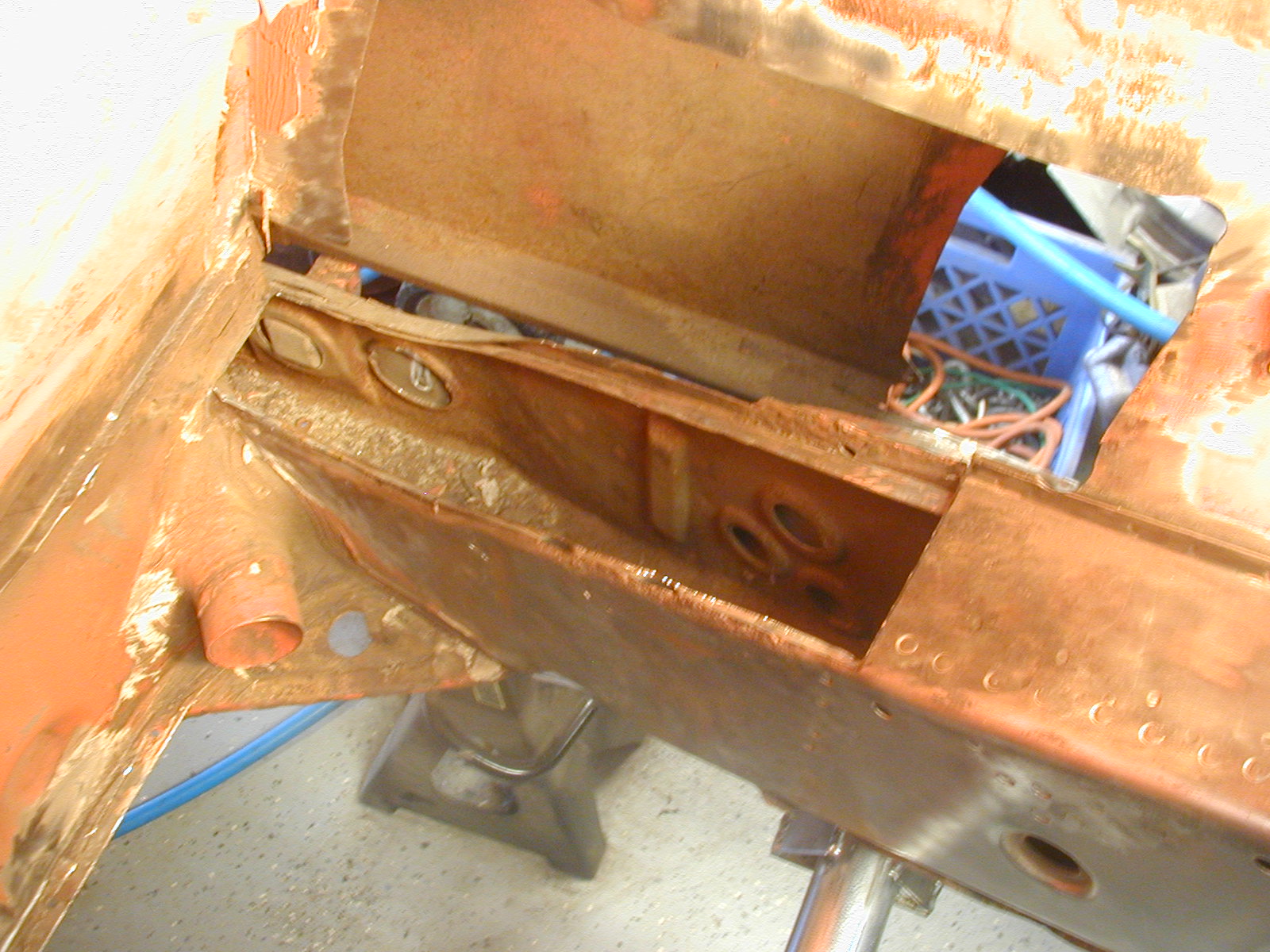

Got a better picture of the underside of the LHS long:

Click to view attachment

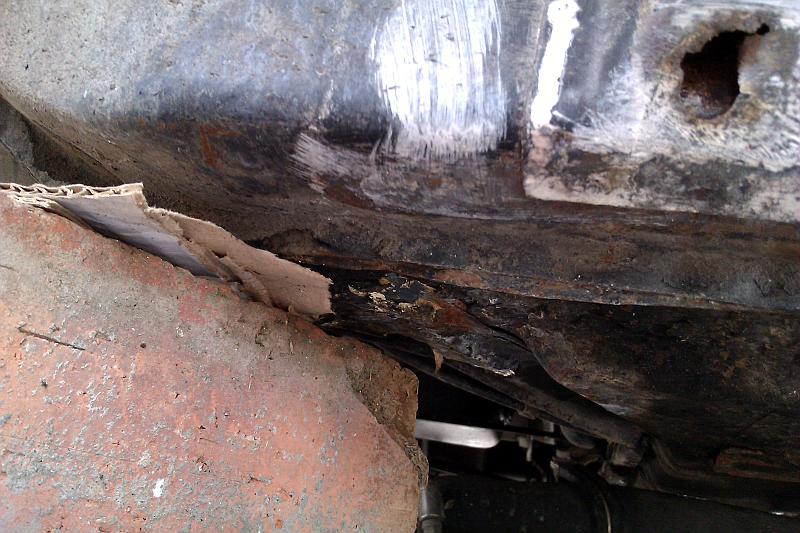

The underside of the RHS long appears to be better, but I have the car sitting on a tire on that side, so I haven't been able to dig into it too much. A cursory glance at the seam doesn't reveal anything too disturbing.

Click to view attachment

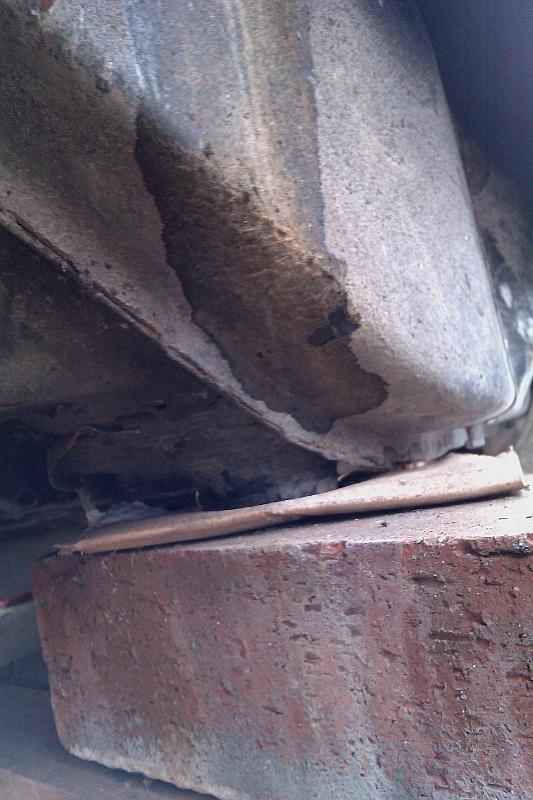

The jackpost on this side is not good, and will have to be changed. Hard to say if the damage is coming from the inside of the long, but it doesn't look like it.

Click to view attachment

viva la plasma cutter

Sounds like I need to pay you a visit.

Need to fix the transaxle first, so the car can be moved. I believe I have all the parts to fix it now.

it is MUCH better to do the chassis work while the motor is out. I have a trailer and a flat tow rig. I prefer flat towing for pre-75 big bumper cars.

we should psot ipcs of what we find inside teh long. i dont think it wil be too horrible but I do see rust between the 2 layers of metal on teh bottom. there is an inner C chanel stiffener that is wrapped in teh thinner outer skin that we actually see

doesnt someoen here have an expoded view of teh longs they could post for reference of discussion?

exp

I like this one too but doesnt show area of discussion well enough

since we are talking about messed up chassis...center tunel pic is good to have

This is not the best pic but may be helpful

Click to view attachment

Jim

Thanks for the illustrations, guys. I will have Sean cut open the long to see what needs to be done. This is something I want to get sorted out as soon as possible.

thank you. that view shows the two different layers of steel
now that it is opened up nicely, you can treat the inside rust and make a true assesment of structural integrity
coujld you show us a photo of the inside bottom?

The car has found its way to Sean's shop where the long was cut open to assess the damage. So far, things are looking good, mainly only surface rust on the inside. The surrounding panels need to be replaced, hopefully it won't take too much time.

I've been shopping for new gears, synchronizers, dogteeth and sliders for the 915 transmission. Preliminary assembly of the gear stacks looks like this (haven't pressed everything in place yet):

Click to view attachment

Looks like I might have a transmission yet.

The ring and pinion has fortunately not suffered any damage. The input shaft measures .0045" runout. Stepped by Wholesale Automotive Machine here in San Diego, but they thought they would only make things worse by attempting to straighten it, and opined that it should be too little to matter. Apparently, .003" is the permissible runout. Any suggestions for how to proceed?

assemble and run it till it spits chuncks

grinding, cleaning, cutting...

compared to others, this chassis is fairly solid. that does not mean it is free of isuses. the main issue I saw that needed correction was that the rear area spot welds were letting go. once this happens, things start to move and stress turns to cracks and further seam separation. most of the rust came from the "rust incubators AKA rocker panels

********IF YOU ARE READING THIS AND LOVE YOUR 914******
**REMOVE YOUR ROCKER PANELS, CLEAN OUT IMAPCTED DIRT NEAR JACK POINTS, BLOW OUT CHASSIS DRAIN HOLES, OPEN UP ENGINE SHELF DRAIN HOLES ASAP !!!***

the rust seems to weaken the spot welds. then they move and pull untill they start to separate.
I drill w spot weld bit in between the original spots, then I add new spot welds and stich it together. this spot weld issue is most common on teh suspension ears. once they come apart, the cracks turn to rips. this chassis was in teh infancy stage of this so there were no rips yet. inside the ears were fairly clean, a rare find on right side

My friend Bruce Stone, known here as the Porsche pedal set rebuilding guru and artist turned me on to this image hosting site I am playing with. I hope it works.
http://img513.imageshack.us/img513/9113/in...ngtoshockto.jpg
http://img130.imageshack.us/img130/3223/bo...entchassisr.jpg
http://img812.imageshack.us/img812/1008/cabingrind.jpg
http://img703.imageshack.us/img703/5756/cleanyourdrainsm.jpg
http://img814.imageshack.us/img814/156/crackedlong.jpg
http://img814.imageshack.us/img814/3120/dscn6963.jpg
http://img715.imageshack.us/img715/5323/engmanmod.jpg
http://img16.imageshack.us/img16/3899/engmenskintight.jpg
http://img703.imageshack.us/img703/6950/gtfabmetal.jpg
http://img508.imageshack.us/img508/2266/gtgrindleft.jpg
http://img11.imageshack.us/img11/7508/gtgrindrtdentedin.jpg
http://img513.imageshack.us/img513/4673/gtsteel.jpg
http://img534.imageshack.us/img534/9136/innerwheelfebrt.jpg
http://img146.imageshack.us/img146/1299/in...heelfebrtsm.jpg
http://img200.imageshack.us/img200/9113/in...ngtoshockto.jpg

this might be overkill but Im playing with it

http://img833.imageshack.us/img833/3594/leftebrakecrack.jpg
http://img96.imageshack.us/img96/5186/left...llcablepull.jpg
http://img828.imageshack.us/img828/7609/leftlonginside.jpg
http://img16.imageshack.us/img16/4329/leftlongtopwall.jpg
http://img522.imageshack.us/img522/3637/leftlongtopwall2.jpg
http://img130.imageshack.us/img130/5483/leftrail.jpg
http://img709.imageshack.us/img709/581/rta...singsupport.jpg
http://img573.imageshack.us/img573/5576/rt...ssingsuppor.jpg
http://img69.imageshack.us/img69/152/rtjackptrust.jpg
http://img62.imageshack.us/img62/8209/rtjackptrustsm.jpg
http://img38.imageshack.us/img38/8214/rtjackptrusty.jpg
http://img210.imageshack.us/img210/7251/rtjackptrustysm.jpg
http://img694.imageshack.us/img694/52/rtlongbottom.jpg
http://img692.imageshack.us/img692/7442/rt...insidebelly.jpg
http://img401.imageshack.us/img401/2968/rt...sidebellysm.jpg
http://img822.imageshack.us/img822/2703/rt...ideheattube.jpg
http://img19.imageshack.us/img19/2227/rtlo...toshockclea.jpg
http://img831.imageshack.us/img831/4691/st...sisplatefab.jpg

the images with "sm" at the end of the name are small low resolution

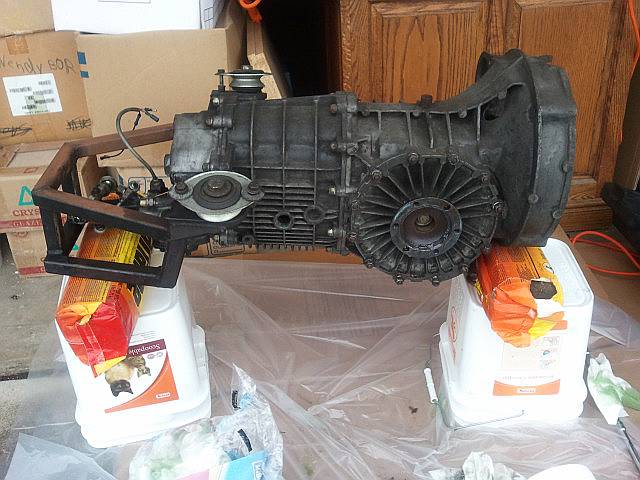

While the car is in for welding, I've been working to complete the 915. The problem with transmission rebuilding, is of course the need for a multitude of special tools. To torque on the nut for the main shaft, P 252A is required. We got a huge 1 5/8" socket from Sears ($20) and hacked it apart:

Click to view attachment

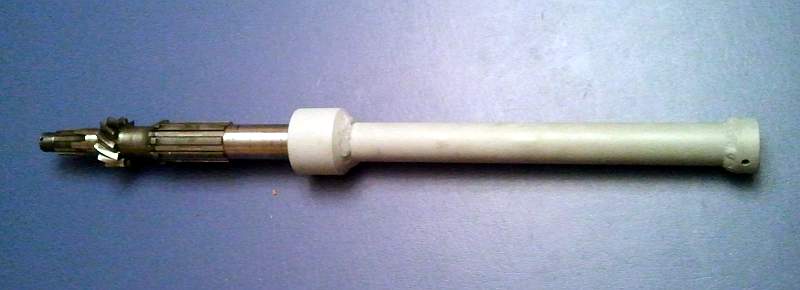

Lots of work just to put some torque on a nut, but works like a charm:

Click to view attachment

that stupid crack by the E brake made me chase it all the way under the long. it wrapped under the floor then up 3.5 inches forward.
REMEMBER THAT ZINC AND GALVANIZED FUMES ARE TOXIC
good thing I can still hold my breath for about 2 minutes (your tax dollars hard at work)

What does holding your breath have to do with tax dollars at work??

(tax payer financed) Navy training to hold breath for long time

As a Yeoman? Are you still BSing people about your days as a "SEAL"?

F-ing Squids... SEMPER FI

no, actually I was a nurse in the coast guard

for some odd reason the chassis rail from teh rt shock tower to the trans mound was hammered inward hard. it was flattened out very deep. WTF? tire clearance? ...but only on one side and it looks like it was hammered in

my harbour freight stud welder died so I welded on some franken-bolts to pull it out prior to adding th GT stiffeners. this is after seam welding. I better re-measure this after all the beating, pulling and welding

The Navy was created so Marines would have someone to dance with.

Marines were the onboard security force of the Navy. They were the guys swingin over teh gunnals onto the enemy ships thru cannon foddar

Hey Sean,

Looks like you are getting there. The two things I hate most...rust and tranny problems.

Hey I would love to see pics of engine and cooling system set up.

the coolign system is early Renegade fro when they were in Redlands. Ill snap some photos in a day or two. engien is ZZ3 factory AL heads but someone put a carb on it, yuck. stock it was 348hp I think. Karlo will chime in if Im wrong.

345 hp @ 5200, 387 lb-ft @ 3250. The carb setup really is a POS. I want to go to an LS engine (for the lower weight) some time in the future, so I'm not sure if it's worth spending much time optimising the existing engine setup.

those Edlebrock carbs are about $250 new and work well staight out of the box

Good tip. I'd have to learn something about carbs, though, something I have been pretty determined never to do.

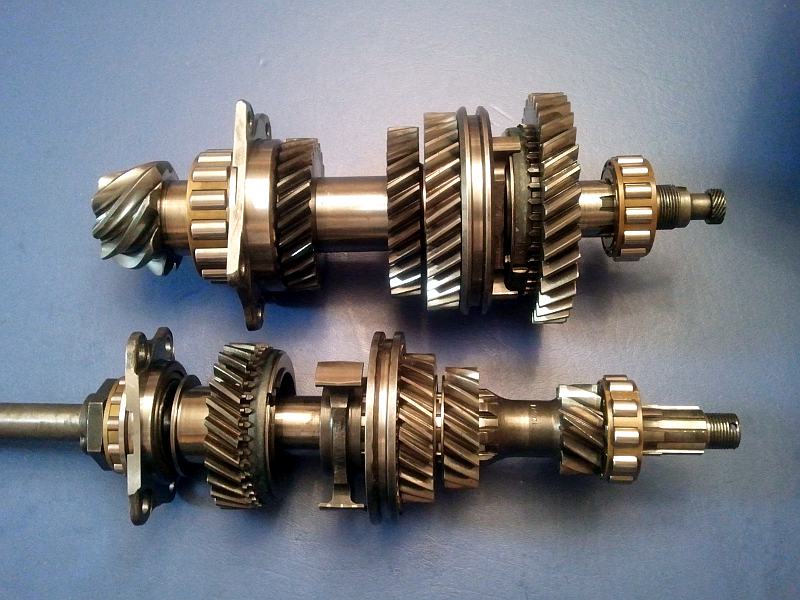

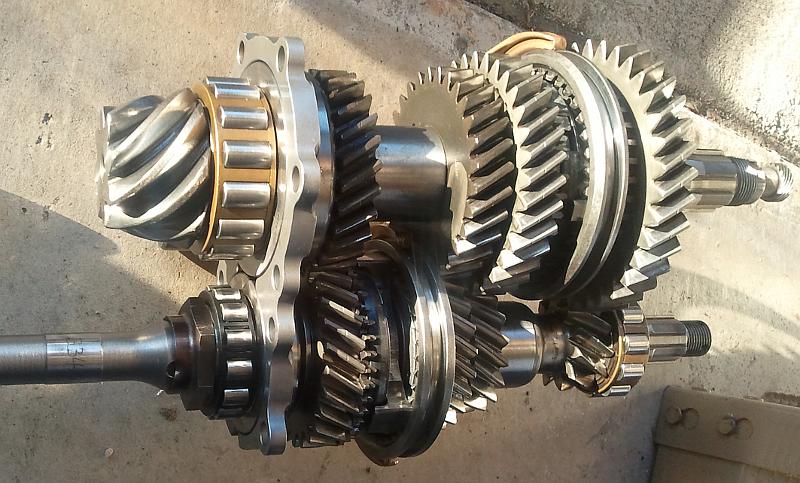

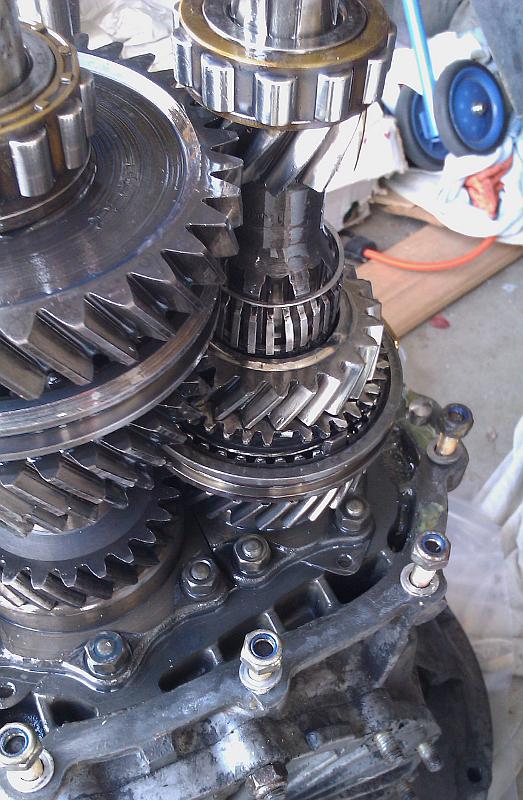

Gear stack going back in the transmission:

Click to view attachment

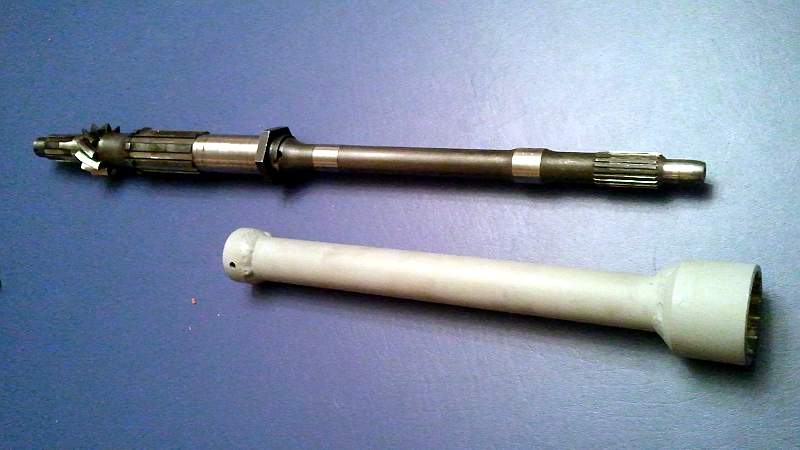

I opted to ditch the main shaft/1st gear I had and get a newer one which wasn't worn. As a bonus, it's the later stronger shaft (old was weaker revision 1), like brilliantrot pointed out earlier. Replaced the fourth gear as well, since the one I had was worn through the hardening. New thrust bearings, etc., and got the CMS one piece bearing retainer. Not many original parts left in the trans now. It should all make it better and stronger, though.
