I have my engine out for a bear tub restoration. I am reassembling everything and almost ready to put the engine back in.

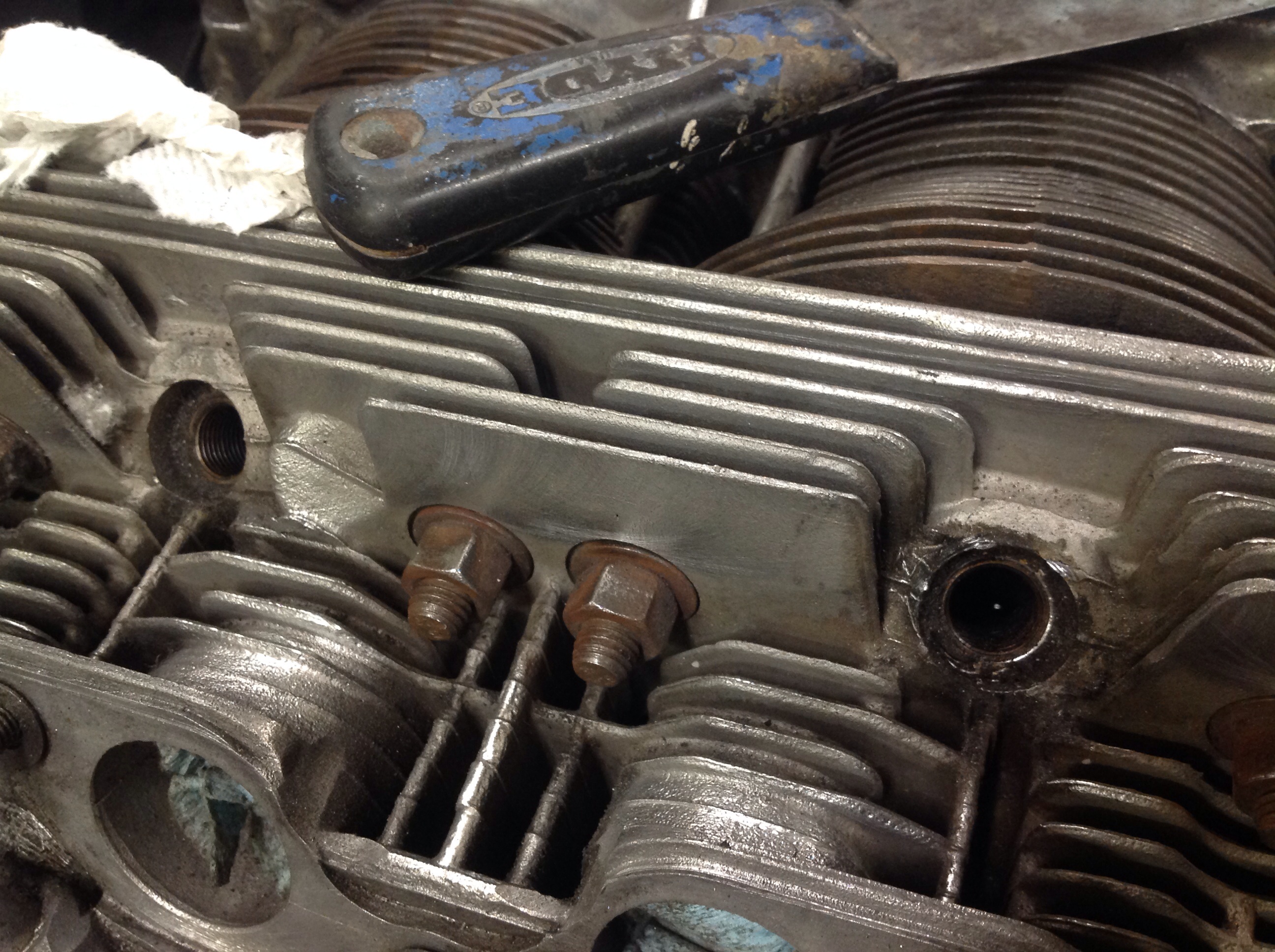

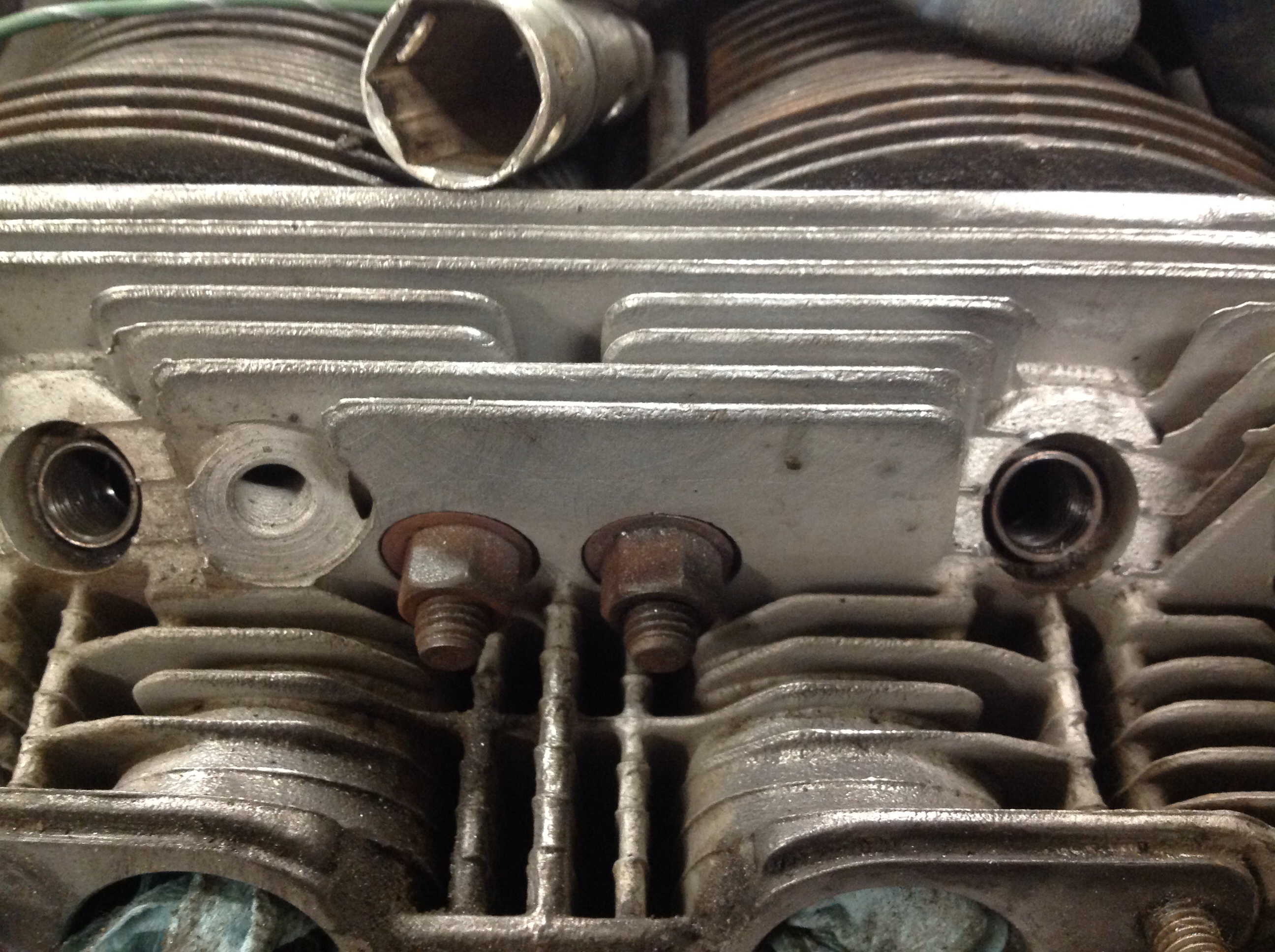

As I was cleaning things up replacing the tube seals and getting ready to adjust the valves I found these threaded sleeves in my spark plug holes. Click to view attachment Click to view attachment
Looks like a PO was a DA?
Did they strip all of the spark plug threads and use threaded inserts?
I probably wouldn't have even noticed but they are loose and partially back out when I took out the plugs.
They are at different depths now but do they bottom out when the plug is tight?
I can't tell because the base of the plug covers the sleeve when the plugs are in place.
I really don't want to take the heads off. I had no issues prior.
If it ain't broke don't fix it?
Or am I risking a bigger problem?
Hawker
Well I'd say you just might be on to something their . It very well could be a much bigger issue if left . Just my thought ! Not to mention I ran it that issue and learned some valuable wisdom .
Erben914
QUOTE(Hawker @ May 13 2014, 10:24 PM) *

Well I'd say you just might be on to something their . It very well could be a much bigger issue if left . Just my thought ! Not to mention I ran it that issue and learned some valuable wisdom .


We'll spill it!
Enlighten me. pray.gif
infraredcalvin
If they're loose, there is a problem, pay now or pay more later. Try removing the insert to see why they're loose, a good machine shop will be able to weld and tap new threads, also a good time to have them check valves/seats...
Mblizzard
I had a car with the inserts and never had an issue for a number of years. But when we pulled the engine for a rebuild the thought was to fix it correctly. So when we pulled the heads we found a series of cracks around the plug openings. Don't know if the cracks were there first or if the inserts caused the cracks. However the cracks were eventually going to cause a problem. So I think it is worth pulling the heads to be sure they were done right and that there are no cracks. Easier now than having to pull the engine again.
Joe Ricard
Time big insert. I had them in several HI Preformance type IV's It's no big deal unless they are loose.

For a time Aircooled heaven was doing this on new heads to prevent other issues and use a smaller plug to give more meat between the valve and plug.

Those are not Heli-coil but time certs . So back down off the cliff and leave it alone.
Cap'n Krusty
I disagree, Joe. If they're loose, they're toast. Off with the heads! They MUST be replaced. By design, Time Serts lock into place, and if they're not locked in position they're a disaster waiting to happen. Odds are there are cracks in the area around the plug holes and the inserts have come loose.

Don't let bad news become a tragedy!

The Cap'n
JStroud
Eric, HP machine in Victor(Lodi), has done my machine work for years, Harry did all the machine work for my 2056. I'll find his contact info for you.

Jeff
Hawker
QUOTE(Erben914 @ May 13 2014, 10:33 PM) *

QUOTE(Hawker @ May 13 2014, 10:24 PM) *

Well I'd say you just might be on to something their . It very well could be a much bigger issue if left . Just my thought ! Not to mention I ran it that issue and learned some valuable wisdom .


We'll spill it!
Enlighten me. pray.gif

Listen to the captain / crunch ! These heads are casted some have micro crack flaws , some don't ! Mine did & I could of lost my motor lucky for me we just needed to replace the heads if not caught in time it could have lost all to fire ! Are you in to taking chances ? These's other threads who say don't worry probably have heads with out flaws but if they did I'm sure they would be singing a different tune ! Wisdom is what one learns, ignorance is expensive shades.gif hissyfit.gif av-943.gif
JStroud
Here you go, HP Engine and Machine
17327 N Bruella Rd
Victor CA 95253

209-368-8355, Harry is the owner.

Good luck,
Jeff
Cap'n Krusty
BTW, loose plugs, even plugs tight in loose inserts, can cause the exhaust gasses to torch right through the gap provided by their being loose. That's not something you want to have happen to your engine.

The Cap'n
Erben914
Thanks for all the input guys.
I guess I won't be putting the motor back in this weekend. mad.gif
I will pull the heads and post some pictures for further advise.
I will probably be calling Jeff's machinist soon.
Thanks Jeff.

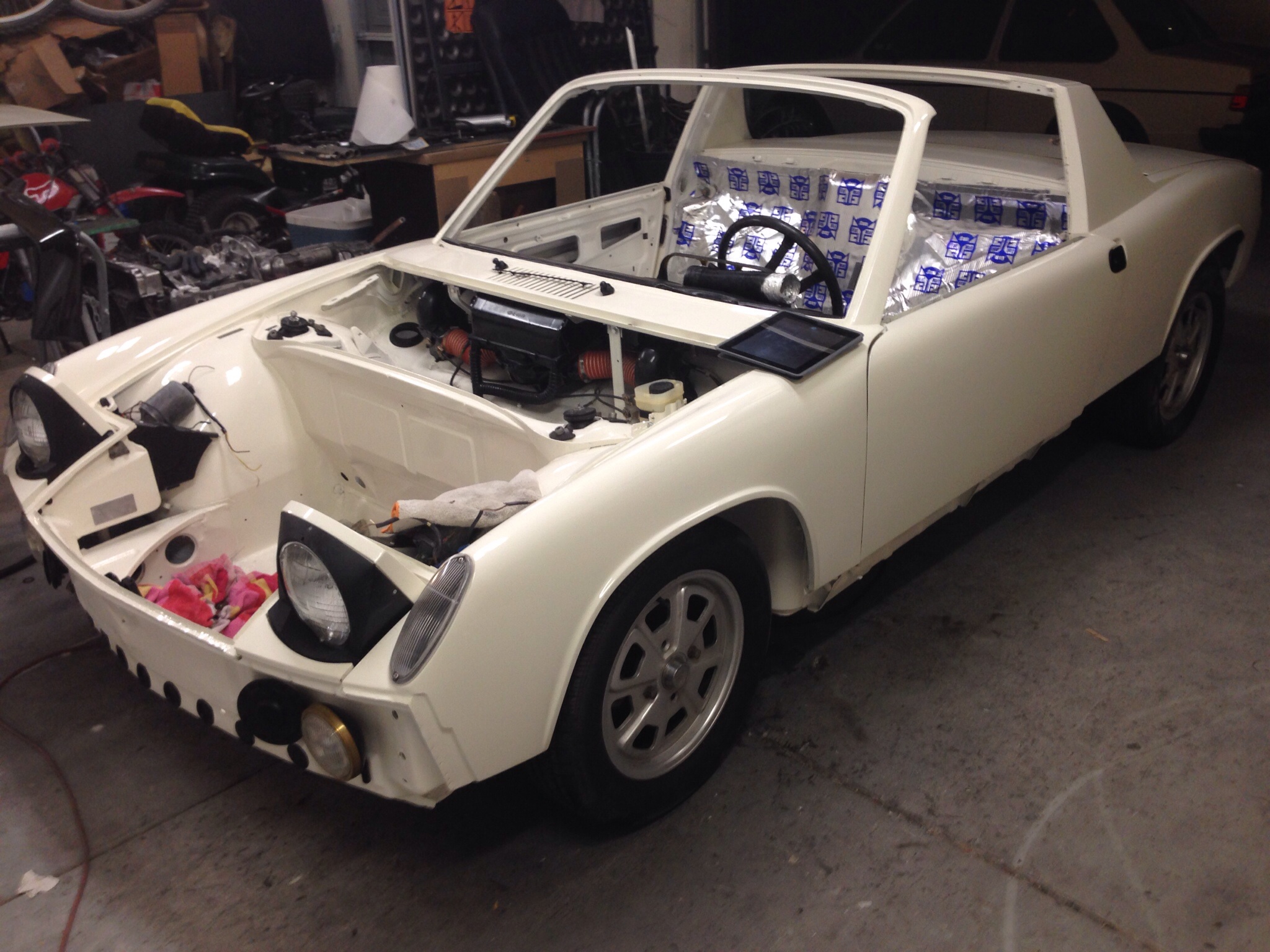

And the resto was going so well too.
Click to view attachment Click to view attachment
Mblizzard
QUOTE(Erben914 @ May 14 2014, 05:18 PM) *

Thanks for all the input guys.
I guess I won't be putting the motor back in this weekend. mad.gif
I will pull the heads and post some pictures for further advise.
I will probably be calling Jeff's machinist soon.
Thanks Jeff.

And the resto was going so well too.
Click to view attachment Click to view attachment



Damn! That looks nice! Great work.
JStroud
Damn Eric that's looking awesome, not bad for a garage paint job poke.gif
Guess you'll just have to put more together while waiting for the motor.
Really starting to come together, can't wait to see it.
Erben914
Thanks.

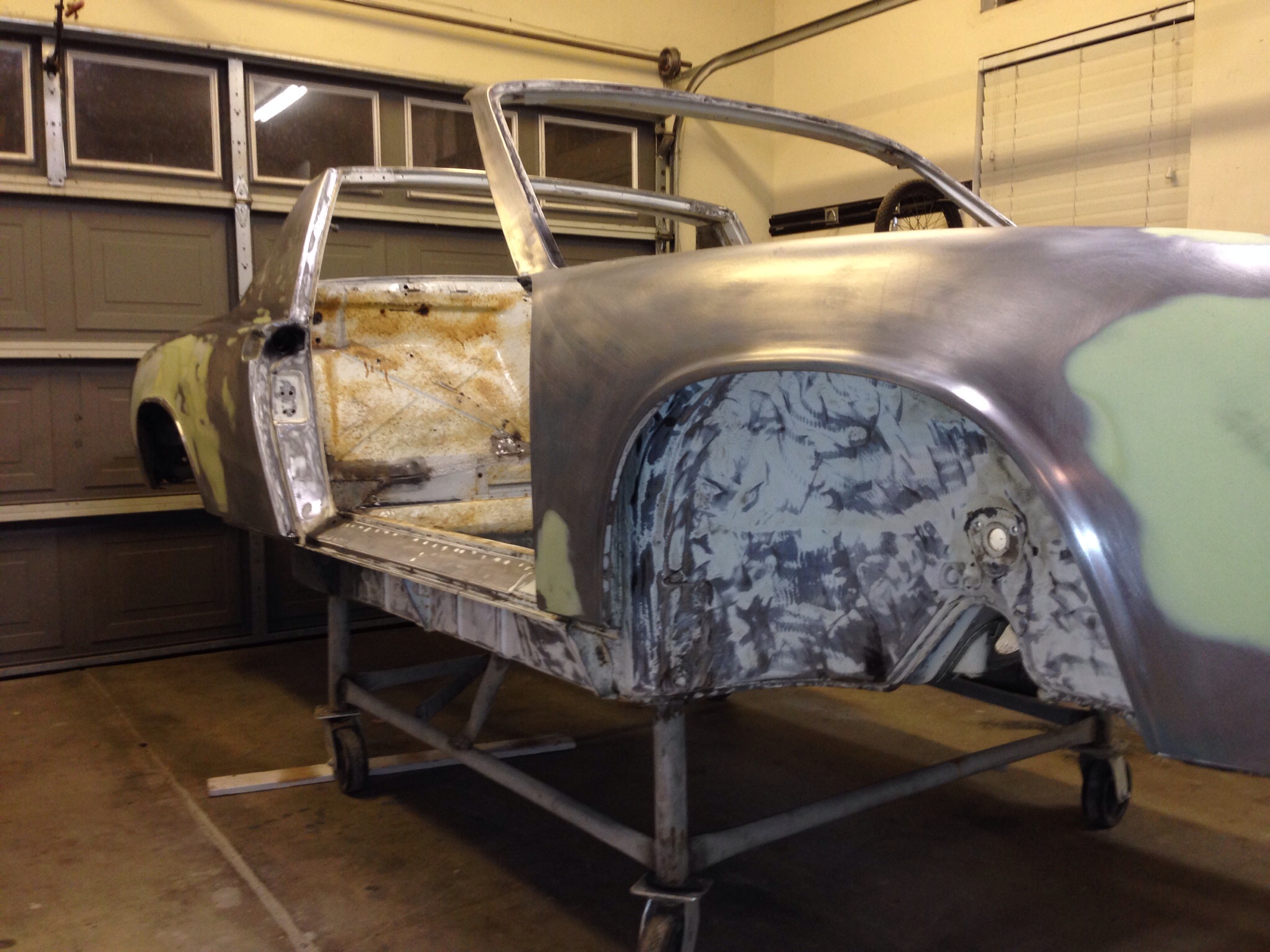

I pulled it apart in November and was trying to make the wcr this weekend. I didn't quite make it.

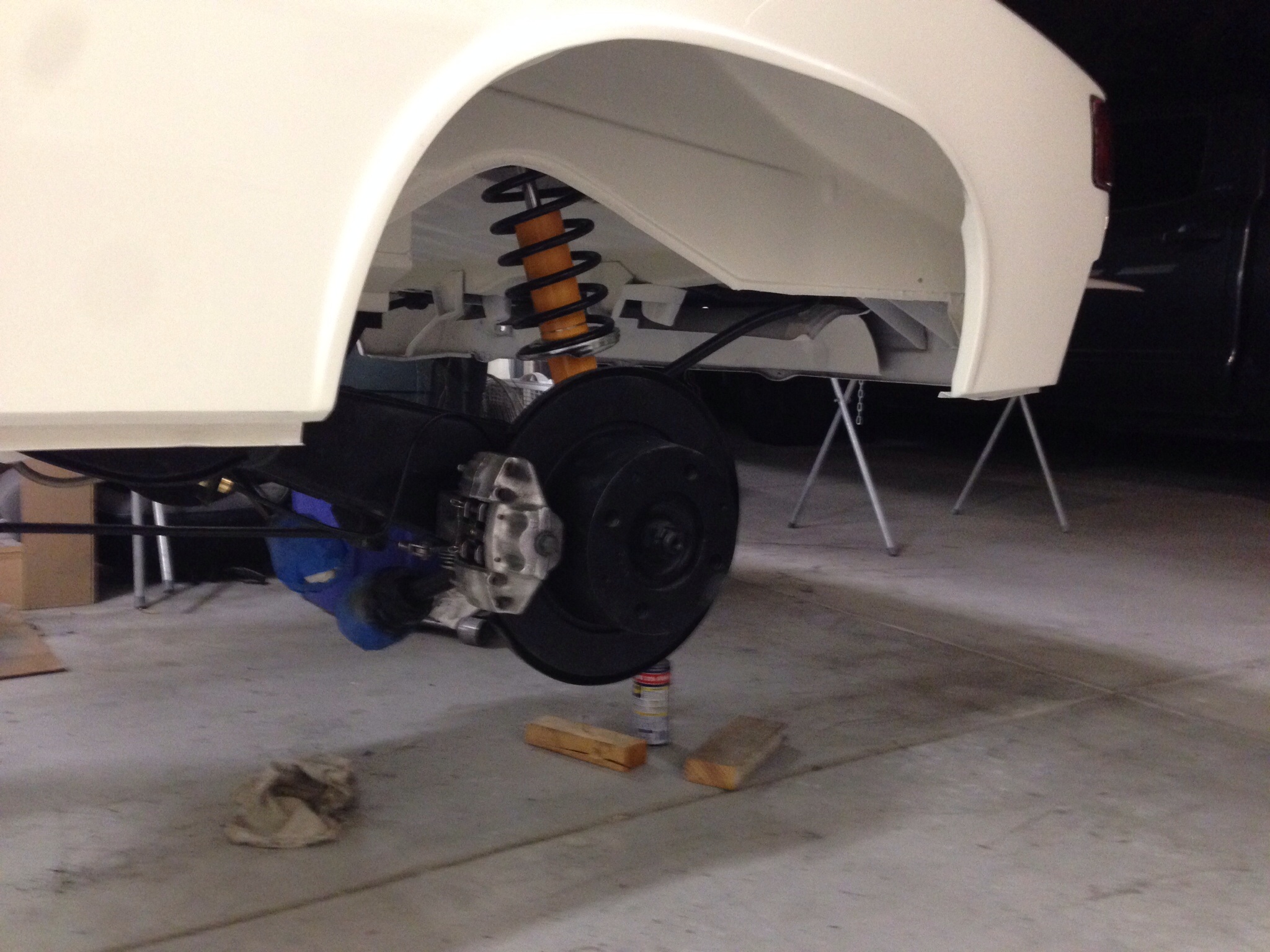

I stripped it to bare metal, repaired a few bad rust areas and painted it in my garage
It is coming together better than I expected. piratenanner.gif

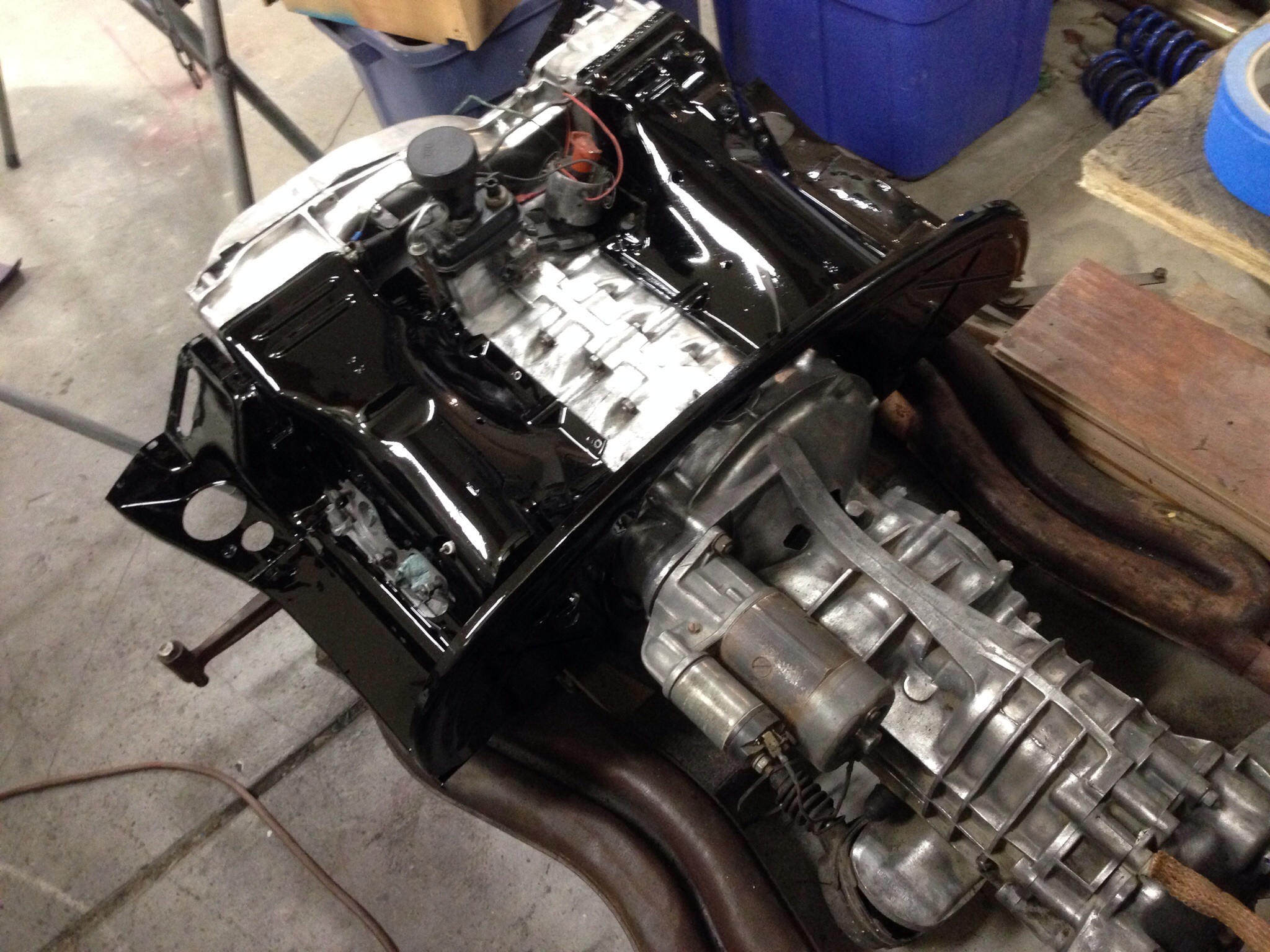

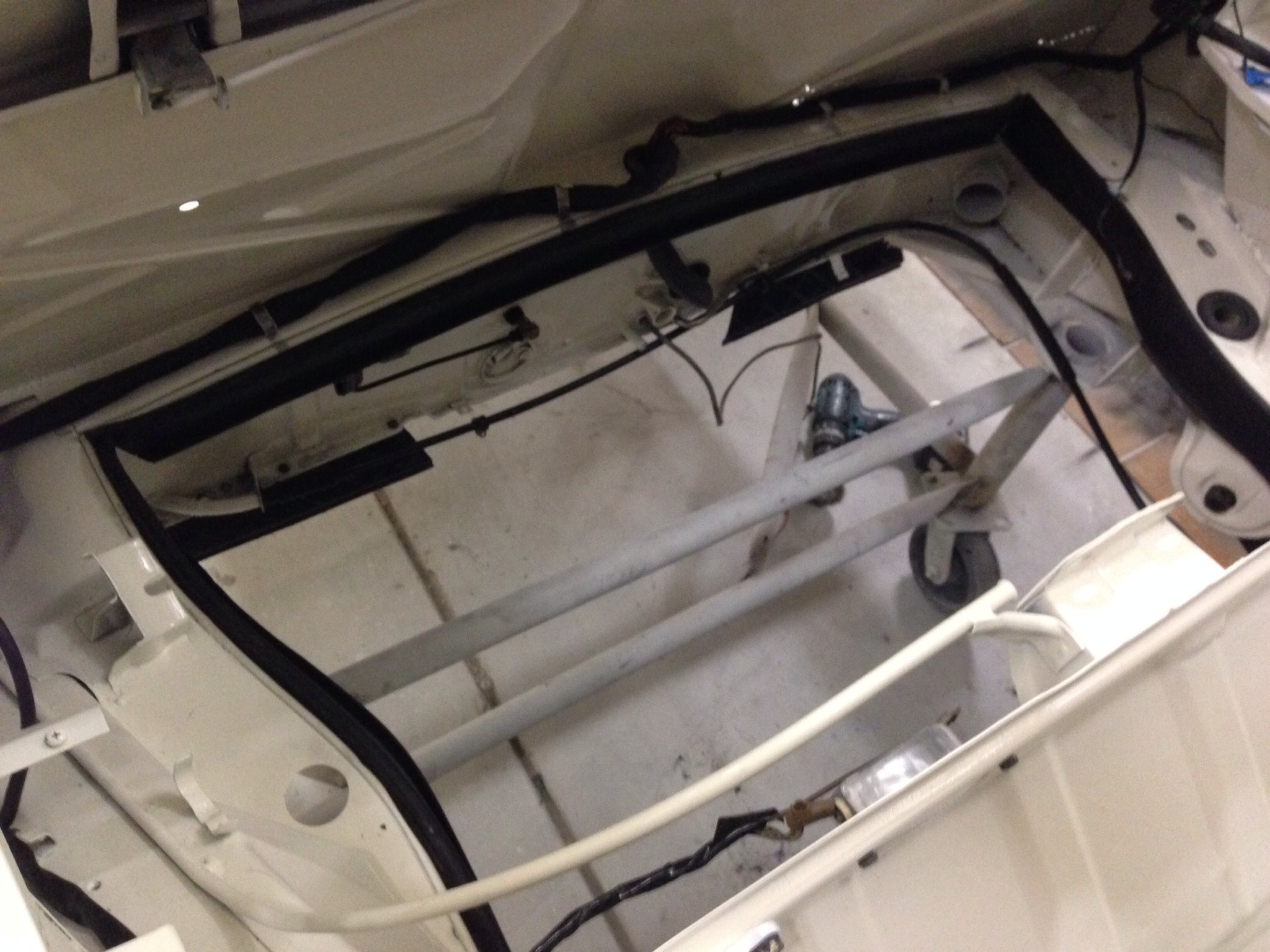

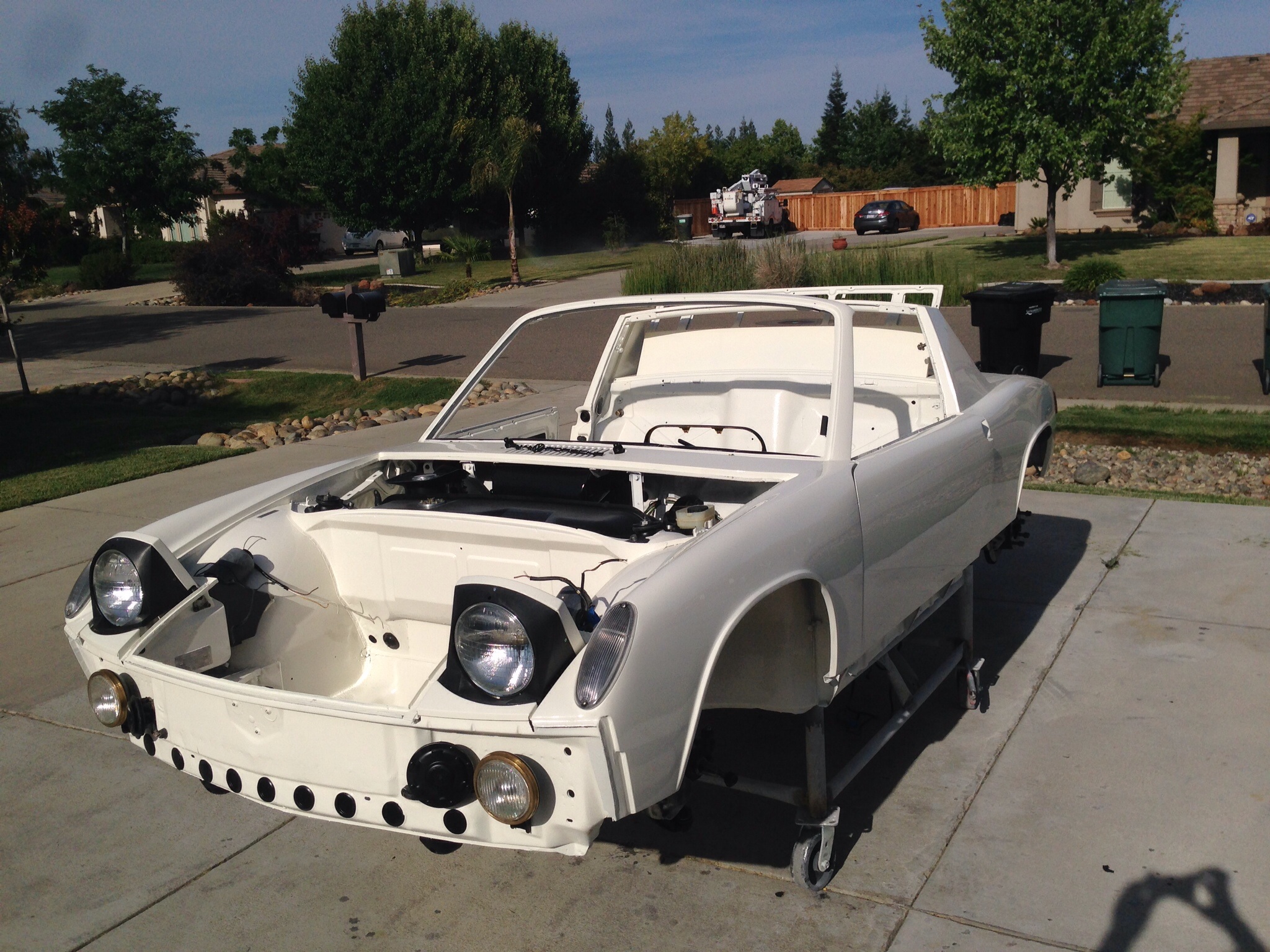

Click to view attachment Click to view attachmentClick to view attachmentClick to view attachment
Erben914
[quote name='JStroud' date='May 14 2014, 06:40 PM' post='2037585']
Damn Eric that's looking awesome, not bad for a garage paint job poke.gif
Guess you'll just have to put more together while waiting for the motor.
Really starting to come together, can't wait to see it.
[/

Thanks. It was a lot of work.
My neighbor wants me to paint his car now.
Erben914
Hey any tips on pulling the head? I know to keep the push rods in order. Anything I need to mark or take a picture of before I go at it??
Sorry to be such a rookie.
This is uncharted territory for me.
jmill
Had a single port VW motor overheat on me. Heads got hot, expanded, and blew all four plugs out. Tore up all the plug threads. I time certed them and built up a new engine in the meantime. Losing a belt or heater hose does it. If you got it apart fix it right.
Mblizzard
QUOTE(Erben914 @ May 14 2014, 06:06 PM) *

Hey any tips on pulling the head? I know to keep the push rods in order. Anything I need to mark or take a picture of before I go at it??
Sorry to be such a rookie.
This is uncharted territory for me.


Make sure when you put it back together you get the push tube retaining springs in correctly. Had to check and redo mine a couple of times to be sure they were right.

Check your valve guides if they go to the shop, just plan on replacing them. Inspect your exhaust studs carefully. Use the good Viton oil tube seals. And take the heat shield off the bottom side of the head before trying to pull it off. Makes it much easier! headbang.gif

Plan on replacing all of the cheese head tin screws with stainless steel hex head ones. Use anti seize on everything!
Erben914
Thanks for the advice.

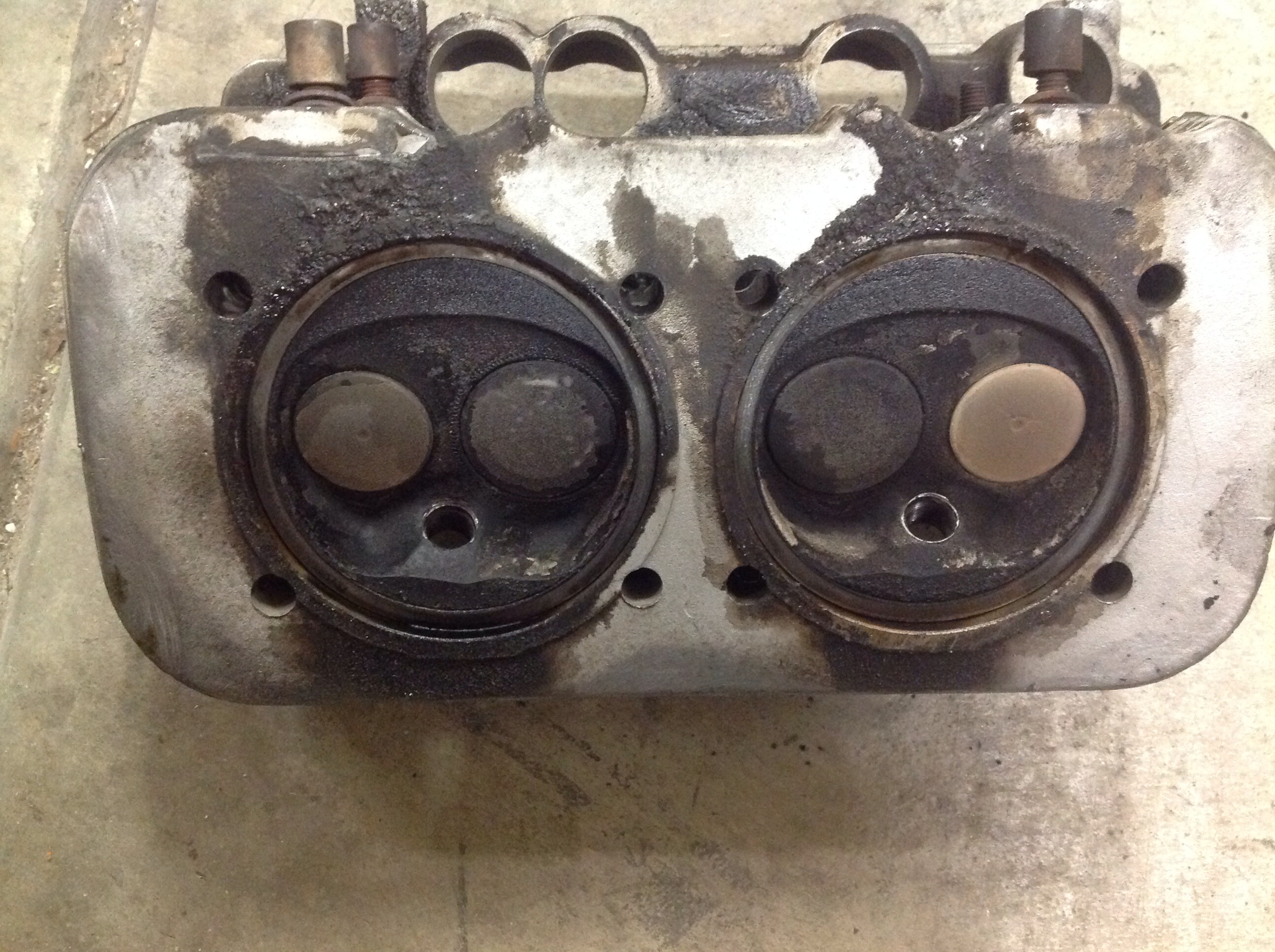

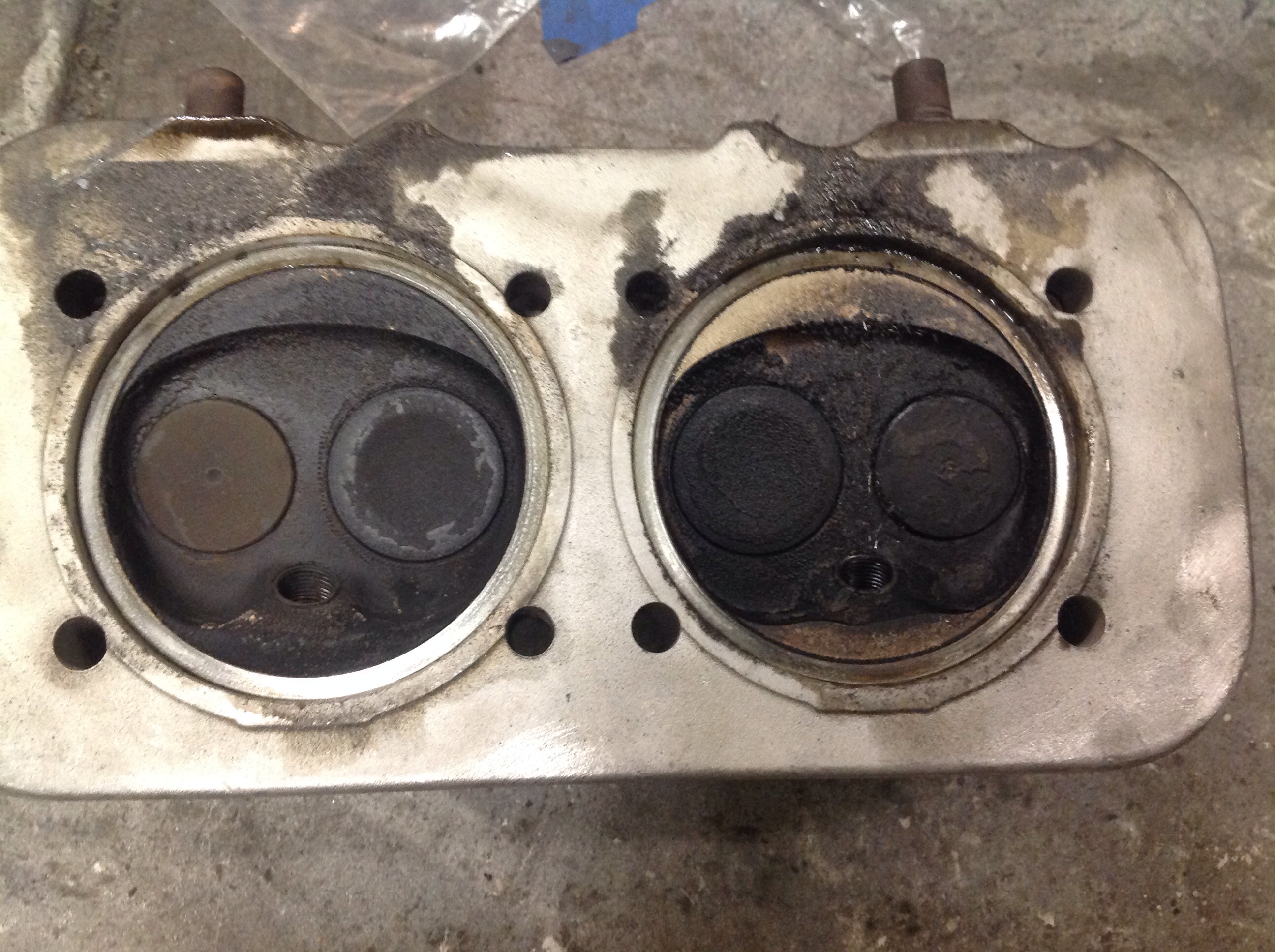

Here is what I found. Do you see anything else wrong here? I will clean them up and inspect further. One combustion chamber has a lot more carbon/soot.

Should I pull the cylinders?
Should I think about new rings?
This has been apart before. The cylinders are numbered with a sharpie.
Any Click to view attachment Click to view attachment
Erben914

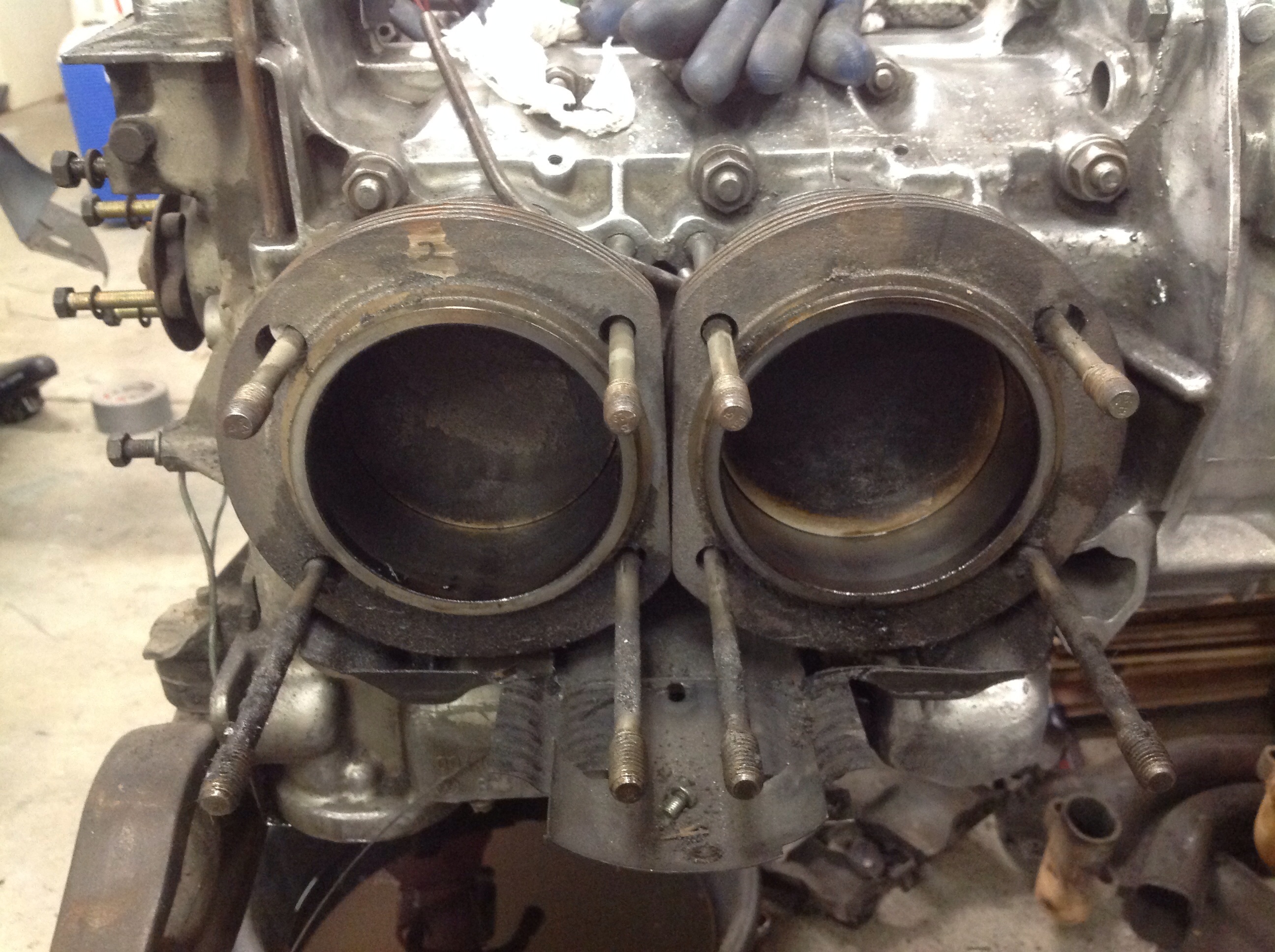

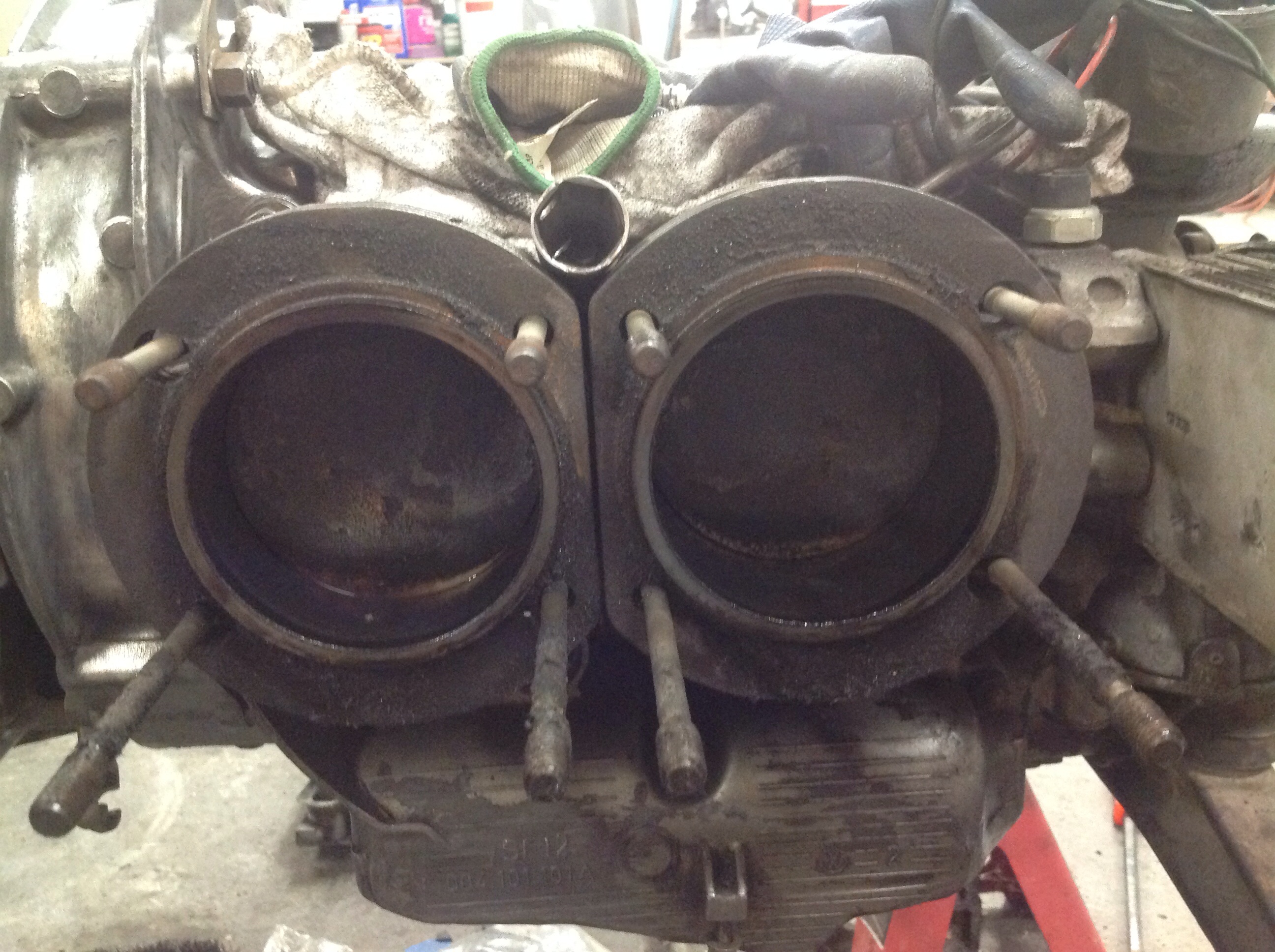

Click to view attachment Click to view attachment
Mblizzard
Clean the area around the spark plugs and look for cracks. If the inserts are tight and seem to be done well then I think it is a judgement call on what to do about them. As the Cap'n said, if they are lose then thy are toast. If you are going to do a valve job I would fix them. But because you were putting the engine in they must be in pretty good shape. If there are no cracks and all are tight then it seems like you could just clean them up and go back together.

Others may disagree here but unless you are doing the heads I would leave the rings alone. This is based on the assumption that the engine was running well and had good compression when removed. At this point, all of the parts are playing well together. Changing the rings could change the compression and cause changes.

Of course for me, it would be hard to take it that far down and not fix everything I could.
Erben914
I couldn't find any cracks but two of the inserts are loose.
I dropped the heads off at the machine shop today. They are going to clean them up and give me a recommendation.
One of the intake valves was leaking when I did a test with gas.
I'm in for a valve job at least.
It looks like I have the flat top pistons, but I don't know if they are still good or not.
Should I pull the cylinders off to clean the outsides and inspect at this point or wait to get the heads back to do a compression test?
Will I be able to get the pistons back in without a ring compressor?
Sorry for all the questions. Any guidance is appreciated. biggrin.gif
