PanelBilly
Dec 9 2014, 02:46 PM

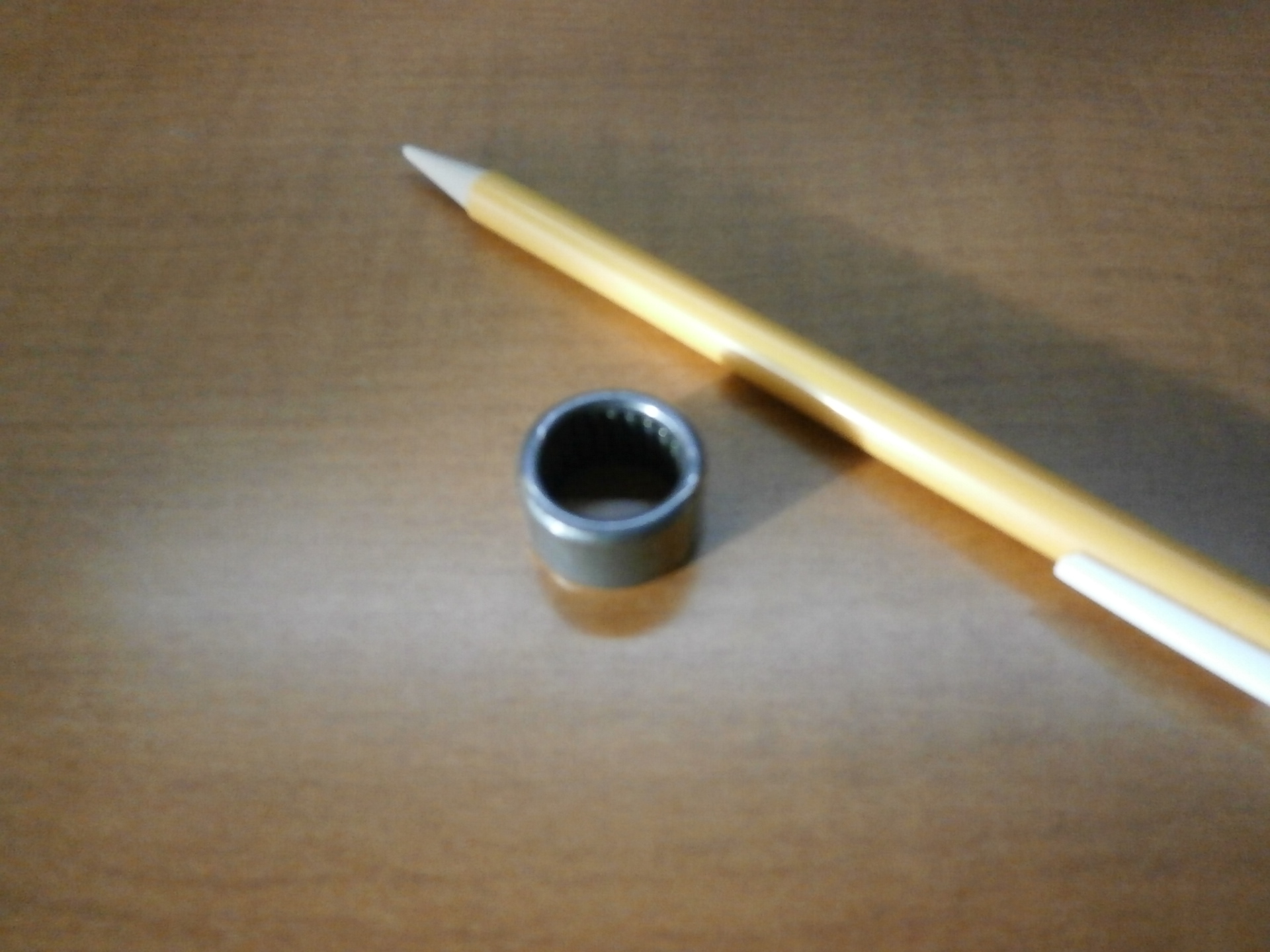

Found this with the clutch parts. It looks like a bearing for the tranny, but I'm not sure. Is it part of the clutch assembly?
Click to view attachment
McMark
Dec 9 2014, 02:50 PM
pilot bearing
PanelBilly
Dec 9 2014, 04:41 PM
So where does the pilot bearing go?
Mike Bellis
Dec 9 2014, 04:42 PM
QUOTE(PanelBilly @ Dec 9 2014, 02:41 PM)
So where does the pilot bearing go?
In the flywheel
SirAndy
Dec 9 2014, 04:45 PM
QUOTE(PanelBilly @ Dec 9 2014, 02:41 PM)
So where does the pilot bearing go?
Inside the center of the flywheel. It holds the front of the transmission shaft in place. Without it, the shaft will wobble and you'll have a substantial oil leak from the main seal.
There's also a felt washer needed in that location.
roblav1
Dec 9 2014, 07:44 PM
Most engines I've seen have the pilot bearing in the crankshaft. Is the type IV in the flywheel?
I've also run a quality bushing there as well in my Ford powered formula cars.
r_towle
Dec 9 2014, 07:45 PM
It goes in the pilot bearing hole.....duh
Cap'n Krusty
Dec 9 2014, 09:08 PM
In the 914/4 it goes in the flywheel. The same engine in a bus uses a crankshaft mounted pilot bearing because the mainshaft is longer.
The Cap'n
McMark
Dec 10 2014, 02:06 AM
He wouldn't be here if he had a bus.
Ha! I'm krustying the cap'n!
Bleyseng
Dec 10 2014, 08:27 AM
Make sure you have the spacer in the crank or the pilot bearing will move into the crank when you install the engine to the tranny.
PanelBilly
Dec 10 2014, 11:46 AM
I think I'm Ben more confused now.
PanelBilly
Dec 10 2014, 12:08 PM
So does the bearing slide onto the tranny shaft? and what about the felt washer?

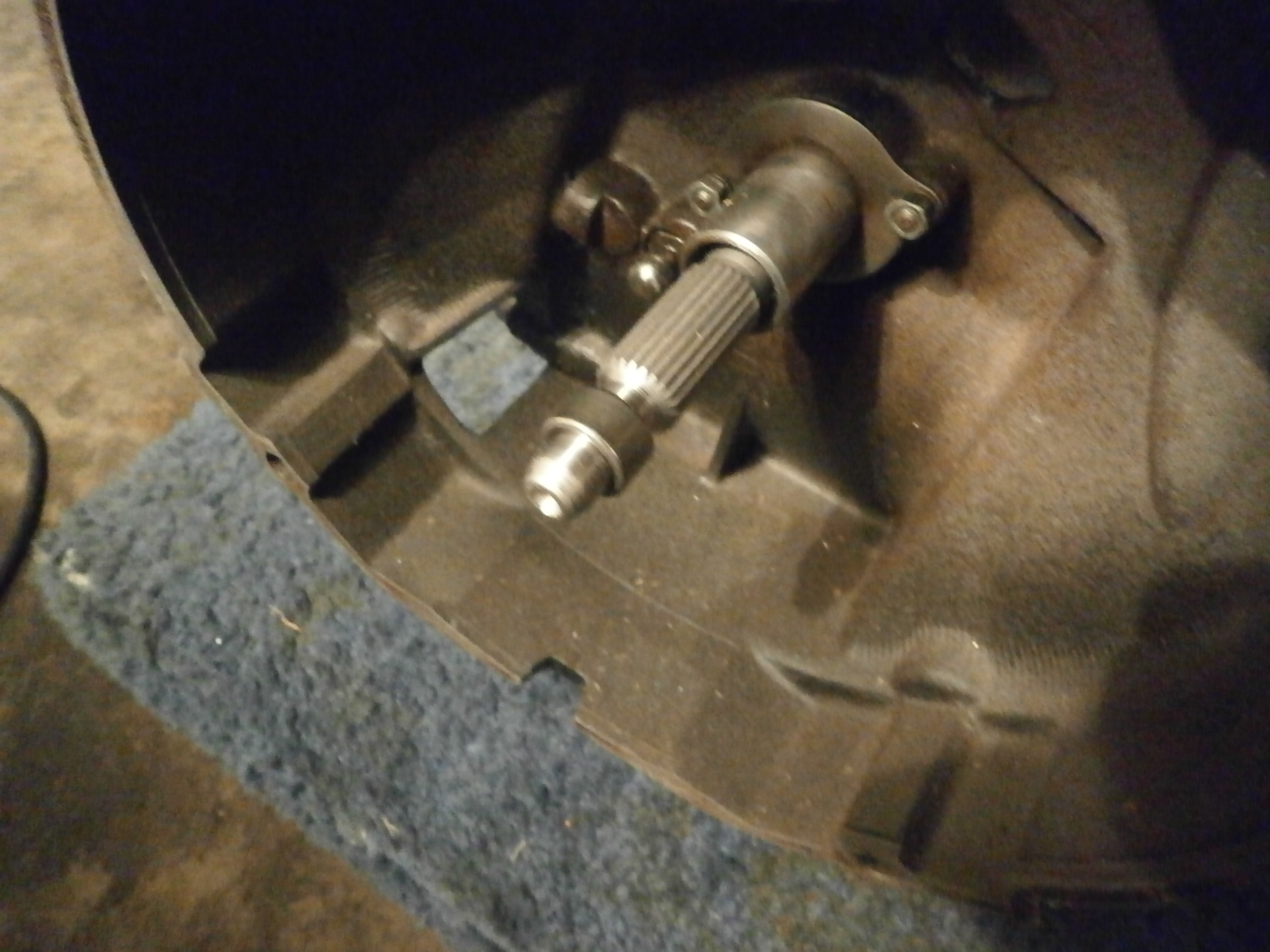

Click to view attachment
wndsnd
Dec 10 2014, 12:17 PM
QUOTE(PanelBilly @ Dec 10 2014, 01:08 PM)
So does the bearing slide onto the tranny shaft? and what about the felt washer?
See Andy's post #5.......
rjames
Dec 10 2014, 01:23 PM
Both go in the flywheel. The felt washer towards the tail end of the car. Put a small amount of grease on the tranny shaft when installing. I would think that the grease in the pilot bearings should keep it from permanently impaling itself on the tranny shaft.

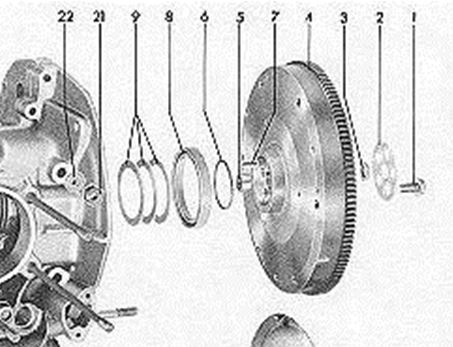

#5 is the bearing
#3 is the felt washer
Click to view attachment
McMark
Dec 10 2014, 06:29 PM
Okay, install the pilot bearing in the flywheel. Recess it 3.2mm (or so). You have to leave room for the felt washer. Drop the felt washer into place, and the 'lock plate' goes over everything.
sixnotfour
Dec 10 2014, 06:56 PM
early 3.0 the bearing is in the flywheel, later 3.0's have an adapter that bolts to the crank with 3 bolts........really depends on what conversion flywheel you have....the bearing is common for all,,,,
You really need to provide more info...
Jon H.
Dec 11 2014, 05:49 AM
I always read that you when you replace the fly that the felt needs to be replaced but why does nobody ever mention the the o-ring thats in the flywheel- #6 in the diagram? I have replaced them before.
Jon H.
Cap'n Krusty
Dec 11 2014, 08:27 AM
QUOTE(McMark @ Dec 10 2014, 12:06 AM)
He wouldn't be here if he had a bus.
Ha! I'm krustying the cap'n!
The 914 crankshaft has the machined socket for the bearing, and I've seen clueless folks install them there. I've also seen cars with pilot bearings installed in BOTH locations.
The Cap'n
76-914
Dec 11 2014, 08:28 AM
Oh it gets mentioned. Usually by the guy that forgets to install it.
Cap'n Krusty
Dec 11 2014, 08:30 AM
QUOTE(Bleyseng @ Dec 10 2014, 06:27 AM)
Make sure you have the spacer in the crank or the pilot bearing will move into the crank when you install the engine to the tranny.
In forty plus years of wrenching, I've never seen a pilot bearing fit loose enough in the flywheel to allow that to happen.
The Cap'n
Bulldog9
Dec 11 2014, 02:38 PM
Thanks for this. I was tracking on the felt washer but likely wouldn't have recessed it intentionally.
QUOTE(McMark @ Dec 10 2014, 07:29 PM)
Okay, install the pilot bearing in the flywheel. Recess it 3.2mm (or so). You have to leave room for the felt washer. Drop the felt washer into place, and the 'lock plate' goes over everything.
