The fan motor started to make a loud racket - bearing noise (whine) and clacking (hitting something while turning). It had sounded and worked fine last year. Time to take a look!
I removed it and put it on the bench. At first I thought the clacking was the cage hitting the housing. There were some marks on the housing that showed it had made contact some time in the past, however, the Squirrel cage was spinning true and the marks were a bit old, so I concluded that it was most likely something deeper.

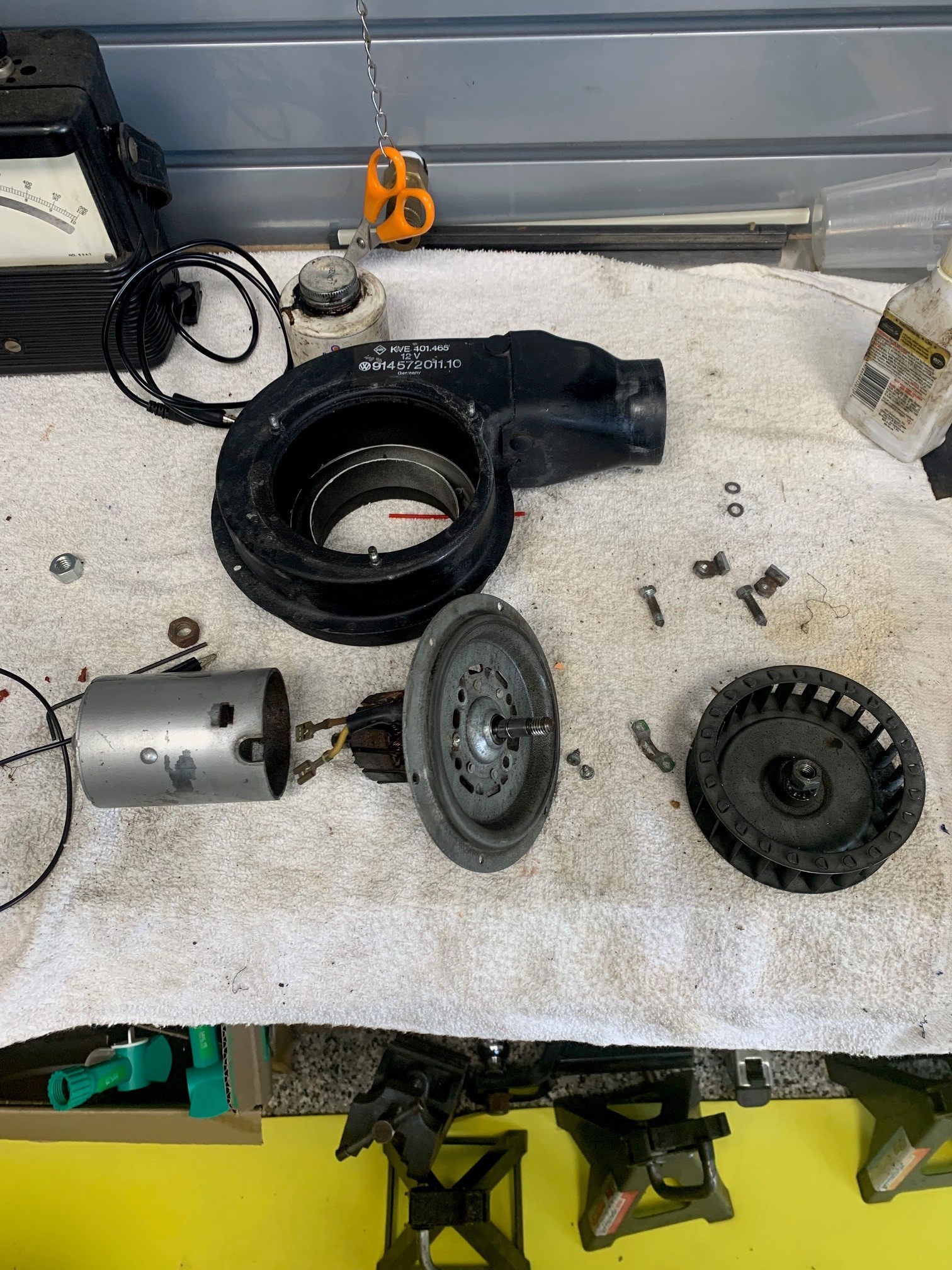

Investigating into the fan motor is not a straight forward task, taking it apart is a bit of a challenge, so here is the method I came up with.
1. Since the motor, when powered on the bench with a motorcycle battery, was turning and still making the bearing and clanking noise, fixing it should hopefully be just cleaning and lubing, worthy of repair

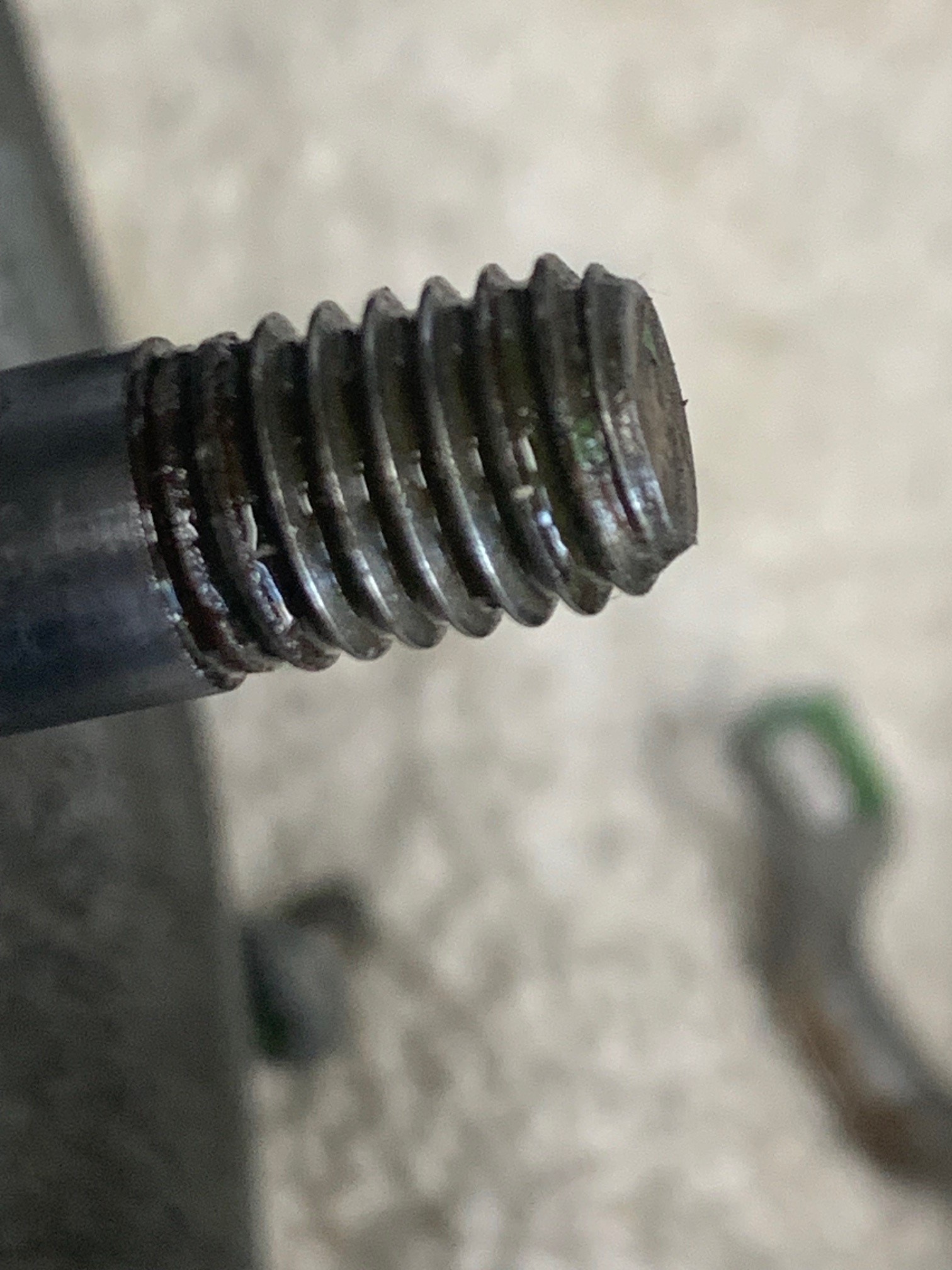

2. The dis-assembly starts with removing the squirrel cage. This is done by removing the nut on the motor shaft. My shaft threads were/are a bit buggered and there is no shaft key. This results in the cage spinning freely when the nut is loosened. There is nothing to hold onto for countering the wrench torque of turning the shaft nut counterclockwise.
Turn the nut and the shaft turns. No way to torque the nut beyond the buggered threads........HHHhhhhmmmm
SOOOOOOO, I went back and forth with an electric drill and a socket about 100 times until the nut cut through the buggered portion from the kinetic force of the nut hitting the buggered thread. Worked fine, just took patience.......and 2 battery charges.
Click to view attachment

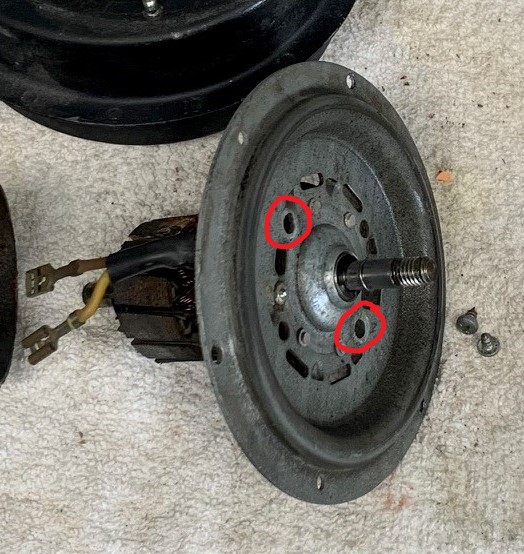

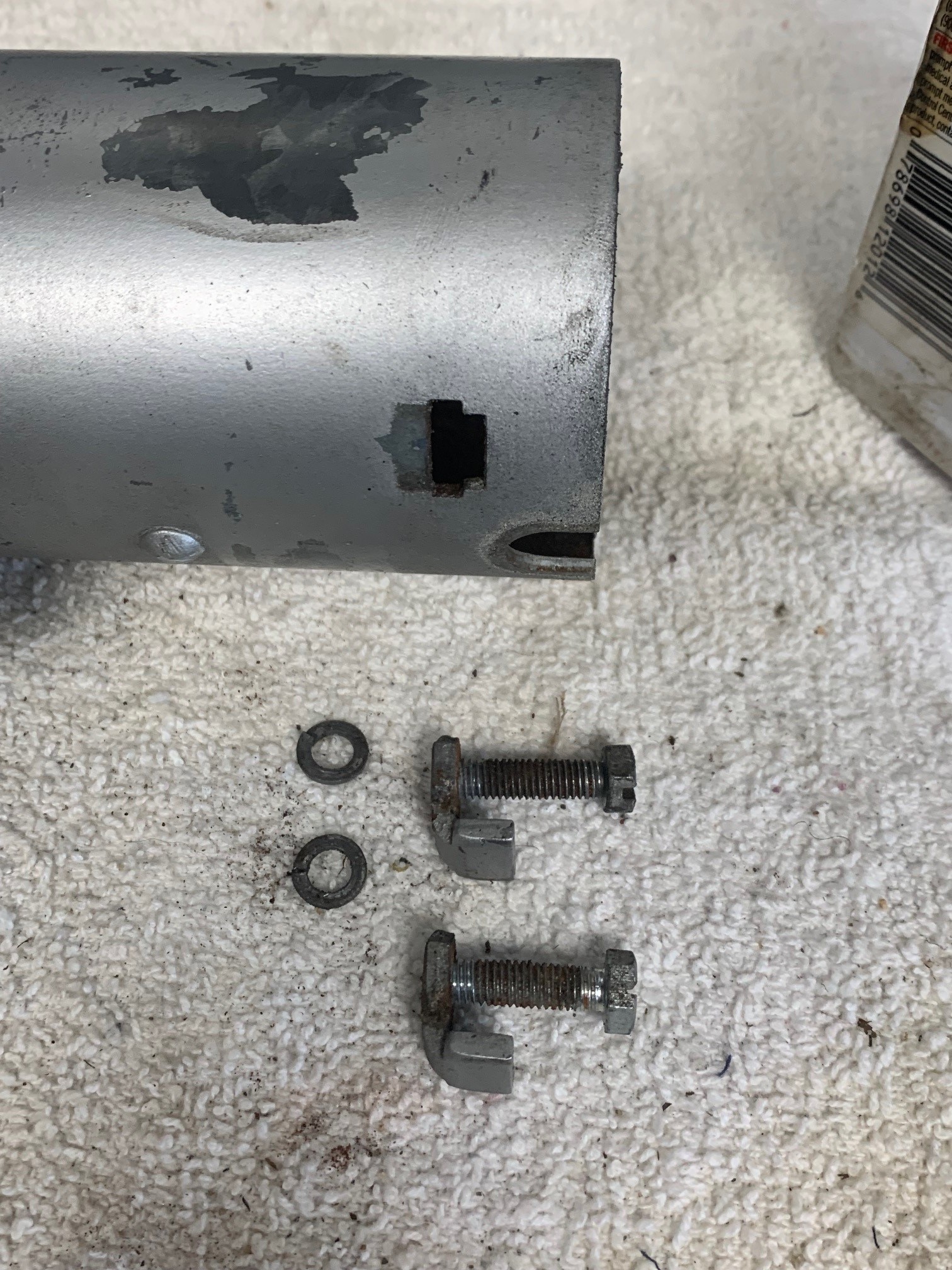

3. After the squirrel cage is removed, the face-plate needs to come off. This plate has two bolts, remove these - note the nut side of these bolts is what the two odd ears (nubs) are on either side of the motor case. These hold the face plate and ALSO need to be adjusted/positioned to center the fixed bearing (in the face plate) with the magnets in the case. The other bearing is a floating bearing in the bottom of the case - more on this later.
Click to view attachment
Click to view attachment
There are a few things things to look for once the face plate is out.

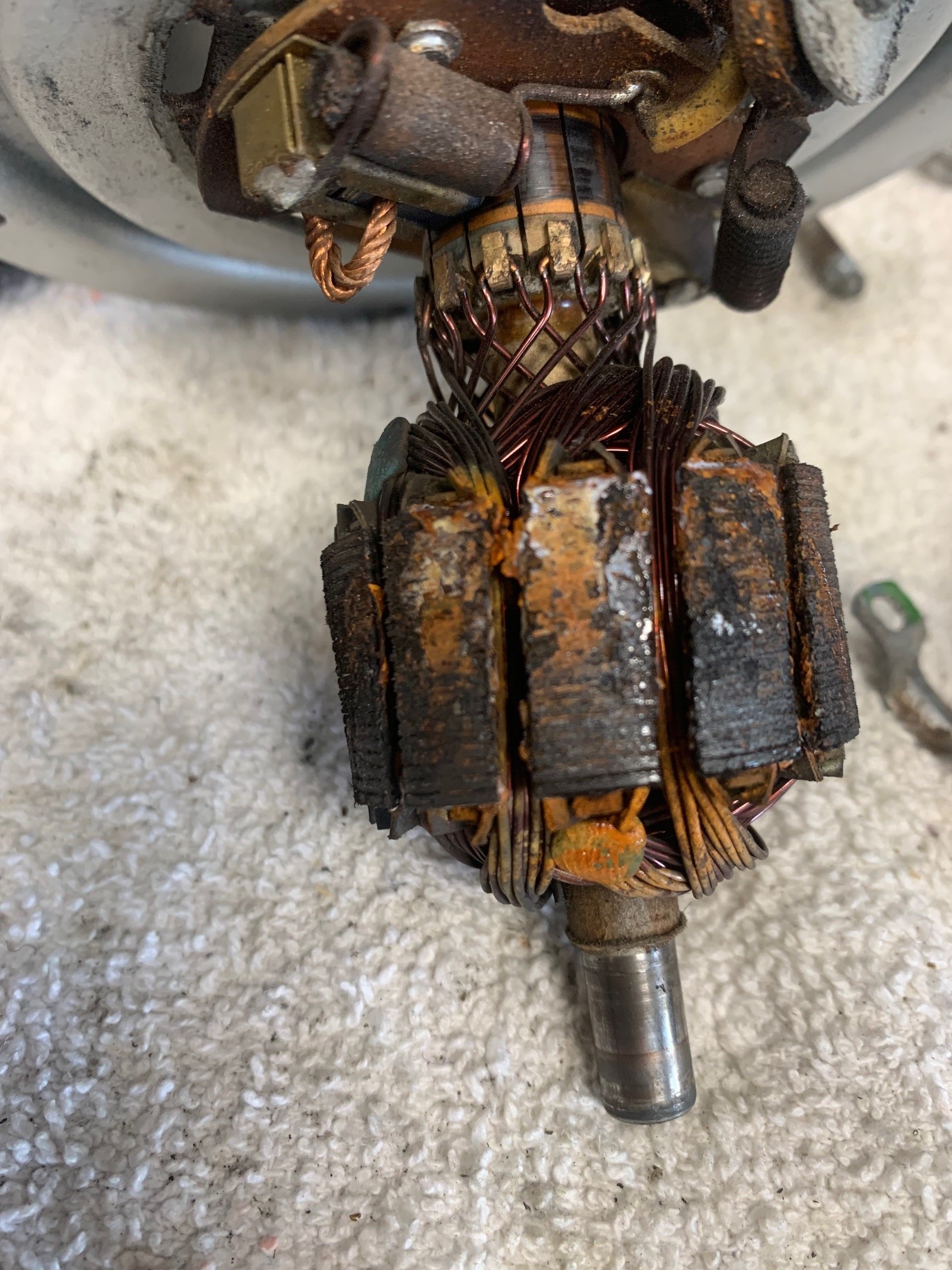

A. The Commutator - this can be worn which will result in intermittent current flowing to the windings. Look for a groove where the BRUSHES touch the commutator. This motor has a very small duty cycle, look closely and you will see that there is no groove. However, if your car is in a cold part of the world, and the motor has been used every time the car is used, this may have resulted in this part of the motor being worn through. This can be fixed by turning of carefully filing the copper commutator plates into the proper shape - Skill level is a 10+. Most of these motors in the US should have little wear on the commutator. BUT, for nearly all electric motors (vacuums especially) this is a main point of failure.
Click to view attachment

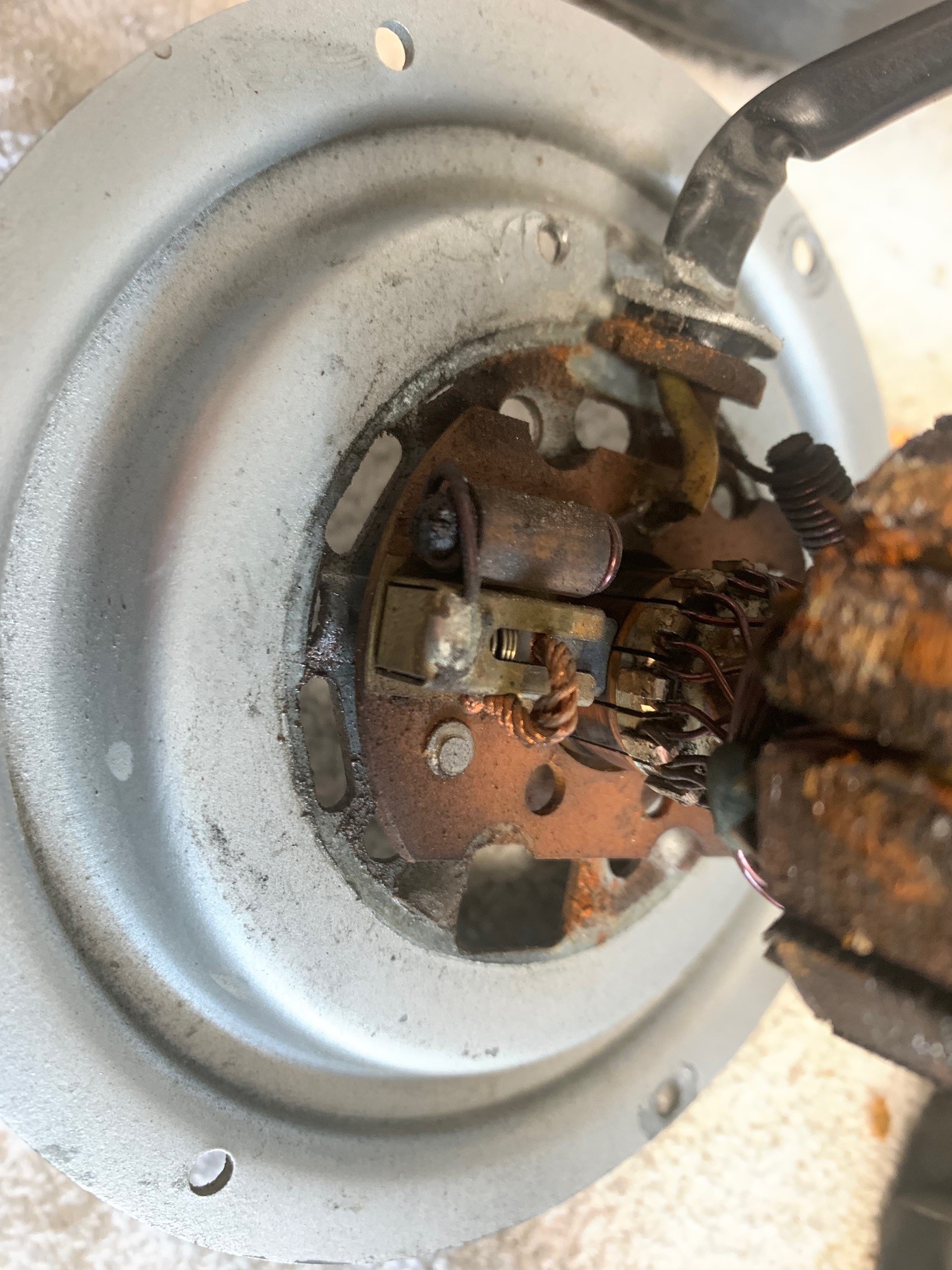

B. The BRUSHES - These are Graphite bars that are designed to wear, if they are very short or broken they should be replaced. This are easy to find, measure the size and get busy on ebay. They can also be filed to the correct size if what you have is close. They are inside the copper housing with the copper braided wire attached to them.
Click to view attachment
C. Rust on the Ferrous parts (mine was a problem). These cars can sit for decades and the steel will collect moisture from temperature cycling while sitting during the summer.
D. If there are broken or burned armature wires, get a new motor - if you are super motivated, these can be rewound..........not for the meek!
4. The rotor needs to be round. The rust on my rotor (see above) was making the motor work in a very noisy way, this needs to be ground down. I did this with a hand file. If you cut any of the armature wires, the motor will not work or will pulse when operating.
I cleaned the rotor as best as i could and then sanded the rotor until it was shiny.

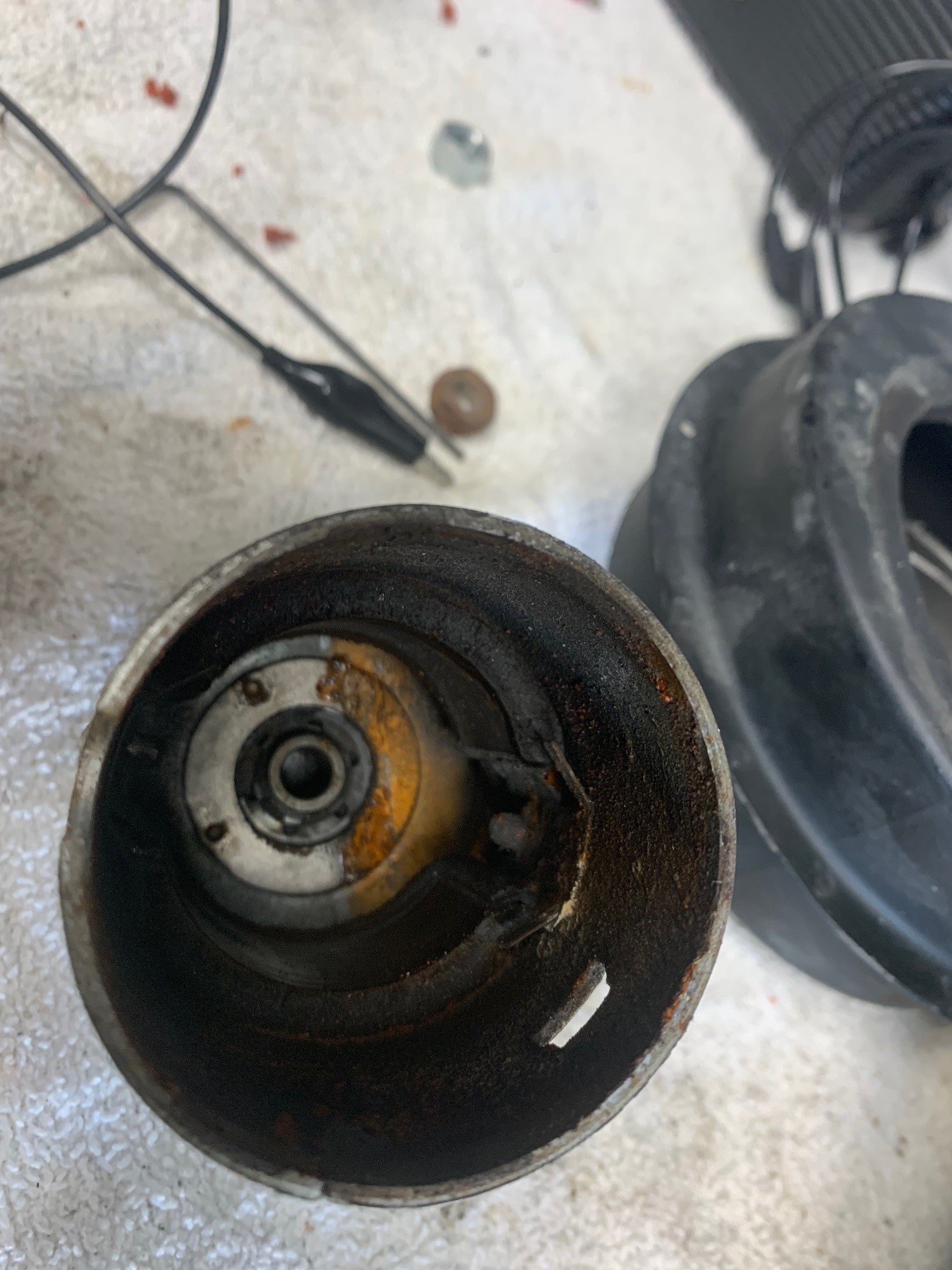

5. Now, looking at the bearing at the other end of the housing it was rusty (from the rotor steel parts) and also the bearing was very dry. Needed cleaning and greasing. The bearing could be removed but it is a very interesting system for the motor bearings so I did not drill out the pressed in pins (Rivets?) that were holding it on the bottom or do they hold the bottom to the assembly???? Not sure....
Click to view attachment

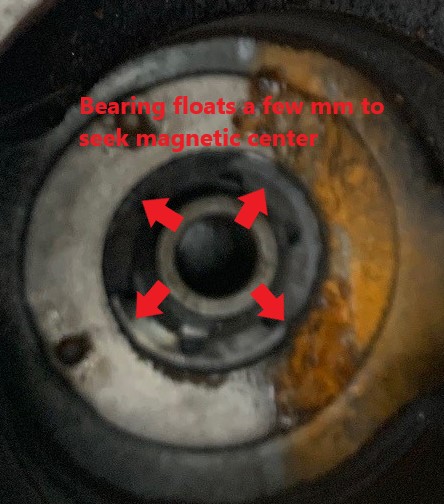

This bearing is a floating bearing, it is designed to move a few mm in a plane that is 90 degrees from the shaft axis. In short, the rotating assembly finds its own center from the magnetic force between the rotor and the stater magnets on the interior of the case. I put a dab of grease in the bearing after it was cleaned and i was ready to assemble.
Click to view attachment
After I got this cleaned (used a lot of spray electric cleaner) and the rotor filed down nice and smooth, I then assembled it all back together. This is where the trick comes in.
The face plate can move around a bit and it needs to be in the right position to achieve the center position for the top of the Rotor axis. I firmed the bolts but did not torque them, hooked the motor (no Squirrel cage) and listened to it. I could hear the rotor hitting the magnets internally and moved the face-plate around until the noise was minimal. If I remember right (I have had 6 of these cars) all of them made a little noise which cannot be heard when the engine is running.
I then put it all back together and drove around with the heat on during a crisp New England day - With the Targa Top off of course!
