VaccaRabite
Brown, Yellow (56b), white (56a) Track 17 - 21 on the 75/76 wire diagram).

Which wire goes to which terminal? If these used to have plugs with marked numbers, they no longer do.

Lets assume that the terminals on the lamp look like this:
Click to view attachment

Top is what?
Left is what?
Right is what?

Are the left and right headlights wired the same?

Zach
southernmost914

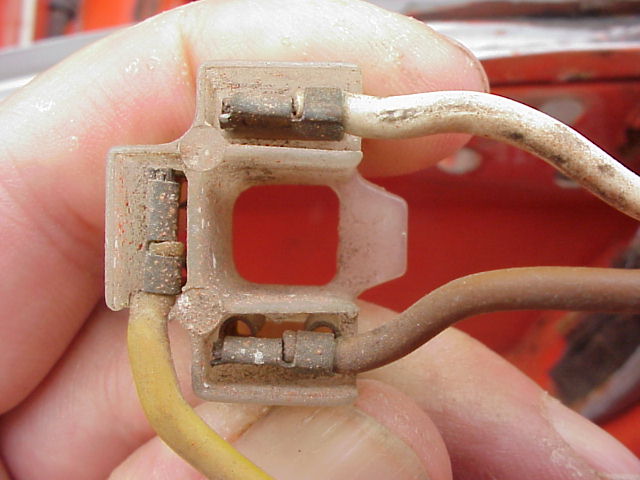

Top=yellow
right=white
left= brown
left , right same. Looking from the driver seat
Click to view attachment
Steve
Phoenix-MN

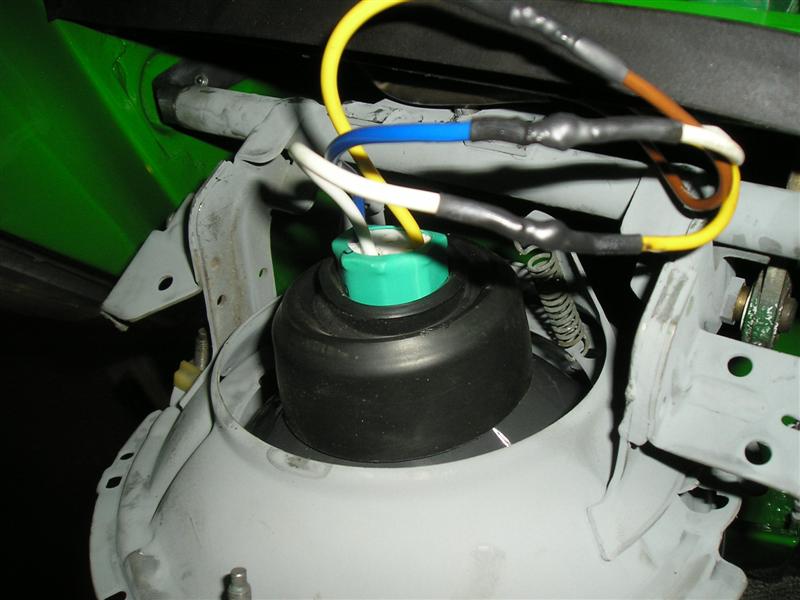

Does this help?

Click to view attachment

Paul

VaccaRabite
^^^^
YES!

Thanks guys (both of you). Now I can run out and check off another item!

Zach
Gint
QUOTE(Phoenix-MN @ Oct 25 2008, 03:58 PM) *

Does this help?

Click to view attachment

Paul


That picture looks familiar. wink.gif When I saw this thread I was going to look at my resto thread for that link. Now I don't have to. laugh.gif
