jsayre914
I am trying to see what it is supposed to look like, the l-jet setup. I have swapped out engines and i am still using some bunjee cords in there. I also hooked the vacume hoses to my charcoal cannistor all the way to the fuel tank in the front, i guess thats ok right?.

i would really love to see a picture of the engine bay, with a 1.8 l-jet setup.

yes, i checkd the originality thread, and i did not see it. If its there please cut and paste it here.

thanks

joseph
jcambo7
QUOTE(jsayre914 @ May 3 2009, 02:55 PM) *

I am trying to see what it is supposed to look like, the l-jet setup. I have swapped out engines and i am still using some bunjee cords in there. I also hooked the vacume hoses to my charcoal cannistor all the way to the fuel tank in the front, i guess thats ok right?.

i would really love to see a picture of the engine bay, with a 1.8 l-jet setup.

yes, i checkd the originality thread, and i did not see it. If its there please cut and paste it here.

thanks

joseph

If you have a haynes manual they have a a section on it with a diagram and a few pictures of the engine bay. It's on pg 51 in my book. I tried scanning it for you but it turned out way too blurry.
7275914911
QUOTE(jsayre914 @ May 3 2009, 02:55 PM) *

I also hooked the vacume hoses to my charcoal cannistor all the way to the fuel tank in the front, i guess thats ok right?.

i would really love to see a picture of the engine bay, with a 1.8 l-jet setup.



There is a good Vacum layout at Pelican. There is a link in my post below. And yes there is a vaum line there.

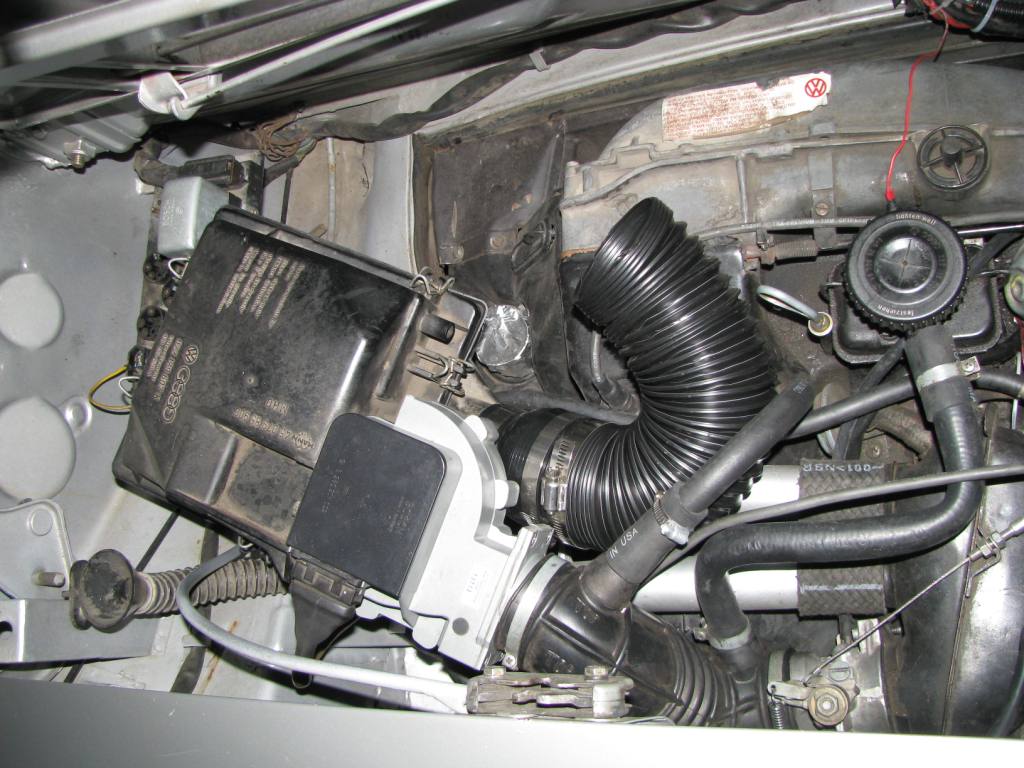

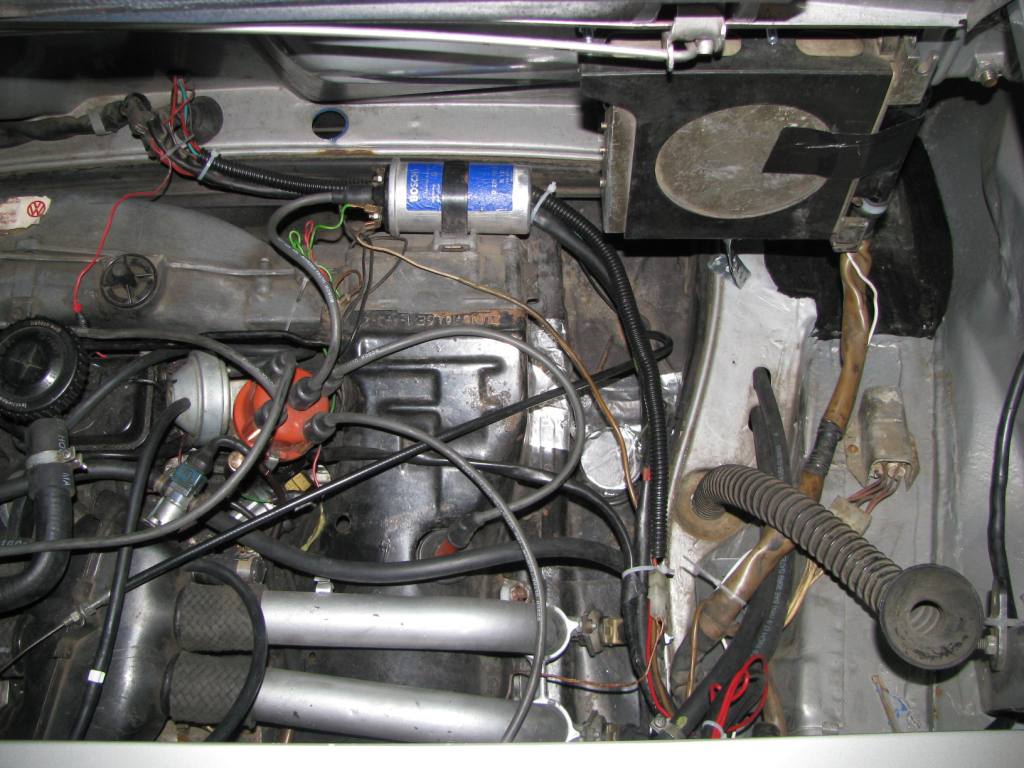

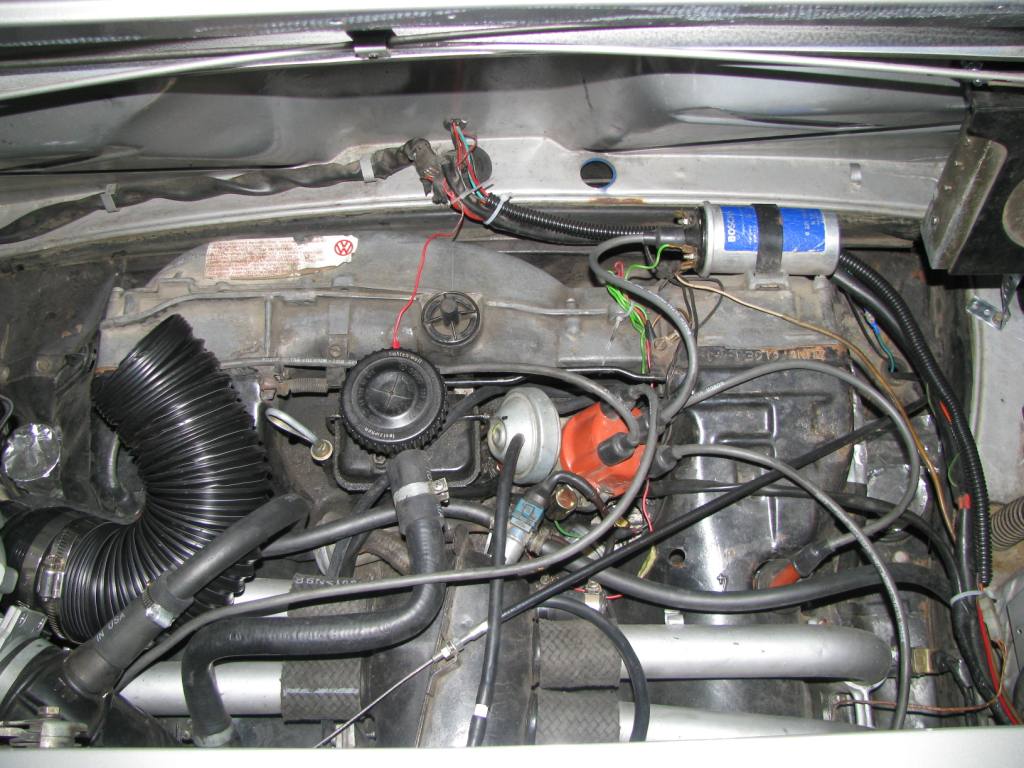

Here are a few pics. Mine is minus Decel and EGR stuff.

Click to view attachment
Click to view attachment
Click to view attachment

Good Luck, Ken
jsayre914

Thank You

zonedoubt
Mine is here: http://www.914world.com/bbs2/index.php?sho...4&hl=engine
zx-niner

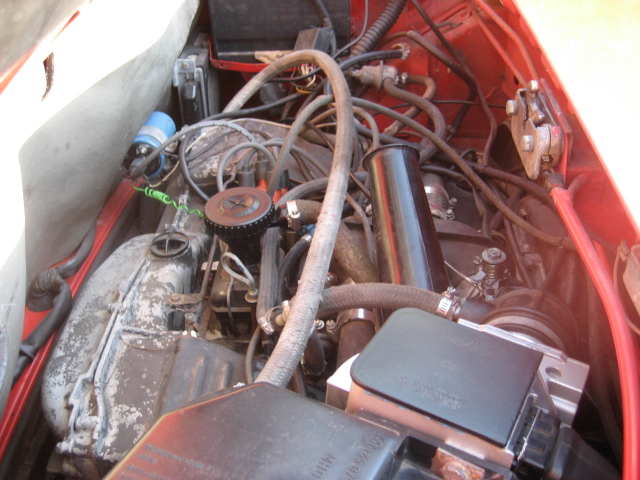

It's unrestored but still ran great when I replaced it with my Raby 2270.

Click to view attachment
