> Making top of door window match targa rubber, Alignment issue
PanelBilly
post Oct 27 2011, 04:34 PM
Post #1


914 Guru
*****

Group: Members
Posts: 5,881
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
Maybe I can post a photo to explain this better, but the side glass doesn't go high enough to seal to the rubber. I have new seals rom 914 Rubber, but the glass doesn't go high enough to fit right. I know I can adjust the window to raise higher, but then it will go above the rubber stop on top of the crome guide that holds in the wing glass. The chrome trip is held in place by a bolt in the base of the door and another inside the door. It doesn't adjust up and down. Tell me where I have this adjustment out of wack. Could it be that the rubber seal needs to be thicker. Should I have a filler between the seal and the targa top?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Oct 27 2011, 05:33 PM
Post #2


En Garde!
**********

Group: Admin
Posts: 13,729
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
one of 4 things has happened.
1: the window is not properly aligned in the door.
2: the door is not properly aligned in the car.
3: you have a late roof and an early car, or an early car and a late roof
4: chassis twist (not likely with yours I think.)

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Oct 27 2011, 05:39 PM
Post #3


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
I have this same problem...early car....hmmm (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ellisor3
post Oct 27 2011, 05:40 PM
Post #4


HPWhore
***

Group: Members
Posts: 811
Joined: 23-October 08
From: Fleming Island, Florida
Member No.: 9,683
Region Association: South East States
I had the same issue. Mine was short about 1/4 inch. Had to raise the window. I also had the targa seals reversed at first.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Oct 27 2011, 06:12 PM
Post #5


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
The seals were replicated from the late OEM as they had the outer fin. Mine are actually slightly larger. Post some picturs so we can see what your up against here.
-Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim912928
post Oct 27 2011, 08:14 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,487
Joined: 8-January 04
From: Granger, IN
Member No.: 1,536
Region Association: Upper MidWest
Adjustment advice would be much appreciated....mine doesn't like up well into the rubber top seals.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Oct 27 2011, 08:21 PM
Post #7


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
Most of the adjustment is in the door. Mostly a function of the screw / nut on the bottom.
There is some adjustment on the track itself as it is slotted. You will need to remove the rubber to get at it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Seaside6
post Oct 27 2011, 09:00 PM
Post #8


Member
**

Group: Members
Posts: 51
Joined: 29-December 03
From: Seaside, CA
Member No.: 1,475
Region Association: Northern California
I have the same issue with newly installed 914rubber.

Pictures of the adjustments/adjusters would help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThinAir
post Oct 27 2011, 09:42 PM
Post #9


Best friends
****

Group: Members
Posts: 2,564
Joined: 4-February 03
From: Flagstaff, AZ
Member No.: 231
Region Association: Southwest Region
(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)
Most of the time that's just a joke to raz someone, but in this case it's for real. Gotta have pictures for this one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914itis
post Oct 27 2011, 10:25 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,892
Joined: 9-October 10
From: New York City
Member No.: 12,256
Region Association: North East States

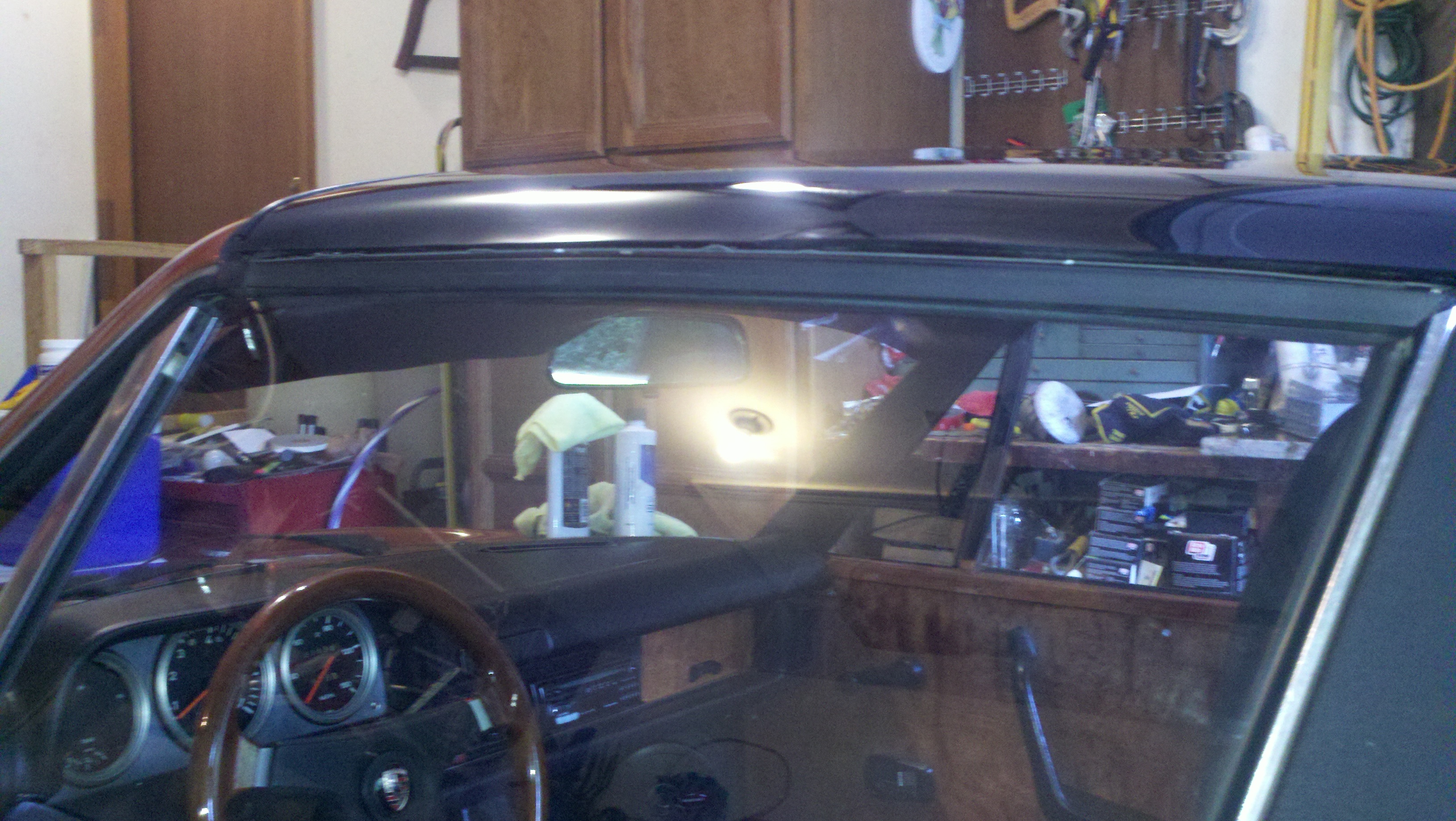

This is exactly the issue that I was dealing with last weekend. I was told that it was a non-matching year targa top. I had one late top, replaced it and I have the same issue. I noticed that the seal was somehow leaning towards the interior of the car<, if I have someone sit inside with the door close and push it out it looks ok. I had the same idea of raise the seal holder with something, I have not figured that out yet. here is a pic


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ellisor3
post Oct 28 2011, 04:42 AM
Post #11


HPWhore
***

Group: Members
Posts: 811
Joined: 23-October 08
From: Fleming Island, Florida
Member No.: 9,683
Region Association: South East States
If it is leaning towards the interior, the seals are on the wrong side. Swap them. It doesn't look like they will still match, but you should then be able to adjust the window up some more using the adjustment screw in the door.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Oct 28 2011, 07:41 AM
Post #12


Dr. Phil
*****

Group: Members
Posts: 5,821
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(Seaside6 @ Oct 27 2011, 11:00 PM) *

I have the same issue with newly installed 914rubber.

Pictures of the adjustments/adjusters would help.

I had s similar issue while putting my new seals on the new WAS top. Check the tracks... they are curved, and if you have them on the wrong side they will not fit right. I also used 3M double stick tape rather than screw them in. And put the tracks out just a little bit so on my 75jack car I now have a perfect fit. I'm going to do the same with my other tops, which have issues, as they are earlier tops so fit has not been good on those. Also these seals are much better with the flap, a little softer too making a better seal. I took a drive last night and no wind noise! Thanks 914rnubber.
Phil
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Oct 28 2011, 07:52 AM
Post #13


Dr. Phil
*****

Group: Members
Posts: 5,821
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(Seaside6 @ Oct 27 2011, 11:00 PM) *

I have the same issue with newly installed 914rubber.

Pictures of the adjustments/adjusters would help.

Here is a picture of my was top seal drivers side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Oct 28 2011, 08:00 AM
Post #14


Get that VIN ?
*****

Group: Members
Posts: 9,696
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Phil,
What width 3M double sided tape are you using and where are you buying it
I like the idea of not using screws to hold the track in place.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Oct 28 2011, 08:10 AM
Post #15


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE(PanelBilly @ Oct 27 2011, 06:34 PM) *

Maybe I can post a photo to explain this better, but the side glass doesn't go high enough to seal to the rubber. I have new seals rom 914 Rubber, but the glass doesn't go high enough to fit right. I know I can adjust the window to raise higher, but then it will go above the rubber stop on top of the crome guide that holds in the wing glass. The chrome trip is held in place by a bolt in the base of the door and another inside the door. It doesn't adjust up and down. Tell me where I have this adjustment out of wack. Could it be that the rubber seal needs to be thicker. Should I have a filler between the seal and the targa top?

Hi,
Post a few pictures of your door....specifically look at it near the front and rear.
Think about how raising the door would affect your alignment...

If you raise the door, it feels better when closing....it almost falls closed.
You need to remove the window channel, or tip it way out to raise up the door properly...but we are talking about 1/4 of an inch...which you can adjust out of the window guide.

Its a really funky geometry...356 and 914 have this same condition...and I suspect 911 does also...

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Oct 28 2011, 09:22 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
Early car, late top, etc. What years are different?

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914itis
post Oct 28 2011, 10:18 AM
Post #17


Advanced Member
****

Group: Members
Posts: 2,892
Joined: 9-October 10
From: New York City
Member No.: 12,256
Region Association: North East States
IIRC it was changed in 73, so 70 -72 are the same and 73-75 are same. I am not sure what other difference the targa top would make, As Sr Andy mentioned on one of my thread, if you use a different year you will leak.

After reading that, i went and tried my friuend's 75 on my 74 and it was the same thing, No difference as far as the issue that we are having.


here is the thread for the year differences

http://www.914world.com/bbs2/index.php?showtopic=73129
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Oct 28 2011, 10:43 AM
Post #18


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
QUOTE(ppetion @ Oct 28 2011, 09:18 AM) *

IIRC it was changed in 73, so 70 -72 are the same and 73-75 are same. I am not sure what other difference the targa top would make, As Sr Andy mentioned on one of my thread, if you use a different year you will leak.

After reading that, i went and tried my friuend's 75 on my 74 and it was the same thing, No difference as far as the issue that we are having.


here is the thread for the year differences

http://www.914world.com/bbs2/index.php?showtopic=73129


Thanks for the link!

Wow, I was completely un-aware there was a difference. A friend had a sanded top he gave me so I wouldn't have to sand mine. I prepped it and painted it. I'll have to check them out tonight....finger crossed (IMG:style_emoticons/default/unsure.gif)

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Oct 28 2011, 11:02 AM
Post #19


Dr. Phil
*****

Group: Members
Posts: 5,821
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(jim_hoyland @ Oct 28 2011, 10:00 AM) *

Phil,
What width 3M double sided tape are you using and where are you buying it
I like the idea of not using screws to hold the track in place.

Advanced auto.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris Pincetich
post Oct 28 2011, 02:18 PM
Post #20


B-)
****

Group: Members
Posts: 2,082
Joined: 3-October 05
From: Point Reyes Station, CA
Member No.: 4,907
Region Association: Northern California
QUOTE(Philip W. @ Oct 28 2011, 06:41 AM) *

Also these seals are much better with the flap,
Phil

What is this flap that you speak of?
My side seals are rock hard and there is a 1/8" gap I want to close now that my interior rustoration is near complete. I got the 914rubber rear targa seal, maybe getting new side seals is an upgrade?
Thanks in advance to anyone who posts good pictures of adjustment zones (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
