Well, it has front suspension now! (IMG:http://www.914world.com/bbs2/html/emoticons/monkeydance.gif)

The spindles were re-bored to get a little more camber, dropped one inch on the tubes and gusseted. The A-arms are seam welded and reinforced in the sway bar link area.

The curreent set-up is Koni yellows, Weltmeister bushings, and 23mm torsion bars, though it will probably get coilovers before it hits the track. Eventually the stock A-arms will be replaced by 935 type ball jointed arms.

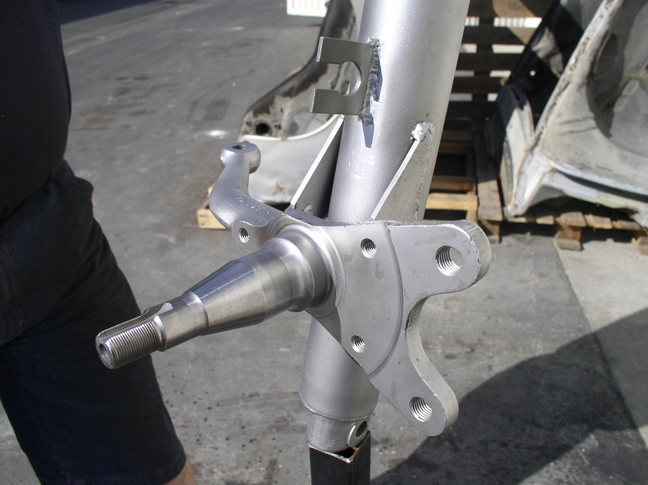

Here's a pic of the strut tube before paint.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 17)
Mugs914
post Nov 5 2005, 12:33 AM
Post #2


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
'Nuther...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 12:34 AM
Post #3


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
One more...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 12:41 AM
Post #4


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region

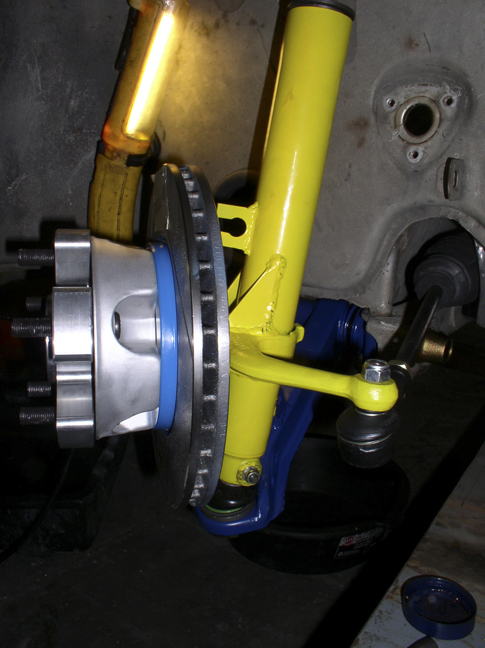

Here's the whole thing in place. Got to make some new adapter blocks before I can install the calipers (Four piston monoblocks)...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 12:46 AM
Post #5


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
Here's another that shows the dropped spindle a bit better. I'm running 16" wheels so I have room for the ball joint to fit inside the rim. The 27mm spacer is there so that the 15" pit wheels will fit!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post Nov 5 2005, 12:49 AM
Post #6


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
Are you going to joggle the steering arm or use the ERP tie rod extensions?

(edit) Oops, that last pic answers the question.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 12:53 AM
Post #7


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
"Where's the beef...?!!!"

Looks funny hanging way down there, but it sure is nice to see it on the car...

Finally!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 12:55 AM
Post #8


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
Yeah dummy, where IS the beef...

Helps if you actually attach the image... (IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 01:06 AM
Post #9


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
QUOTE (J P Stein @ Nov 4 2005, 10:49 PM)
Are you going to joggle the steering arm or use the ERP tie rod extensions?

(edit) Oops, that last pic answers the question.

Actually, the steering rack has been raised quite a bit. Once I get it on the ground and determine final ride height I'll see if its enough.

If I need more I'll use the extensions...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Nov 5 2005, 03:33 AM
Post #10


Spooling.... Please wait
**********

Group: Members
Posts: 13,380
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
I have tire envy....

I wish i knew where you guys got your slicks!!!!

I'd be running em on the street (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

Looking nice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post Nov 5 2005, 07:04 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
QUOTE (Mugs914 @ Nov 4 2005, 10:32 PM)
Well, it has front suspension now! (IMG:http://www.914world.com/bbs2/html/emoticons/monkeydance.gif)

The spindles were re-bored to get a little more camber, dropped one inch on the tubes and gusseted. The A-arms are seam welded and reinforced in the sway bar link area.

The curreent set-up is Koni yellows, Weltmeister bushings, and 23mm torsion bars, though it will probably get coilovers before it hits the track. Eventually the stock A-arms will be replaced by 935 type ball jointed arms.

Here's a pic of the strut tube before paint.

Looks great!

But one question, how do you "re-bored" the spindles
to get more negative?

(IMG:http://www.914world.com/bbs2/html/emoticons/cool.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Nov 5 2005, 09:13 AM
Post #12


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,008
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Rear flare on the front... Wild
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
airsix
post Nov 5 2005, 10:58 AM
Post #13


I have bees in my epiglotis
****

Group: Members
Posts: 2,196
Joined: 7-February 03
From: Kennewick Man (E. WA State)
Member No.: 266
QUOTE (0396 @ Nov 5 2005, 05:04 AM)
But one question, how do you "re-bored" the spindles
to get more negative?

I'm guessing the spindle was taken off the strut tube and the angle of the hole the strut-tube slides through was changed.

-Ben M.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 04:44 PM
Post #14


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
QUOTE (airsix @ Nov 5 2005, 08:58 AM)
QUOTE (0396 @ Nov 5 2005, 05:04 AM)
But one question, how do you "re-bored" the spindles
to get more negative?

I'm guessing the spindle was taken off the strut tube and the angle of the hole the strut-tube slides through was changed.

-Ben M.

Yup, thats it. (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

My buddy Rod Lindsey made a fixture to hold the spindle on the mill so that we can dial in just about any angle we want and re-bore the hole. The hole is also "stepped" so that the spindle could slide further up the tube.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 05:09 PM
Post #15


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
QUOTE (rick 918-S @ Nov 5 2005, 07:13 AM)
Rear flare on the front... Wild

Yeah, some trimming requied... (IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif)

AIR makes rear GT flares that are quite a bit wider than standard, and sell standard GT rears for the front. They actually fit the fender contour pretty well.

Of course after all that it's going to change...

I've got access to the molds for the one-peice nose and fenders like the one in the pic, so the steel and flares are going away. (IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif)

Anybody want 'em?? (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mugs914
post Nov 5 2005, 05:14 PM
Post #16


"Hey, yellow IS faster!"
***

Group: Members
Posts: 618
Joined: 22-July 05
From: Temple TEXAS
Member No.: 4,452
Region Association: Southwest Region
Man, I seem to be suffering from brain damage when it comes getting pics attached... (IMG:http://www.914world.com/bbs2/html/emoticons/screwy.gif)

This is the new nose...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post Nov 5 2005, 06:21 PM
Post #17


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313
QUOTE
I wish i knew where you guys got your slicks!!!!


Call John Burgett for take offs

Bob Woodman for new
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post Nov 5 2005, 06:28 PM
Post #18


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
I get em' from America's Tire ....over yonder.
At 480 for 2 (mounted & balanced, tho) your smiles per miles
ain't very gud.

Tim: You suppose Burgett has any Hoosier 43361s in R25?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
