> 914/6 steering column surrounds. . . ., need volunteer for beta site evaluation
type47fan
post Mar 28 2006, 08:17 PM
Post #1


It Looks Better In Person. . .
***

Group: Members
Posts: 860
Joined: 17-September 03
From: Carlsbad, CA
Member No.: 1,170
Region Association: Southern California

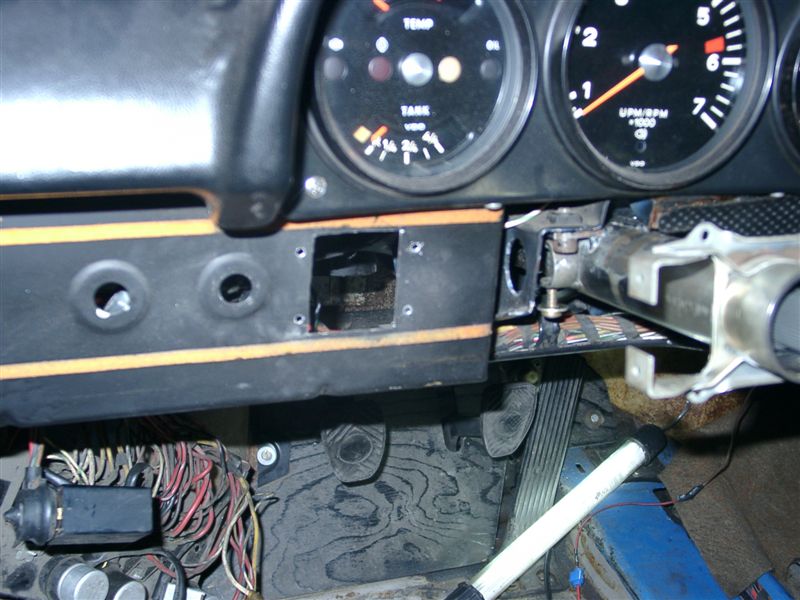

I've been working with TH, in Oregon, to reverse engineer the 914/6 steering column surrounds. He's produced a second version that is ready to be test fitted to the dash facia on a 914-6.

This is a request for a volunteer to take these parts, fit them up on the factory facia, take pictures, and make general comments about the form, fit, and function, as currently made.

From this exercise, the final configuration will be made and made available (for sale) to those interested. No pricing is available now. We're trying to finalize the design and manufacturing technique first.

If you can provide the beta site service, PM me with your details.

Everyone else, please feel free to enter into the club's typical spirited discussion about these parts.

Thanks,


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 13)
Mueller
post Mar 28 2006, 08:21 PM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
how are you dealing with the ignition portion? weld in plate or ??

I like the idea, I'd love to install the key in the "correct" location (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47fan
post Mar 28 2006, 09:50 PM
Post #3


It Looks Better In Person. . .
***

Group: Members
Posts: 860
Joined: 17-September 03
From: Carlsbad, CA
Member No.: 1,170
Region Association: Southern California

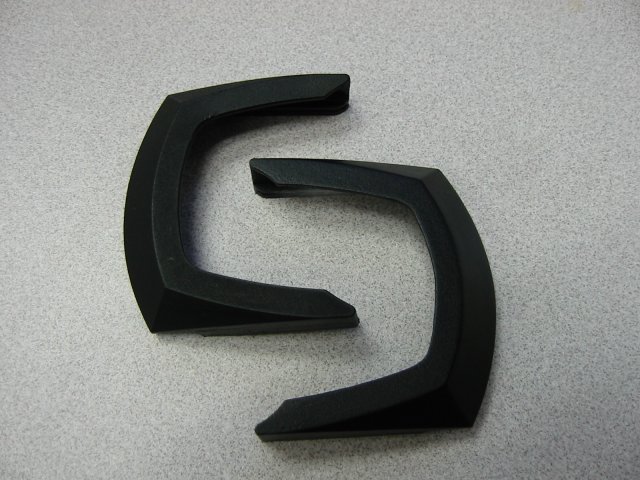

At this time, we're only talking about the trim piece that "surrounds" the base of the steering wheel column on the -6. . . .they slide onto the metal backing of the basketweave material.

The modification/transplanting of the -6 steering column and ignition switch is in development. . . . (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/type.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/welder.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/type.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 28 2006, 10:07 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

i'll take one, once the rest is available too ...
cover, lock, etc. etc. ...

(IMG:http://www.914world.com/bbs2/html/emoticons/cool.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914-8
post Mar 28 2006, 10:14 PM
Post #5


Senior Member
***

Group: Members
Posts: 802
Joined: 23-January 06
From: Cal
Member No.: 5,461
Region Association: None
QUOTE (type47fan @ Mar 28 2006, 07:50 PM)
At this time, we're only talking about the trim piece that "surrounds" the base of the steering wheel column on the -6. . . .they slide onto the metal backing of the basketweave material.

The modification/transplanting of the -6 steering column and ignition switch is in development. . . . (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/type.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/welder.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/type.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

a kit to move mimic the -6 steering column and move the ignition to the -6 position would be muy cool!

although seems very complicated!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Mar 28 2006, 10:33 PM
Post #6


914 Guru
*****

Group: Members
Posts: 9,122
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
All you need to build a clone 6 column is to take the mounting pad off your current steering column and weld it to a 69-73 911 steering column with the brackets removed. You can also do the same thing with a 74-89 911. I can provide pictures if you want them of the real 6 column and both conversions. I cannot post them because my camera now only takes 1200x1600 pictures. It lost its mind and will not adjust.

Contact me at a914nut@email.com.

I would like to try a set of the Clips for my column. I have a NOS 6 dash, NOS dash trim pieces, covers and 6 column that I have off car that I can test fit to.

Thanks, Mark.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Twystd1
post Mar 28 2006, 10:49 PM
Post #7


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
914Sixer..

You are amazing....

Thanks for the hard work!!!

And sharing it with all of us....

Clayton
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 29 2006, 06:39 AM
Post #8


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
Would like to offer my service, but i have no original six.
Did an conversion with 911 parts.

Curious if the parts will fit my conversion.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Mar 29 2006, 06:46 AM
Post #9


I. I. R. C.
*****

Group: Members
Posts: 6,813
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
If you are talking about the horseshoe shaped pieces, someone here is already making perfect reproductions.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RON S.
post Mar 29 2006, 08:17 AM
Post #10


9140430841, FINALLY RUNNING
***

Group: Members
Posts: 1,216
Joined: 22-May 03
From: WALTERBORO,S.C.
Member No.: 724
Region Association: South East States
If someone is already making them,I sure wish they woulda spoke up year's ago.

I've been needing those 2 pieces since the day I got my 6r almost 10 years ago.

I've post WTB adds on classifeds both here and the bird board.I've sent blind e-mails to most all the well-known Porsche dismantlers.

after 8 years,I finally got'em.

I ended up finding 2 different guys who each only had 1 piece,and couldn't make a set together.

I will say,that that is a piece in need of repo'ng.Finding a used set is all but impossible.


Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
echocanyons
post Mar 29 2006, 12:33 PM
Post #11


Advanced Member
****

Group: Benefactors
Posts: 2,107
Joined: 24-December 02
From: Bay Area, CA
Member No.: 7
Region Association: Central California
I need a pair too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Goge
post Mar 29 2006, 12:53 PM
Post #12


Member
**

Group: Members
Posts: 53
Joined: 3-September 05
From: Portland, OR
Member No.: 4,746
Here is a pic of the old one and the repro that I produced. The old one is the upper one, it's a little warped.

The repro was produced on a rapid prototyping machine, ABS plastic. Then sanded and painted.

Thanks to Wayne for starting this project off and providing me a sample!

Cheers,
-Todd


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
echocanyons
post Mar 29 2006, 01:35 PM
Post #13


Advanced Member
****

Group: Benefactors
Posts: 2,107
Joined: 24-December 02
From: Bay Area, CA
Member No.: 7
Region Association: Central California
So Todd did you make a run of these?

Can I get a pair?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Goge
post Mar 29 2006, 02:01 PM
Post #14


Member
**

Group: Members
Posts: 53
Joined: 3-September 05
From: Portland, OR
Member No.: 4,746
Kelly-
I can kick out a new set whenever, they will just be made to order.

I think right now we're looking to find someone to fit them up to make sure the fit is OK, we haven't even discussed pricing yet. They won't be super cheap... but that's the way one-off parts go usually.

I'll leave it up to Wayne to pick someone to test them for us.

-Todd
