Progress on my 2.2T build for my 914 has slowed a bit due to funding. So I was able to take that effort and begin a project that I've wanted to do for months.
I'm 3D modeling the whole engine. Model work is done using Creo, the images rendered using Keyshot. Started on a few of the easier parts, well maybe not the easiest, but together they make up a large chunk of the engine and a big push of progress at the beginning helps the project move along. I'm modeling these from actual parts, on my dining room table. Which is another reason I started with these particular parts, they're already cleaned. Anyway, here's the first shot. More progress later in the week because I'll have a bit of time, but this is an open ended project. It gets work when I can. (IMG:http://www.914world.com/bbs2/uploads_offsite/c1.staticflickr.com-19709-1503846927.1.jpg) |
   |

|
  |
Replies
| Optimusglen |
Nov 8 2017, 09:29 AM
Post
#2
|
|
Senior Member Group: Members Posts: 940 Joined: 26-February 16 From: Minneapolis Member No.: 19,709 Region Association: Upper MidWest
|

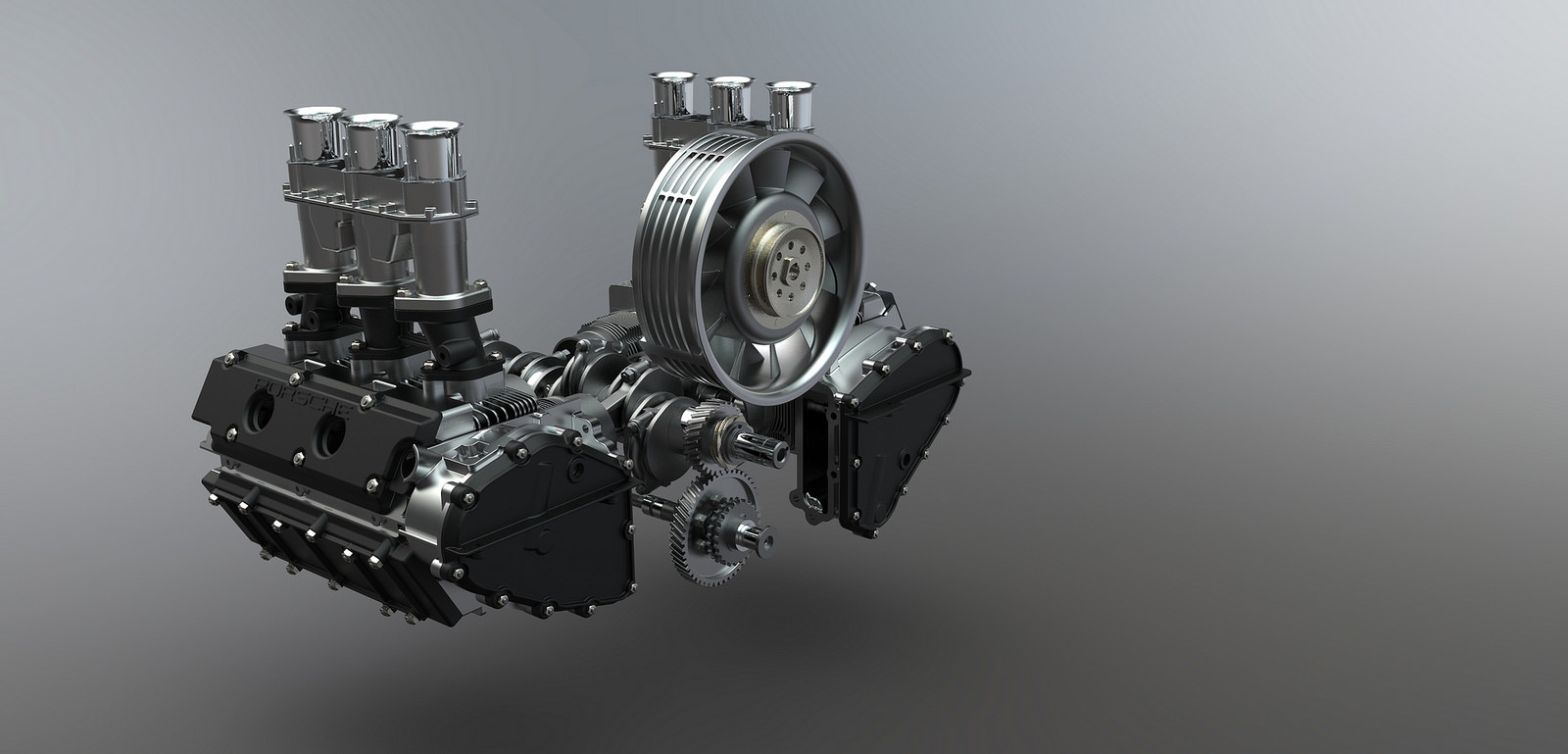

Added the fan pulley, and got a start on the carbs. LOTs of features still to add for the carbs.
(IMG:http://www.914world.com/bbs2/uploads_offsite/c1.staticflickr.com-19709-1510154958.1.jpg) |
|
|
|
