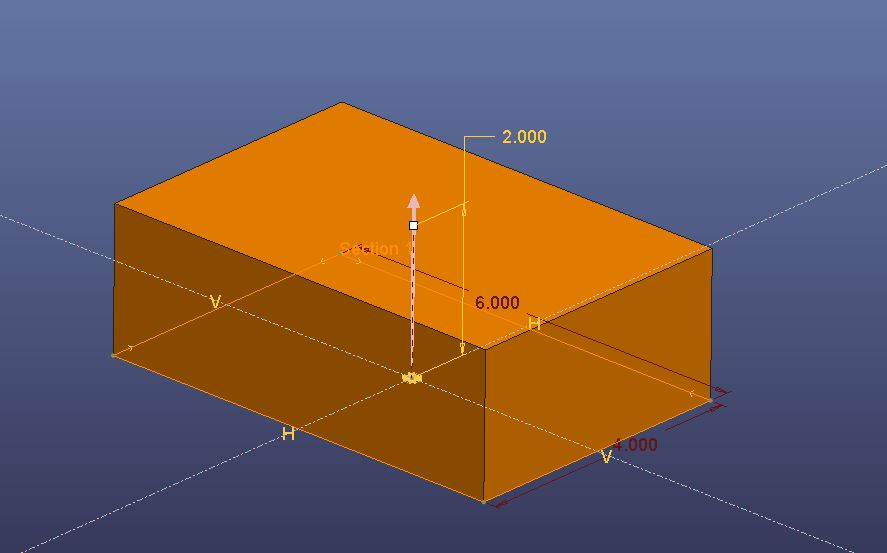

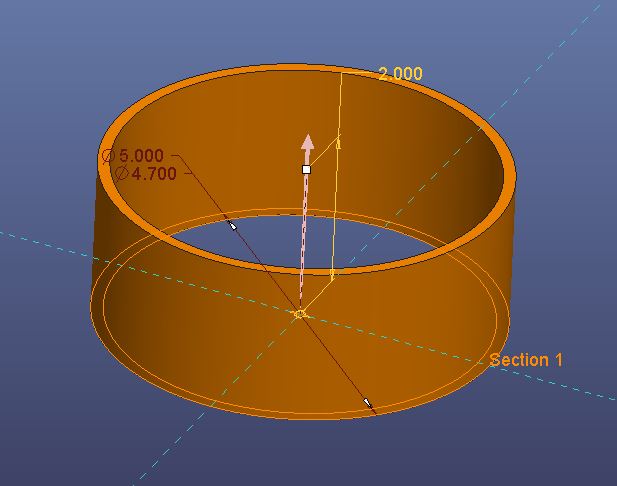

I'm 3D modeling the whole engine. Model work is done using Creo, the images rendered using Keyshot. Started on a few of the easier parts, well maybe not the easiest, but together they make up a large chunk of the engine and a big push of progress at the beginning helps the project move along.

This 3D modeling stuff boggles my mind, how can it even be done without having the original CAD files for each component? And doing it at home no less...

For someone who used to 3D model for a living, I salute you Sir!!

The two really needed to get together...

Progress on my 2.2T build for my 914 has slowed a bit due to funding. So I was able to take that effort and begin a project that I've wanted to do for months.

I'm 3D modeling the whole engine. Model work is done using Creo, the images rendered using Keyshot. Started on a few of the easier parts, well maybe not the easiest, but together they make up a large chunk of the engine and a big push of progress at the beginning helps the project move along.

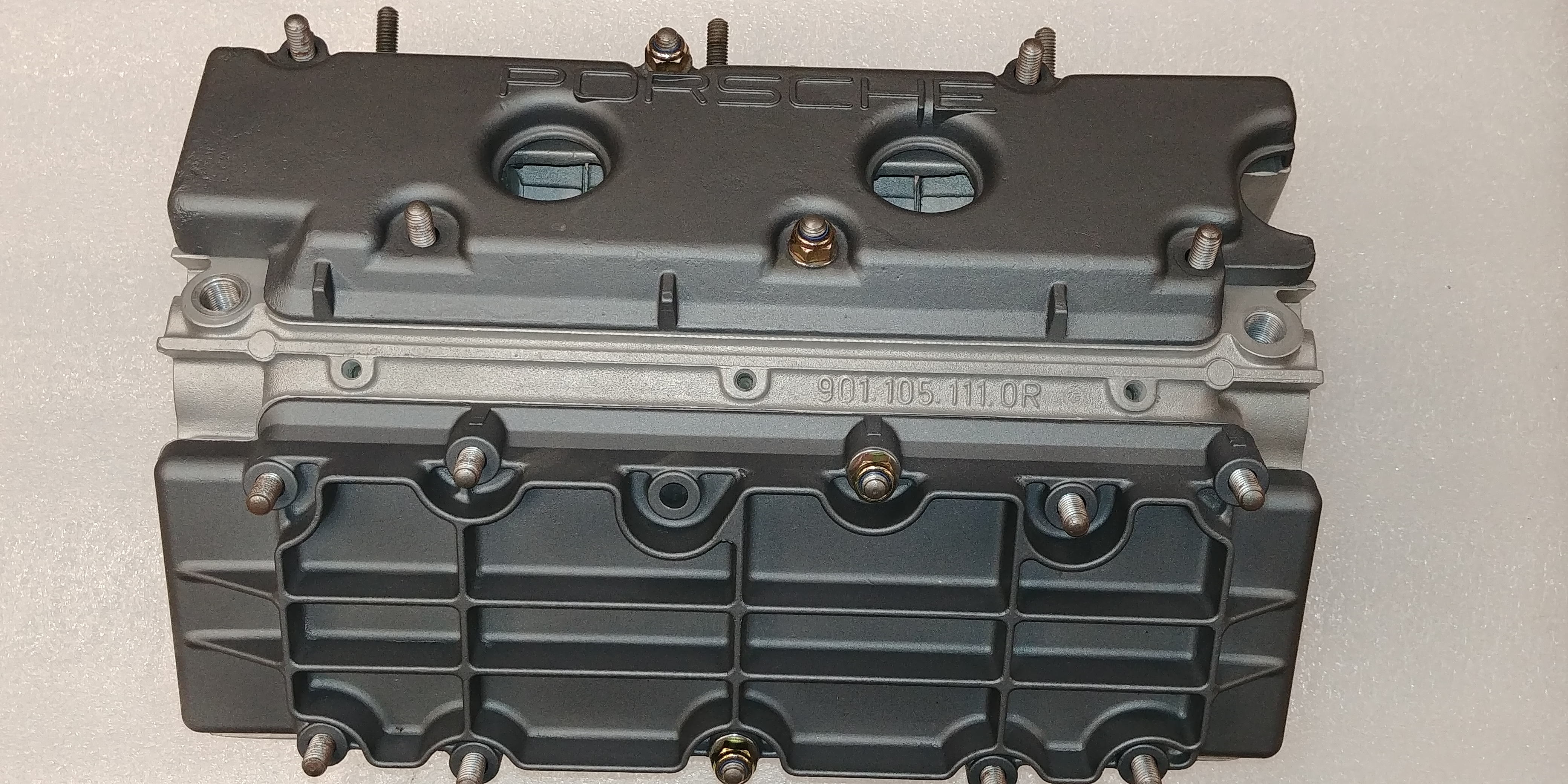

I'm modeling these from actual parts, on my dining room table. Which is another reason I started with these particular parts, they're already cleaned.

Once done I will be using the model to drive a large exploded poster of the engine, I'm also toying with the idea of 3D printing the components in scale form and offering them as a kit. That's pretty far down the line though.

Anyway, here's the first shot. More progress later in the week because I'll have a bit of time, but this is an open ended project. It gets work when I can.
