 WTB: Triple Gauge, New or lightly used |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
914World Classifieds Rules
We've established the following rules to help make your sales/purchases as successful as possible!
- Please List WTB:, FS:, TRADE: etc (want to buy, for sale, and trade respectively) before your add title.
- You *must* put a price in your ad and state how you would like payment!
- If you'd like to bump your ads, feel free to do so every two days.
- DO NOT MAKE YOUR ADS IN ALL CAPITAL LETTERS! It's considered rude.
- All eBay ads belong in the eBay category.
- Please consolidate your ads into one big lump... listings and pictures together in one thread. Please be considerate of other classified users!!
- Mark your items "SOLD" once you sell them. Please do not ask to have ads removed. Ads will automatically hide themselves after 30 days. We also ask that you leave your pricing in the ads to help others determine fair market value for future sales.
  |
| zoomCat |
 Mar 4 2022, 03:50 PM
Post
#1
|
|
Member  Group: Members Posts: 201 Joined: 13-August 04 From: Cincinnati, OH Member No.: 2,526 Region Association: None
 |

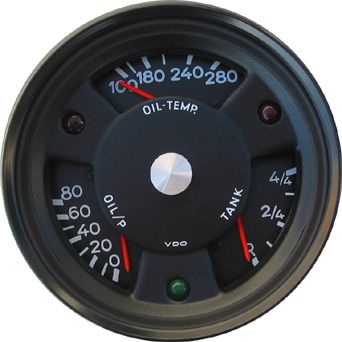

Looking for a combination gauge with fuel, oil temp, and oil pressure. Similar to this:
 |
   |

|
| bahnzai |
Mar 5 2022, 06:13 AM
Post
#2
|
|
Member Group: Members Posts: 370 Joined: 26-July 06 From: Columbia, SC Member No.: 6,509 Region Association: South East States
|
Guy,
Try John Bell (jbell959) on Pelican. I think he may make a small batch of these in the next month or two. It will help if you have any of the cores (good 914 fuel gauge case, oil press & temp pods), but not necessary I don’t think. Good luck! |
|
|
|
| PCH |
Mar 5 2022, 01:39 PM
Post
#3
|
|
Member Group: Members Posts: 147 Joined: 3-January 19 From: Santa Barbara Member No.: 22,772 Region Association: Southern California
|
What is the history of these combination gauges? Were they factory for 914s or were they aftermarket? If they were factory, what years were they available?
|
|
|
|
| dug |
Mar 5 2022, 01:48 PM
Post
#4
|
|
914-6 conv in progress Group: Members Posts: 185 Joined: 26-December 06 From: Santa Cruz, CA Member No.: 7,382 Region Association: Northern California |
The 904 had a triple gauge. The 914 never came with one, but 3 of the individual gauge components will fit in a modified housing, so the face plate is the only part that has to be made to build one.
|
|
|
|
| mepstein |
Mar 5 2022, 01:48 PM
Post
#5
|
|
914-6 GT in waiting Group: Members Posts: 20,587 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|
QUOTE(PCH @ Mar 5 2022, 02:39 PM)  What is the history of these combination gauges? Were they factory for 914s or were they aftermarket? If they were factory, what years were they available? Used on 904’s and then some 914-6GT’s. Never factory in a regular 914 or six. |
 |
|
| zoomCat |
Mar 5 2022, 04:49 PM
Post
#6
|
|
Member Group: Members Posts: 201 Joined: 13-August 04 From: Cincinnati, OH Member No.: 2,526 Region Association: None
|
I've submitted the Google form that John uses, I haven't heard back yet.
I've got a factory gauge from a six, but I was trying to avoid using that as a donor. QUOTE(bahnzai @ Mar 5 2022, 07:13 AM) Guy, Try John Bell (jbell959) on Pelican. I think he may make a small batch of these in the next month or two. It will help if you have any of the cores (good 914 fuel gauge case, oil press & temp pods), but not necessary I don’t think. Good luck! |
|
|
|
| mepstein |
Mar 5 2022, 05:12 PM
Post
#7
|
|
914-6 GT in waiting Group: Members Posts: 20,587 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|

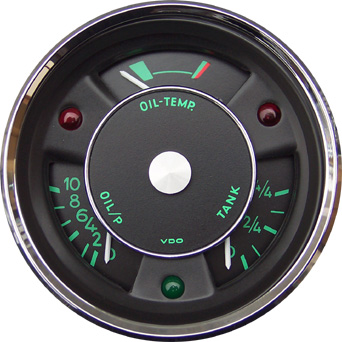

Attached image(s)
|
|
|
|
| mepstein |
Mar 5 2022, 05:14 PM
Post
#8
|
|
914-6 GT in waiting Group: Members Posts: 20,587 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|
A friend made one for me.
Attached thumbnail(s)
|
|
|
|
| bahnzai |
Mar 5 2022, 06:17 PM
Post
#9
|
|
Member Group: Members Posts: 370 Joined: 26-July 06 From: Columbia, SC Member No.: 6,509 Region Association: South East States
|
QUOTE(zoomCat @ Mar 5 2022, 05:49 PM) I've submitted the Google form that John uses, I haven't heard back yet. I've got a factory gauge from a six, but I was trying to avoid using that as a donor. QUOTE(bahnzai @ Mar 5 2022, 07:13 AM) Guy, Try John Bell (jbell959) on Pelican. I think he may make a small batch of these in the next month or two. It will help if you have any of the cores (good 914 fuel gauge case, oil press & temp pods), but not necessary I don’t think. Good luck! Guy, Don't use your original 6 gauge as a core, it is too rare. We can find a 914-4 fuel gauge core if John does not have one. That is the easy part. I think his price depends on what all you supply. Also he only builds them a couple of times a year when his son is home to do some of the specialty work. |
|
|
|
| FlacaProductions |
Mar 5 2022, 06:24 PM
Post
#10
|
|
Advanced Member Group: Members Posts: 2,176 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
I submitted an inquiry through the google form as well. Looking forward to hearing back from him - but I'm also in no rush.
|
|
|
|
| Steve |
Mar 6 2022, 10:07 AM
Post
#11
|
|
914 Guru Group: Members Posts: 6,029 Joined: 14-June 03 From: Laguna Niguel, CA Member No.: 822 Region Association: Southern California
|
John still makes them.
http://www.914world.com/bbs2/index.php?showtopic=58970 |
|
|
|
| DC_neun_vierzehn |
Mar 6 2022, 08:14 PM
Post
#12
|
|
Senior Member Group: Members Posts: 640 Joined: 16-November 20 From: Coastal Delaware Member No.: 24,893 Region Association: MidAtlantic Region
|
QUOTE(zoomCat @ Mar 5 2022, 05:49 PM) I've submitted the Google form that John uses, I haven't heard back yet. I've got a factory gauge from a six, but I was trying to avoid using that as a donor. QUOTE(bahnzai @ Mar 5 2022, 07:13 AM) Guy, Try John Bell (jbell959) on Pelican. I think he may make a small batch of these in the next month or two. It will help if you have any of the cores (good 914 fuel gauge case, oil press & temp pods), but not necessary I don’t think. Good luck! @zoomCat where did you find the Google form? I've searched jbell959 on Pelican Parts 914 Forum, but don't see any links in any of the posts. I'd love to put in an order as well. |
|
|
|
| zoomCat |
Mar 6 2022, 08:20 PM
Post
#13
|
|
Member Group: Members Posts: 201 Joined: 13-August 04 From: Cincinnati, OH Member No.: 2,526 Region Association: None
|
QUOTE(DC_neun_vierzehn @ Mar 6 2022, 09:14 PM) QUOTE(zoomCat @ Mar 5 2022, 05:49 PM) I've submitted the Google form that John uses, I haven't heard back yet. I've got a factory gauge from a six, but I was trying to avoid using that as a donor. QUOTE(bahnzai @ Mar 5 2022, 07:13 AM) Guy, Try John Bell (jbell959) on Pelican. I think he may make a small batch of these in the next month or two. It will help if you have any of the cores (good 914 fuel gauge case, oil press & temp pods), but not necessary I don’t think. Good luck! @zoomCat where did you find the Google form? I've searched jbell959 on Pelican Parts 914 Forum, but don't see any links in any of the posts. I'd love to put in an order as well. He’s usually in the 911 forum. http://forums.pelicanparts.com/porsche-911...ombo-gauge.html |
|
|
|
| PCH |
Mar 9 2022, 03:52 PM
Post
#14
|
|
Member Group: Members Posts: 147 Joined: 3-January 19 From: Santa Barbara Member No.: 22,772 Region Association: Southern California
|
QUOTE(mepstein @ Mar 5 2022, 11:48 AM) QUOTE(PCH @ Mar 5 2022, 02:39 PM) What is the history of these combination gauges? Were they factory for 914s or were they aftermarket? If they were factory, what years were they available? Used on 904’s and then some 914-6GT’s. Never factory in a regular 914 or six. Thank you! I've been wondering, they seem to come for sale from time to time. |
|
|
|
| zoomCat |
Mar 28 2022, 03:55 PM
Post
#15
|
|
Member Group: Members Posts: 201 Joined: 13-August 04 From: Cincinnati, OH Member No.: 2,526 Region Association: None
|
I've contacted John and he's putting a gauge together for me. I'm now looking for cores, John has presented a couple of options.
"Option 1: Use a pre-74 silver button 911 Oil Temp/Pressure Gauge and a 74-on 914 fuel gauge. Option 2: Use a pre-74 silver button 914 Fuel Gauge and a 74-77 911 Oil Temp/Pressure Gauge Option 2 makes for a little cleaner gauge but it's getting hard to find the 74-77 911 Oil Gauges for a reasonable price." I've seen some nice looking examples on eBay, but all I need is a core and I was hoping for something less than $250 for the 911 oil temp/pressure gauge. I'll post something a little simpler as well. |
|
|
|
| DC_neun_vierzehn |
Mar 31 2022, 03:06 PM
Post
#16
|
|
Senior Member Group: Members Posts: 640 Joined: 16-November 20 From: Coastal Delaware Member No.: 24,893 Region Association: MidAtlantic Region
|
I'm working with JB, too, but on a dual gauge (adding oil pressure to my fuel gauge in place of the parking brake and making the parking just a round light like the G and oil lights. I already have a temp gauge in my center console and like the idea of being able to keep the console stock and swap a stock fuel gauge back if I ever want/need to flip it back.
|
|
|
|
| John |
Mar 31 2022, 04:39 PM
Post
#17
|
|
member? what's a member? Group: Members Posts: 3,393 Joined: 30-January 04 From: Evansville, IN (SIRPCA) Member No.: 1,615 Region Association: None |

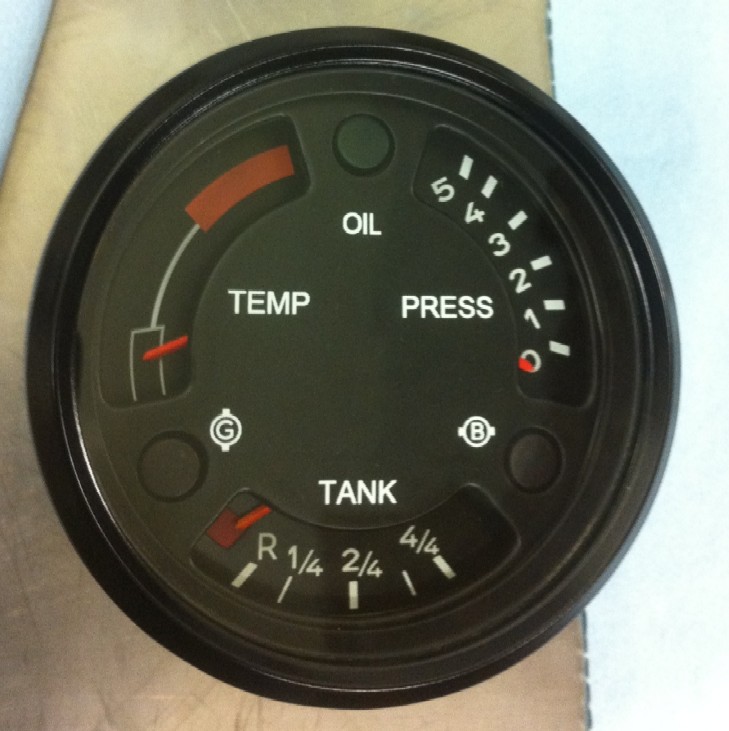

I've made many of these. They were never factory. There was once upon a time a 914 gauge, but that's not really what I've assembled.
I start with a stock fuel gauge and stock 911 temp and pressure gauges. I make a faceplate with windows for the idiot lights and the faces of the fuel-temp-pressure. I use the standard VDO lights and light tubes so they look like they could be stock VDO gauges. I like them and still have some plates left over from when I had more time. They tend to be on the pricey side so they don't sell well, and donor gauges seem to keep going up in price. There are many options including rotated numbers, no numbers, etc. I've done some that had different temp ranges and different pressure ranges. Never knew there were so many versions of the 911 temp and pressure gauges. Here is an example without silver center and with just the standard faces of the 911 donor gauge used.  I doubt I will have time to make a gauge until fall 2022. |
|
|
|
| mepstein |
Mar 31 2022, 05:07 PM
Post
#18
|
|
914-6 GT in waiting Group: Members Posts: 20,587 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|

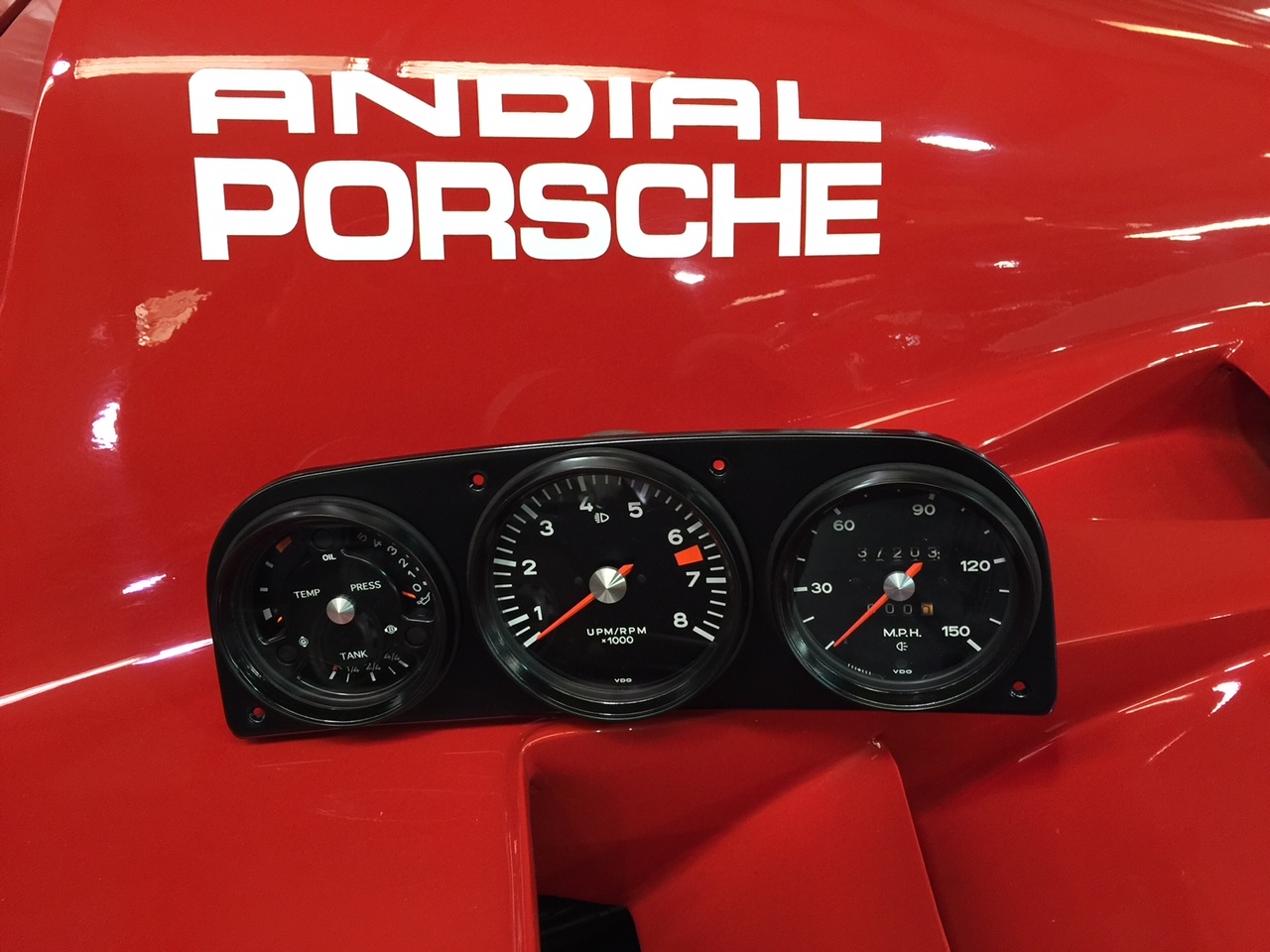

The gauge panel sitting on the red 962 bodywork is one that Timmothy made me from John’s kit. If you add up the cost of the kit, the gauges and the labor, it’s not hard to see why the gauge companies are charging $1k for a triple gauge.
|
|
|
|
| jbell959 |
Nov 4 2022, 10:57 AM
Post
#19
|
|
Newbie Group: Members Posts: 13 Joined: 2-May 21 From: CA Member No.: 25,505 Region Association: None |
I'm gearing up to build another batch of triple and quad gauges. I'd like to finalize a list before Thanksgiving so I can have all the parts machined over the holidays and build the gauges in Jan/Feb.

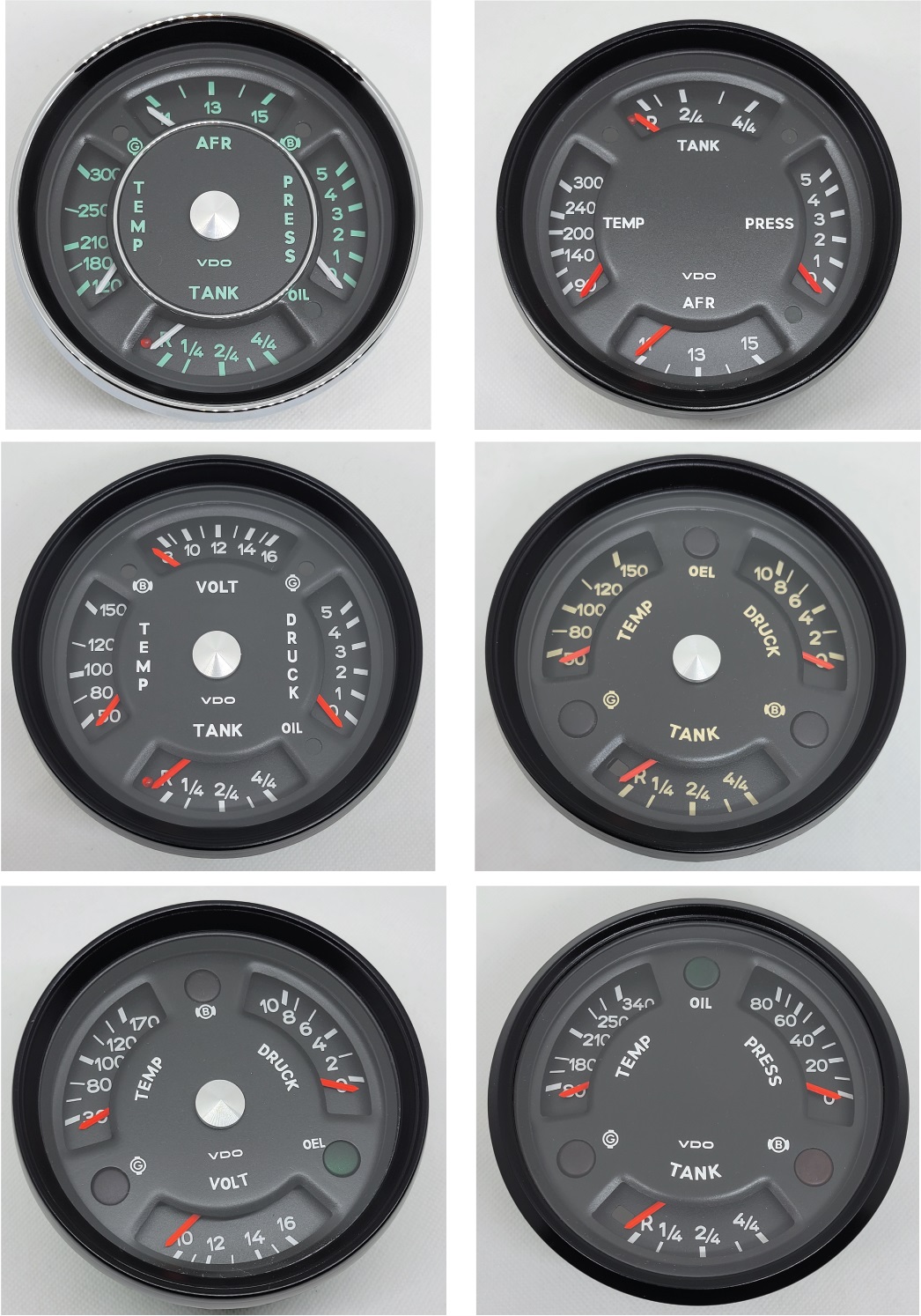

If you're interested in a quad or triple gauge please fill out the form and I'll get back to you with an estimate and any questions. https://docs.google.com/forms/d/e/1FAIpQLSe...orm?usp=sf_link Here are some from the last batch. Attached thumbnail(s)
|
|
|
|
| ric birks |
Nov 4 2022, 11:18 AM
Post
#20
|
|
Newbie Group: Members Posts: 26 Joined: 19-December 08 From: Salem, Utah Member No.: 9,864 Region Association: Rocky Mountains |
QUOTE(dug @ Mar 5 2022, 01:48 PM) The 904 had a triple gauge. The 914 never came with one, but 3 of the individual gauge components will fit in a modified housing, so the face plate is the only part that has to be made to build one.  Ding ding! You are correct! (IMG:style_emoticons/default/sunglasses.gif) |
|
|
|
|
