Maybe they are discussing the great dent he's pointing to.With a spare trunklid,the convertible trunk is quickly replaced with a smoothy.Weird things happen in Ca,the crack of the earth at cause,perhaps.

It was on fire...dry chem

[veekry9]

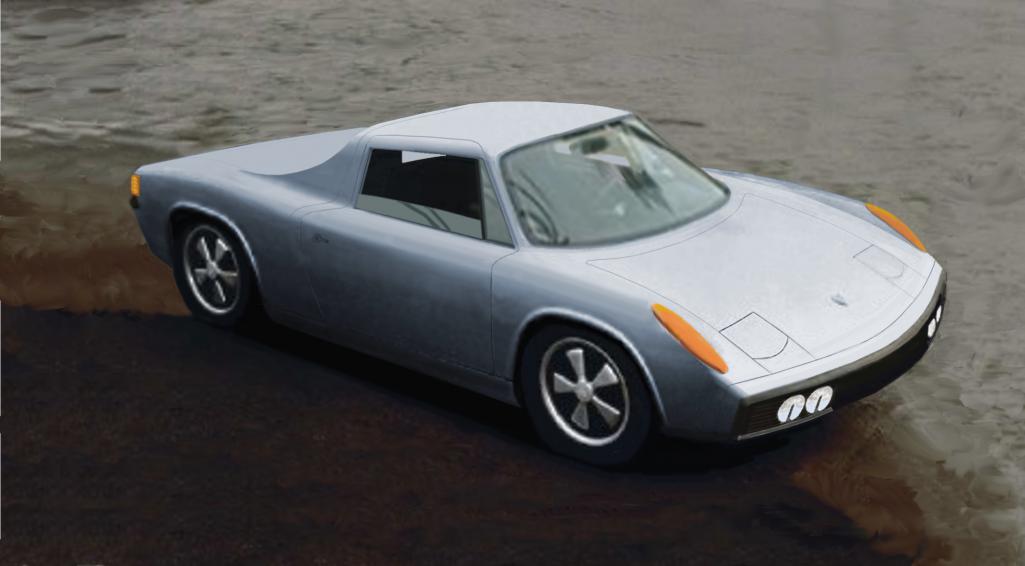

Id keep the side pillars more stock looking to retain the 914 identity. I don't think they need to swept back.

Thanks,great idea.Hadn't occurred to me,I'll do a version,to try it on for size.
The trailing roofline was an attempt to separate the flows,the inertia of the air creating large turbulent vortices.
The LeMans windscreen and those 'walls' made for a smoother passage,needing less hp to push through.
Heck,a vertical separator with a spline curve would work the same as the LMPs.
A bit flash though,I wished to keep it soap bar smooth,60s like.
/



A compromise,retaining the high rear deck line.More headroom,and a visually low roof proportion.
It's chopped,50mm or so.Up top,the comparison to the '16 Cayman is clear.Down low and fast.
(IMG:style_emoticons/default/smile.gif)
/

[Ferg]

Is it just the picture or are those French rear lenses?

[veekry9]

German.
(IMG:style_emoticons/default/biggrin.gif)
/
(edit:07/24/16):
https://www.google.ca/search?q=plastic+lens...t_lgXxgU_IgM%3A
http://www.prototypetoday.com/tag/injection-molding
/

[sixnotfour]

Congrats you are almost to 1964 Ferrari 250 LM by Scaglietti... (IMG:style_emoticons/default/biggrin.gif)

[veekry9]

Well,I did purchase a 1:18 diecast model of the 250LM as a gift,some half dozen yrs ago.
But no,the intent was to trial fit the 914 with the sloped LeMans windsceen,as it has a more rounded profile.
*The 250 LM glass by the way,is only available to the owners of the original cars,factory,I believe.And pricey.*
(edit:07/23/16)Totally wrong on that,it is then,possible to meld a 250's windscreen onto a 914's chassis. (IMG:style_emoticons/default/evilgrin.gif)
Gee,thanks,[sixnotfour],I would never have considered the proposal.*A wider,taller windshield,allowing more shoulder room.*
(edit:07/27/16):Well,after some measurements,it is the 904's windscreen that is taller,the 250's is wider and more sloped.
http://www.pilkington.com/en-gb/uk/automot...-models/ferrari

But,the Lancia Stratos windscreen is a piece that is not too dear.
Way rad.
(IMG:style_emoticons/default/happy11.gif)
(IMG:style_emoticons/default/biggrin.gif)

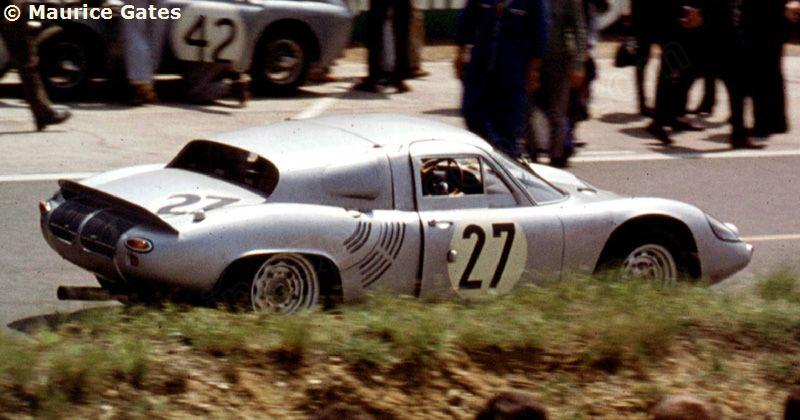

718-8 2L Le Mans '63

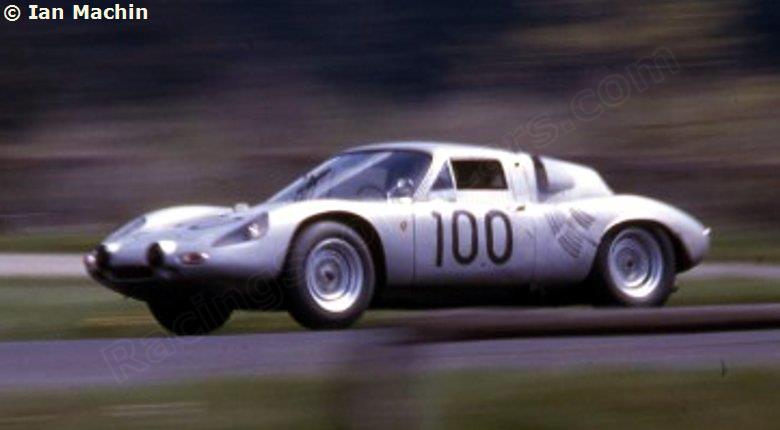

718-8 2L Nurburgring '63

It is apparent what they were trying to achieve,aero like.
Smooth.
/

[sixnotfour]

(IMG:style_emoticons/default/beer3.gif)

[sixnotfour]

(IMG:style_emoticons/default/beer3.gif)

[veekry9]

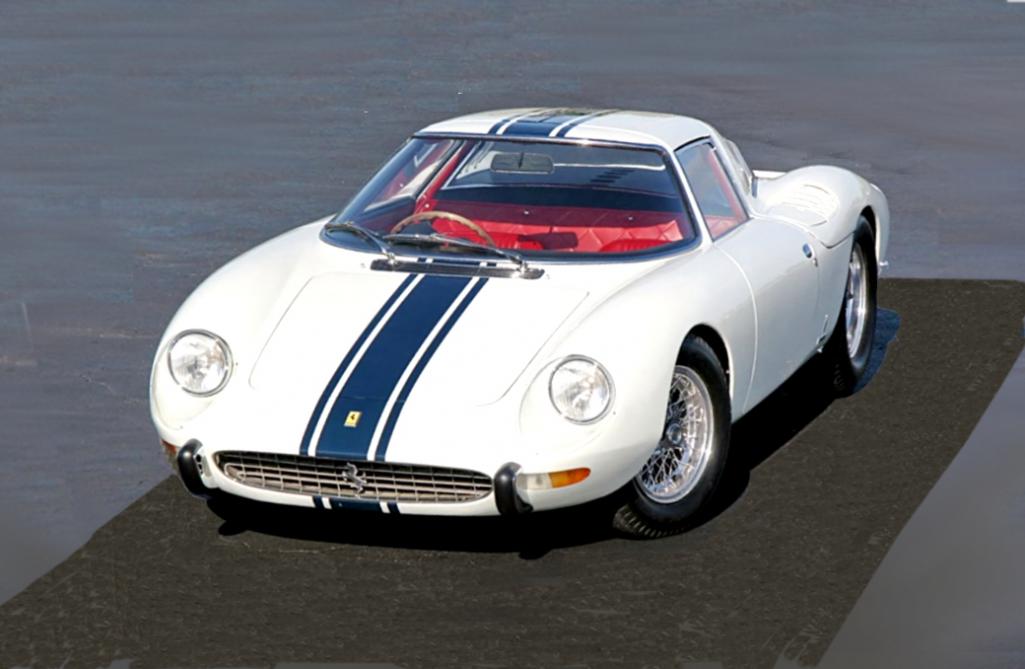

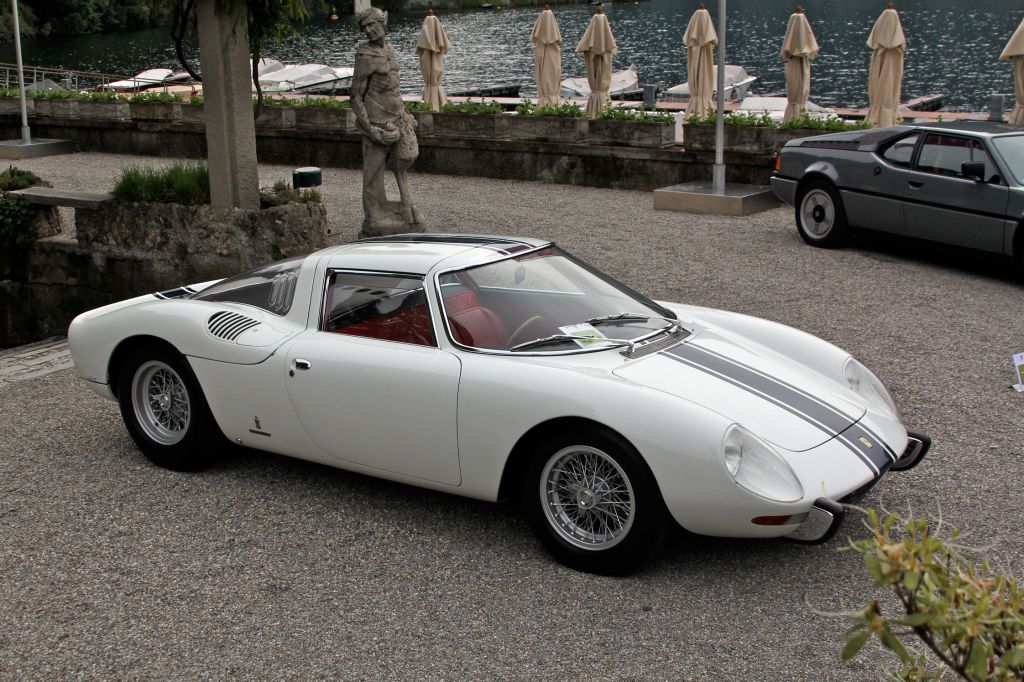

"First shown at Geneva in 1965, the 250 LM ‘Stradale’ then left for the USA where it remained until now. It is equipped with electric windows and leather seats."
http://www.velocetoday.com/villa-deste-2013/

Man,I adore the perspex rear window,with the formed vents,a detail later done,also by Pininfarina,with the 288 GTO.
A Cool 17M+.
(IMG:style_emoticons/default/smile.gif)
(edit:07/24/16):

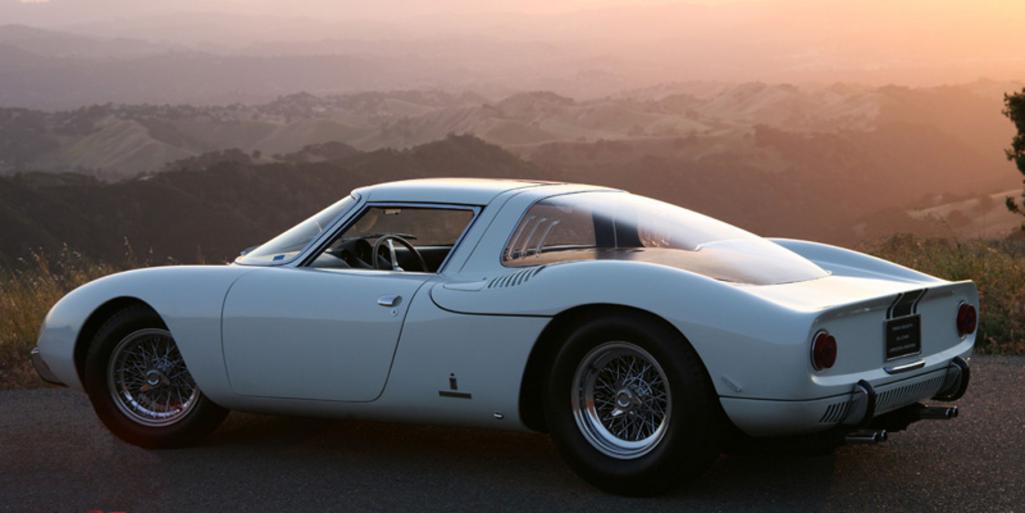

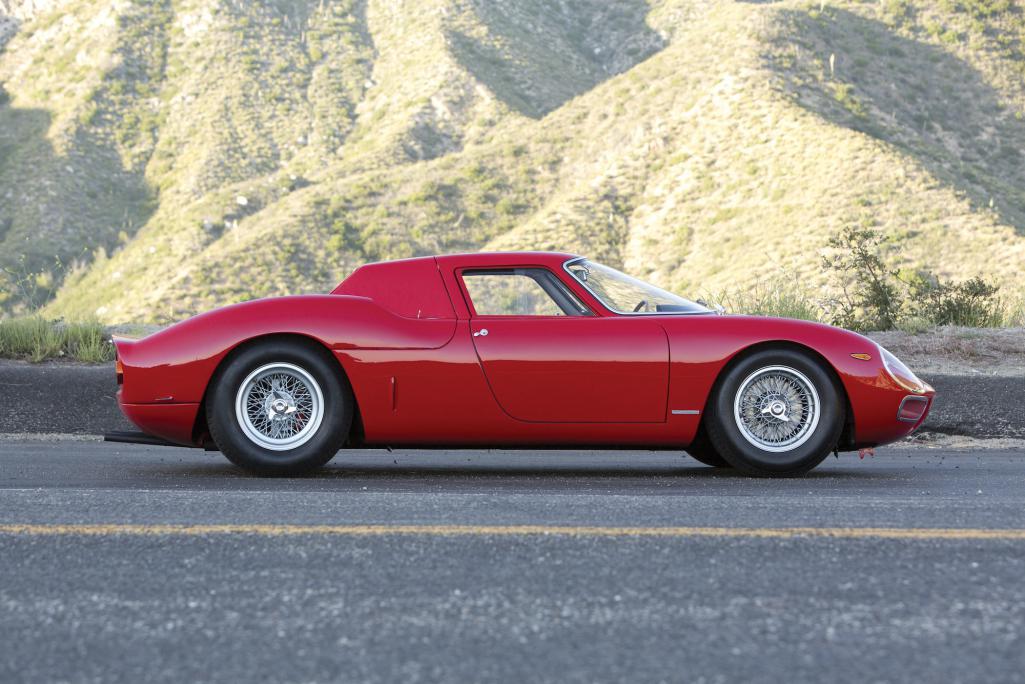

250LM Stradale 6025 at MtDiablo,CA.
(IMG:style_emoticons/default/drooley.gif)
/
(edit:07/26/16):
A happy ending. (IMG:style_emoticons/default/smile.gif)
http://www.carbuildindex.com/29459/engine-...ed-for-auction/
/

[veekry9]

A raised roofline,for the taller driver,with helmet.
The seats,dropped 40mm,closer to the floor pan,the firewall sloped,the footbox lengthened.
Note that the wheelwells have been raised,the front to the same height as the frunklid.
http://www.914world.com/bbs2/index.php?sho...22522&st=50
That glass would be a custom formed piece,fitting the factory upper frame,the lower seat modified for a similar radius as the 904's.
A form(mold) would have to be made for the short run,tempered,laminated safety glass.
Not cheep tho.
(IMG:style_emoticons/default/dry.gif)
/

[Rand]

Reminds me of this... (pic from WCR 2011)

[JmuRiz]

Always loved the 250LM, viewed it as a Ferrari 914 (granted it was pre 914)
Believe it or not there was a time not-so-long ago when they weren't insanely priced...kind of like the 904 etc. Forget about it now.

[veekry9]

Well,a jackpot winner,with 300M after taxes might consider such a bauble.
(IMG:style_emoticons/default/biggrin.gif)
A trip to the moon,or Mars...

So,a derelict 914 chassis,some sweat equity and various Porsche organs,shake until competitive.
Driving about to make rescues of the numbers,as Unobtanium does with the 356.
A large 'Field of Dreams'steadily decaying as we watch.
Once kissed by the 914 pixie,hard to avert one's affection,and coinage.
(IMG:style_emoticons/default/biggrin.gif)
/

[sixnotfour]

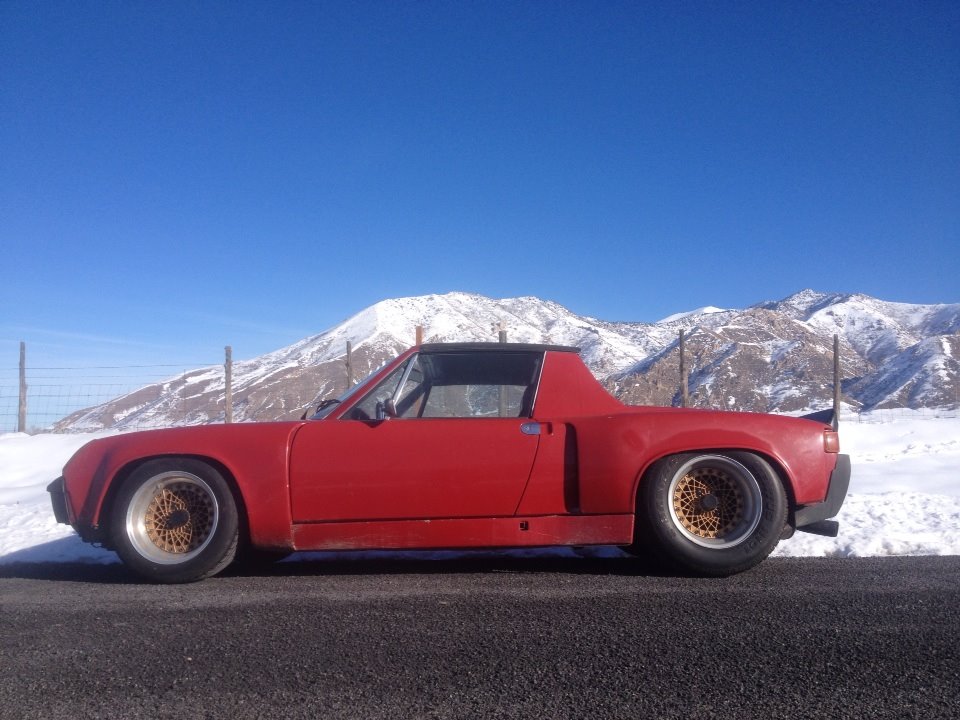

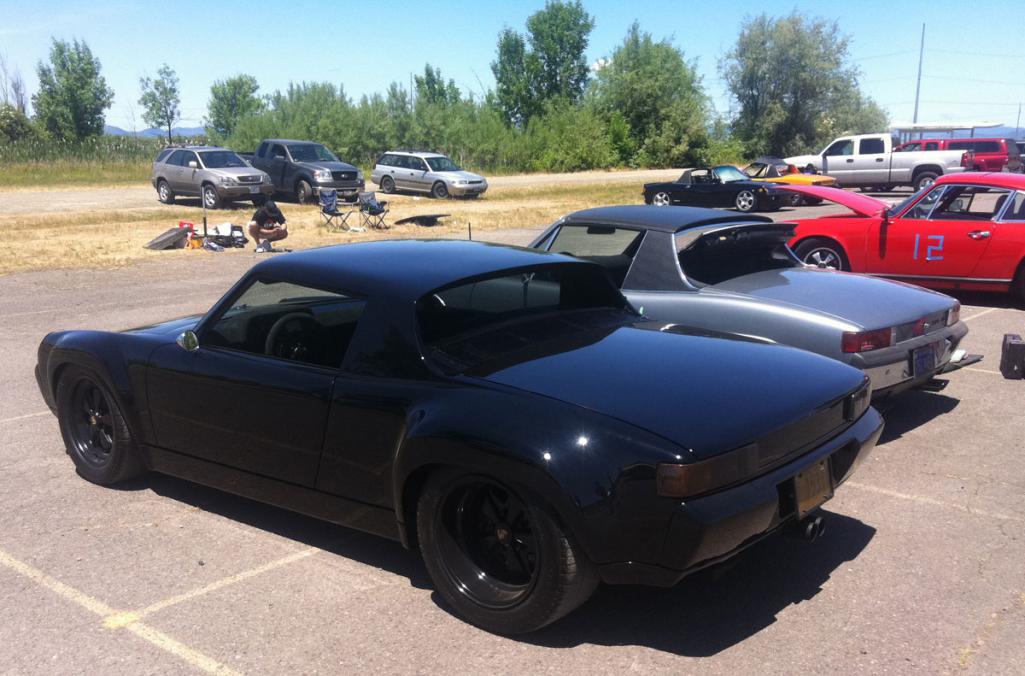

So if you (IMG:style_emoticons/default/beer3.gif) enough and look just right (IMG:style_emoticons/default/blink.gif) ...you might see some resemblance (IMG:style_emoticons/default/drunk.gif) or not (IMG:style_emoticons/default/dry.gif) actually mines the 13yr newer model (IMG:style_emoticons/default/WTF.gif)

[veekry9]

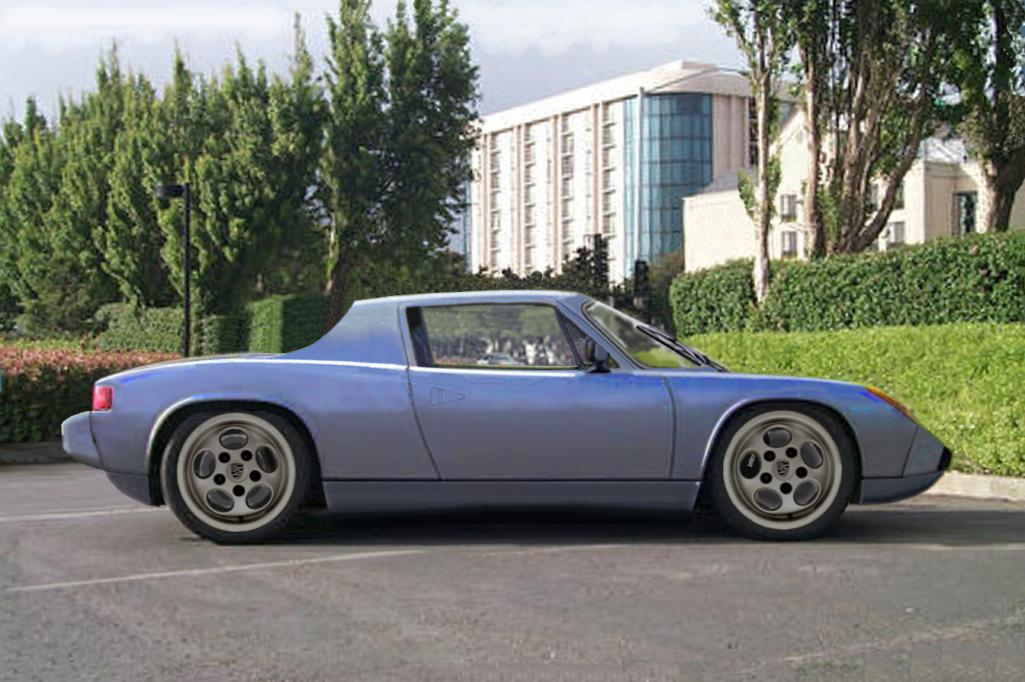

The curve,modified,soon to be tweaked,again.
Testing..
In the light metallic blue they look so good in,some sky colour.
(IMG:style_emoticons/default/biggrin.gif)

250LM Stradale,V12 Longitudinal.
You might have something there,a germ of the ideas they had in the late 50's.
Later,Lamborghini turned things around with the Miura and Countach.
http://www.914world.com/bbs2/index.php?sho...2522&st=199
/

[veekry9]

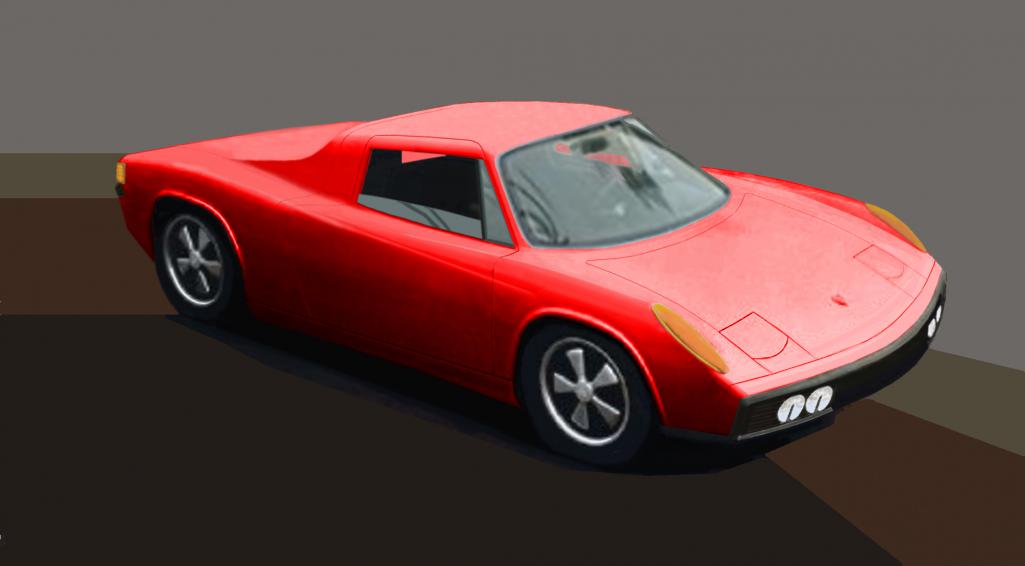

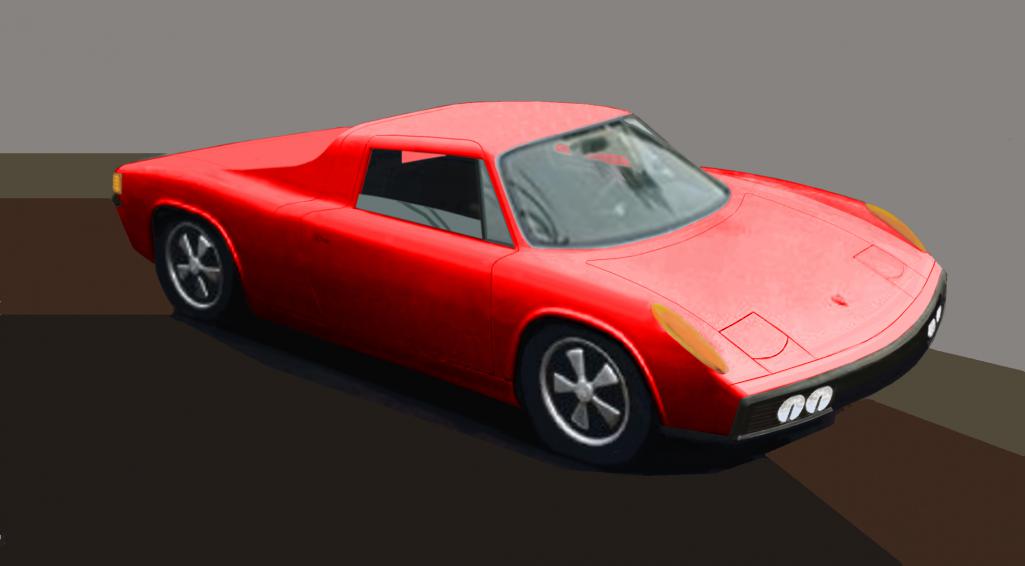

Some mods,and a scraper,with 916 style diverters.
Hmmm..what will I do next?A stretch and a raising of the rear trunkline.
To make room.
(IMG:style_emoticons/default/evilgrin.gif)
/

[sixnotfour]

just buy a 904 body and ..... there was a show once called "chop cut rebuild"

[veekry9]

(edit:07/23/16)
https://www.youtube.com/results?search_quer...hop+cut+rebuild
I looked at a few episodes,when possible,liked the show and the work done.



Purchase a windscreen from Pilkington.
http://www.pilkington.com/en-gb/uk/automot...-models/porsche
Then,create the surround and underlying cage structure.
The male plug for the molds,drawn in cad,machined in cam,polished to symmetry.
Later,if one wished,a sheetmetal skin could be pounded and wheeled out,because aluminum is light too.
http://www.914world.com/bbs2/index.php?sho...=247031&hl=
A 904 replica or homage is a worthy endeavor,if done well.((Edit:08/12/16):The 904's windscreen looks pure sex on the 914's lower body,so well raked)
A drawing of a trial fit has inspired a 250LM comparision,and although flattering,the windscreen is the only similarity,and differently sized.
Neato,the smaller,narrower,904's glass and roofline makes the sectioned,stretched 914 bodyshell slicker.
A lot of work,the drawings the plan,and only the seed,or beginning,of a total custom.
With a pumped up P6 or H6,the performance would satisfy,briefly.
Go ahead,resurrect a 914 near you,instructions can be found here on the World.
(IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/happy11.gif)
(edit:07/24/16)

How the heck do you fit that thing in a 914????
--DD

Ferrari fit 'that thing'(the Columbo 3.3L V12),into a 250LM,with some well planned,(drawn),forethought.
The 250LM has a WB 50mm(2") shorter than the 914,so,it is a tight squeeze.
https://en.wikipedia.org/wiki/Ferrari_250
https://en.wikipedia.org/wiki/Ferrari_Colombo_engine
https://www.google.ca/search?q=ferrari+V12+...DmKnYOo9fAUM%3A
(IMG:style_emoticons/default/biggrin.gif)
/

[veekry9]

(IMG:style_emoticons/default/happy11.gif)
(IMG:style_emoticons/default/biggrin.gif)

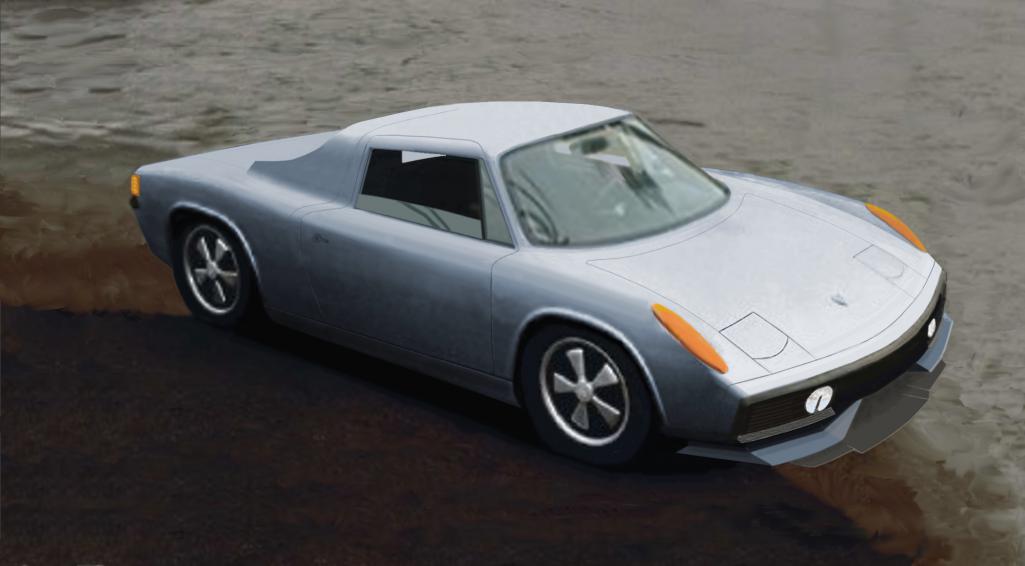

Well,I raised the rear trunkline,widened the fender at the rear wheel,
and generated a creaseline that fades in as it goes forward,from the top of the fender,fading out toward the rear of the front wheel opening lip.
The top of the front fender has been given a more pronounced curvature that fades into the top of the doorskin,a subtle hint of TR,Pininfarina.
Similar to what I did to the metallic blue stretch.
http://www.914world.com/bbs2/index.php?sho...2522&st=171
Soon to be scooped,a huge character change,from mild to wild.
Still maintaining the 914 targa curve,modded.
(IMG:style_emoticons/default/smile.gif)
/

[Rand]

You have mad photochop skills. But I'm with the previous thoughts: Too much sail swoop. A couple of the real pics posted look better. Just a $.01, not critical. (IMG:style_emoticons/default/beerchug.gif)
