> Boxter - 914, Boxster Transaxle swap
bcheney
post Nov 27 2016, 02:51 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,341
Joined: 16-November 03
From: Orlando, FL
Member No.: 1,348
Region Association: South East States



I guess I have been unaware of this...

http://www.914world.com/bbs2/index.php?showtopic=299689
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmill
post Nov 27 2016, 03:07 PM
Post #2


Green Hornet
****

Group: Members
Posts: 2,449
Joined: 9-May 08
From: Racine, Wisconsin
Member No.: 9,038
Region Association: Upper MidWest



The guy selling them has done some nice work. I remember a suby powered Boxer that was quite nice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 27 2016, 04:33 PM
Post #3


914 Freak!
***************

Group: Members
Posts: 16,972
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(jmill @ Nov 27 2016, 01:07 PM) *

The guy selling them has done some nice work. I remember a suby powered Boxer that was quite nice.



^ditto, great deal on those axles, oh so tempted since I happen to have a Boxster transmission as well....
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 27 2016, 05:06 PM
Post #4


Advanced Member
****

Group: Members
Posts: 4,645
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest



QUOTE(Mueller @ Nov 27 2016, 02:33 PM) *

QUOTE(jmill @ Nov 27 2016, 01:07 PM) *

The guy selling them has done some nice work. I remember a suby powered Boxer that was quite nice.



^ditto, great deal on those axles, oh so tempted since I happen to have a Boxster transmission as well....



Would that bolt up to a Porsche 6 (aircooled)? Boxster trans I am talking about.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmill
post Nov 27 2016, 06:28 PM
Post #5


Green Hornet
****

Group: Members
Posts: 2,449
Joined: 9-May 08
From: Racine, Wisconsin
Member No.: 9,038
Region Association: Upper MidWest



Ask him. The thread below is his work with the Boxter. He did a couple of awesome 914's too.

http://www.914world.com/bbs2/index.php?sho...=109434&hl=

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dflesburg
post Nov 28 2016, 07:10 AM
Post #6


Senior Member
***

Group: Members
Posts: 1,698
Joined: 6-April 04
From: Warm and Cheerful Centerville Ohio
Member No.: 1,896
Region Association: None



IMO

you have to spend a lot of money to make a 914 drive as well as a nice used Boxster S.



User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 28 2016, 07:58 AM
Post #7


914 Freak!
***************

Group: Members
Posts: 16,972
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(mb911 @ Nov 27 2016, 03:06 PM) *

QUOTE(Mueller @ Nov 27 2016, 02:33 PM) *

QUOTE(jmill @ Nov 27 2016, 01:07 PM) *

The guy selling them has done some nice work. I remember a suby powered Boxer that was quite nice.



^ditto, great deal on those axles, oh so tempted since I happen to have a Boxster transmission as well....



Would that bolt up to a Porsche 6 (aircooled)? Boxster trans I am talking about.


I started to draw something up [on phone, cannot find thread I started]

Clay is working on his version and more than likely get his done 1st.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Nov 28 2016, 06:16 PM
Post #8


Life's been good to me so far.....
**********

Group: Admin
Posts: 11,499
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(Mueller @ Nov 28 2016, 07:58 AM) *

QUOTE(mb911 @ Nov 27 2016, 03:06 PM) *

QUOTE(Mueller @ Nov 27 2016, 02:33 PM) *

QUOTE(jmill @ Nov 27 2016, 01:07 PM) *

The guy selling them has done some nice work. I remember a suby powered Boxer that was quite nice.



^ditto, great deal on those axles, oh so tempted since I happen to have a Boxster transmission as well....



Would that bolt up to a Porsche 6 (aircooled)? Boxster trans I am talking about.


I started to draw something up [on phone, cannot find thread I started]

Clay is working on his version and more than likely get his done 1st.



I just came in from the garage where I was working on a wooden mockup of the adapter plate. I had to stop because I let the magic smoke out of my dremel trying to cut the center out of the wooden mockup.

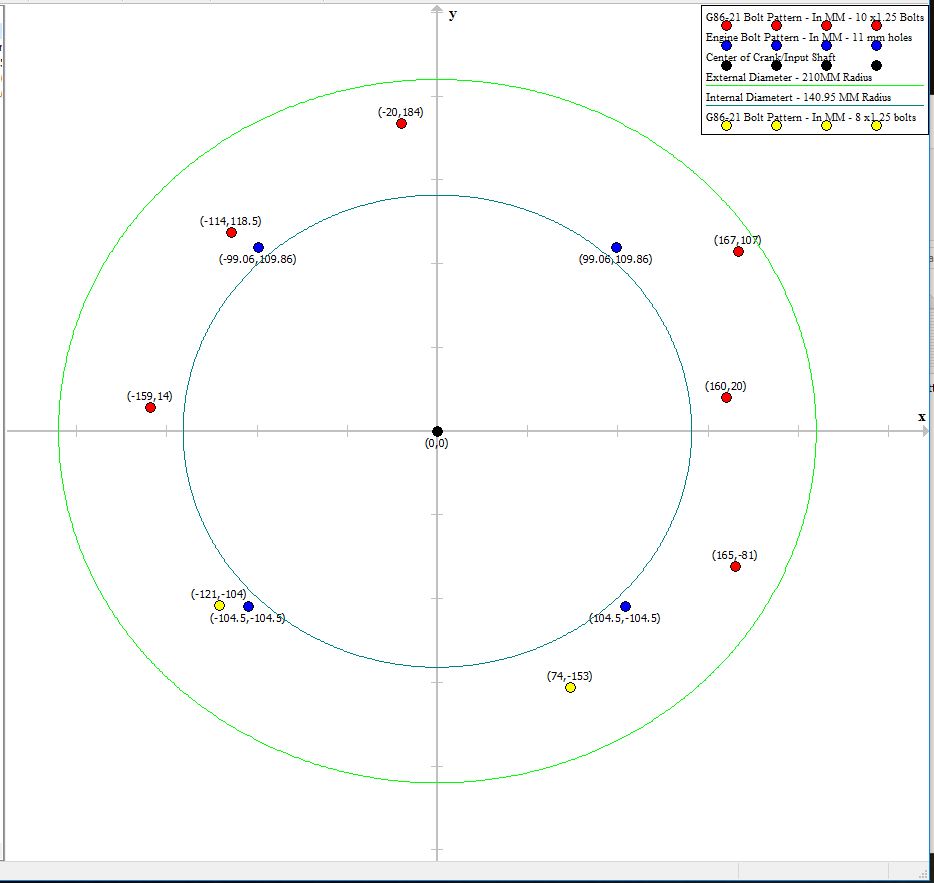

Here is a picture of the adapter plate dimensions.

Attached Image

This was a bitch to create. Lots of time researching it, and lots of time testing and combining the drawings. I have made 4 separate wooden mockups. I had one hole slightly off on the last one.

And I still have to make the cutout for the DME sensor.

I am going to go try to make the first one later this week. Wish me luck. (IMG:style_emoticons/default/biggrin.gif)

Mueller... if you want to try it, go for it. I have to go borrow some time on a Bridgeport to make this.

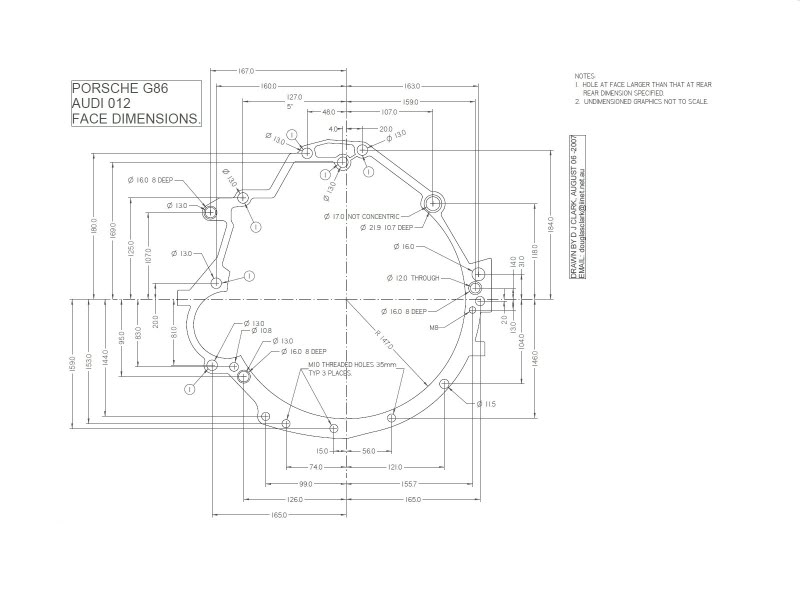

For Reference, here's the G86 bolt pattern diagram I found on the internet.

Attached Image

Once I make the plate, I am going to pull the engine off the stand and test it.


Honestly, I wouldn't go to the trouble if it wasn't a 6 speed, or I could flip the ring and pinion on a G-50 gearbox.


User is online!Profile CardPM
Go to the top of the page
+Quote Post
Miguel K R
post Oct 26 2020, 02:06 PM
Post #9


Newbie
*

Group: Members
Posts: 12
Joined: 12-December 19
From: Portugal (Europe)
Member No.: 23,732
Region Association: None



I am adapting a G87 trans from a Boxster/Cayman S to an air cooled engine (from a 993 but with 964 inlet manifolds to fit under the engine lid).

I will use a flywheel from Kennedy Engineered Products and found that the adapter plate must be 20mm thick.

I started by printing a 1/1 scale drawing of the G86 Porsche/Audi bellhousing bolt pattern available at https://grabcad.com/library/01e-audi-transm...-bolt-pattern-1

1) I noticed that the above mentioned drawing does not include one fixing hole which I will use with the G87 trans . I will mark this hole and drill it when I get the adapter plate and check the mating of the trans to the engine. I will then update my CAD file.

2) These drawings still do not present the cutout and fixing for the hightorque starter. I will post the final drawings when I complete that detail.

3) I did not consider the cutout for the DME sensor because I am not using it . I am running the engine with a programmable Engine Management System (with wasted spark : https://en.wikipedia.org/wiki/Wasted_spark ). I am not going to add the detail for the DME sensor to my drawings and CAD file, but that is presented by Clay Perrine at http://www.914world.com/bbs2/index.php?sho...204.0&st=80 (see Post #91).

The preliminary drawing of the adapter plate is available at :


https://photos.app.goo.gl/WdHfUvdgCfWJFz4g9
