> Nine Fourteen Sex, The on going story of Love and Lust for a Machine.
914 Ranch
post Apr 10 2024, 12:44 PM
Post #741


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

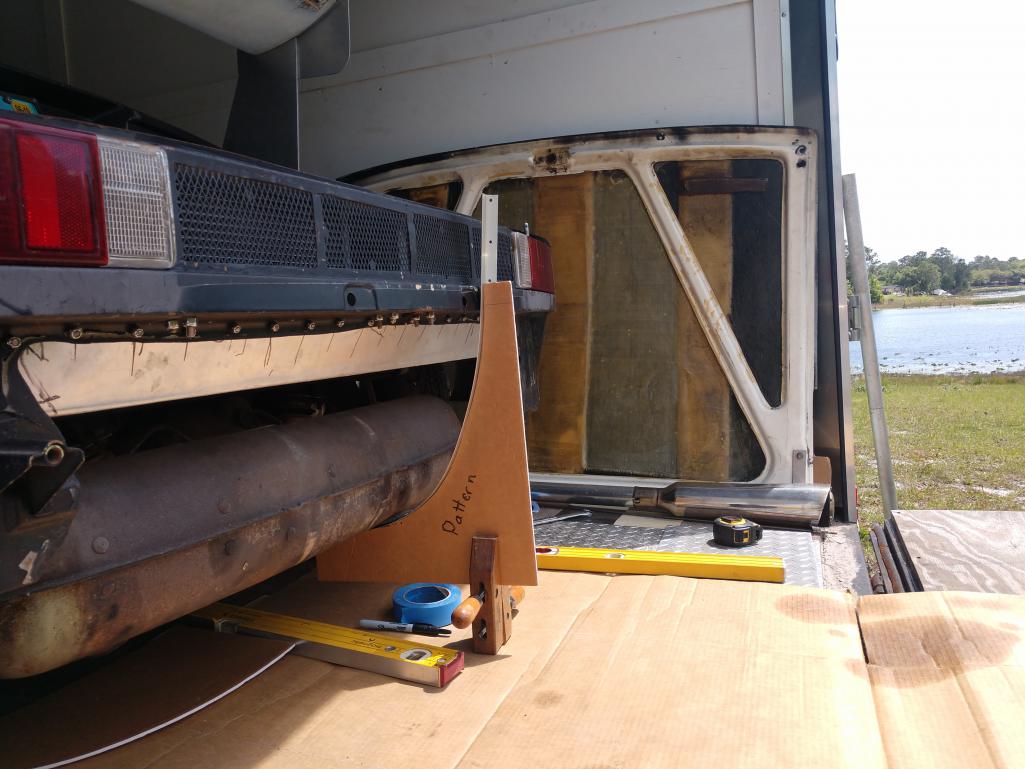

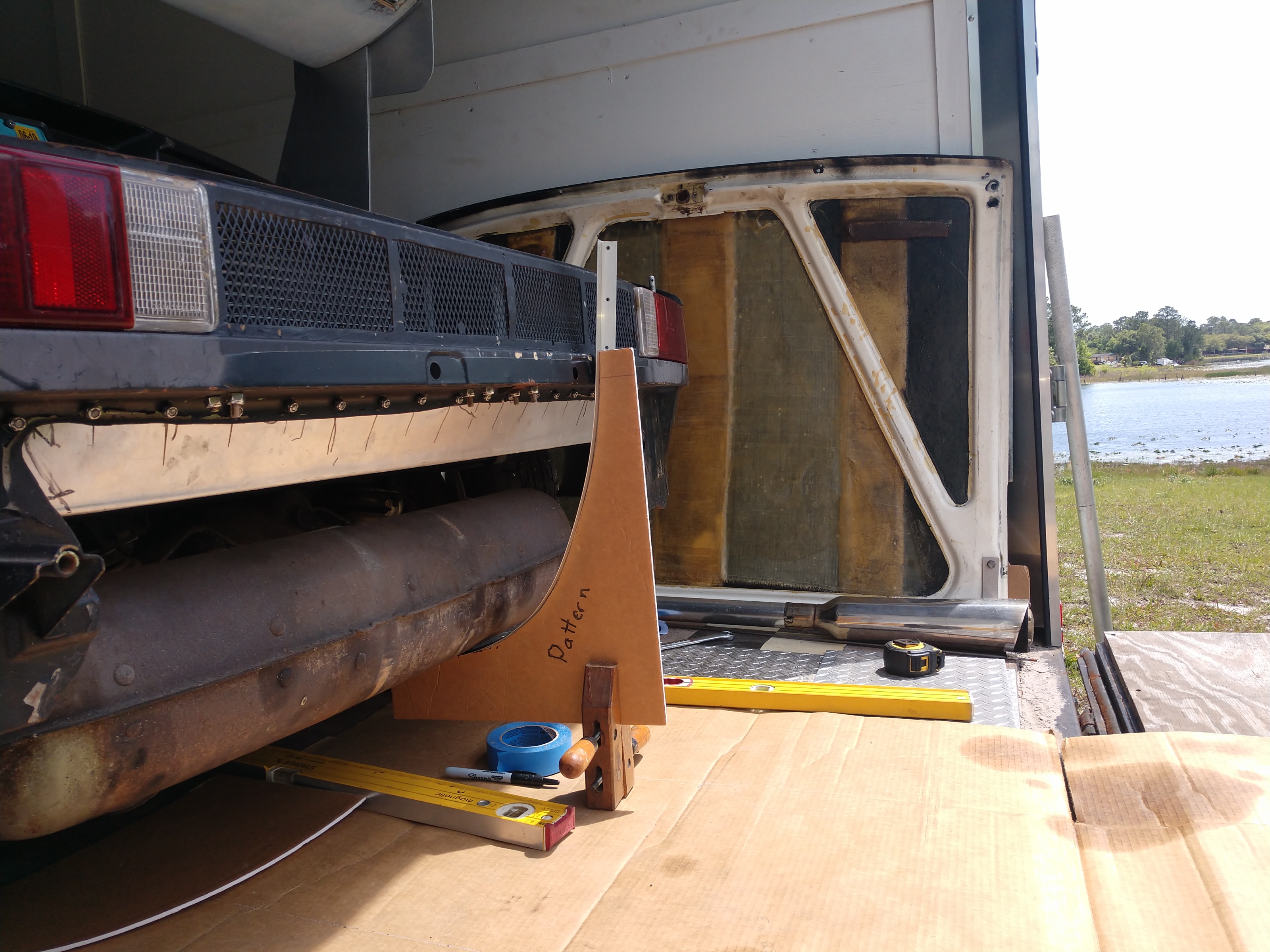

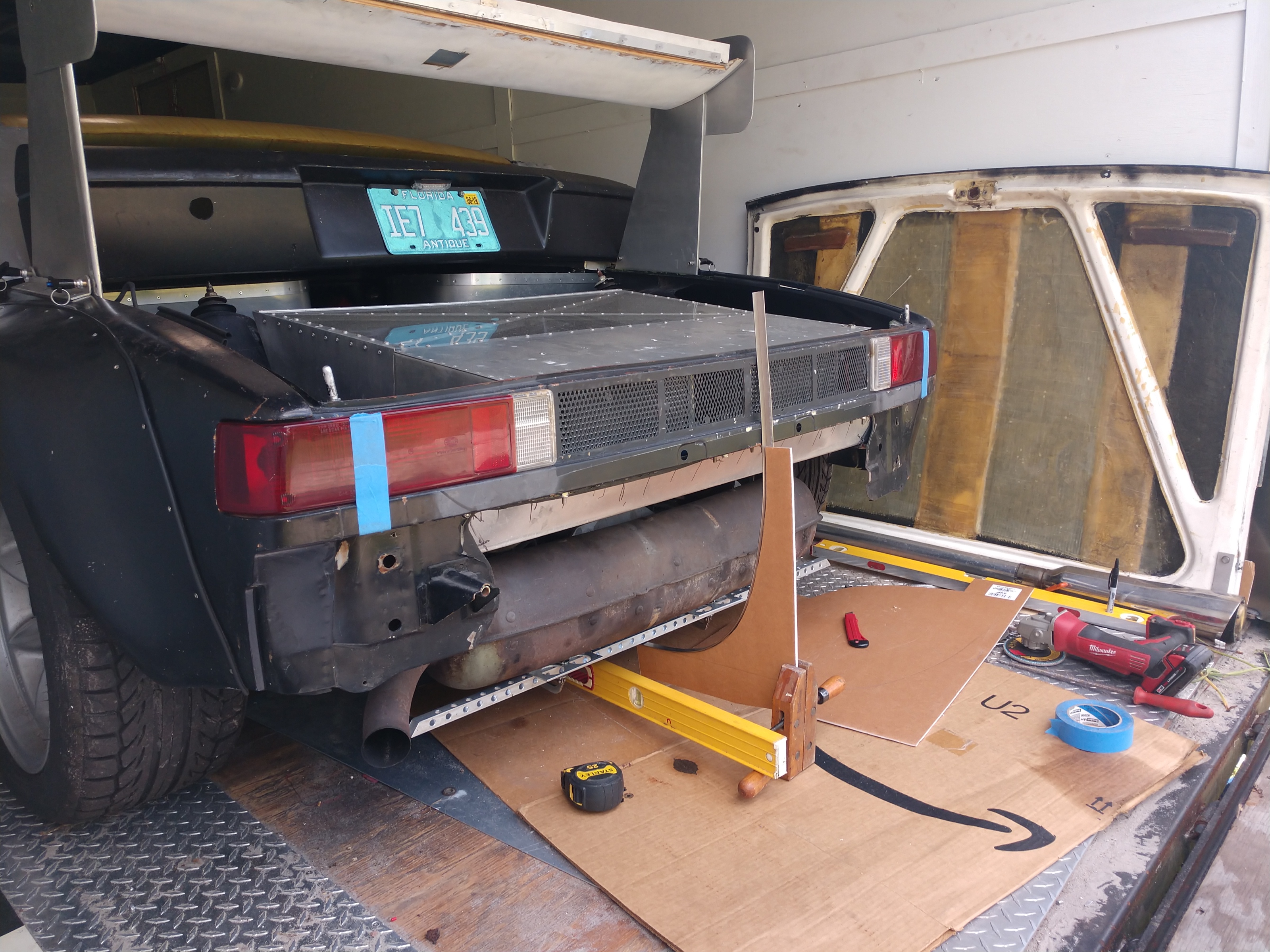

From the body too the muffler bracket the shape of the rear diffuser. The foam board is the shape of the skrake and the piece of aluminum is 3/4x3/4x1/16 shaped by my shrinker and stretcher.

Attached Image

I like the shape and it clears the muffler and it points at the flat bottom of the bottom of the interior.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Apr 13 2024, 06:07 PM
Post #742


914 Wizard
**********

Group: Members
Posts: 10,414
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Cant Waite to see, more
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 16 2024, 03:50 PM
Post #743


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

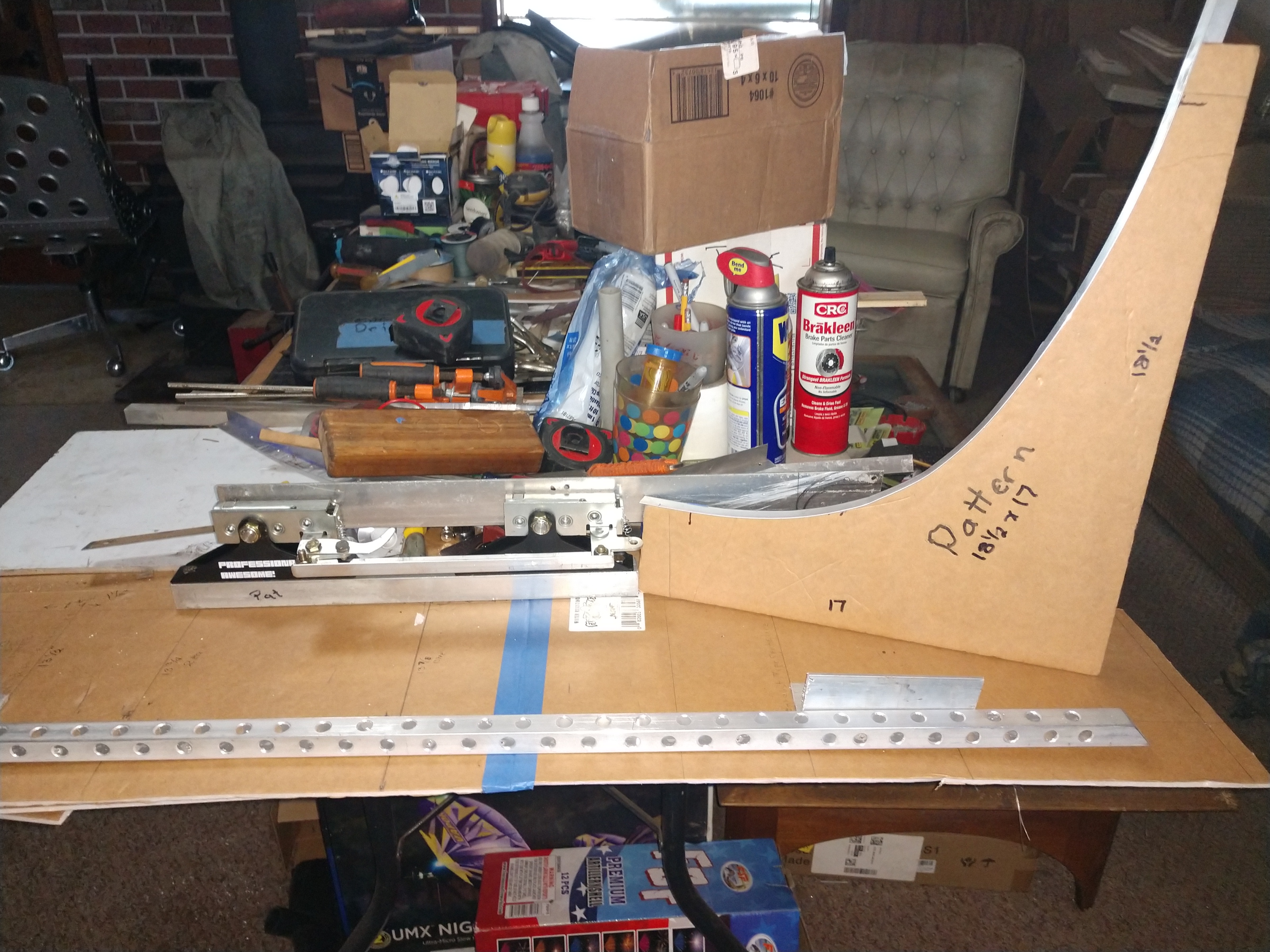

Yeah, I want to see more too. I've been getting brackets and patterns together for the assembly of a buck of sorts. I'm going to attempt to make the diffuser in the shape of the rear of the car without the bumper or moldings. I stole that shape from the rear edge of the trunk hood. The back edge is going to be a problem but like everything else I'll handle it when I get there.

Attached Image

Gathering pieces.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 19 2024, 03:05 PM
Post #744


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
Just another picture...

Attached Image

More bracketing, awaiting some more hardware.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 23 2024, 03:59 PM
Post #745


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

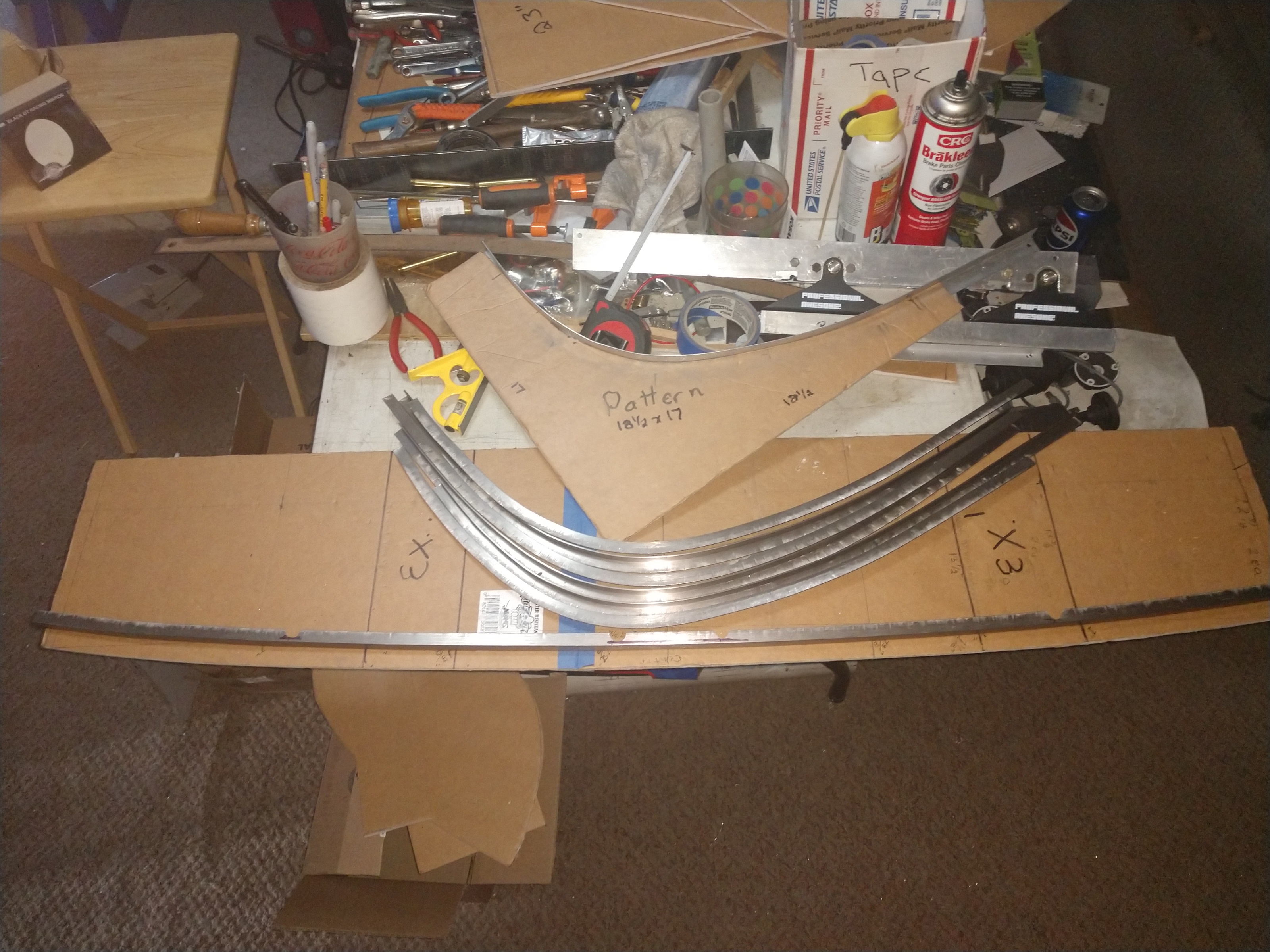

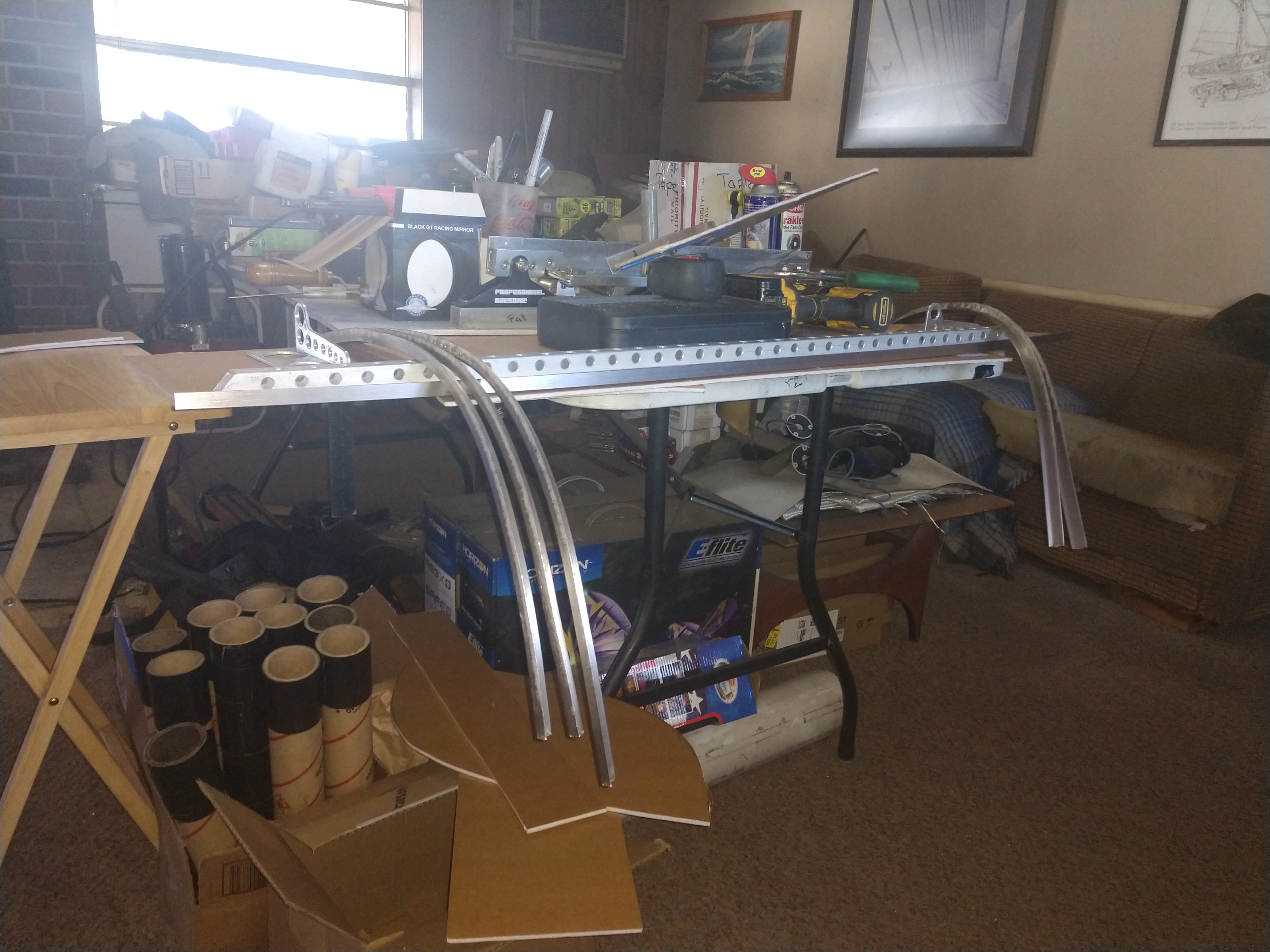

Cut and bent all of the supports for the strakes today. Probably layout the strakes tomorrow, then I get to build the buck.

Attached Image

Boy this is going to be interesting. It won't have a straight top edge.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 24 2024, 05:53 AM
Post #746


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

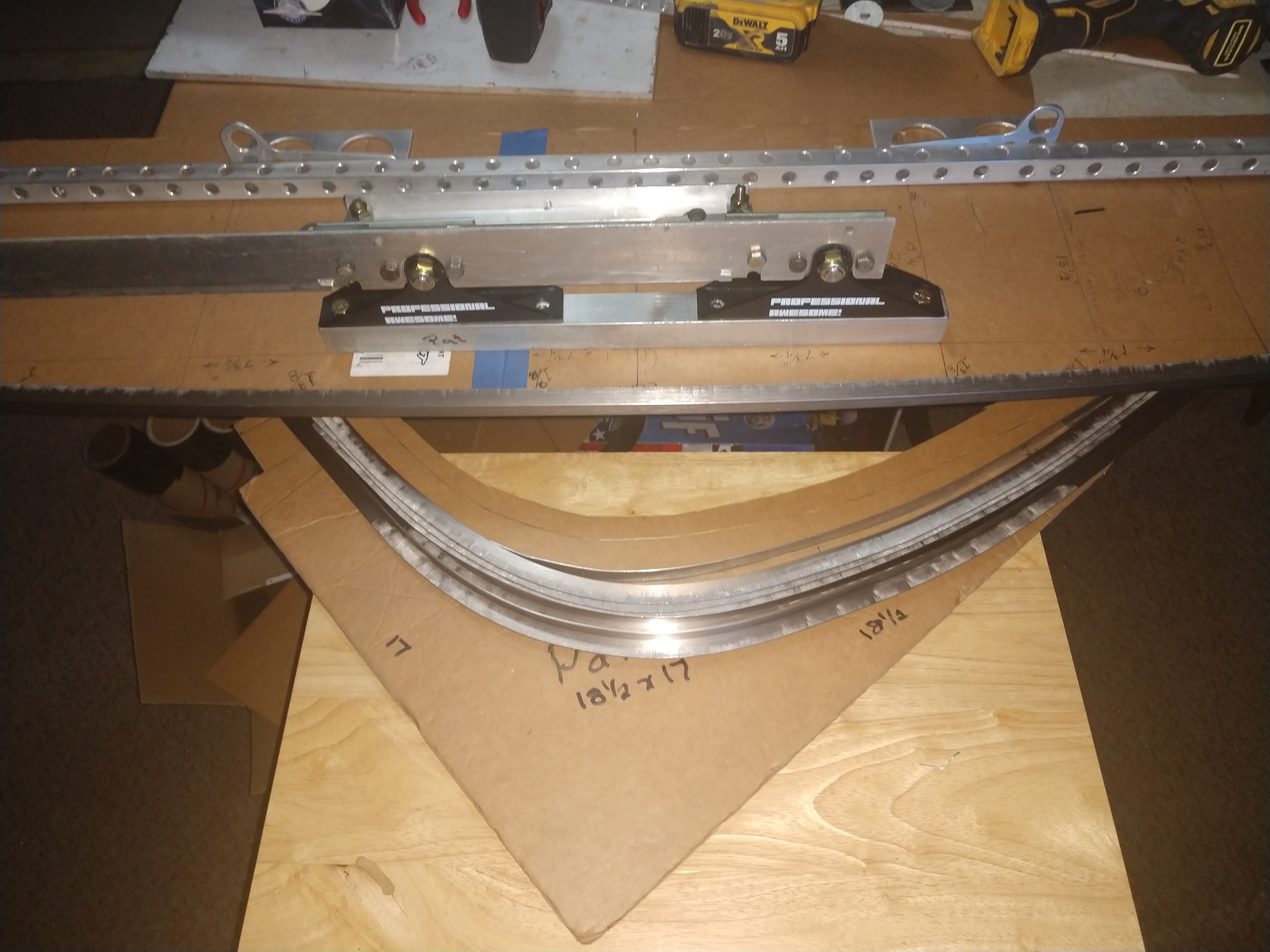

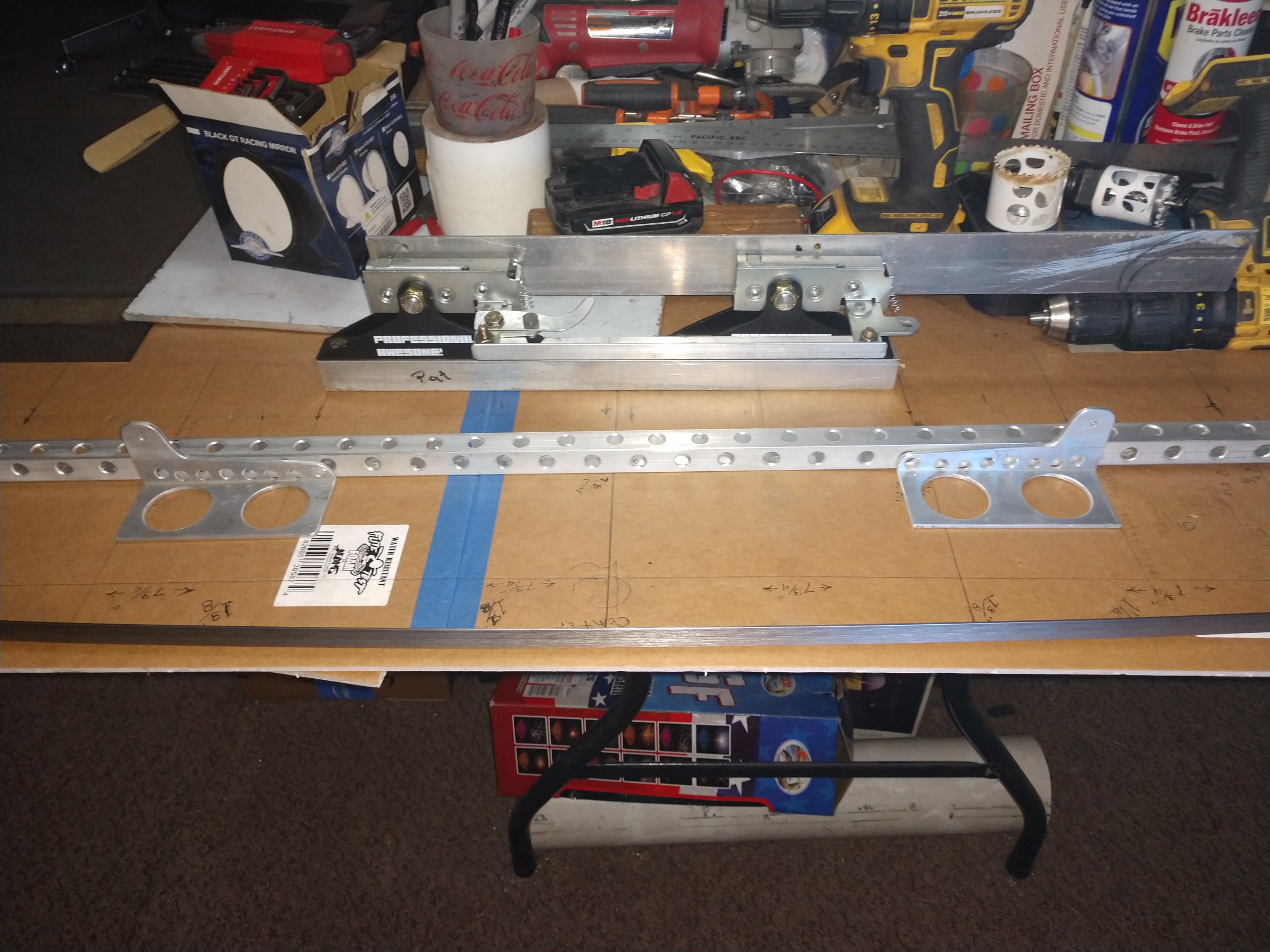

Still collecting parts, I have all the strake supports. The curved piece for the upper edge is there I won't know about mounting the quick release latches until I have the diffuser ready to fit. Just about time to cut some metal.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 25 2024, 05:26 PM
Post #747


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

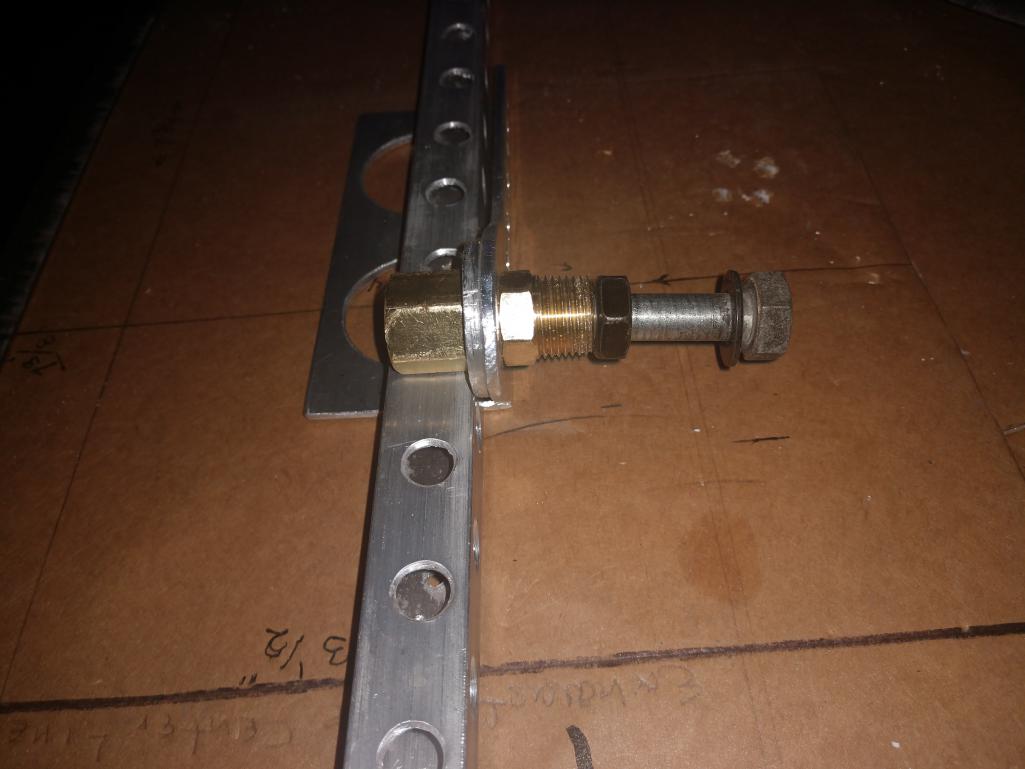

In this picture the brass coupling will accept a10 bolt which is what I'm using for exhaust flange to muffler bracket. I need to change out 2 of the existing bolts for some about an inch longer.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 26 2024, 01:08 PM
Post #748


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
WOW, 69 THOUSAND Viewers.

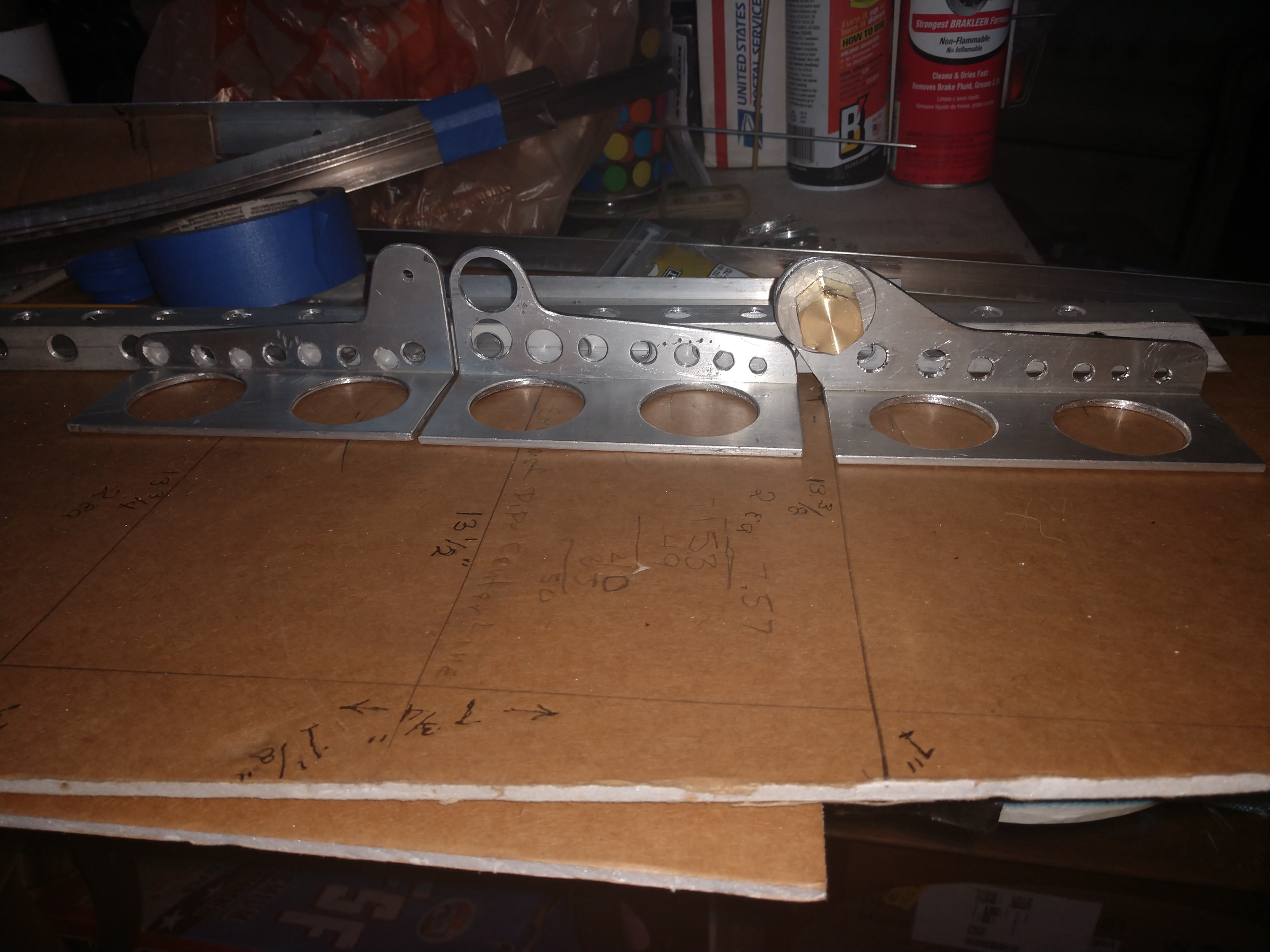

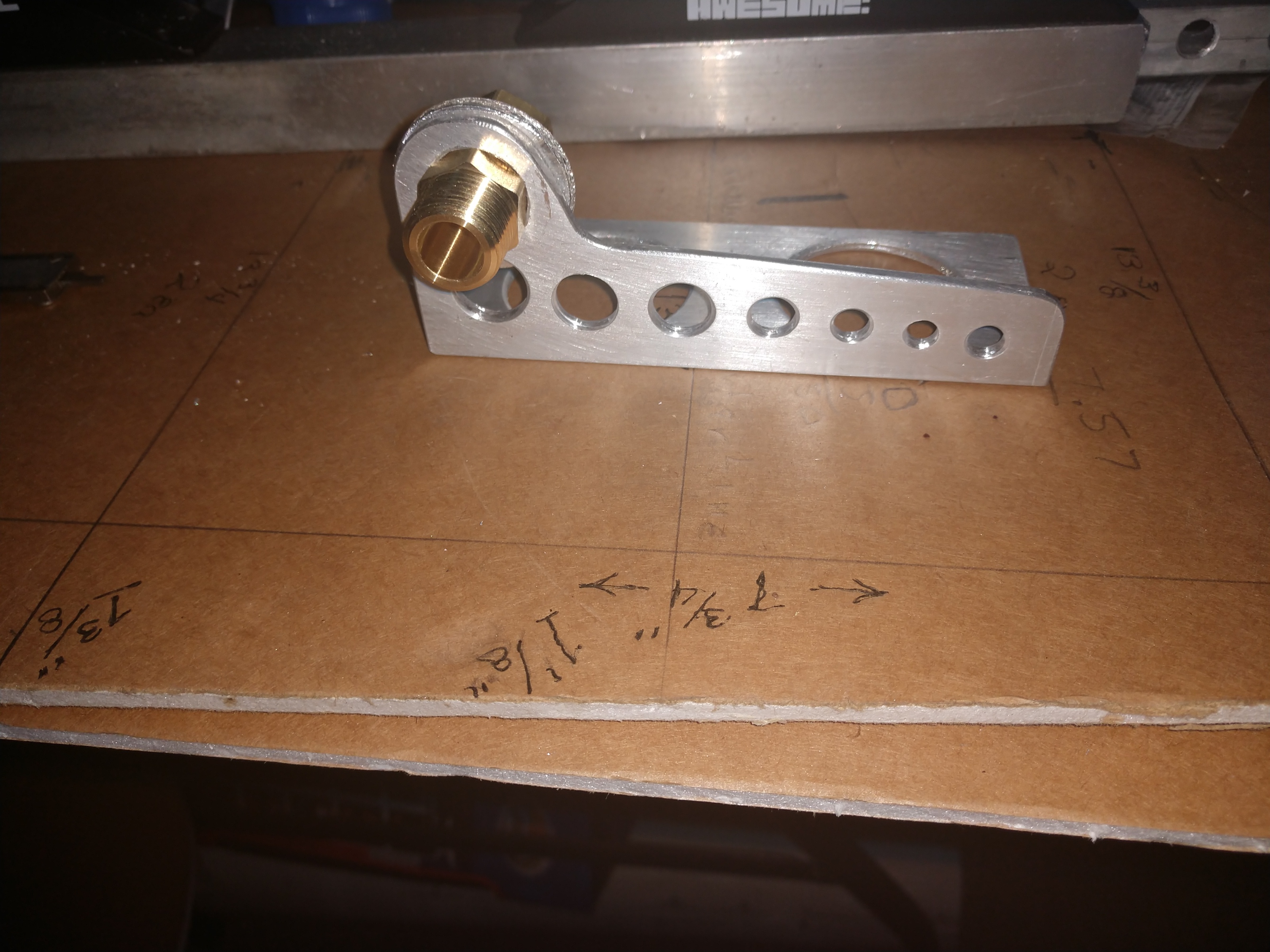

I wish I was as hardware rich as The man Master Musk. I only have a bunch of scrap to draw from. But I am flowing his pattern on iterations. On my third for this bracket

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 26 2024, 01:40 PM
Post #749


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
My dilemma is with the location of the brackets. Inside or outside of the exhaust system. The brace across the leading edge will be riveted to the skin of the diffuser about an inch from the leading edge. What I would like to do is flange the leading edge to go over the panel in front of it. I just bought a new bead roller from Eastwood. I really wanted a 30" combo slip roller, shear brake but I ran out of money. The bead roller will give me the flange I want at the top of the diffuser which is a compound curve.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 27 2024, 05:46 AM
Post #750


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

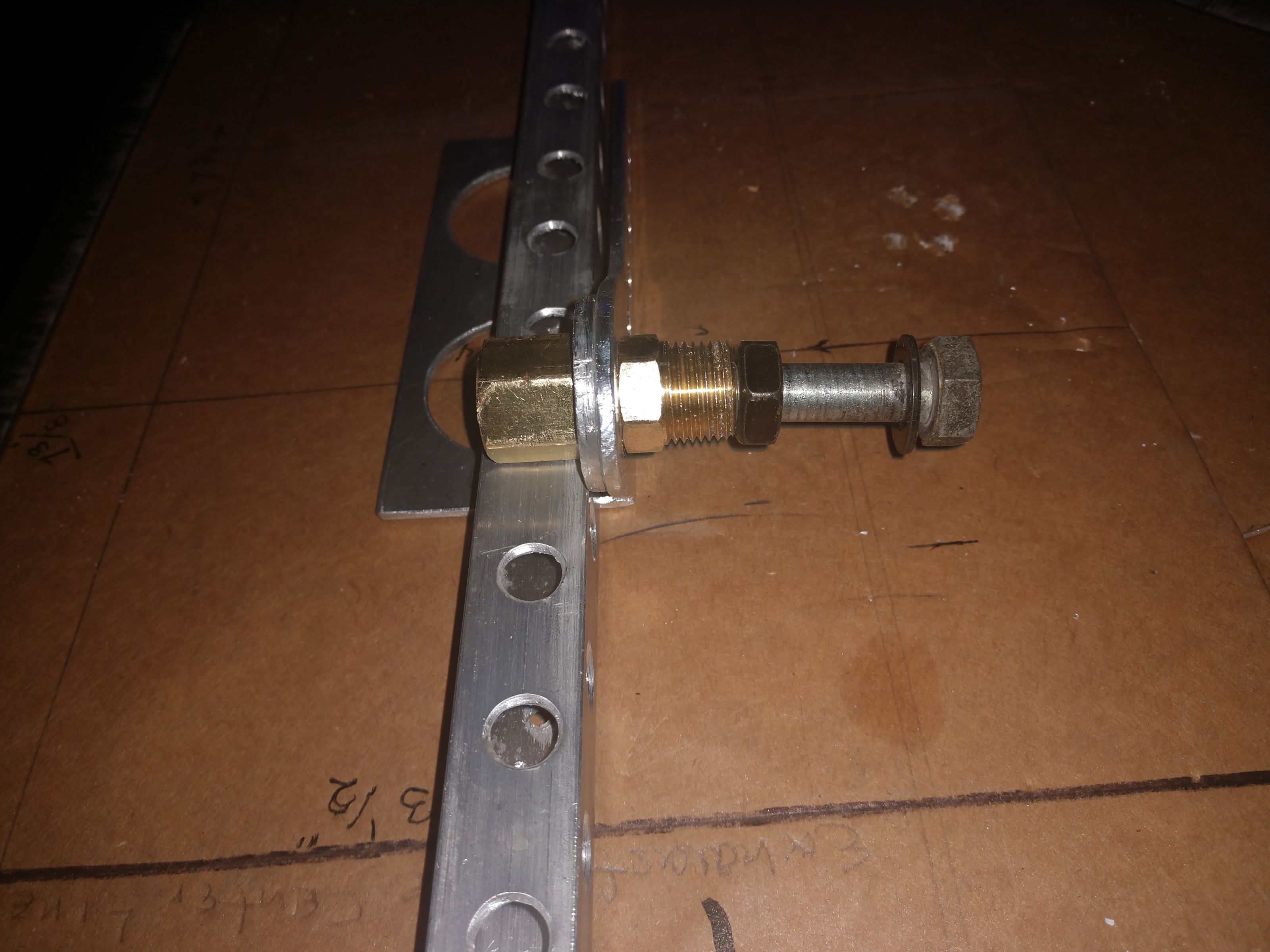

Exhaust muffler flange bolt.

Attached Image

Now I'm going to make sure it.fits.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 27 2024, 08:53 AM
Post #751


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

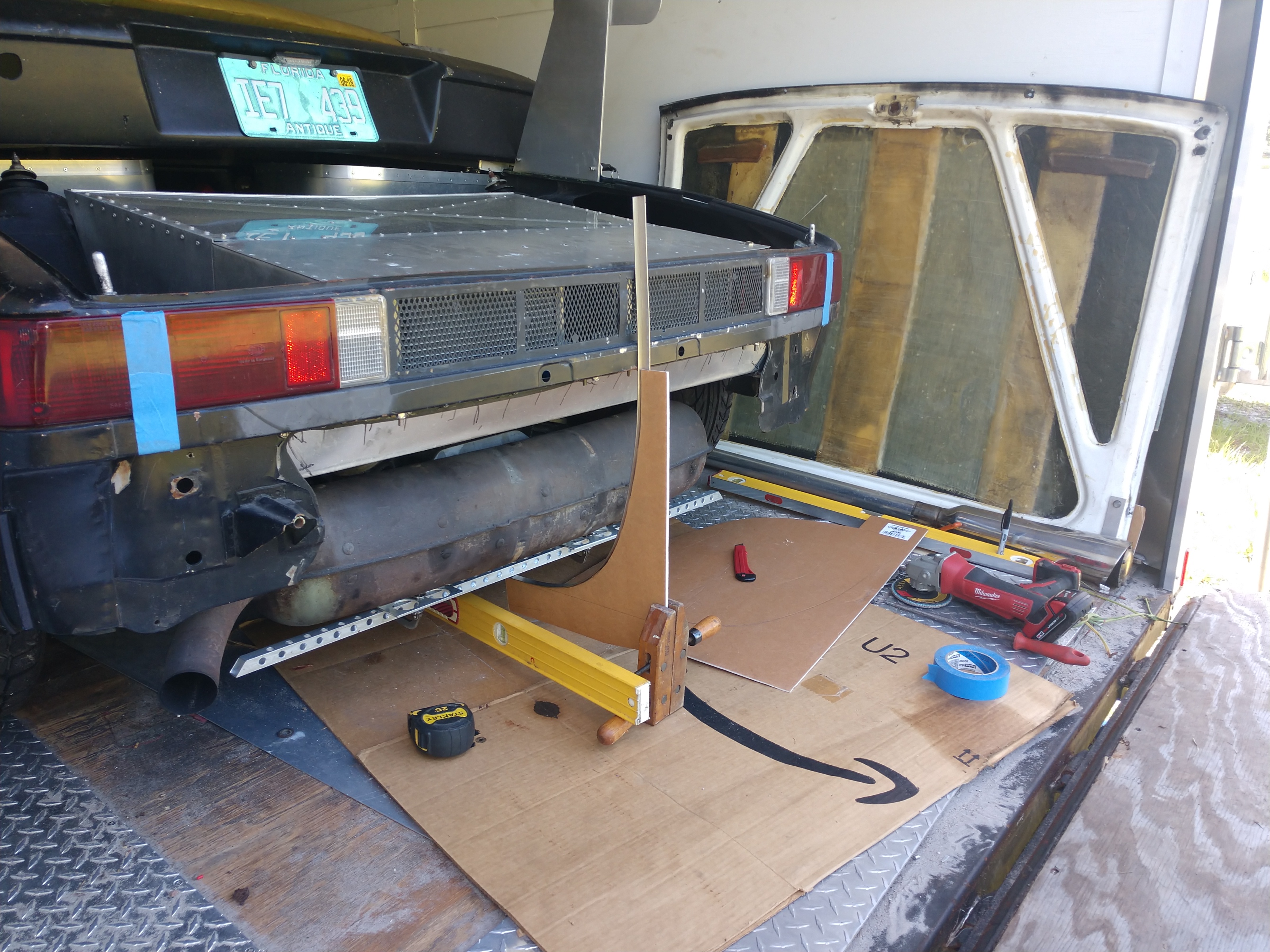

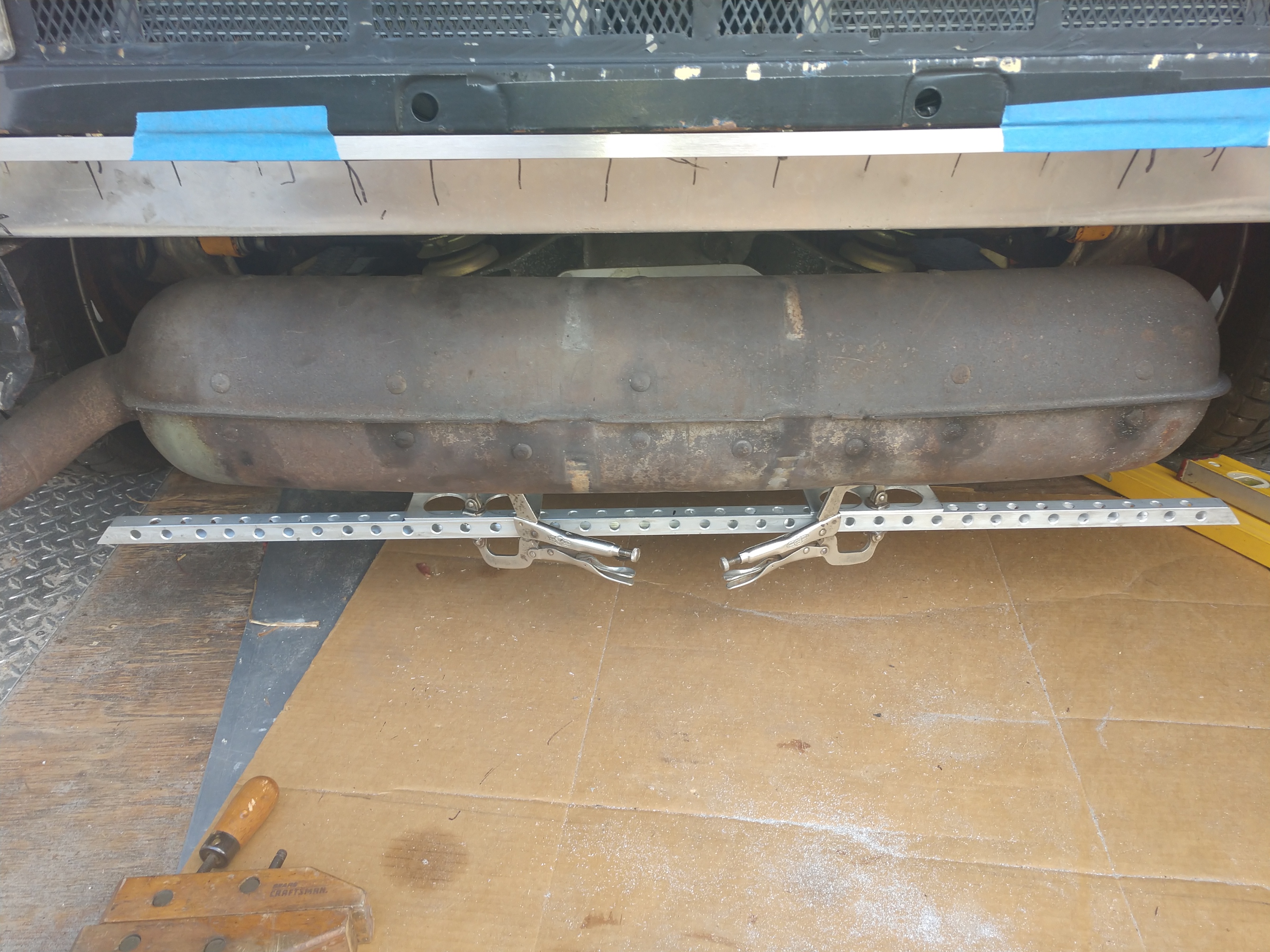

The leading edge brackets and support are hanging on the muffler flange bolts. The trailing edge support is taped to the body where I hope the diffuser lands.

Attached Image

It's coming along nicely, it's probably time for me to make a buck.
When I make me go WOW, I know that I am on the right path.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 28 2024, 06:32 AM
Post #752


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

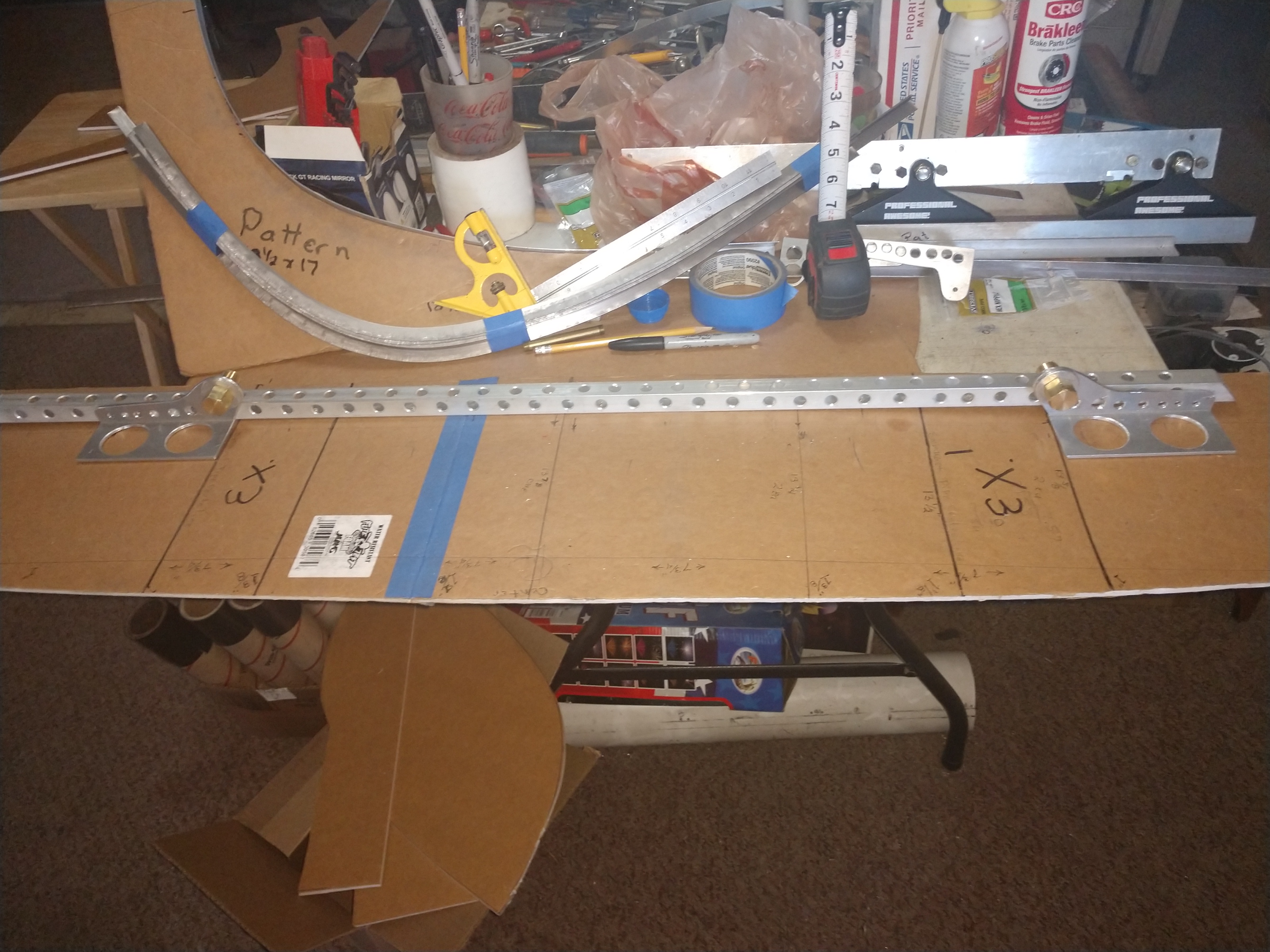

I try to make my work look good but I am not looking for class A finish. But what I'm about to do can make me look really bad. I always leave divots and ripples in sheet metal work. In order to help me with this I'm going to build a buck. The finish product will be about 3/16" narrower at the top than the leading edge. The trailing edge gets a piece of aluminum and the skin will flange over it. That piece has already been fitted is in the picture below. I ordered a bead roller for that and it arrived yesterday, broken. Top shaft not engaging. The strake supports all ready for the strakes. All the strake supports will get their final shape when they get to riveted to the strakes. I need to cut the strakes.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 28 2024, 04:37 PM
Post #753


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
I don't even have a normal vision of what pizza is...

Attached Image

I chose a frozen one and add about 3 pounds of stuff to it...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 29 2024, 08:05 AM
Post #754


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

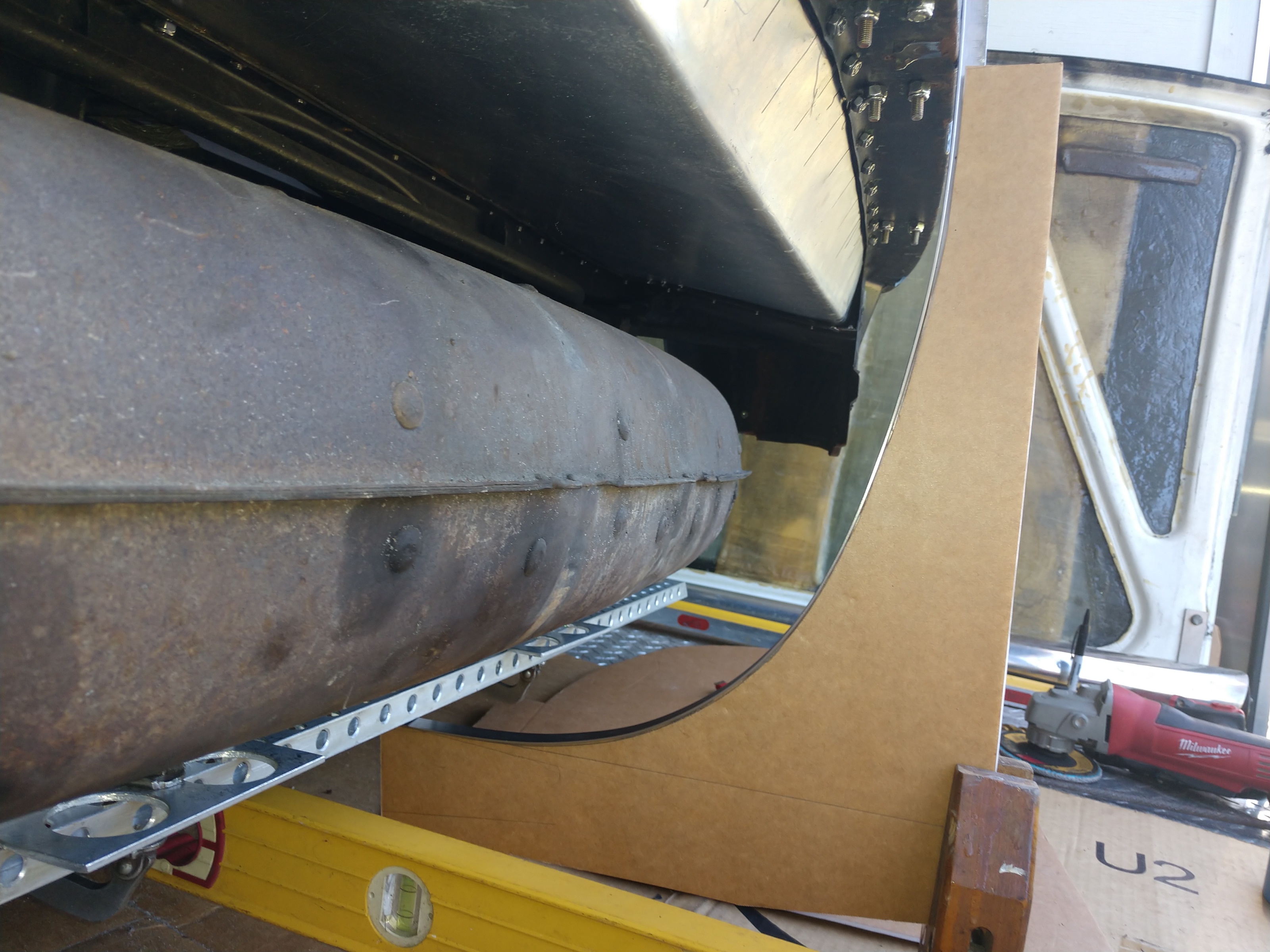

I think I'm on strake pattern number 5. Every one I liked more. This one lines best at the top and the leading edge.

Attached Image

It's gonna take 3 post to get all of the pictures in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 29 2024, 08:09 AM
Post #755


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
The trailing edge lining up completely and the leading edge is lining up with support.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 29 2024, 08:13 AM
Post #756


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
And the trailing edge is lining up with the body.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 29 2024, 09:30 AM
Post #757


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
From the muffler bracket to the black body line under the tail lights. The diffuser will be clean line for the back of the car.

Attached Image

I don't seem to be able to get a better picture at this time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Apr 29 2024, 01:35 PM
Post #758


Senior Member
****

Group: Members
Posts: 2,358
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Pretty cool, Joe (IMG:style_emoticons/default/popcorn[1].gif) I'm not sure how this all works, but I was wondering, would it screw anything up to use one of those fiberglass bumper toppers to give the fins something to terminate into? Hope you are feeling alright
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Apr 29 2024, 04:26 PM
Post #759


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,410
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
Hey Paul, I'm doing really good,how about you. This will be easier to understand when it's all together. I'm trying to give the air under the car an exit. When tied into a car with a little rake and a flat bottom those little PSI's come in square feet. When Jim Hall figured it out he had the poll at Indy by 4 seconds. He was probably the first guy to use a skirt and take.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
